- Page 1 Welch Allyn AED 10 Trainer Manual Get an original copy of the Welch Allyn AED 10 Trainer Manual for manufacturer information about service, available accessories and how to use and maintain your device.
-
Page 2: Table Of Contents
Software Revision 01.01.xx Declaration of Conformity Introducing the Welch Allyn AED10 Trainer Overview ....................3 Special Features ..................3 Getting to Know the Welch Allyn AED10 Trainer User Interface.................... 4 Operating the Trainer Trainer Mode..................... 6 Menu Mode ....................6 Volume.................... -
Page 3: Declaration Of Conformity
Welch Allyn AED10 Trainer Operating Instructions Declaration of Conformity Manufacturer: Medical Research Laboratories, Inc., European Office A Welch Allyn Company Welch Allyn Ireland 1000 Asbury Drive Navan Business Park Buffalo Grove, IL 60089 USA Dublin Road, Navan, Co. Meath Phone:... -
Page 4: Introducing The Welch Allyn Aed10 Trainer

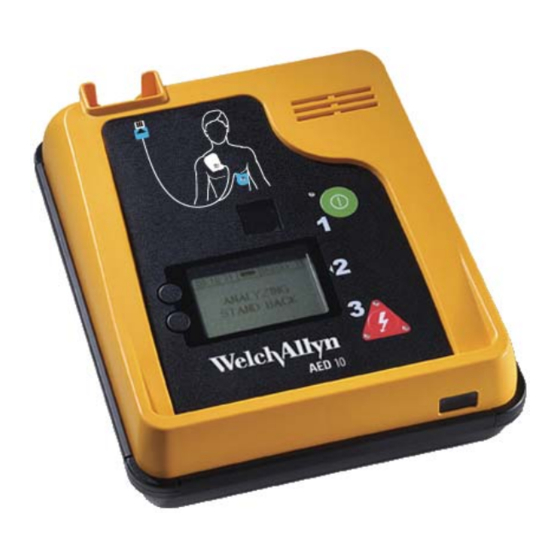

Introducing the Welch Allyn AED10 Trainer Overview The Welch Allyn AED10 Trainer is a training tool for preparing emergency responders to use the Welch Allyn AED10 to treat a victim of sudden cardiac arrest. The Trainer provides realistic simulation of the Welch Allyn AED10 without actually charging or discharging electrical energy. -
Page 5: Getting To Know The Welch Allyn Aed10 Trainer
Welch Allyn AED10 Trainer Operating Instructions Getting to Know the Welch Allyn AED10 Trainer User Interface 3. Connect cable from defibrillator pads 7. Remote Control IR window and Command Status LED 4. System status indicator 1. ON/OFF button 5. Battery level icon 6. -
Page 6: Operating The Trainer
Operating Instructions Welch Allyn AED10 Trainer Operating the Trainer Trainer Mode Trainer mode is the primary mode of operation and is accessed by pressing the green ON/OFF button. In this mode, the Menu buttons are inoperative and all menus are inactive. The ON/OFF button and the Shock button are the only user responsive buttons in this mode. -
Page 7: Menu Mode
Welch Allyn AED10 Trainer Operating Instructions Menu Mode Menu mode allows the user to access and set various system parameters. Menu mode is enabled by holding down the lower menu button while turning on the Trainer. Once the Trainer has been powered up into Menu mode, the following menu appears on the screen:... -
Page 8: Cpr Timer
Operating Instructions Welch Allyn AED10 Trainer Contrast Pressing the Enter button while the Contrast menu item is highlighted displays the Contrast menu, allowing the user to select a contrast value between 0 and 5. As contrast values are selected using the Next button, the display contrast changes immediately to the selected value. -
Page 9: Language
Welch Allyn AED10 Trainer Operating Instructions The scenarios are numbered sequentially in the same order as for the remote control. Scenario Description AHA Scenario 1 AHA Scenario 2 AHA Scenario 3 AHA Scenario 4 AHA Scenario 5 AHA Scenario 6... -
Page 10: Restore Defaults
Operating Instructions Welch Allyn AED10 Trainer Language Pressing the Enter button while the Language menu item is highlighted causes the Language menu to be displayed. The current Language is displayed, and pressing the Next button scrolls through the list of available languages. Each language selection is... -
Page 11: Scenarios
Go to More Menu Scenarios The Welch Allyn AED10 Trainer provides training scenarios that follow the American Heart Association (AHA) recommended AED training scenarios. These scenarios are pre-configured and give an AED Instructor a standard means of training and testing proficiency in AED use. -
Page 12: Changing The Batteries
Operating Instructions Welch Allyn AED10 Trainer Scenario Description Event 1 Event 2 Event 3 Event 4 Event 5 Event 6 Ventricular Fibrillation with Shockable Shockable Non-shockable 3 Shocks 1 Shock four shock conversion Rhythm Rhythm Rhythm Ventricular Fibrillation with Shockable... -
Page 13: Remote Control (Option)
Welch Allyn AED10 Trainer Operating Instructions Remote Control (option) The hand held remote control for the AED10 Trainer provides the Instructor with significant control over the configuration of the Trainer. The remote control communicates with the Trainer via an IR window located next to the pad's connector. A status indicator LED is located next to the IR window, and it will flash to indicate that a command has been received. - Page 14 Operating Instructions Welch Allyn AED10 Trainer Allows the Instructor to select Allows the Instructor to select AHA Scenario number seven as AHA Scenario number eight as the default scenario. The Trainer the default scenario. The Trainer will automatically turn off after the will automatically turn off after the selection has been made.
- Page 15 Welch Allyn AED10 Trainer Operating Instructions © Welch Allyn, 2004 991026 - Rev. B...
-
Page 16: Appendix: Specifications
(IEC 60601-1-2 Table 201) The Welch Allyn AED10 Trainer is intended for use in the electromagnetic environment specified below. The customer or the user of the Welch Allyn AED10 Trainer should assure that it is used in such an environment. - Page 17 (IEC 60601-1-2 Table 202) The Welch Allyn AED10 Trainer is intended for use in the electromagnetic environment specified below. The customer or the user of the Welch Allyn AED10 Trainer should assure that it is used in such an environment.
- Page 18 Compliance level environment - guidance Portable and mobile RF communications equipment should be used no closer to any part of the Welch Allyn AED10 Trainer, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
- Page 19 Communications Equipment and the Welch Allyn AED10 Trainer (IEC 60601-1-2 Table 205) The Welch Allyn AED10 Trainer is intended for use in an environment in which radiated RF disturbances are controlled. The customer or the user of the Welch Allyn AED10 Trainer can...
