5.6

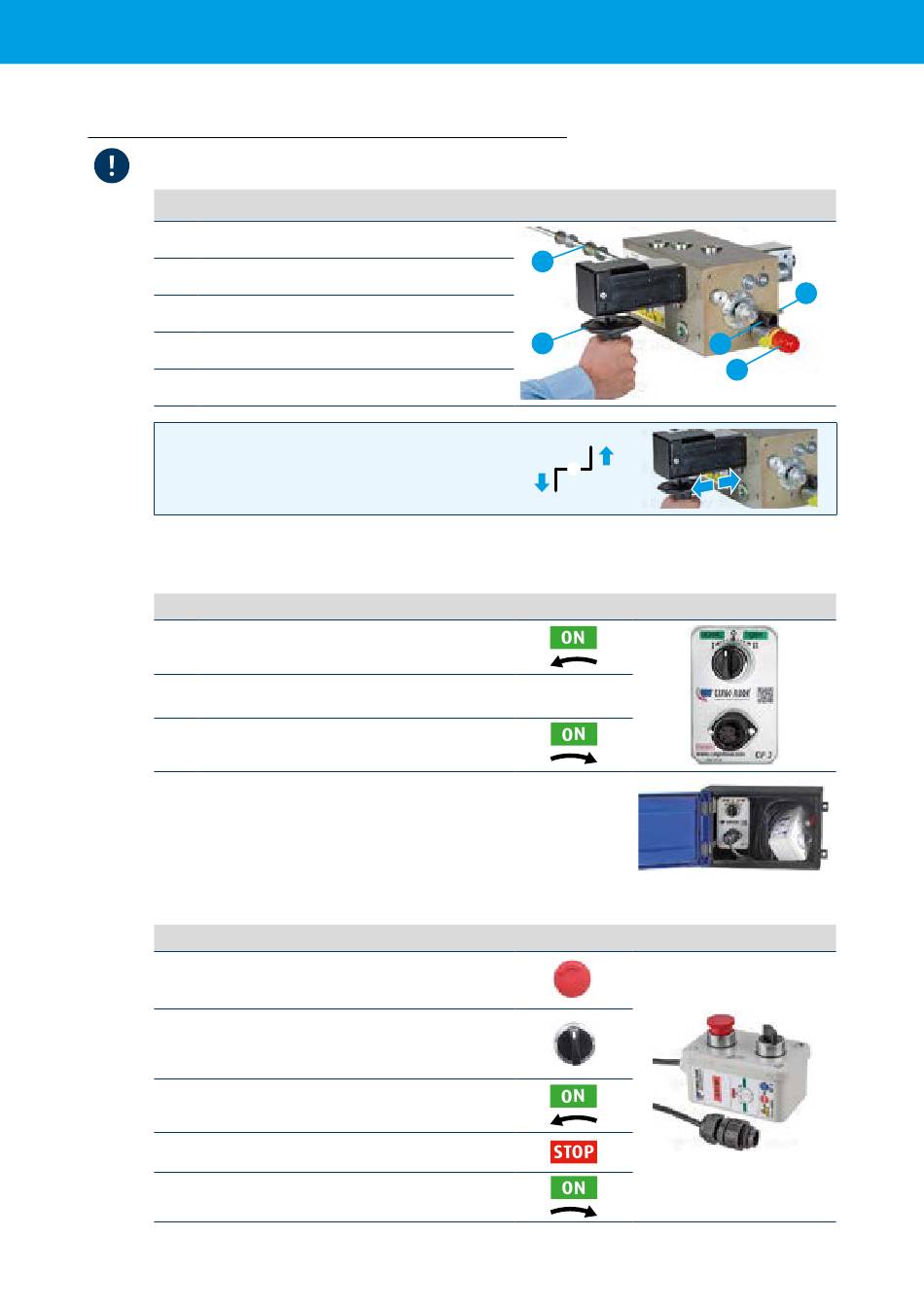

Operating the moving floor (B control)

In the event of malfunctioning of the operation, see Ch 7.2
Loading or unloading can be selected using the handle located under the trailer
1 Threaded rod
2 Operating handle: Loading - Unloading
3 Deutsch connector
4 GS02 function: on/off
5 Pressure relief valve
1 Handle pushed in, moving floor will unload
0 Handle in the middle position, moving floor stops
2 Handle pulled out, moving floor will load
5.6.1 CF3 switch (switch in box on the trailer, see 2.1)
The CF3 is the fixed switch that is mounted in the control box and is equipped with a 3-position switch.
Functions:
From this position the switch jumps to the stop
I
position when you release it.
Centre position = 0, the rotary switch automatically
0
returns to this position when you release it.
From this position the switch jumps to the stop
II
position when you release it.
To prevent an operation conflicting with the CF4 remote control, the switch is
equipped with an automatic spring return. Position I and II, always jumps back to
the "0" position. At the front of the CF3 switch is a connector to which the CF4
switch can be connected. The CF3 switch can be used if the CF4 switch malfunctions
5.6.2 CF4 switch (remote control)
Functions:
Red button: The emergency button. Press to activate and
turn to deactivate the emergency button;
Rotary switch: three-position rotary switch. By activating
this, the system will start loading or unloading (depending
on the position of the control lever). By deactivating this,
the system will stop.
Load: When released, the switch turns to the stop position
Centre position
Unload: Where the switch remains in the position(locking).
