ITT i-ALERT2 Application Manual page 39

The trend data may be difficult to see in the default window. Fortunately, you can zoom in and out as well as pan right or
left using standard mobile touchscreen commands. To pan, simply swipe right or left to move the chart. To Zoom In, touch
the trend chart with 2 fingers and spread them apart. You can use this gesture to change both the X and Y scales on the
chart. You can also zoom in on a specific area of the graph by double tapping. To Zoom Out, touch the screen with pinch
your fingers together. To reset the zoom to the default setting, you will have to leave this screen by either going into the
Kurtosis trend or switching to "Weekly" and back.
DEVICE NAME
Zoom In
Zoom Out

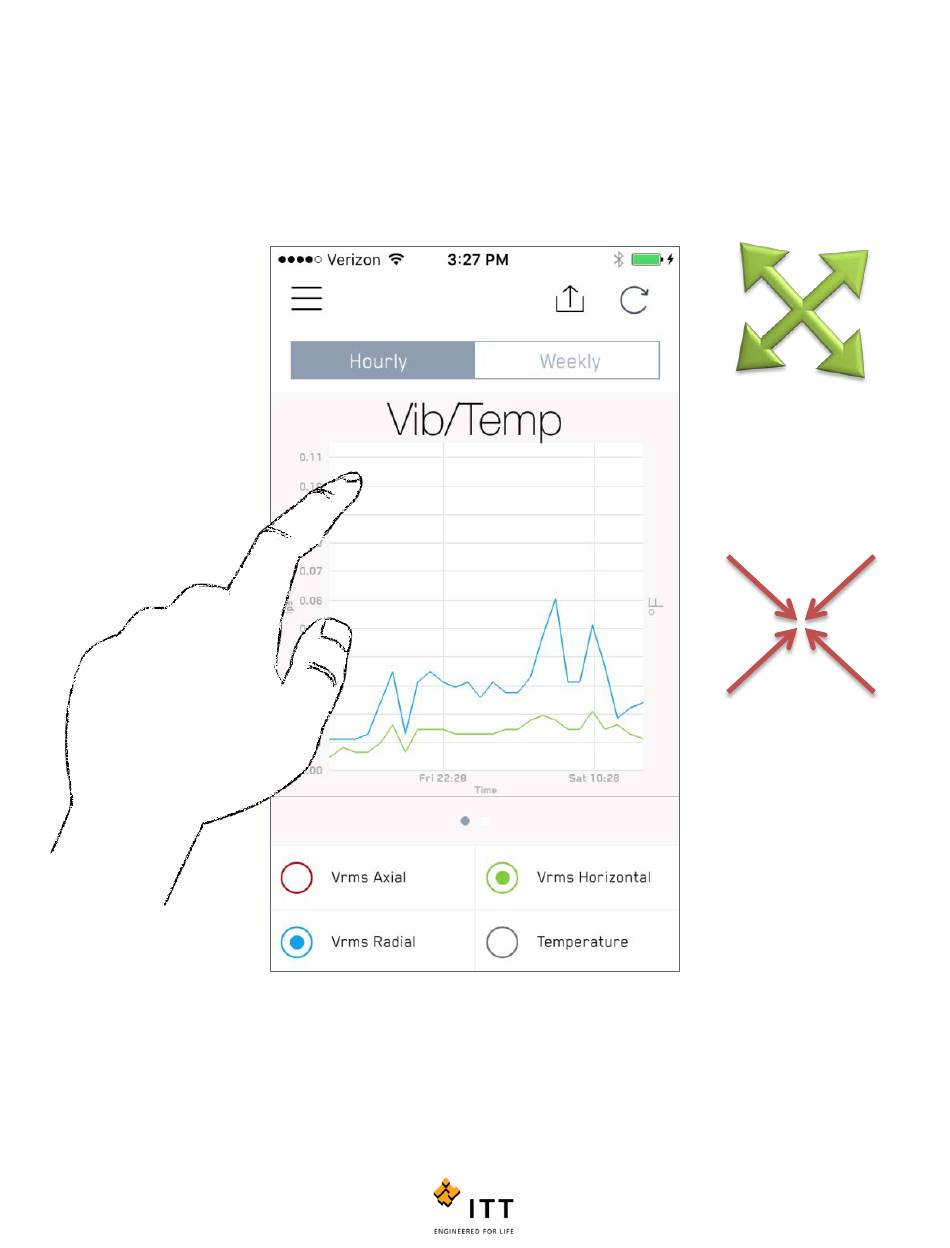

Figure 34: Trend graph zoomed in
i-ALERT2 Application Guide 39 of 64
