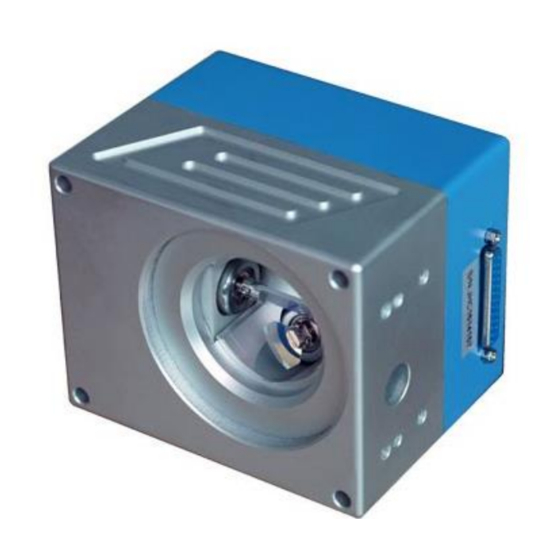

- Page 1 Model SG7310 Galvanometer Scanner Instruction Manual SINO-GALVO (BEIJING) TECHNOLOGY CO., LTD.
- Page 2 The Most Professional Laser Scanning Galvanometer Scanners Company Profile Sino-Galvo (Beijing) Technology Co., Ltd. is a high and new technology enterprise which is located in the Zhongguancun high-tech industrial parks. We specialize in optical scanning galvanometers and its related product’s development, production and sales.
-
Page 3: Table Of Contents
SINO-GALVO(BEIJING) TECHNOLOGY CO., LTD. The Most Professional Laser Scanning Galvanometer Scanners Contents Chapter 1 Summary of SG7310 Scanning system ..- 3 - Chapter 2 SG7310 Technical Parameters ....- 4 - 2.1 The Galvanometer Structure and Wiring ..- 5 - 2.2 Power supply wiring diagram ...... -
Page 4: Chapter 1 Summary Of Sg7310 Scanning System
PDM control mode, and using the Military-grade processes and technologies. The model SG7310 galvo scanner has the good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall performance of SG7310 has reached the international leading level in this field. -
Page 5: Chapter 2 Sg7310 Technical Parameters
SINO-GALVO(BEIJING) TECHNOLOGY CO., LTD. The Most Professional Laser Scanning Galvanometer Scanners Chapter 2 SG7310 Technical Parameters SG7310 Motors & Drive board technical parameters Motor Specification Working Temperature 0-45℃ Linearity 99.9% Setting Time ≤0.35ms Scale Drift <40PPM/℃ Zero Drift <15μRad./℃ Long-term Drift Over 8 Hours <0.5mRad... -
Page 6: The Galvanometer Structure And Wiring
SINO-GALVO(BEIJING) TECHNOLOGY CO., LTD. The Most Professional Laser Scanning Galvanometer Scanners 2.1 The Galvanometer Structure and Wiring Scanner housing Scanner motors drawing - 5 -... - Page 7 SINO-GALVO(BEIJING) TECHNOLOGY CO., LTD. The Most Professional Laser Scanning Galvanometer Scanners External housing size drawing - 6 -...
-
Page 8: Power Supply Wiring Diagram
SINO-GALVO(BEIJING) TECHNOLOGY CO., LTD. The Most Professional Laser Scanning Galvanometer Scanners 2.2 Power supply wiring diagram Power Supply - 7 -... -
Page 9: The External Wiring For Db25 Connection
SINO-GALVO(BEIJING) TECHNOLOGY CO., LTD. The Most Professional Laser Scanning Galvanometer Scanners 2.3 The External Wiring for DB25 Connection Digital Digital Wiring Diagram Analog Wiring Diagram - 8 -... -
Page 10: Chapter 3 Self-Checking And Faq
SINO-GALVO(BEIJING) TECHNOLOGY CO., LTD. The Most Professional Laser Scanning Galvanometer Scanners Chapter 3 Self-checking and FAQ Before starting up the whole system, please check carefully to confirm whether there is any problems, such as: plug virtual connection or without connection, two mirrors touched with each other, drive board signal input errors, etc. -
Page 11: Special Notice
If you have any questions, please contact our Technical Services Department: Service consulting hot-line: 400-055-8805 SINO-GALVO (BEIJING) TECHNOLOGY CO., LTD. Add: No. 209, 2/F West, North Tower, Caihong Mansion, No.11 Shangdi Xinxi Road, Haidian District, Beijing, China. 100085...
