Fiberglass Specialties, Incorporated
500 Austin Ave. Henderson, TX 75652
800-527-1459
www.FSIWEB.com
Installation, Operation, and Service Procedures
This procedure book covers all H series heaters. They are designed to be used
only with baptismal pools manufactured by Fiberglass Specialties, Inc.
Optional items available for use with H series heaters have their own
instruction sheets. Allow for placement, wiring, and plumbing of all optional
items prior to beginning the installation of this heater.
HEY! The system timer works by moving the minute hand clockwise, not turning
the body of the timer. Turning the body of the clock will
permanently damage the unit making it unusable.
Note: These systems are designed for use with municipal water systems. The
warranty for all products (including the pool) is void if any non-potable water is
used in the pool.
for all H-5 and H-11 heaters

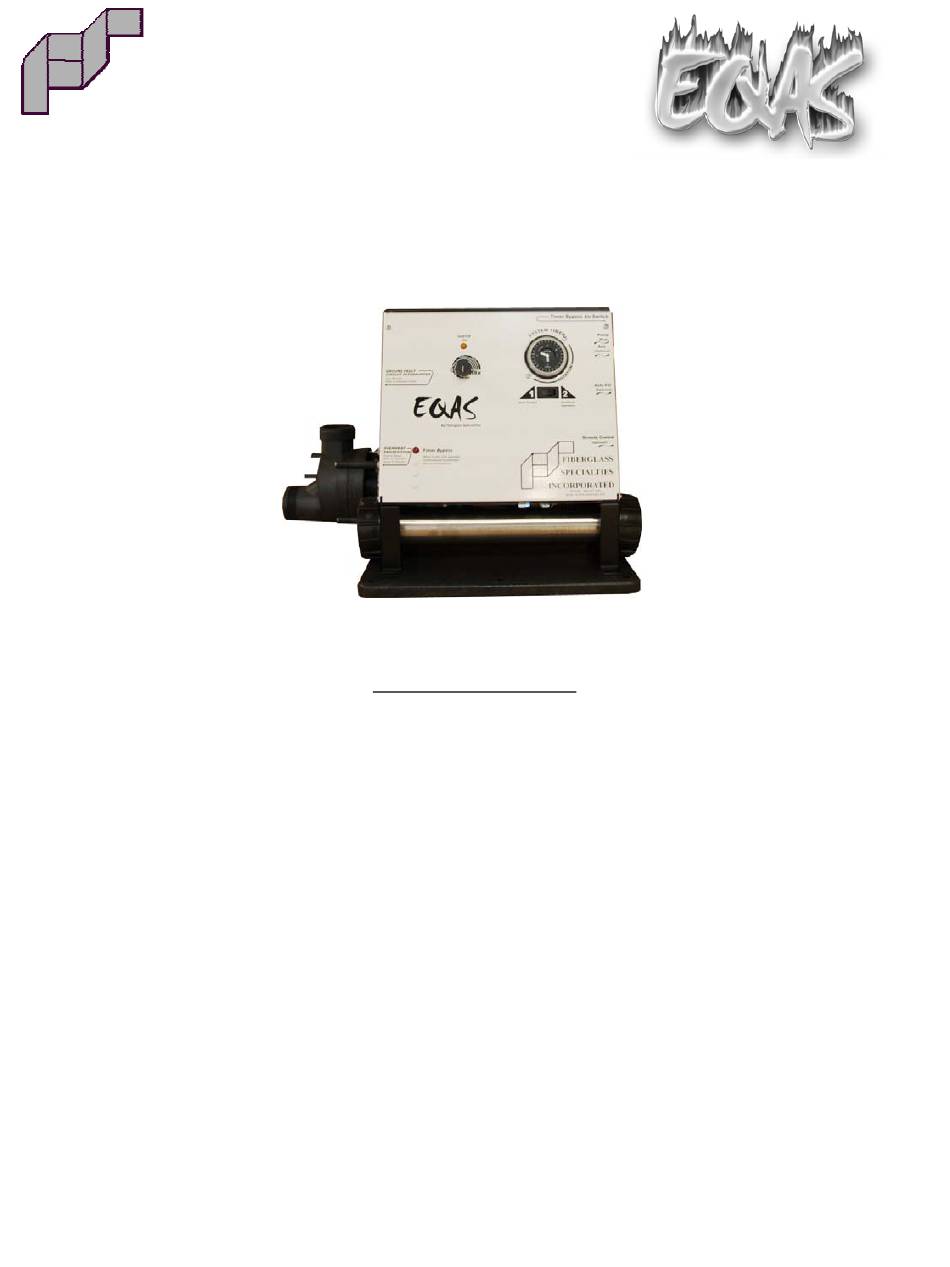

H-5 shown
General Description
1
Advertisement
Table of Contents
Related Manuals for EQAS H-5 Series
Summary of Contents for EQAS H-5 Series
- Page 1 Fiberglass Specialties, Incorporated 500 Austin Ave. Henderson, TX 75652 800-527-1459 www.FSIWEB.com Installation, Operation, and Service Procedures for all H-5 and H-11 heaters H-5 shown General Description This procedure book covers all H series heaters. They are designed to be used only with baptismal pools manufactured by Fiberglass Specialties, Inc.
-
Page 2: Important Safety Instructions
Important Safety Instructions Read before beginning any work on the heater 1. Read, understand, and follow all instructions. 2. DO NOT permit children to use or operate this heater 3. Install within 5’ of the pool using non-metallic connections 4. WARNING—FOR INDOOR USE ONLY. 5. - Page 3 Step 1 Pre-Plan & Assembly • Assemble the heater and pump to the base using the instructions provided • Locate the heater in an accessible area adjacent to and at the same approximate eleva- tion as the floor of the baptismal pool. The heater must be located within 5’ of the pool. •...
-
Page 4: Wiring The Heater
Step 2 Electrical IMPORTANT NOTE : Due to the risk of electrical shock, a licensed electrician experienced in • spa/baptismal pool heaters should install this unit in strict compliance with the National Elec- trical Code and any state or local code which may apply. Units are required to have a clearly labeled emergency switch provided by the installer as part of the installation. -
Page 5: Operation Of The Heater
Check for Proper System Operation 1. Fill the pool with water. The pool is considered full when the water level is 6” below the top of the baptismal. 2. Turn the thermostat to the OFF position 3. Set the Timer Mode Switch to the #2 position (continuous operation) 4. -
Page 6: Important Warnings
Important Warnings • The main power to the heater system and all other electrical components should be turned off before anyone enters the pool. Even if the thermostat or timer have paused the heater functions, live electrical circuits are still present! Do not operate the pool until it is full. -
Page 7: Troubleshooting Guide
Trouble Shooting Guide Nothing Operates: Main Breaker Set to on position Sub-panel circuit breaker Set to on position GFIC tripped Set to on position Components not plugged in Plug in all components Time Clock has turned system off Adjust time clock Overheat Protection Switch tripped Reset High Limit Switch and monitor closely. -
Page 8: Warranty
Options & Accessories Available for the H Series Heaters Installation Instructions for all items below are packaged with the products individually EQAS 2000 Autofill System Flush Fill Port Deck Mounted faucet Manual Drain...
