TI01305S/04/EN/01.16
71333366
Products
Technical Information

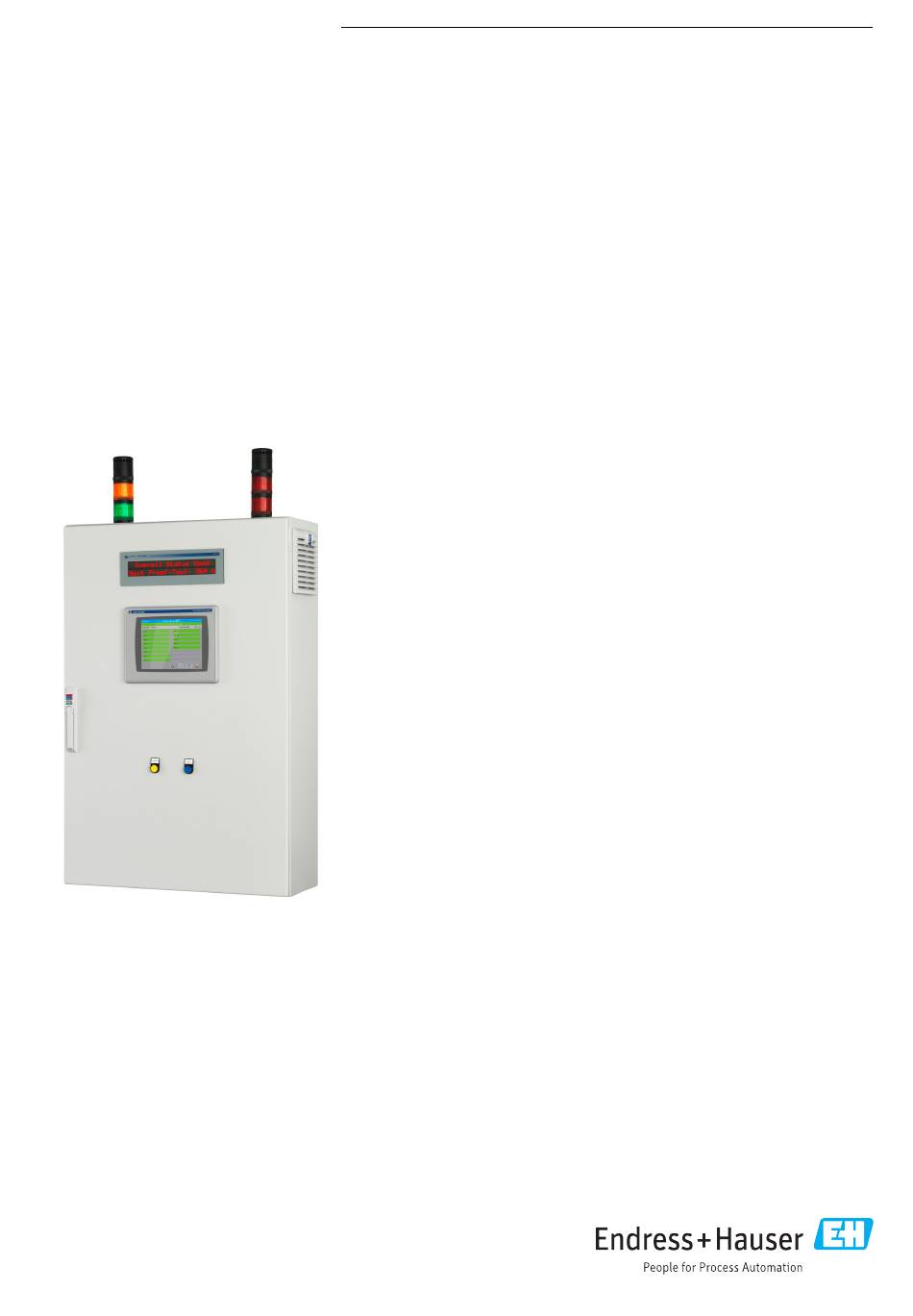

Overfill Prevention System
SOP600
SIL2/SIL3 Tank overfill prevention
For reliable and secure tank overfill prevention
Application
The Overfill Prevention System is type-certified up to SIL3 according to IEC 61511
and meets the requirements of API2350 and WHG (German Water Resources Act).
Two versions of the system are available (automatic and manual) and are designed
for 1 to 16 tanks. If the High-High level is exceeded, a safety relay is disabled or field
signaling is enabled (SIL function). Optionally, the High level can also be monitored
as a warning (for information purposes only, no SIL function). The Overfill
Prevention System features detailed warnings and alarms on the touch panel and on
the optional 2" text display unit, system status indication via stack lights and safety-
oriented alarm signaling in the field (optionally AOPS). The text display unit can be
mounted in the cabinet door or in an external housing and helps users to read the
current system status from afar. The system has an automated proof test cycle, which
must be performed periodically to maintain functional safety. A corresponding report
can be printed out on a printer (optional). The system offers an UPS (optionally
AOPS) for 30-minute operation in the event of a power failure.
Your benefits
• Solution with fully independent SIL2/SIL3 certification for maximum trust and
reliability. Certification is performed by independent safety inspectors with
operations worldwide
• Safe investment as the solution is modular, scalable and extensible
• Integrated automated proof testing shortens the time for commissioning and
maintenance
• Detailed warnings and alarms help users to make quick decisions and take
immediate action
• Seamless integration into monitoring systems for remote monitoring via standard
interfaces such as EtherNet/IP or Modbus TCP
• Traceability and transparency with automatic event and user intervention log
• Reduced engineering and commissioning time and lower maintenance costs
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOP600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser SOP600

  • Page 1 Services TI01305S/04/EN/01.16 71333366 Technical Information Overfill Prevention System SOP600 SIL2/SIL3 Tank overfill prevention For reliable and secure tank overfill prevention Application The Overfill Prevention System is type-certified up to SIL3 according to IEC 61511 and meets the requirements of API2350 and WHG (German Water Resources Act).
  • Page 2: Table Of Contents

    Liquiphant M FTL7x ......13 Overfill Prevention System SOP600 ....
  • Page 3: Document Information

    The Endress+Hauser Liquiphant (point level switch) transmits the current level (point level exceeded or not) to the Endress+Hauser Nivotester. If the High-High level is exceeded, the Nivotester opens the fault-signaling contact which is connected to the safety PLC. The safety PLC detects a level alarm and switches on the alarm siren and alarm strobe (field signaling MOPS) and/or opens the contact of the tank-specific safety relay (AOPS).
  • Page 4: System Design

    Overfill Prevention System SOP600 System design The Overfill Prevention System consists of: • Cabinet for Overfill Prevention System – Power unit (optional: redundant power unit, UPS and battery) – SIL2 or SIL3 Nivotester (transmitter for Liquiphant) – SIL3 PLC including input/output modules –...
  • Page 5: Input

    Overfill Prevention System SOP600  2 Automated Overfill Prevention System (AOPS) - overview Cabinet for Overfill Prevention System Safety relay output Sensor, High-High alarm Sensor, High warning Automatically disabled actuator Input Measured variable Level Input signal FTL8x (SIL3): • Connectable point level switches: Liquiphant FailSafe FTL8x with FEL85 electronic insert •...
  • Page 6: Surge Voltage Resistance

    Overfill Prevention System SOP600 • Two closing contacts per tank. Protected by 2A fuses (replaceable) • Min. current/voltage: 10 mA 10 V • Max. current/voltage: – UL: C 300 – AC-15: 1.5 A 250 V – DC-13: 2 A 24 V (0.1 Hz)
  • Page 7: Ambient Temperature Range

    Overfill Prevention System SOP600 Alarm strobe (field signaling): Inside/outside, non-hazardous area Alarm siren (field signaling): Inside/outside, non-hazardous area WARNING The loud alarm siren (105dB) can cause hearing damage. ‣ Only mount sirens outdoors, not in enclosed spaces. Ambient temperature range Control cabinet: 5 to 25 °C (41 to 77 °F)
  • Page 8 Overfill Prevention System SOP600 A0031798  4 Example: freestanding cabinet (e.g. for 16 tanks) The dimensions of the cabinet depend on the type of Overfill Prevention System (AOPS, MOPS, SIL2, SIL3, options used etc.) and the number of tanks: • Cabinet for 8 tanks: 800x1200x300 (BxHxD in mm), for wall mounting + approx.
  • Page 9: Certificates And Approvals

    Overfill Prevention System SOP600 Housing for 400x200x80 (BxHxD in mm) external text display unit Alarm strobe 150x150x143 (BxHxD in mm) (field signaling) Alarm siren 130x130x130 (BxHxD in mm) (field signaling) Weight The weight of the cabinet depends on the type of Overfill Prevention System (AOPS, MOPS, SIL2, SIL3, options used etc.) and the number of tanks: •...
  • Page 10: Ex Approval

    Overfill Prevention System SOP600 requirements of the EC Directive. Endress+Hauser confirms the conformity of the devices by affixing to them the CE mark. Ex approval The cabinet, the text display unit and the outside signaling unit must be mounted in a non- hazardous area.
  • Page 11 Overfill Prevention System SOP600 Feature Description Option model 4 (High + High-High level), MOPS 8 (High + High-High level), MOPS 12 (High + High-High level), MOPS 16 (High + High-High level), MOPS High-High level (SIL certified) FTL325P-H1E1 (ATEX/IEC Ex), SIL2...
  • Page 12: Restrictions

    Overfill Prevention System SOP600 Feature Description Option model Special version, TSP-no. to be spec. Interface Modbus TCP (slave) Ethernet/IP Services Delivery of internal FAT report & photos Internal FAT report & photos + 10% customer FAT Customer FAT (100% test, 1-4 tanks)
  • Page 13: Liquiphant M Ftl7X

    Overfill Prevention System SOP600 Liquiphant M FTL7x • Technical Information TI00354F/00/EN • Brief Operating Instructions KA00143F/00/EN Overfill Prevention System • Operating Instructions BA01587S/04/EN SOP600 • Functional Safety Manual (SIL) SD01599S/04/EN Endress+Hauser...
  • Page 16 www.addresses.endress.com...
