Viking E-1600-ASTIPEWP Quick Start Manual

VIKING
QUICK START GUIDE
See Product Manual for complete installation and programming instructions.

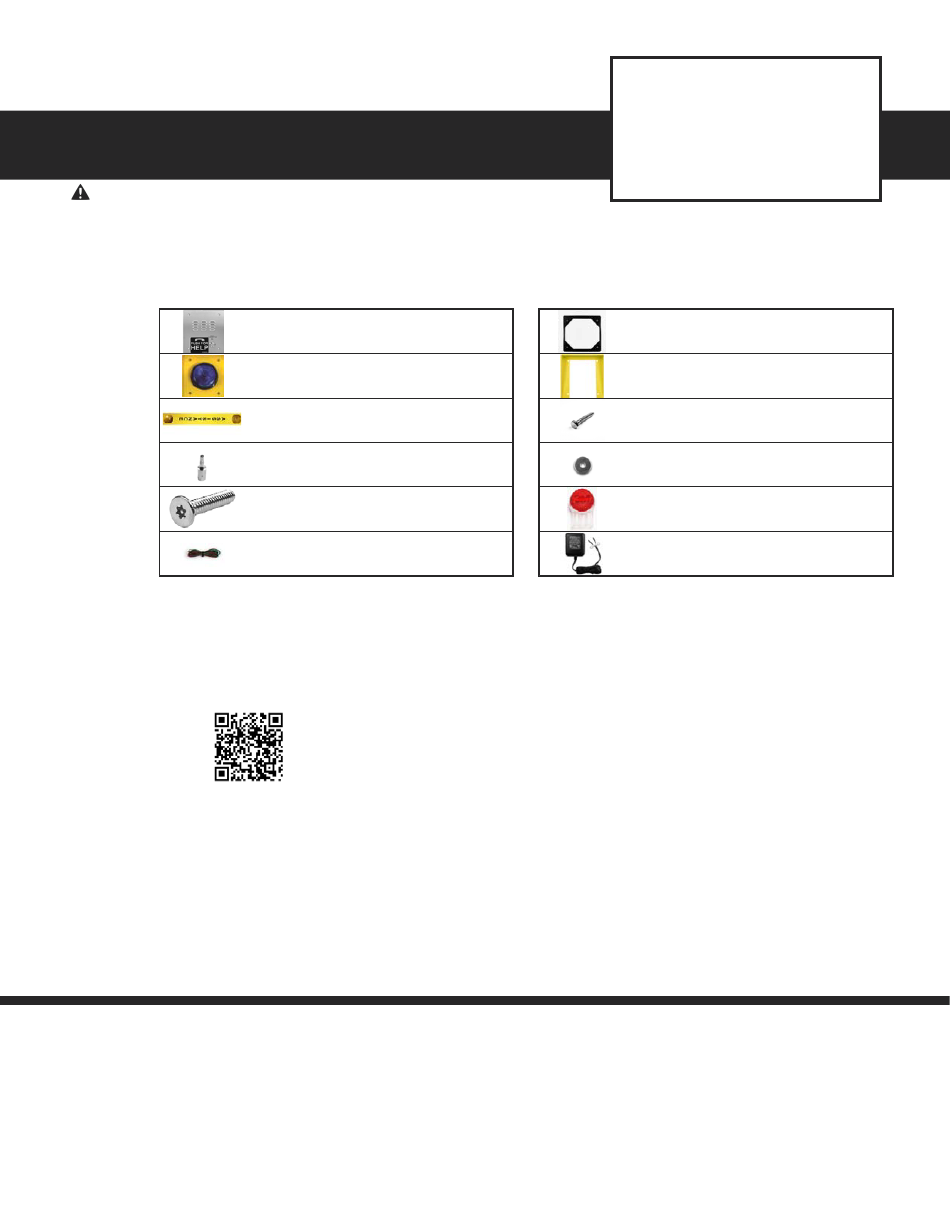

1.0 Out-of-Box
1.1 Verify that you have received all of the parts listed
1.2 Download the product manual
Scan the QR code to
open and download
the product manual
1.3 Download and install the programming software
1. Go to www.vikingelectronics.com and enter E-1600-ASTIPEWP in the search box
2. Click E-1600-ASTIPEWP in the search results
3. Scroll down the page to Downloads, click IP Programming Software
4. Install the programming software by saving or opening the file and then clicking on
setup Viking IP Programming.exe
5. Follow the prompts on your screen to complete software installation
2.0 Power Source
Select PoE Switch or PoE Injector that meets the following requirements:
1. IEEE 802.3af / 802.3at / 802.3bu compliant
2. Capable of providing at least 4 Watts (class 1)
Note: CAT5e (or higher) cable recommended
Electronics, Inc.
X 1
Assy Final
X 1
Assy Strobe Panel
X 1
Chassis E-1600-BLTIPEWP
X 1
Torx T-10 Security Bit
Screw Flat head Torx Drive
X 8
6-32 x 3/4 Stainless Steel
Black, Red and Green Wires
X 1
bundled with Cable Tie
- OR -
E-1600-ASTIPEWP
VoIP Emergency
Phone
January 15, 2019
X 2
X 1
X 2
X 2
X 6
X 1
1. Go to www.vikingelectronics.com and enter
E-1600-ASTIPEWP in the search box
2. Click E-1600-ASTIPEWP in the search results
3. Click Product Manual to open and download
the PDF
Panel Gasket
Hood
5-16 x 2.5 in. Lag Screw
Washer 5/16 Fender
Gel-Filled Butt Connectors
Transformer 12VDC
