Instructions for functions
Introduction of battery test operation

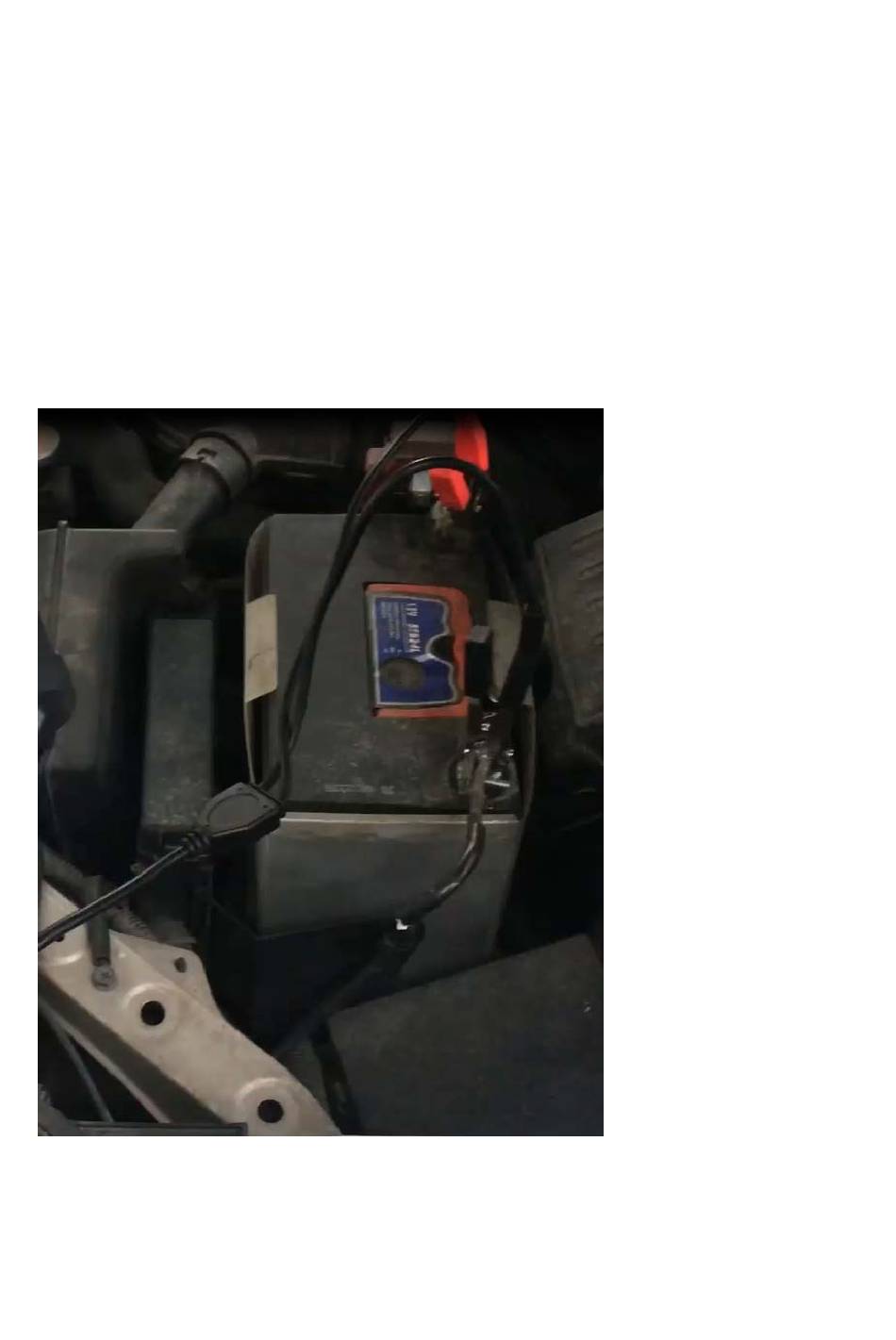

Connect device with the battery
Put the red and black clamp to the battery to be tested. Red clamp
for positive, black clamp for negative. It will show start-up
interface on the screen.
The voltage of the battery to be tested should be lower than 6.0 V
or the normal test is unable to proceed; Press OK to continue.
Advertisement
Related Manuals for Obdstar BT06
Summary of Contents for Obdstar BT06
- Page 1 Instructions for functions Introduction of battery test operation Connect device with the battery Put the red and black clamp to the battery to be tested. Red clamp for positive, black clamp for negative. It will show start-up interface on the screen. The voltage of the battery to be tested should be lower than 6.0 V or the normal test is unable to proceed;...
- Page 2 According to the prompt of the device, select in proper order Step1: Choose the testing state It refers to if the battery is inside the vehicle with load connected. If so, choose [Inside vehicle]. If not, choose [outside vehicle]. Step2: Choose charge state It refers to if the charge of the battery is finished.
- Page 3 Step3: Choose battery type It refers to the battery type. Choose [Normal battery] in general. Step4:Choose input standard It refers to the factory marked standard for the battery, which is shown on the right above or the front battery. Choose the marked standard, such as CCA, JIS and etc.
- Page 4 Step5: Choose rated capacity It refers to factory starting current standard, which is shown on the right above or the front battery. Such as 55B24.
- Page 5 Step6: Press ok to begin the test Test results interpretation Tip: Notice: For some batteries in deep lack of power (the vehicle is not used for a long time, batteries are not charged in time; battery is in deep lack of power because of not turning off lamp and door that can not start the vehicle and etc), there will be a prompt “please replace the battery”.
- Page 6 below. Step2: Start the engine according to the prompt and the device will finish the starting system test automatically and show the result. Step3: Test result includes start time, start voltage and voltage state.(In general, start voltage lower than 9.6v is abnormal, higher than 9.6v is normal.)
-
Page 7: Charging System Test
Step4: If the starting system test is abnormal, the battery test results are displayed. In this way, the maintenance personnel can quickly determine the overall condition of the starting system according to this data. Charging system test (1) After starting system test is finished, please press [OK] to... - Page 8 enter Charging system test and operate according to the prompt and “please seep up to 3000 RPM and keep for 5s” (2) After test is finished, the device will show charging voltage, on-load voltage and diode ripple as shown below.
- Page 9 Notice: If the device can not detect the engine speed, there is probably something wrong with the engine regulator or the connection breakdown with the battery. If the device can not detect the charging voltage, the device can skip the engine speed test, then the result will show “No voltage input”.
- Page 10 Charging voltage: high The voltage for generator output is too high. As most generators in the cars use a built-in regulator, it needs to replace the generator assembly (some older cars which use external regulators, please replace the regulator directly). The limit of usual high voltage limit in a car regulator is 14.7v.
