Series 1000
®
FIRETRON
Models Available
FT1200-1
FT1220-2A
FT1300-1
FT-1000
NOVEMBER 1998
®
Fireye
Analyzer
1
Advertisement
Table of Contents
Related Manuals for Fireye FIRETRON 1000 Series
Summary of Contents for Fireye FIRETRON 1000 Series
-
Page 1: Table Of Contents

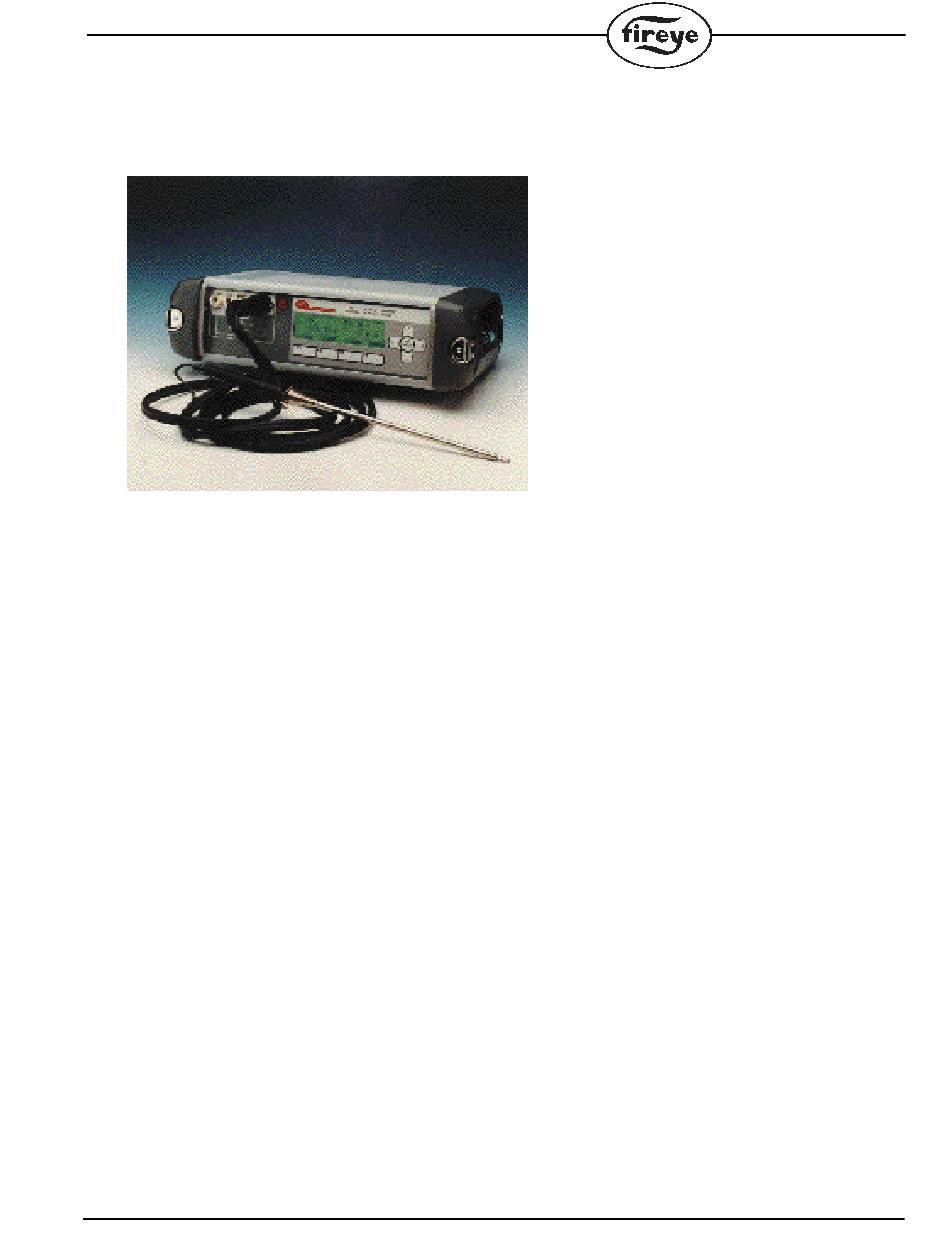

® FT-1000 NOVEMBER 1998 ® Fireye Series 1000 ® FIRETRON Analyzer Models Available FT1200-1 FT1220-2A FT1300-1 SECTION DESCRIPTION ............PAGE PREFACE . - Page 2 FIREYE REPAIR AND CALIBRATION FACILITY ........
-
Page 3: Preface
® 1.0 PREFACE TECHNICAL SPECIFICATION Fuels: Wood Light Fuel Oil Heavy Fuel Oil Natural Gas Propane Coal 4 - User definable fuels Accuracy: - Better than 1% vol. Other gases - Better than 4% of reading Display: 40 x 8 Matrix Liquid Crystal, electroluminescent backlighting when in Keyboard: Tactile membrane (integral with display) function keys and cursors Printer:... -
Page 4: Firetron Series 1000 Models Available
® Firetron Series 1000 Models Available Part Number Description FT1200-1 Two Gas Unit: O , CO Draft Measurement, No Internal Printer, Output Serial Output for External Serial Printer standard. FT1200-2A Two Gas Unit: O , SO , No Draft, No Internal Printer, Output Serial Output for External Serial Printer standard. -
Page 5: Safety Aspects
® SAFETY ASPECTS The Firetron 1000 portable flue gas monitor is a safety Class 2 instrument. 1. Before switching on the apparatus make sure that the power supply is suitable for the instru- ment. 2. The main power plug shall only be inserted in a socket outlet provided with a protective earth contact. -
Page 6: Description Of Instrument
HAZARDOUS GASES: All recognized safety procedures should be used when operating with hazardous gases. Fireye accepts no responsibility for damage to the instrument, or injury to the person while following procedures, nor will the company accept liability for failure to comply with safety precautions. -
Page 7: Getting Started
® System Components DUO PROBE SUPPORT CONE 3M/10FT HOSE PROBE LINE THERMOPILE CONNECTOR RS232 SERIAL COMMUNICATIONS PORT PARTICULATE FILTER WATER CATCHPOT POWER SUPPLY CONNECTOR STANDBY SERVICE On/Off ® FIRETRON ANALYZERS CHARGE LOW BATT FAULT Hold 2secs. PROBE Flue Gas ENTER Draft Exhaust 2.0 GETTING STARTED... - Page 8 ® NOTE: Do not force the hinge beyond 45°, otherwise damage to the hinge may occur. Do not over- tighten. Probe Assembly: Connect the probe line and thermocouple connector as shown. NOTE: Probe and Thermocouple must be connected before unit is started up and until it is com- pletely shut down.
- Page 9 ® STANDBY SERVICE On/Off ® FIRETRON ANALYZERS CHARGE LOW BATT FAULT Hold 2secs. PROBE Flue Gas ENTER Draft Exhaust ON/OFF SWITCH FUNCTION KEYS CURSOR KEYS Cursor and Enter Keys: The instrument is totally menu operated. There are 4 cursor keys and 1 Enter key for scrolling and selection of displayed items.
- Page 10 ® Press ENTER on the front panel cursor keys, then the function key. The display will show which gas readings will be measured, i.e. Natural Gas, Light Fuel Oil, etc. To change from a different desired fuel from this, go to MENU/SETUP/FUEL TYPE. The display will prompt for ’GO'.
-
Page 11: Software Description
® 3.0 SOFTWARE DESCRIPTION MAIN MENU The information contained in this manual is provided for an instrument fitted with all sensors and available options. Therefore, some menus and associated options will not be available on individual instruments. GAS READINGS DRAFT READING RE-CALIBRATE DATA LOG SETUP... -
Page 12: Making Gas Measurement
® Analysis: The Firetron 1000 would normally display analysis type as dry. The conversion to wet analysis requires information on the % water content of the flue gas. Where the analysis is wet, the water content in % terms is also displayed. The formula for wet analysis is as follows: ppm (wet) = (1 - H O) (ppm) dry... - Page 13 ® is determined by the NO measured concentration plus the NO factor on the FT1300-1. factor is menu entered percentage. The units of concentration are SET in the SETUP> SYS- TEM, MENU. Note: NO is “NOT” available on FT1200-1, or FT1200-2A since the NO cell is not available for these models.
-
Page 14: Recalibrate
® Wet Measurement: The display for measurements using wet analysis are identical as for dry. The water content in the flue gas will have to be determined and entered for reading accuracy. Refer to Setup Menu. O2NORM ON ENTER: NEXT SCREEN FUEL EFF XX.X% XXX ppm... - Page 15 ® System: Within the system sub-menu are the following displays: CLEAR FAULTS NO/YES MORE... MENU HELP ABORT NEXT Clear Faults: If the 'Fault' LED is lit - selecting the 'Yes' option will attempt to clear the indicated faults. Analysis: Switches between wet or dry analysis. See 'Making the Gas Measurement' (3.2.2) for explanation of Wet and Dry measurement.
- Page 16 ® UNIT NO: TEMPERATURE DISPLAY UNITS lb/mmBtu, mg, ppm, mg/J LANGUAGE English UNITS OF PRESSURE wgc/hPa MENU HELP ABORT NEXT Unit No.: The unique identification number assigned to the instrument which represents the mea- surement of gases in a particular location. Any number between 0 and 99 can be used, to provide up to 99 unique measurement locations.
- Page 17 ® NOTE: If fuel 1, 2, 3 or 4 are selected, it is important to enter all information in the FUEL DATA MENU before selection. Failure to comply may result in reading inaccuracy. EG: CO , excess air, loss and combustion efficiency will not calculate correctly. Fuel Data: The pre-programmed fuels all have corresponding fuel data pre-determined.
- Page 18 ® Where one or more of these factors is undetermined, it may be better to use a maximum CO value determined from actual measurements on the process. MAX VALUES FUEL Max(%) Wood 20.4 Natural Gas 12.1 Light Fuel Oil 15.6 Heavy Fuel Oil 15.9 Propane...
- Page 19 ® K3 Factor: This is pre-determined for all pre-programmed fuel types. It will have to be calculated for Fuel types 1 - 4. DATE AND TIME The following display is shown when this sub-menu is entered. DATE: 1/03/98 TIME: 10:55:23 NEWDATE: 1/22/98 NEW TIME: 11:07:15 EXIT...
- Page 20 Simply enter the old password i.e. 417, by holding down the “up” arrow key until the number is reached. Press “ENTER” and you will be asked to enter the new password. ENTER NEW PASSWORD EXIT CURRENT HEADER: FIREYE 603 432 4100 EXIT NEXT HELP...
-
Page 21: Diagnostics
® Press “NEXT” and the footer will be displayed CURRENT FOOTER: FOR MORE INFORMATION TEL: 603 432 4100 NEXT EXIT HELP GASES Serial Port BAUD RATE: 1200-19200 SELECTABLE PARITY: NO/ODD/EVEN DATA BITS: STOP BITS: NEXT EXIT HELP GASES NOTE: The Serial Port on the Firetron 1000 must be set for: 9600 baud;... - Page 22 ® Cell EMFs: This is maintenance information which indicates the current output from each gas sen- sor in volts. This is specifically of use when the product is being serviced and is a diagnostic tool only. CELL EMFS (Volts) XXX XXX XXX XX XXX XXX (FT1300-1 ONLY) XXX XXX (FT1200-2 A ONLY)
- Page 23 ® Main Battery: Indicates the current battery output voltage. When running directly off the main adapter the voltage will be between 12.5 and 12.9V. When the battery voltage falls below an accept- able level (11.5V) to maintain optimum performance the 'LOW BATT' indicator LED will light. Options: This indicates the options fitted to the instrument.
-
Page 24: Manual Calibration
® Report: A diagnostic report can be output to either the serial port or to the serial printer (sold sepa- rately), which summarizes the information contained within the Diagnostics menu. See below for an example report. SYSTEM REPORT SYSTEM OUTPUT DEVICE: SERIAL PORT REPORT EXIT HELP... - Page 25 EXIT HELP Draft Span: The Draft Sensor is standard on the Firetron 1000 Series. A Draft Span calibration involves the use of a monometer and squeeze bulb. Refer to Section 6.6, Calibrating the Draft Sensor. A differential pressure reading will be made (FT1200-1, FT1300-1 only).
-
Page 26: Draft Reading
® PRESS ’CAL’ TO CALIBRATE DRAFT X.XXX wgc EXIT HELP Calibrating the Gas Sensors: The individual gas sensors can be calibrated using the appropriate calibration gas. This applies to all gases except Oxygen. For details of how to carry out a full calibra- tion see page 24. -
Page 27: Data Log
® DATA LOG The Firetron 1000 Series has a standard 1000 point data logger. It provides the means of storing mea- surement data samples for recording or printing, and subsequent analysis. The menu options permit the user to configure the data log to meet individual requirements. -
Page 28: Purge & Pump Off
Log to RS232: Each log record may be output to the RS232 channel. The data is output as ascii data which may be received by the Fireye CAPTURE PROGRAM for use with a spreadsheet. See Fireye CAPTURE PROGRAM Section 10. -
Page 29: Outputs
Three line headers and two line footers may be customer defined. Each line can support up to 24 characters. Entries are made by the Set Up menu, scrolling the characters and numbers, then selecting by use of the cursor keys. Sample Printout FIREYE HEADER BOILER TEST ON MAIN SITE Type of Fuel:... -
Page 30: Data Logging
NOTE: Data in this format may not be directly incorporated into a spreadsheet package. ASCII Data: Data is output as ascii data in a format which may be received by the Fireye CAP- TURE SOFTWARE for use with a suitable spreadsheet package. -
Page 31: Serial Port
® The Log Record: The Firetron 1000 Data Logging provides a means of storing data samples for recording or analysis. The display menu options allow the user to configure the data log to a conve- nient format (See Operating Procedure -Data Logging). Each data log record contains the following data: Fuel Type Unit No. -
Page 32: Serial Port Connections
Microsoft Excel but should work with any spreadsheet package which can read in dBASE III type (.dbf) data files. The Fireye Firetron CAPTURE software is standard and is supplied with unit. Information on using the CAPTURE Program is given in Section 10 of this manual. -
Page 33: Serial Printer (Option)
® SERIAL PRINTER To connect a serial printer to the RS232 serial port, the following connections are required: 9 Pin (Serial Port) 25 Pin (Serial Printer) (Firetron) (Printer) Pin 2 ----------------------------------------->Pin 2 Pin 3 ----------------------------------------->Pin 3 Pin 5 ----------------------------------------->Pin 7 HOST COMPUTER To communicate between the Firetron 1000 and a host computer for using the CAPTURE program or other applications, the following connections are required:... -
Page 34: Maintenance
® 5.0 MAINTENANCE The instrument normally requires little maintenance, providing it is used as described in this operat- ing manual, however, to ensure accurate and reliable operation we recommend calibration once every 6 months (depending on use) at a minimum of once each year. Points to remember: •... -
Page 35: Pump Servicing
® NOTE: Do not force the hinge beyond 45°, otherwise damage to the hinge may occur. Do not over- tighten. WATER CATCHPOT PUMP SERVICING Ensure the power supply is isolated before removing any panels to gain access to the instrument. If the water catchpot does fill and enter into the pump, then it will be necessary to clean and dry the pump out. -
Page 36: Fuse Replacement
This fuse will only be damaged when a serious fault occurs. Failure should only be investi- gated by a service engineer. NOTE: Unit should be returned to Fireye for determination of failure. Field replacement not recom- mended. Before attempting to change fuses the instrument must be disconnected from the main power supply. -
Page 37: System Calibration And Sensor Replacement
Hazardous Gases: All recognized safety procedures should be used when operating with hazardous gases. Fireye Inc. accepts no responsibility for damage to the instrument, or injury to the person while fol- lowing procedures, nor will the company accept liability for failure to comply with safety precau- tions. -
Page 38: Method For Zero Calibration
® AMBIENT XXC Use cursor keys to enter current ambient temperature Press "ENTER’ when readly to cal. EXIT Press 'CAL' to calibrate. Calibration is now complete. Press ‘CAL’ to calibrate PROBE: XXX.XX°C AMBIENT XXX.XX°Χ EXIT Tg - Ta: A calculation of the temperature rise in the combustion process. The units i.e °C/°F can be changed in the Setup menu. -
Page 39: Calibration Using A Flowmeter (Not Supplied)
3 ENTRY SEALED CONTAINER (APPROX. 2 LITRE) CALIBRATION GAS FIREYE 2000 NOTE: This arrangement enables the pressure at the gas inlet on the Firetron 1000 to be controlled. CALIBRATION USING A FLOWMETER (not supplied) As an alternative indication of gas overflow, the beaker in the Section 6.4 can be replaced with a flowmeter. -
Page 40: Calibrating The Draft Sensor
® Use a concentration of certified gas that is in the range required for your application. The gas ordered should be a mixture of the gas desired with a balance of nitrogen (N ), i.e. 100 ppm NO bal N . -
Page 41: System Diagnostics
® FT1200-1 & FT1300-1 FT1300-1 ONLY FT1200-2A ONLY " GAS MAINFOLD ALWAYS FITTED ON ALL MODELS CONN16 CONN15 CONN14 CONN13 CONN12 DCONN11 CONN10 CONN9 C ONN8 C ONN7 Gas Modules are positioned a indicated in the diagram above. 7.0 SYSTEM DIAGNOSTICS STATUS LEDS Situated on the keyboard display panel are 6 LED status indicators:- ON: This is illuminated when the instrument is switched on. -
Page 42: Modem Support
8.0 MODEM SUPPORT MODEM COMMUNICATIONS FOR REMOTE CONFIGURATION The remote configuration system for the Firetron 1000 enables Fireye personnel to interrogate the instrument, without having to return the instrument to the factory. In this way configuration changes and elementary diagnostics which would normally be performed on the test bench can be performed at a remote site. -
Page 43: Functions Available
® FUNCTIONS AVAILABLE The functions available over the modem link are all of those currently available in the Firetron 1000 monitor software: Adjustment of sensor calibration parameters, changes to text headers, installation of sensors, and recalculation of EEPROM checksum. In addition, the instrument settings and param- eters can be downloaded and saved to disk. -
Page 44: Spare Parts
® 9.0 SPARE PARTS Description Part No Particulate Filter 317-430 Firetron ”Duo” Probe with 300mm/12" hose 703-514 Probe Locator (Support Cone) 318-433 Barbed Nylon Hose Fitting 317-109 Sampling Pump 703-164 Rechargeable Battery 403-415 Mains Lead & Plug 406-460 2A Anti-Surge Fuse 404-536 Water Catch-Pot Assembly 701-828... -
Page 45: Capture Software Program
10.2 THE CAPTURE PROGRAM The Fireye software is provided on a 3.5" floppy disk for use with PC compatible computers with EGA or VGA. The CAPTURE software (2 versions are supplied on disk) uses the computer's serial port (COM1 or... -
Page 46: The Log Records
® 10.5 THE LOG RECORDS DATA AS SENT FROM THE FIRETRON 1000 Each log record is 107 bytes long. There are 21 fields. Each field is 6 bytes long except unit number is 2 bytes, the wet/dry and Oxygen normalization flags, the unit number and fuel type which are each one byte long. -
Page 47: Fault Diagnosis
® dBASE III TABLE The following table shows the field names within type dBASE III database table generated by the CAPTURE program along with the field types and field widths. Field name Data Type Field Width Date Date Hours Numeric Minutes Numeric Seconds... -
Page 48: How To Install And Run The Firetron 2000 Capture Program
® 10.7 HOW TO INSTALL AND RUN THE FIRETRON 1000 CAPTURE PROGRAM These instructions assume some familiarity with computers, disk drives and disk directories. Insert the floppy disk into your disk drive. You may run the CAPTURE program from the floppy disk or alternatively copy the following files to where you wish them to reside on your hard disk: CAPTURE.EXE DB_TABLE... -
Page 49: Serial Port Communications Cables
Fireye also stocks a variety of common spare parts should your unit need repair. 11.1 RETURN PROCEDURE Prior to returning your unit to Derry, you must call Fireye’s Order Services Department for a RETURN AUTHORIZATION (RA) number. Once the RA is received the unit can be returned to Fir- eye under normal return procedures. - Page 50 ® FT-1000 ® FIREYE NOV.1998 3 Manchester Rd. Derry, NH 03038 USA http://www.fireye.com...
