VOKERA Compact 29kW Quick Help Manual

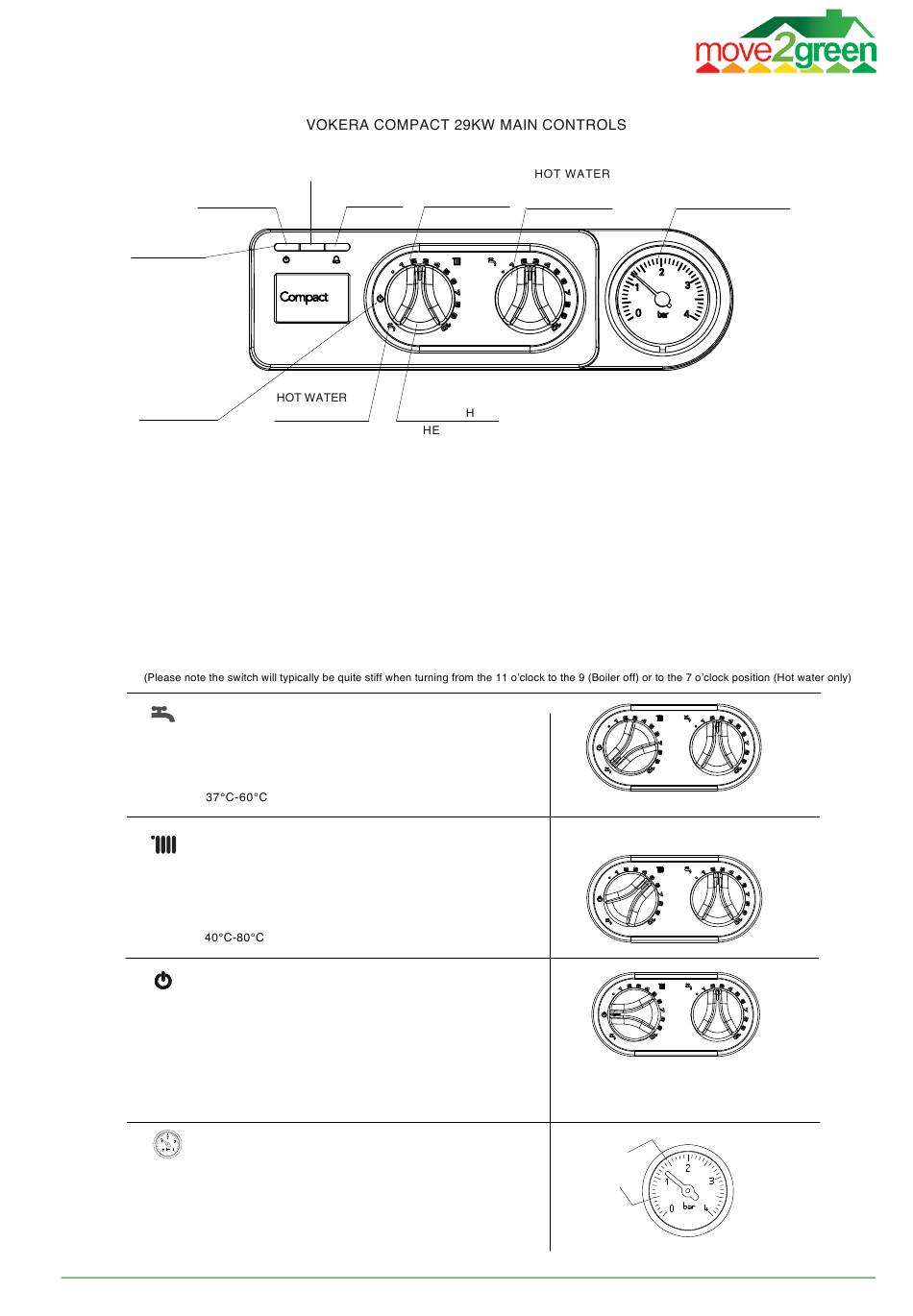

Vokera Compact 29kW Quick Help Guide
GREEN LED
A
BOILER
STATUS LED
BOILER OFF
POSITION
A

BOILER STATUS LED

Green LED Boiler is working/responding to a heating/hot water request
Red LED Boiler has identified a fault and has failed-safe. Refer to instructions on how to reset
Yellow LED Service operation (Boiler requires a service)
B

HOT WATER TEMPERATURE SELECTOR

Move the selector clockwise to increase the hot water outlet temperature, or counter-clockwise to reduce the temperature
C

PRESSURE GAUGE

Ensure the system pressure is set correctly (minimum 0.5-bar) - (Normal pressure 1.0 - 1.5 bar)
D

MODE SELECTOR SWITCH/HEATING TEMPERATURE SELECTOR

Mode selector switch:
Fig 1a
Hot water only - Select this position if you want the boiler
to supply hot water only (no heating)
Hot water temperature selector: move the selector
clockwise to increase the heating outlet temperature, or
counter-clockwise to reduce the temperature (range:
Fig 1b
Heating & hot water - Select this position when you
want the boiler to respond to a heating and hot water
request from the time-clock programmer
Heating temperature selector: move the selector
clockwise to increase the heating outlet temperature, or
counter-clockwise to reduce the temperature (range:
Fig 1c
Boiler at OFF/standby - Select this position when you
want the boiler to be switched off for short periods (days)
or if the boiler requires to be reset.
E.g. Set the boiler to this position when on holiday.
Please do not switch the boiler off at the mains;
the boiler has an anti-block function which enables the
pump anddiverter valve actuator to be energised for short
periods when the appliance has been inactive for more than
24-hours.
Fig 1d
Pressure gauge shows the current pressure of your
heating system, the gauge should be set between 1 and
1.5 BAR. When the appliance is operating the gauge may
rise or fall slightly, this is quite normal. The minimum
permissible level for the safe and efficient operation of the
appliance is 0.5 BAR. Should the pressure fall below 0.5
BAR, the boiler may lockout.
SEE Boiler Pressure Setting Instructions Page 3
