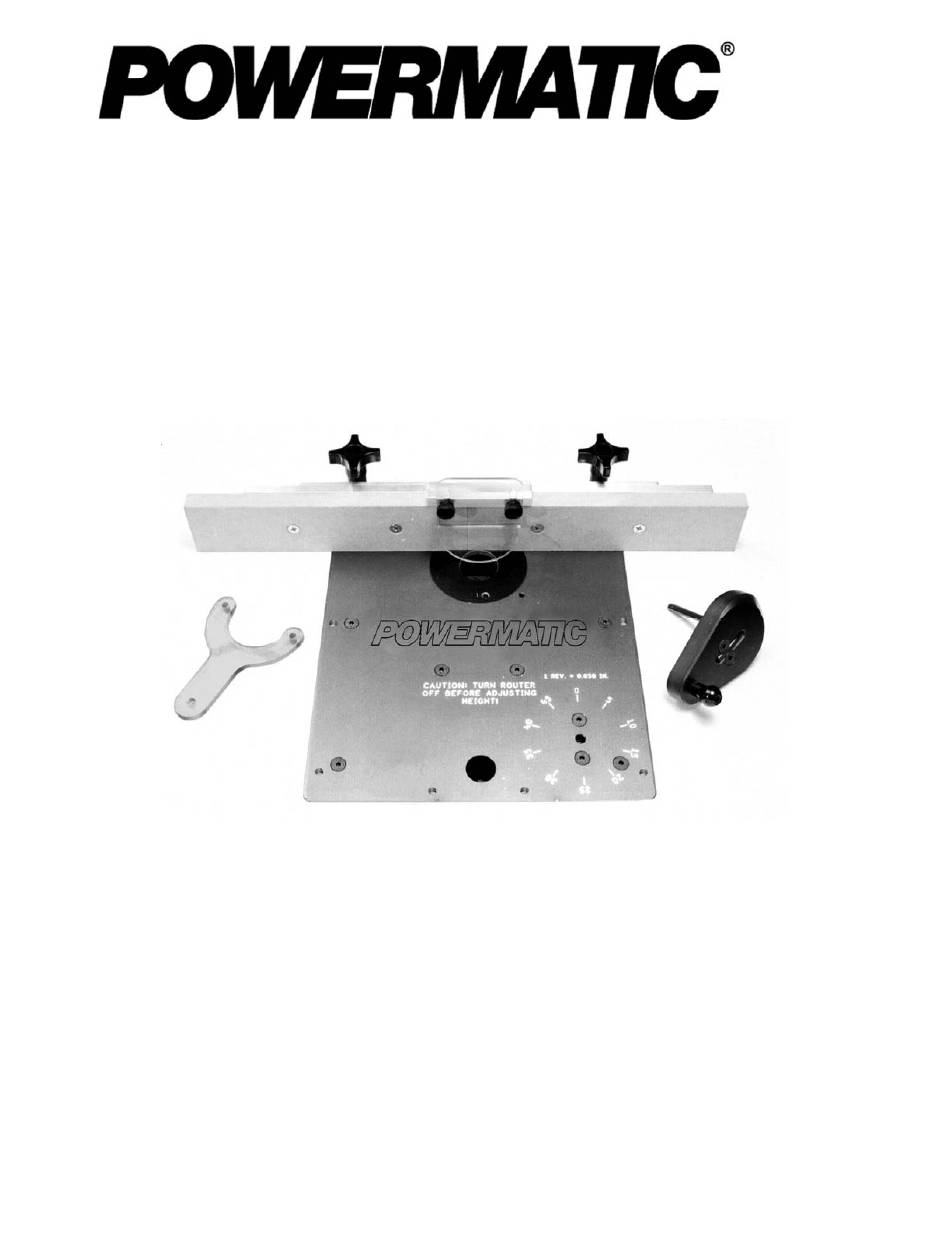

Operating Instructions and Parts Manual
®
Rout-R-Lift
and Fence Assembly
Item No. 6682004
Powermatic
427 New Sanford Rd.
LaVergne, TN 37086
Part No. M-0460261
Ph.: 800-274-6848
Revision D3 01/2014
www.powermatic.com
Copyright © 2014 Powermatic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rout-R-Lift and is the answer not in the manual?

Questions and answers

Summary of Contents for Powermatic Rout-R-Lift

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual ® Rout-R-Lift and Fence Assembly Item No. 6682004 Powermatic 427 New Sanford Rd. LaVergne, TN 37086 Part No. M-0460261 Ph.: 800-274-6848 Revision D3 01/2014 www.powermatic.com Copyright © 2014 Powermatic...
  • Page 2: Warranty And Service

    NOTE: JET, Wilton and Powermatic are divisions of JPW Industries, Inc.. References in this document to JET, Wilton and/or Powermatic also apply to JPW Industries, Inc., or any of its successors in interest to the JET, Wilton and/or Powermatic brands.
  • Page 3: Table Of Contents

    Table of Contents   Warranty and Service ..........................2   Table of Contents ............................ 3   Mounting Your Router to the Rout-R-Lift ....................4   Leveling the Rout-R-Lift ........................... 6   Mounting the Deluxe Fence Assembly ..................... 7   Using Your Rout-R-Lift ..........................9  ...
  • Page 4: Mounting Your Router To The Rout-R-Lift

    7/16" Open End Wrench Mounting Your Router to the Rout-R-Lift 1. Turn your Rout-R-Lift upside down on the table. With the 5/32 hex wrench supplied, remove the four 1/4-20 x 1 flat head cap screws (Figure 1) and remove the aluminum carriage plate.
  • Page 5 5. Pages 14-15 show a series of drawings of the master ring with the holes shaded solid to match many different routers. Locate your router and then locate the proper holes in the master ring using the drawing as an aid. With a felt tip marker or pencil, mark a line on the master ring for each hole that you will be using for your router.
  • Page 6: Leveling The Rout-R-Lift

    Included with your Rout-R-Lift are ten 1/4-28 set screws and 1/8 hex wrench. These set screws can be used to level your Rout-R-Lift to the table; thread the set screws into the ten tapped holes in your Rout-R-Lift from above using the 1/8 hex wrench provided (Fig.
  • Page 7: Mounting The Deluxe Fence Assembly

    Mounting the Deluxe Fence Assembly 1. Take the three button head Phillips screws and put one through each hole on the vertical side of the aluminum fence support (Fig. 7). There are three holes on each side of the fence support; do one side at a time. Start the square nuts on each screw.
  • Page 8 (Fig. 12). Figure 12 7. Mount the assembled fence to the main plate of the ROUT-R-LIFT with one fence knob in each of the threaded holes in the top corners of the plate (Fig. 13). Figure 13 8.
  • Page 9: Using Your Rout-R-Lift

    Using Your Rout-R-Lift Always turn router off and disconnect router from power source before making any height adjustment. 1. Depending on the size of the router bit you are using it may be desirable to use an insert ring to reduce the size of the opening.
  • Page 10: Modification For Height Adjustment Tension

    Replacement parts listed on the following pages. To order parts or reach our service department, call 1- 800-274-6848, Monday through Friday (see our website for business hours, www.powermatic.com). Having the Model Number and Serial Number of your machine available when you call will allow us to...
  • Page 11: Rout-R-Lift Deluxe Fence Assembly

    Index No. Part No. Description Size ....6682004F ....Rout-R-Lift Deluxe Fence (Items 1 thru 13) ..........1 ....XLIFT-M0026 ...Fence Clamping Knobs ................ 2 2 ....XLIFT-E0040 ...Button Head Screw ........1/4-20 x 1/2" ..... 6 3 ....PLIFT-E0032 ...Aluminum Fence Bracket ......2-1/2" x 2-1/2" x 3/16" x 14"1 4 ....
  • Page 12: Rout-R-Lift Assembly - Exploded View

    Rout-R-Lift Assembly – Exploded View...
  • Page 13: Rout-R-Lift Assembly - Parts List

    Rout-R-Lift Assembly – Parts List Index No. Part No. Description Size 1 ....XLIFT-F0001 ....Flat Head Cap Screw........1/4-20 x 3/4 ....28 2 ....PLIFT-P0003-1 ..Aluminum Main Plate ........14-3/4 x 11-3/4 x 1/4 ..1 3 ....XLIFT-S0001-1 ..Steel Side Supports ........1/2 x 1/2 x 13-1/4 ....2 4 ....
  • Page 14: Router Hole Patterns

    Router Hole Patterns The following is a series of hole patterns for various routers as noted in Step 5 of "Mounting Your Router." Locate the name and correct model number of your router and then locate the holes in the master ring. With a felt tip marker or pencil mark a line on the master ring for each hole you will be using for your router.
  • Page 15: Router Hole Patterns (Continued)

    Extension tables are available from Powermatic that mount to a table saw and contain an opening designed specifically for the Rout-R-Lift. If you wish to make your own opening in a table, turn the Rout-R- Lift plate over, and use it as a template to draw the lines for the cutout. Be sure to rout a recess 3/8”...
  • Page 16 427 New Sanford Rd. LaVergne, TN 37086 Phone: 800-274-6848 www.powermatic.com...
