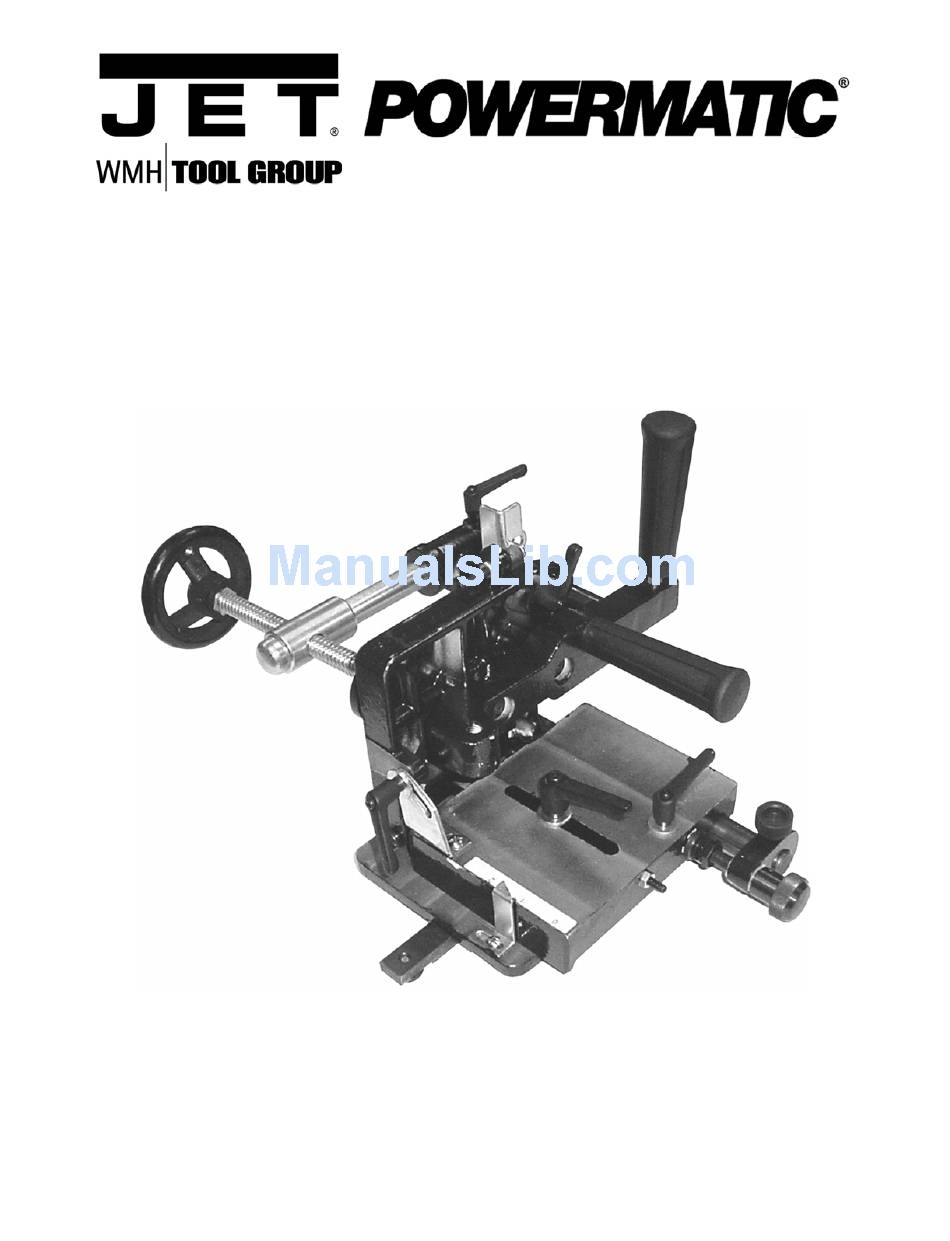

- Page 1 This Manual is Bookmarked Operating Instructions and Parts Manual Tenoning Jig Model: JTG-10Q WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Part No. M-708295 Ph.: 800-274-6848 Revision A 10/04 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty
This manual has been prepared for the owner and operators of a JTG-10Q Tenoning Jig. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions before operating or servicing the machine. -
Page 3: Table Of Contents
Table of Contents Warranty... 2 Warnings ... 4 Shipping Contents... 6 Box Contents ... 6 Required Tools ... 6 Assembly... 7 Alignment ... 7 Operation... 9 Angle Tenons ... 10 Parts ... 10 Replacement Parts ... 10 Parts List... 11 Exploded View... -
Page 4: Warnings
10. Do not operate this jig while tired or under the influence of drugs, alcohol or any medication. 11. Make certain the table saw or shaper switch is in the OFF position before attaching the tenoning jig. 12. Make certain the machine is properly grounded. -
Page 5: Save These Instructions
23. Maintain a balanced stance at all times so that you do not fall or lean against saw blades, shaper cutters or other moving parts. Do not overreach or use excessive force to perform any machine operation. -
Page 6: Shipping Contents
Open shipping carton and check that all parts are intact. Report any damage immediately to your distributor. Read the instruction manual thoroughly for assembly, alignment, maintenance and safety instructions. Model Number... JTG-10Q Stock Number ... 708295 Box Contents 1 ea Fence assembly... -
Page 7: Assembly
Note: There are two slots on the underside of the tenoning jig. For the JTSA-10XL, 66 and 64A JET & Powermatic left tilt saws, mount the slide (H) into the left slot (farthest from the fence). A 4 mm hex wrench (provided) is required. - Page 8 Tighten locking handle (G), and thumb screw (H). 7. To bring the fence into parallel with the saw blade, loosen both locking handles (G, L). See Figure 4. Reposition the jig so that the fence lies flat against the saw blade and tighten both locking handles.
-
Page 9: Operation
3. NOTE: Never pass the jig back over the moving saw blade. Wait until the power is off and the blade comes to a complete stop. 4. For rapid or large adjustments moving the fence toward or away from the saw blade, loosen both locking levers (C, D). -
Page 10: Angle Tenons
Figure 9. This will keep the saw blade from hitting the fence. Note: There are four holes in the fence for mounting a wood block spacer. -
Page 11: Parts List
Parts List Index No. Part No. 1 ...JTG10-1 ...Locking Lever... M6x22 ... 2 2 ...TS-0680021 ...Flat Washer... 1/4”... 3 3 ...JTG10-3 ...Bracket ..1 4 ...TS-1533032 ...Pan Head Machine Screw ... M5x10 ... 2 5 ...JTG10-5 ...Scale ..1 6 ...JTG10-6 ...Locking Lever...
