GU DTN 80 Operating Instructions Manual

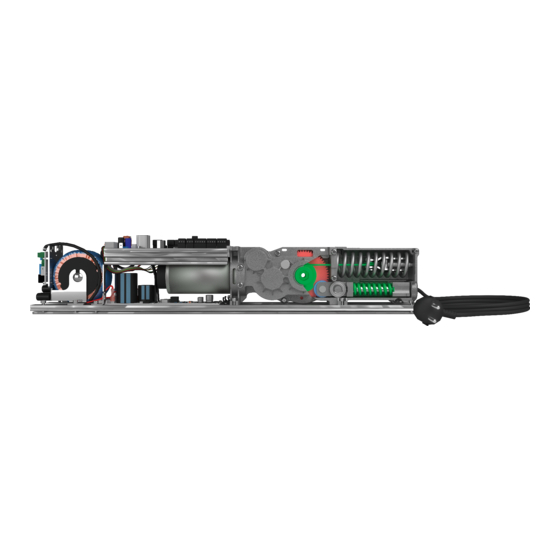

Automatic entrance systems, swing-door drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

DIN
18650
AutomAtic entrAnce systems
DTN 80
Swing-door drive
eng
Operating instructions
Translation of the original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTN 80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GU DTN 80

Summary of Contents for GU DTN 80

  • Page 1 18650 AutomAtic entrAnce systems DTN 80 Swing-door drive Operating instructions Translation of the original Instructions...

  • Page 2: Table Of Contents

    Operating instructions DTN 80 Swing-door drive Table of contents 1. General safety instructions and definitions ..... 5 Explanation of symbols ..............5 Notes ....................6 Fire-rated door ................... 6 2. Safety instructions ............. 7 General ....................7 Mandatory specifications ..............7 Applicable documents ..............
  • Page 3 7. Operation modes .............17 OFF ....................17 EXIT ....................17 AUTOMATIC ..................18 MANUAL OPERATION ..............18 OPEN ....................18 8. Operating elements ..........19 PO3 programme switch ..............19 POS-5 programme switch – option ..........19 Push-button for opening request – option ......... 20 Spring-operated key switch – option ...........
  • Page 4 Operating instructions DTN 80 Swing-door drive 11. Cleaning ..............24 12. Maintenance activities of the operator ....25 12.1 Testing a hold-open system ............26 13. Specialists ..............26 14. Inspection and after-sales service ......27 14.1 Testing and maintenance ............... 27 14.2 Inspection and maintenance of a hold-open system ....28 14.3...

  • Page 5: General Safety Instructions And Definitions

    1. General safety instructions and definitions Explanation of symbols The following warning messages are highlighted by special symbols: Caution: risk of injury! This symbol draws your attention to a danger that poses a risk for persons. Attention: this symbol draws your attention to an action that could pose a general danger to or damage the door or the operating elements.

  • Page 6: Notes

    Maintenance and repair works must only be carried out by experts acting under the authorisation of GU Automatic. GU Automatic excludes any liability for damage arising from changes made to the system without its consent. Once the swing-door drive has been installed correctly, it is then only suitable for standard opening and closing operation.

  • Page 7: Safety Instructions

    2. Safety instructions The operating instructions are aimed at the operators of the completely installed and functionally capable door system. Before each step of an operation, read the relevant description carefully and follow the stipulated sequence of steps. General The swing-door drive described here is a secure, high-quality construc- tion product.
  • Page 8 Intended use The swing-door drive is used to open and close internal and external doors automatically within the application limits specified by GU Automatic. Permanent operation in the deenergised state is not permitted. If the drive is used in the deenergised state, outside of the usage limits in...
  • Page 9 Dangers Ensure that no children play with the controls on the swing door and are not left unsupervised in the area of movement of the door. Residual risk Depending on location and door geometry, some residual level of risk, e.g. crushing, shearing and col- lision impact, cannot be eliminated entirely.

  • Page 10: Applicable Documents

    Operating instructions DTN 80 Swing-door drive Performing work on the door system To install the door system, the customer must provide a protective contact socket. If no such socket outlet is present, an all-pole disconnect switch must be provided by the customer. Connection must be performed by an electrical specialist in accordance with VDE 0100.

  • Page 11: Advice On Safe Operation Of The Swing Door

    This Inspection Book belongs to the corresponding door system and must be available at the time of each inspection. Fire-rated door On swing-door systems used as fire-rated doors, in addition to the docu- ments for each door system: „ the 'Testing and maintenance book for hold-open systems', „...

  • Page 12: Safety Of The Swing Door

    Operating instructions DTN 80 Swing-door drive Fire-rated door If the swing-door system is extended to include the functionality of a fire- rated door, this does not affect its automatic operation. In the event of a power failure, or of a fire, the swing-door drive is isolated electrically.

  • Page 13: Swing Door Elements

    5. Swing door elements The following illustrations show the possible elements on a swing-door system. www.g-u.com www.gu-automatic.de Swing-door drive Elbow push-button PO3 programme switch Opening button Radar motion sensor Spring-operated key switch or e.g. Laser scanner „ Card reader/access control Sensor strip „...
  • Page 14 Operating instructions DTN 80 Swing-door drive Fire-rated door 'Tür-schließen’-Taster Adhesive label: 'Achtung Feuerschutz- (red manual release push-button) abschluss' RESET push-button Adhesive label: 'Abnahme Feststel- Smoke switch (number depends on lanlage' ceiling construction and height) 02.2019 | Designed in Germany...

  • Page 15: Functional Description

    6. Functional description Lock Refer to the relevant operating instructions for the optional installa- tion of a lock. Check if your swing door is equipped with a lock. Various different locking mechanisms can be used. The swing-door drive on the door system cannot be enabled until the existing lock has been un- locked.

  • Page 16: Two-Leaf Swing-Door Systems

    Operating instructions DTN 80 Swing-door drive Two-leaf swing-door systems Closing sequence control Passive leaf Active leaf On two-leaf swing-door systems, one leaf performs the function of an active leaf while the other performs the function of a passive leaf. In the standard setting, the opening sequence...

  • Page 17: Operation Modes

    7. Operation modes This operation mode can be used for swing doors that usually should be locked, and only authorised people are entitled to pass through (form inside and outside). One possible application involves night-time use. „ The swing door can only be opened using an optional spring-operated key switch.

  • Page 18: Automatic

    Operating instructions DTN 80 Swing-door drive AUTOMATIC This operation mode can be used for swing doors in normal daytime opera- tion, where it should be possible to negotiate the door in both directions quickly and conveniently. The swing door opens and closes automatically after the after expiration of the set hold-open time.

  • Page 19: Operating Elements

    To prevent misuse, we recommend always removing the key from the programme switch after the desired opera- tion mode has been selected. www.gu-automatic.de If the door system is equipped with the optional POS-5, actuation of the PO3 programme switch does not function.

  • Page 20: Push-Button For Opening Request - Option

    Operating instructions DTN 80 Swing-door drive Push-button for opening request – option To open the swing door, there is a possible alternative to the radar sensor, in the form of an opening button or an elbow push-button. These buttons are located near the swing door, either inside or outside depending upon requirements.

  • Page 21: Opening And Closing Behaviour - Safety

    9. Opening and closing behaviour – safety Automatic opening „ If a safety sensor detects an obstacle while the door is opening, the swing-door stops moving. „ Once the obstacle has been removed, the swing door continues open- ing. „ When the swing door leaf has been blocked, the leaf is held against that obstacle.

  • Page 22: Manual Opening With Compensation Of Spring Force

    Operating instructions DTN 80 Swing-door drive Manual opening with compensation of spring force „ While the swing door is opening manually, the electrical swing-door drive balances out the internal spring force to enable the swing door to be opened without the need for great force to be applied.
  • Page 23 Error list Interfer- Cause Remedy ence OPEN operation mode is Switch over to the desired operation mode. enabled Radar detects object Remove object. Swing door Remove object. Safety sensor detects an fails to close Remove weather-related soiling and exter- object nally suspended droplets from the sensors.

  • Page 24: Cleaning

    Operating instructions DTN 80 Swing-door drive 11. Cleaning When cleaning in the door area and at the swing door, select the operation modes OPEN or OFF. Ensure that no water enters the swing door drive. Avoid damage Never use solvent-based cleaners.

  • Page 25: Maintenance Activities Of The Operator

    12. Maintenance activities of the operator Responsibilities must be clearly defined for all personnel involved. Keep hands and other body parts away from moving parts. Take into account the user frequency when planning your maintenance tasks and set a maintenance interval for your own maintenance. Check the door system externally for visible signs or damage and de- fects.

  • Page 26: Testing A Hold-Open System

    Operating instructions DTN 80 Swing-door drive 12.1 Testing a hold-open system The operating company/user must take care to ensure that the hold-open system remains operational at all times and must check that it functions cor- rectly at regular intervals. Refer to the general statutory construction approval for these inspec- tion intervals.

  • Page 27: Inspection And After-Sales Service

    14. Inspection and after-sales service 14.1 Testing and maintenance The operator is responsible for commissioning regular maintenance as stipulated in mandatory traffic safety regulations and in various standards, directives and recognised rules of technology: „ DIN 18650 „ EN 16005 „...

  • Page 28: Inspection And Maintenance Of A Hold-Open System

    These records must be kept by the operator. 14.3 Service and maintenance Maintenance and service work must be carried out by specialists who are authorised by GU. It is advisable to conclude a service and maintenance contract with GU. 02.2019 | Designed in Germany...

  • Page 29: Directives

    As a member in a German Association of Door Automation („Fachverband Türautomation“) we offer competent consultation, highest quality, reliability and security. Thus GU Automatic door systems are manufactured according Fachverband to the newest state of the art and correspond to the valid laws, regulations, Türautomation...
  • Page 30 Operating instructions DTN 80 Swing-door drive Blank page 02.2019 | Designed in Germany...
  • Page 31 Blank page...
  • Page 32 Editor: GU Automatic GmbH GU Automatic GmbH Karl-Schiller-Straße 12 Karl-Schiller-Straße 12 D-33397 Rietberg D-33397 Rietberg Service: Tel. + 49 (0) 5244 9075-100 Hotline + 49 (0) 180 5242111 E-Mail info@gu-automatic.de + 49 (0) 5244 9075-585 E-Mail service@gu-automatic.de Automatic Doors Limited...
