Nibco PC-20M Instruction Manual

Nibco PC-20M Instruction Manual

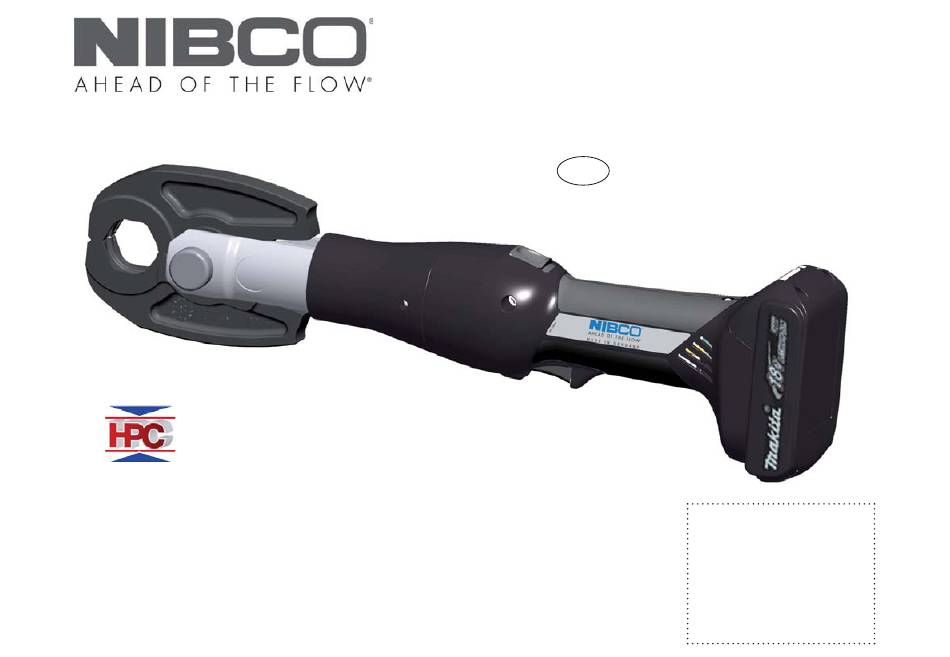

Battery-powered pressing tool

Advertisement

Hydraulic
Pressure
Check
HE.13631 © 05/2010 TE-2
NIBCO INC. – World Headquarters
1516 Middlebury Street
Elkhart, IN 46516
USA
PC-20M
US
Instruction Manual
Battery-powered
Pressing Tool
Serialnummer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-20M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nibco PC-20M

  • Page 1 NIBCO INC. – World Headquarters 1516 Middlebury Street Elkhart, IN 46516 PC-20M Instruction Manual Battery-powered Pressing Tool Hydraulic Pressure Check Serialnummer HE.13631 © 05/2010 TE-2...
  • Page 2: Hydraulic Pressure

    Instruction Manual PC-20M (Components identifi ed on page PC-4ML optional: optional: PC-9L PC-7L 120V-18V Adapter 3 Ah Battery Hydraulic Pressure Check pic. 1 HE.13631 © 05/2010...
  • Page 3 Instruction Manual PC-20M pic. 2 M A D E I N G E R M A N Y NIBCO INC. - World Headquarters • 1516 Middlebury Street • Elkhart, IN 46516 • USA PC-20M Voltage: 18V DC Thrust: 15 kN 304711 batch# e.g.
  • Page 4 Instruction Manual PC-20M PC-4ML 15 min. 1.3 Ah 1.3 Ah PC-7L PC-7L 22 min. 22 min. PC-8L PC-8L 3 Ah 3 Ah 120V-18V Charger 120V-18V Charger 50 - 104°F pic. 4 pic. 5 Li-ion pic. 11 ® #884676B996 #884598C990 pic. 6 pic.
  • Page 5 Instruction Manual PC-20M 350° pic. 13 pic. 14 pic. 15 pic.16 HE.13631 © 05/2010...
  • Page 6 Instruction Manual PC-20M pic. 17 pic. 18 pic. 19 pic. 20 HE.13631 © 05/2010...
  • Page 7 Instruction Manual PC-20M on / off HE.13631 © 05/2010...
  • Page 8 Instruction Manual PC-20M Tab. 1 When after working cycle 20 sec after inserting the battery Self check after working cycle 20 sec/2Hz while exceeding the temp. limit Unit too hot 20 sec/5Hz after working cycle 20 sec 20 sec/2Hz after working cycle Error: the required pressure has not been reached.
  • Page 9 Instruction Manual PC-20M Index Introduction Description of the electro-hydraulic pressing tool Description of the components Brief description of the important features of the unit Description of the tool indicator Remarks with respect to the intended use Operation of the tool...
  • Page 10 Instruction Manual PC-20M Introduction Before starting to use the tool, please read the instruction manual carefully. Use this tool exclusively for its determined use and follow all applicable safety instructions. This instruction manual has to accompany the tool during its entire life span.
  • Page 11: Description Of The Components

    Instruction Manual PC-20M Description of the electro-hydraulic pressing tool 2.1 Description of the components The hydraulic tool is a hand-guided tool and consists of the following components: Table 2 (see page I, pic.1) Pos. Description Function Pressing head Working unit to accommodate the pressing jaws...
  • Page 12 Instruction Manual PC-20M Functional features: The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached. A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp.
  • Page 13 Instruction Manual PC-20M Remarks with respect to the intended use 3.1 Operation of the tool The pressing cycle is started by actuating the trigger (page 1, pic. 1.7). The pressing cycle is characterized by the closing motion of the jaws. Due to the linear movement of the rollers on the piston the jaws close scissors like.
  • Page 14: Explanation Of The Application Range

    Instruction Manual PC-20M Attention Inspect the tool before use. Replace any worn or damaged parts. A damaged or improperly assembled tool can break and strike bystanders. Attention For your own safety please observe all national and European safety regulations. The user needs to make sure that the pressing jaws are completely closed and that there are no foreign objects (e.g.
  • Page 15: Service And Maintenance Instructions

    Instruction Manual PC-20M 3.4 Service and maintenance instructions The reliable performance of the tool is dependent on careful treatment and service. This represents an important condition to ensure a lasting connection. For optimal performance, the tool should be maintained and serviced re- gularly.
  • Page 16: Troubleshooting

    Instruction Manual PC-20M Troubleshooting a.) Constant fl ashing/indicating of the LED light (page I, pic 1.3) or the occurence of an acoustical warning signal. see table 1. If the failure can not be resolved, return the tool to the nearest service center.
