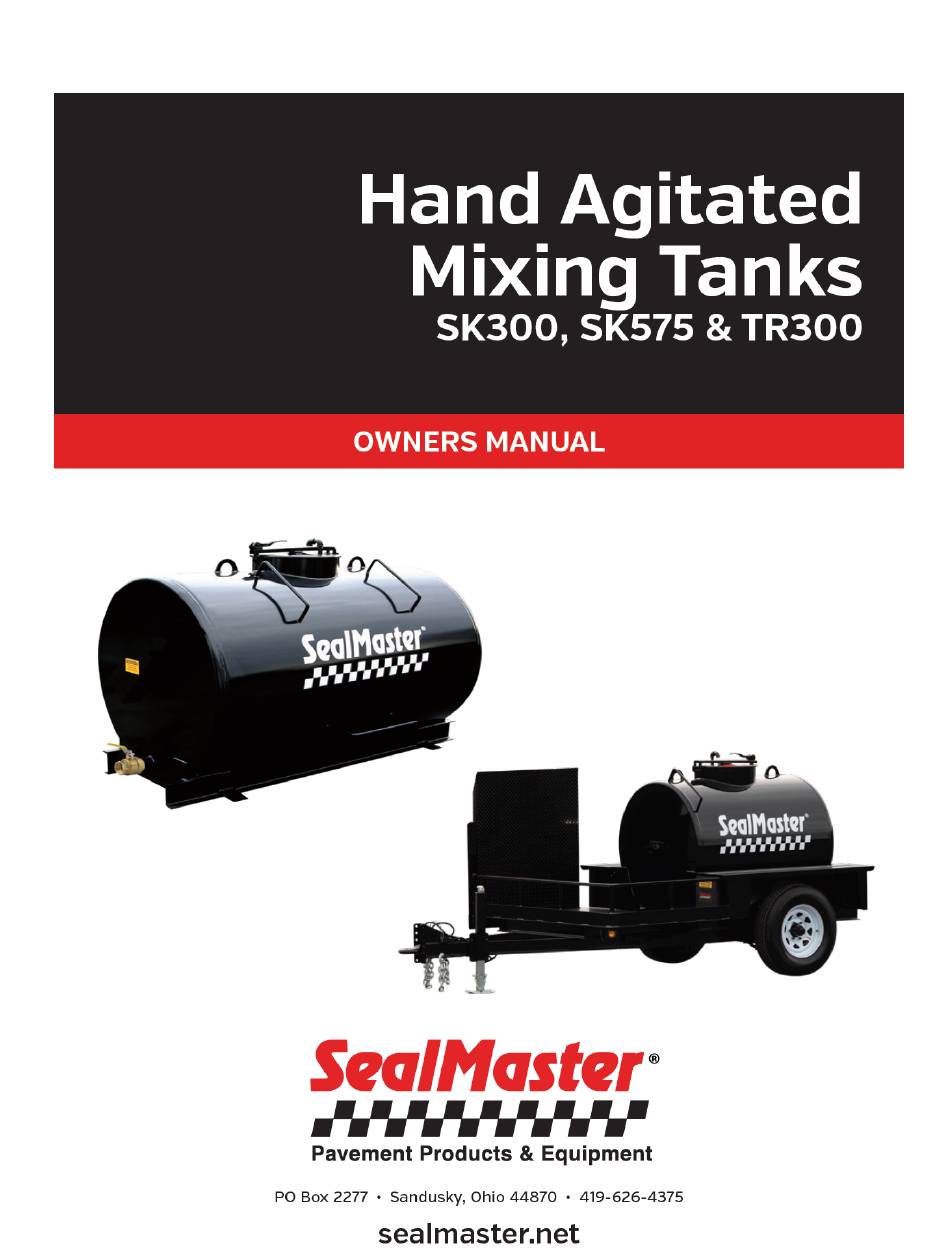

- Page 2 HAND AGITATED MIXING TANK Owner’s Manual Version 2.0 Issue Date: June 2019 Effective Date: April 2019 Version Date Changes Approval Original Issue 6/19 New Format and Updates S:\Engineering\13-Operator Manuals\Current\HANDAGITATOR_V2.0_JUNE2019.docx...
-
Page 3: Table Of Contents
Table of Contents CORRESPONDENCE ......................2 SealMaster® LIMITED WARRANTY ..................3 SAFETY PRECAUTIONS AND CAUTIONS ................4 PRECAUTIONS ........................4 CAUTIONS ......................... 4 MANUAL COVERAGE ......................5 HAND AGITATED MIXING TANK SKID AND TRAILER MOUNTED ........5 OPERATING INSTRUCTIONS ....................6 CHECKLIST ......................... -
Page 5: Sealmaster® Limited Warranty
(30) days from the date failure occurs, and in all cases prior to the expiration of the warranty period of one (1) year. It is the intent of this paragraph to limit SealMaster’s liability solely to the cost of replacement parts, F.O.B. factory, or at the option of SealMaster to repair of the defective part or parts. -
Page 6: Safety Precautions And Cautions
SAFETY PRECAUTIONS AND CAUTIONS PRECAUTIONS • Always wear eye and ear protection, and gloves. • Be aware of all CAUTION, WARNING, DANGER signs on the unit. • Read all Owners Manuals that come with this unit. • Make sure the operator is familiar with the units’ operation. CAUTIONS •... -
Page 7: Manual Coverage
SealMaster Hand-Agitated Sealcoating Mixing tanks are available in several sizes and configurations. SealMaster Hand-Agitated Mixing Tank can be carried in the back of a truck (skid mounted) or towed behind (trailer mounted). -
Page 8: Operating Instructions
HAND AGITATED MIXING TANK APPLIES TO ALL SK300, SK575 & TR300 WITH OPTIONAL HYDRAULIC AGITATION OPERATING INSTRUCTIONS STARTUP CHECKLIST • Check engine oil level. Follow manufacturers guidelines as to type and frequency of changes. • Check hydraulic oil level. Use grade AW68 hydraulic oil. -
Page 9: Starting The Engine
HAND AGITATED MIXING TANK APPLIES TO ALL SK300, SK575 & TR300 WITH OPTIONAL HYDRAULIC AGITATION OPERATING INSTRUCTIONS STARTUP THROTTLE ENGINE PULL START HANDLE CHOKE ON/OFF FUEL SWITCH STARTING THE ENGINE • Set the fuel shutoff and choke levers to the position. -
Page 10: Adding Material
OPERATING INSTRUCTIONS APPLIES TO ALL SK300, SK575 & TR300 WITH OR WITHOUT OPTIONAL HYDRAULIC AGITATION ADDING MATERIAL 1. Open the material tank lid and add pavement sealer with or without sand. Close the lid. 2. Turn the hand crank lever #25, or engage the hydraulic agitator, until the sealer is mixed thoroughly. -
Page 11: Machine Maintenance
HAND AGITATED MIXING TANK APPLIES TO ALL SK300, SK575 & TR300 MACHINE MAINTENANCE MAINTENANCE SCHEDULE Follow maintenance procedures listed on the engine manual. MAINTAIN WEEK MONTH MONTHS YEAR YEARS CHECK ENGINE OIL LEVELS CHECK HYDRAULIC OIL LEVELS CHANGE HYDRAULIC OIL *... -
Page 12: Trouble Shooting
HAND AGITATED MIXING TANK APPLIES TO ALL SK300, SK575 & TR300 MACHINE MAINTENANCE TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES/SOLUTIONS OIL SPECIFICATIONS / REFER TO OWNER’S MANUAL ENGINE OPERATING INSTRUCTIONS / REFER TO OWNER’S MANUAL ISSUES FUEL IN OIL CRANKCASE / FUEL SHUT-OFF VALVE IN... -
Page 13: Wiring Diagrams
WIRING DIAGRAMS ELECTRIC BRAKES AND RUNNING LIGHTS BLUE WHITE BLUE / BLACK WHITE BLUE BLUE BLUE GREEN / BROWN BROWN GREEN / BROWN BROWN YELLOW / BROWN WHITE BROWN YELLOW / BROWN BROWN... -
Page 14: Tank Capacity Chart
TANK CAPACITY CHART GALLONS ARE APPROXIMATE AND MAY VARY SLIGHTLY TANK TO TANK MATERIAL DEPTH AND GALLON VOLUME MATERIAL MATERIAL DEPTH GALLONS GALLONS DEPTH GALLONS GALLONS 41"x54" 48"x74" 41"x54" 48"x74" INCHES GALLONS GALLONS INCHES GALLONS GALLONS... -
Page 15: Machine Pictures And Parts List
HAND AGITATED MIXING TANK MODEL TR300 MACHINE PICTURES AND PARTS LIST PICTURE-1 MANHOLE COMPONENTS SAFETY BREAK AWAY TIRE & WHEEL ASSEMBLY PLUG HOOK TAIL LIGHTS TRAILER JACK TORSION AXLE MARKER SAFETY CHAIN LIGHTS AGITATOR PINTLE EYE COUPLER RUBBER BALL COUPLERS BACKING STRIP... -
Page 16: Parts List Picture-1
HAND AGITATED MIXING TANK APPLIES TO ALL SK300, SK575 & TR300 PARTS LIST PARTS LIST PICTURE-1 ITEM # PART# QTY. DESCRIPTION MANHOLE COMPONENTS P639B004 RETAINING RING WITH SPLASH GUARD P639B005 LID MANHOLE WITH VENT – DRIP EDGE P639A009 GASKET-MANHOLE LOW TEMPERATURE P639A006 LATCH &HARDWARE... -
Page 17: Parts List Picture-2
HAND AGITATED MIXING TANK MODEL SK 575 MACHINE PICTURES AND PARTS LIST PARTS LIST PICTURE-2 ITEM # PART# QTY. DESCRIPTION P432A002 FLANGE BEARING 1” BORE P426A001 SPROCKET 1” BORE P1038A000 #40 CHAIN ROLLER (SOLD PER FOOT) P1035A001 #40 MASTER LINK P426A011 SPROCKET 1-1/2”... -
Page 18: Parts List Picture-2
HAND AGITATED MIXING TANK MODEL SK 575 PARTS LIST PARTS LIST PICTURE-2 ITEM # PART# QTY. DESCRIPTION P397A002 2” VALVE P50137B003 BEARING PLATE P50137B002 BEARING SEAL P434A003 4-HOLE FLANGE BEARING 1-1/2” BORE BEARING PLATE FLANGE BEARING BEARING SEAL... -
Page 19: Parts List Picture-3
HAND AGITATED MIXING TANK MODEL SK 300 & TR 300 MACHINE PICTURES AND PARTS LIST PICTURE-3 SHOWN WITH DIRECT HAND CRANK BEARING PLATE FLANGE BEARING HAND CRANK BEARING SEAL PARTS LIST PICTURE-3 ITEM # PART# QTY. DESCRIPTION P50000D001 HAND CRANK (DIRECT) P50137B008 BEARING PLATE P50137B009... - Page 20 HAND AGITATED MIXING TANK APPLIES TO ALL SK300, SK575 & TR300 MACHINE PICTURES AND PARTS LIST WITH OPTIONAL HYDRAULIC AGITATION PICTURE-4 Y-MOUNT COUPLING CLAMP HYD. COUPLING AGITATOR MOTOR ENGINE AGITATOR CONTROL VALVE HYD. OIL TANK SUCTION STRAINER HYDRAULIC PUMP PUMP MOUNT...
-
Page 21: Parts List Picture-4
HAND AGITATED MIXING TANK APPLIES TO ALL SK300, SK575 & TR300 WITH OPTIONAL HYDRAULIC AGITATION PARTS LIST PARTS LIST PICTURE-4 ITEM # PART# QTY. DESCRIPTION P50340 HYDRAULIC AGITATION ASSEMBLY P72000B027 Y-MOUNT P458A022 HONDA ENGINE GX160 P474A078 HYDRAULIC AGITATOR MOTOR P599A001... -
Page 22: Parts List Picture-5
HAND AGITATED MIXING TANK MODEL SK 300 & TR 300 PARTS LIST WITH OPTIONAL GEAR REDUCTION PARTS LIST PICTURE-5 ITEM # PART# QTY. DESCRIPTION P462A002 FLANGE BEARING 1” BORE P426A001 SPROCKET 1” BORE P1038A000 #40 CHAIN ROLLER (SOLD PER FOOT) P1035A001 #40 MASTER LINK P426A014...
