Summary of Contents for Molbio Trueprep AUTO

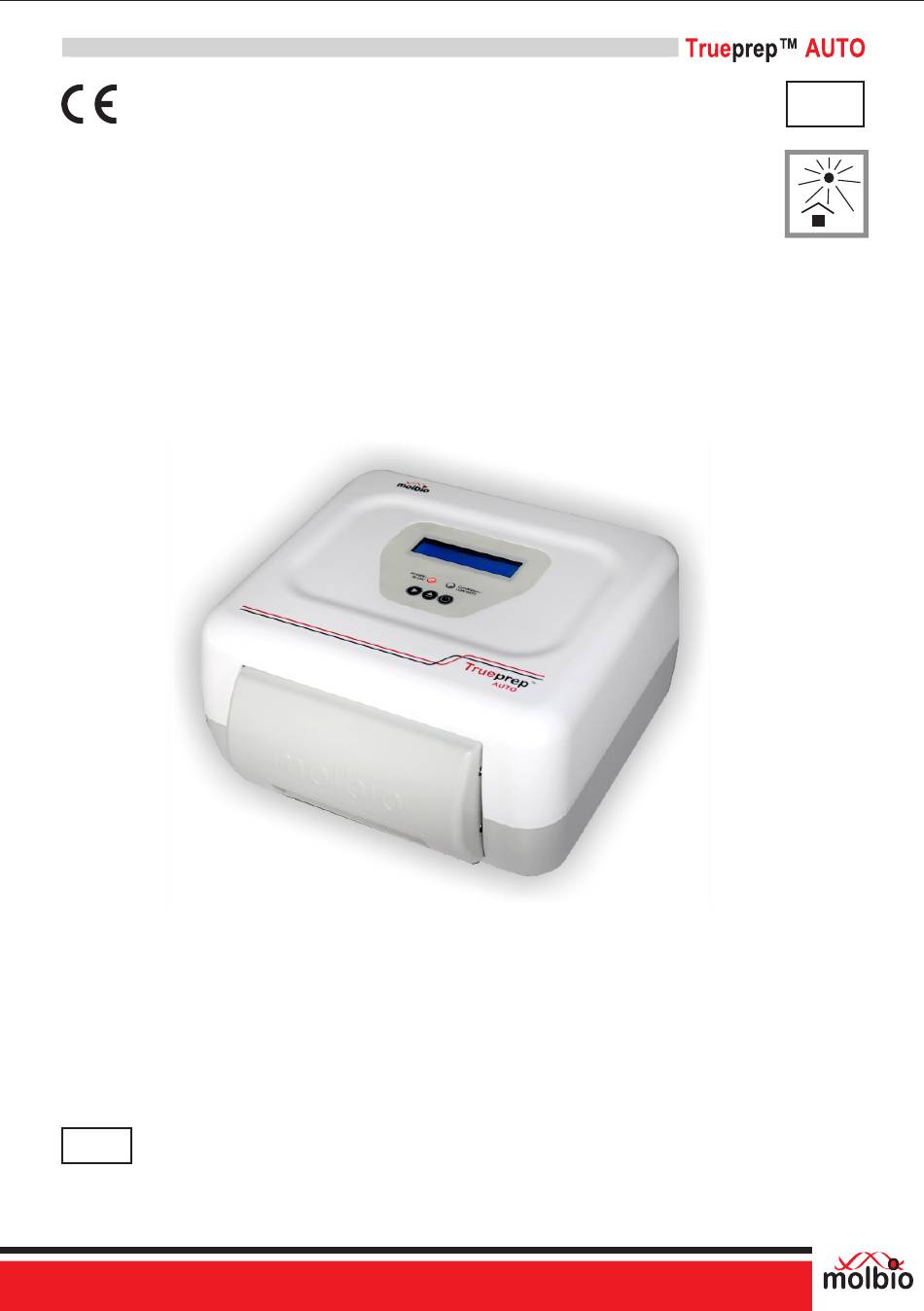

- Page 1 True prep™ AUTO Universal Cartridge Based Sample Prep Device 603041001 User Manual DIAGNOSTICS...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents Table of Figures Introduction Installation Installation Precautions Environmental Requirements Specifications Precautions Materials Required Contents Materials Required but not provided with device The Trueprep™ AUTO 6.1 A Top Panel View 6.1B Back Panel View The Cartridge Using the Trueprep™... -
Page 4: Table Of Figures
TABLE OF FIGURES Figure 1: The Trueprep™ AUTO Top View, with cartridge holder shown in the front panel Figure 2: The Trueprep™ AUTO Back Panel, with tubing and caps for plugging in reagent bottles from the Reagent Pack of the Trueprep™... -
Page 5: Introduction
Testing for infectious diseases by detecting the pathogens nucleic acids using nucleic acid amplification methods is a highly specific and sensitive diagnostic tool. Molbio's Truelab™ micro PCR System is a nucleic acid amplification platform that works on Real Time Polymerase Chain Reaction (PCR) technology that enables near patient diagnosis through disposable, disease specific microPCR chips and a portable, automated Truelab™... -
Page 6: Installation
Installation 2.1 Installation Precautions Do not install the Trueprep™AUTO next to instruments that may cause vibrations or electromagnetic interference. Do not store the Trueprep™ AUTO in the path of direct sunlight or use it close to any radiating or heating apparatus, such as a conventional oven, hot plate or infrared lamp. Do not store the Trueprep™... -
Page 7: Materials Required
Trueprep™ AUTO Universal Cartridge Based Sample Prep Kit (REF60203AR25)consisting of Universal Reagent Pack (25 tests) Universal Cartridge Pack (25 nos.) Disposable transfer pipette graduated (25 x3ml) Package insert (1 No.) 6. The Trueprep AUTO 6.1A Top Panel View POWER/IN USE CHARGING /LOW LED Indicator... -
Page 8: B Back Panel View
The Start button is used to begin sample processing The Power/In Use LED Indicator will glow when the Trueprep™ AUTO is switched on and when it is in use. It will glow red and blink continuously when the Trueprep™ AUTO is switched on and waiting for user input ii) It will glow red continuously when it is in use The Charging/Low Battery LED Indicator will glow when the Trueprep™... -
Page 9: Using The Trueprep™ Auto
Using the Trueprep™ AUTO 7.1 Charging/Using the Trueprep™ AUTO with the AC Adapter 7.1.1 Press the Power button to switch on the Trueprep™ AUTO 7.1.2 Low battery BATTERY LOW ! CONNECT CHARGER If the battery charge is low, you will see the above alert message The Charging/Low Battery LED Indicator will glow red and you will also hear a beeping sound. -
Page 10: Plugging In The Reagent Bottles
7.2.1 Before starting a run for the first time, plug in the colour coded reagent bottles from the Trueprep AUTO Sample Prep Kit Reagent Pack into the back panel of the device, matching the colour of the cap on the panel with the colour of the reagent bottle cap in the kit. Discard the reagent bottle cap once the bottle is plugged in. -
Page 11: Switching On The Trueprep™ Auto
‘Buffer Count’. BUFFER COUNT 7.3.2 Later you will be prompted with the message for TRUEPREP AUTO Placing the Cartridge in the device and starting the run Important: Only use the cartridge provided in the corresponding sample prep kits. 7.4.1 Press the Eject button to open the cartridge holder. You will be prompted with the message... -
Page 12: Figure 9: Cartridge Being Placed In Cartridge Holder
7.4.2 Take a cartridge out of the Cartridge Pouch from the Trueprep™ AUTO Universal Cartridge Based Sample Prep Kit Cartridge pack. The pouch also contains one Elute Collection Tube (ECT) for use at the end of extraction. Place the cartridge, after adding pre-treated sample (sample + lysis reagent) into the sample chamber ( see procedure in corresponding Truenat™... -
Page 13: Figure 11: Replaceable Tray And Rail Guards In Cartridge Holder
Clean the cartridge holder with 70% Isopropyl Alcohol (IPA) as described in Section 8.3. iv. Replace the removed tray with a new tray and close the cartridge holder (24 Extra trays are provided with the Trueprep AUTO device. More trays, if required, can be ordered from Molbio). -
Page 14: Errors, Alerts And Maintenance
The Screen displays the The cartridge is clogged error message because the specimen “CARTRIDGE used is too thick. CARTRIDGE CLOGGED CLOGGED Solution: PRESS EJECT PRESS EJECT” Please start with a new cartridge. In case the Problem persists contact Molbio support. DIAGNOSTICS... -
Page 15: Alert Messages
CARTRIDGE ERROR tray below the cartridge in PRESS EJECT the cartridge holder. If necessary, replace the tray (refer 7.4.6). In case the Problem persists contact Molbio support. The Screen displays Reason: the error message The heater is not working. RTD ERROR “RTD ERROR”... -
Page 16: Maintenance
Iso Propyl Alcohol (IPA). Wait for 5 minutes before inserting a new replaceable tray and rail guards into the holder. 8.3.4 Disposal of Instrumentation Do not Dispose off Instrument as unsorted municipal waste. Contact Molbio for collection of instrument. DIAGNOSTICS... - Page 17 In Vitro Diagnostic Medical Device DIAGNOSTICS...
- Page 18 This Side Up THIS SIDE UP Medical Electronic Rush MEDICAL ELECTRONIC RUSH Do Not Stack DO NOT STACK Fragile FRAGILE Keep Dry KEEP DRY Fully automatic operation Portable Rapid sample prepping Mains / rechargeable battery powered AUTO Universal Cartridge Based Sample Prep Kit DIAGNOSTICS...
- Page 20 Molbio Diagnostics Pvt. Ltd. Registered Office: Manufacturing Unit: H.No. 13, Sagar Society, Dona Paula Plot Nos. M-46/47, Phase III B, Panaji, North Goa,Goa - 403 722, India. Verna Industrial Estate, Verna, www.molbiodiagnostics.com Goa - 403 722, India. Email: sales@molbiodiagnostics.com Qarad b.v.b.a. Cipalstraat 3, B-2440 Geel, Belgium...
