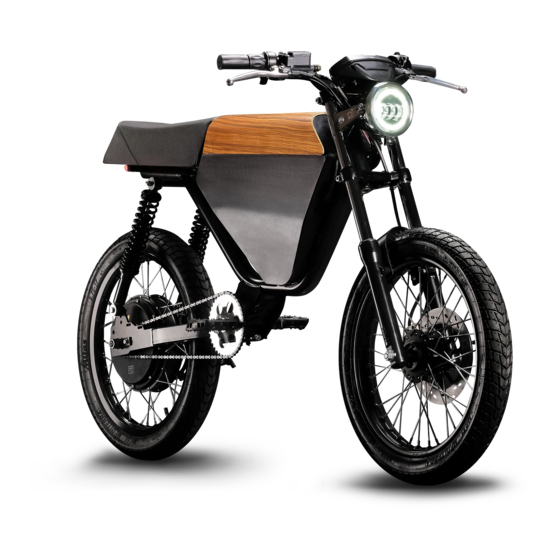

Onyx RCR User Manual

Hide thumbs Also See for RCR:

Advertisement

Quick Links

RCR USER MANUAL
V1.0
455 Irwin St.
onyxmotorbikes.com
Unit 104
info@onyxmotorbikes.com
San Francisco, CA 94107
TW: @onyxmotorbikes
FB: @onyxmotorbikes
IG: @onyxmotorbikes

Advertisement

loading
Need help?

Need help?

Do you have a question about the RCR and is the answer not in the manual?

Questions and answers

Related Manuals for Onyx RCR

Summary of Contents for Onyx RCR

  • Page 1 RCR USER MANUAL V1.0 455 Irwin St. onyxmotorbikes.com TW: @onyxmotorbikes Unit 104 info@onyxmotorbikes.com FB: @onyxmotorbikes San Francisco, CA 94107 IG: @onyxmotorbikes...
  • Page 2 Motorbike and in this brief document we will go GET IN TOUCH over the basic landscape of the electric bike. We want to thank you for choosing an ONYX as your new form of 455 Irwin St. transportation and recreational use. We hope you find this guide...

  • Page 3: Table Of Contents

    WARNING. Riding an electric bike is extremely dangerous. Use of this product can result in serious damage, injury, or death. ONYX products function differently from conventional bicycles and are dangerous. To minimize risk of serious injury, protective equipment should be worn at all times including a helmet. You are responsible for your own safety. Use this product with extreme caution and at your own risk.

  • Page 4: Quick Start Guide

    QUICK START GUIDE LETS GET READY TO RIDE! Okay you are super tempted to ride the bike, but lets get the bike fully charged and ready to ride before you go ride off into the sunset. The battery is in storage mode and needs about 50% more energy.
  • Page 5 STEP 5: To fully remove the battery for charging, grab STEP 7: After the charge is complete make sure the the battery case handle and lift out the front of the battery switch is in the “OFF” position before installing battery first until it clears the top of the bike.

  • Page 6: Warranty

    WARRANTY TERMS & CONDITIONS Subject to the terms set forth below, the ONYX motorized bicycle is warranted to be free from defects in material and workmanship for a period of 90 days from the date of original consumer purchase and 12 USER MANUAL months for drive-train related components.

  • Page 7: Serial Location

    ONYX is proud and confident of its dealers and products, and wants to assure that each new ONYX owner receives full satisfaction. In the event that satisfaction is not obtained at the dealer level, however, the original consumer is invited to contact ONYX directly at 455 Irwin St.

  • Page 8: Operating Controls

    OPERATING CONTROLS KEY-FOB POWER ON / OFF / ARM Each bike comes equipped with two key fob remotes that can turn on and off the main power to standby, and set the alarm. Note this does not fully kill the power to the system which allows for the alarm and clock to function.
  • Page 9 THROTTLE KILL SWITCH ON / OFF THREE SPEED SWITCH In total there are three ways to turn off the bike the Each bike is outfitted with a three speed function only way to completely turn off the bike is to turn off the switch.
  • Page 10 BRAKE LEVERS The brake control levers are mounted on the handlebar. (Fig. 10) Left (1) lever controls the rear wheel brake and regenerative braking. Right (2) lever controls the front wheel brake. REGENERATIVE BRAKE The left brake lever not only controls the rear mechanical brake, but it also controls the regen braking.
  • Page 11 HEADLIGHT SWITCH BLINKER SWITCH To control the headlight you simply toggle the light Each bike is outfitted with a blinker switch for those who switch up on the left hand control to activate the bright would like to add blinkers. To add blinkers you will need LED projector beam.

  • Page 12: Battery Operation

    BATTERY OPERATION BATTERY COVER REMOVAL The battery cover is made of solid bamboo and should be handled with extreme care. Below are the steps for proper removal of the cover so you do not break the cover. Never force, pry, or hit the cover or you could cause major damage to the wood. USER MANUAL V1.0 PRACTICE MAKES PERFECT...
  • Page 13 BATTERY REMOVAL BATTERY INSTALLATION Removing the battery is very easy but you need to Follow the installation steps below with extreme care. take extreme caution when doing anything related to the battery. Below are the steps to safely remove the battery for charging it off the bike.
  • Page 14 BATTERY COVER INSTALLATION The battery cover is made of solid bamboo and should be handled with extreme care. Below are the steps for proper installation of the cover so you do not break the cover. Never force, pry, or hit the cover or you could cause major damage to the wood. USER MANUAL V1.0 PRACTICE MAKES PERFECT...
  • Page 15 BATTERY CHARGING Charging the battery is similar to plugging in a laptop charger, but you should always charge/store your battery in a safe place. Below are the steps to charging your battery in or out of the bike. STEP 1: Make sure the battery is in the STEP 2: The charger light will change STEP 3: When the battery is done “OFF”...

  • Page 16: Operating Instruction

    OPERATING INSTRUCTION 1. Prop the bike on its kickstand. 2. Remove the wood cover to turn on the battery then replace the cover. 3. Use the key-fob to activate the bike’s power. USER MANUAL V1.0 4. Press the kill switch on the throttle to power up the system. Throttle The speed of the bike is controlled with a twist grip on the right side of the handlebar.
  • Page 17 1. It is suggested to wear bright clothing, utilize eye protection and proper shoes or boots when riding your moped. 2. Wearing a helmet is required. 3. Be sure to switch on headlight at low visibility. 5. Obey all traffic regulations. Use hand signals when turning or changing lanes. Please respect property of others and ride carefully.

  • Page 18: Troubleshooting

    TROUBLESHOOTING COMMON TROUBLESHOOTING Below are some ways to diagnose common issues “should one arise” and get you back on the road again. UNRESPONSIVE THROTTLE USER MANUAL 1. Likely the left brake lever is stuck, activating the brake light and the regen braking. V1.0 Regen braking prevents the throttle from allowing a signal to the controller.
  • Page 19 MOPED ARMY While the ONYX is not a two stroke moped it shares many parts with Puch and Tomos mopeds. Should you have any questions about servicing, customizing, or you are looking to purchase a part, Moped Army could help you in the right direction.

  • Page 20: Owner Maintenance

    OWNER MAINTENANCE MOTOR PHASE WIRE CABLE TIE AROUND AXLE Before every ride you need to check and make sure the cable tie is securely tightened in place around the phase wires at the motor phase wire exit. This will ensure that your phase wires do not get damaged from the rotor.
  • Page 21 NOTES __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________...
  • Page 22 NOTES __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________...
  • Page 23 NOTES __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________...
  • Page 24 ONYX MOTORBIKES MOPEDS ARE BACK! 455 Irwin Street onyxmotorbikes.com TW: @onyxmotorbikes Unit 104 info@onyxmotorbikes.com FB: @onyxmotorbikes San Francisco, CA 94107 IG: @onyxmotorbikes...
