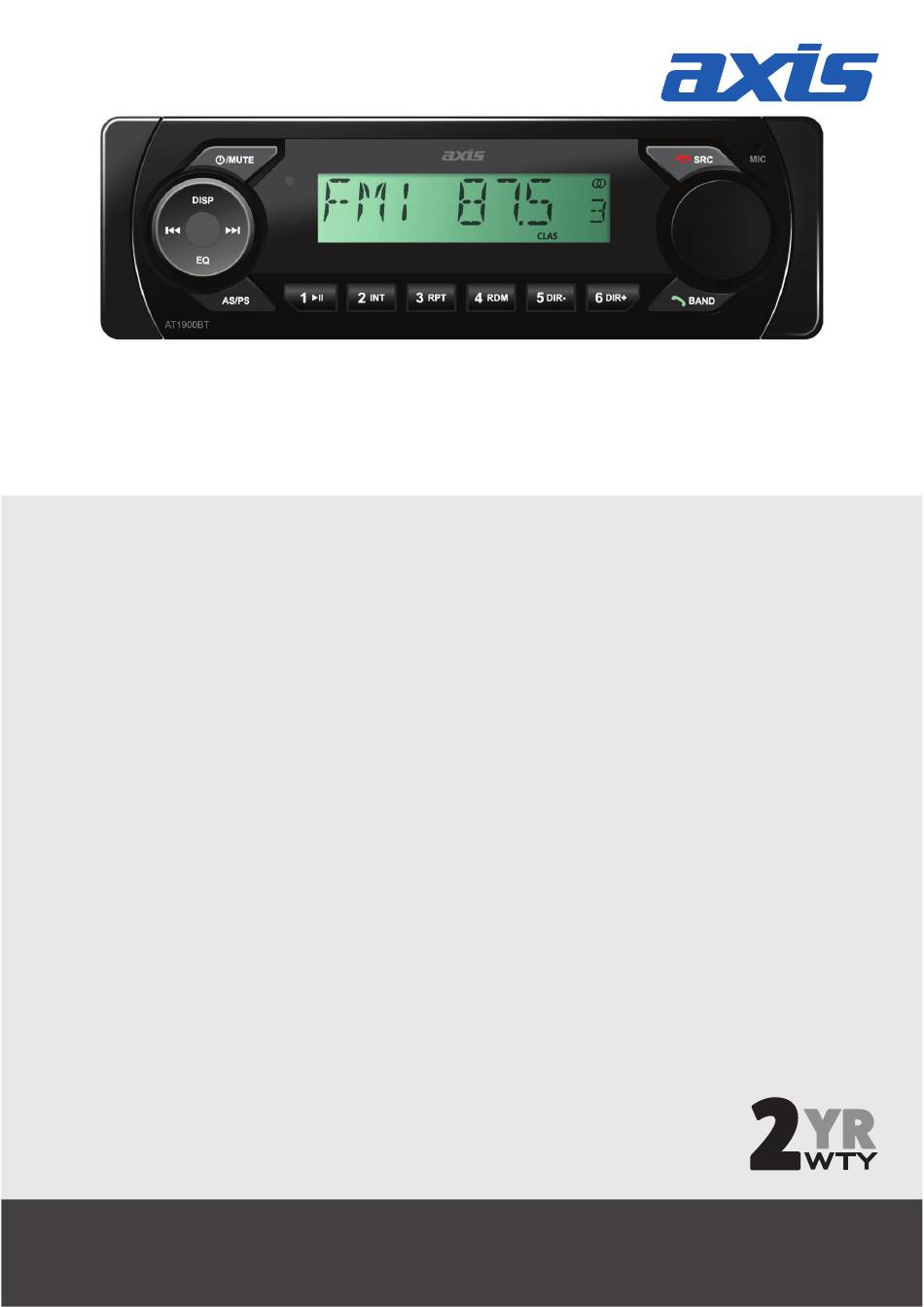

AT1900BT
12/24V WATER/DUST PROOF
AM/FM MULTIMEDIA PLAYER
SPECIFICATIONS
GENERAL
- Fixed Face Panel
- Mechless (without CD deck)
- IP54 Dust/Water Resistant Face & Body
- Conformal Coated PCB
- "Ultra Memory" To retain preset settings after battery
is disconnected
- Steering Wheel Control (3 Wire, 12 Function Programmable)
- Illuminated Controls (White)
- Digital Clock
- ISO DIN Mounting
- Mini DIN Chassis (96mm)
- Face Panel: 188W x 58Hmm
- Chassis: 178W x 50H x 96Dmm
- 12/24 Volt DC (10.8-32V) Negative Ground
- Max Power 40 Watts x 4 CH (24V)
TUNER
- PLL Synthesized AM/FM Stereo
- Elite RDS Tuner
- FM 87.5~108 MHz; AM 531~1602 KHz
- 30 Station Presets - 18FM/12AM Memory
- Station Seek/Preset Scan/Auto Store
- Automatic or Manual Tuning
- Local/Distant Control
- Mono/Stereo
INSTRUCTION MANUAL
BLUETOOTH
- Bluetooth in Phone Mode
- Pick-Up/End Call
- Internal/External Microphone - Selectable
- A2DP Audio Streaming
- Scrolling Song Title Display
MULTIMEDIA
- USB Input: Rear (with Charging)
- RCA AUX-IN: Rear
- 2 Ch RCA Line Out
- Intro/Repeat/Random Play/Pause
- Track Down/Up (MP3/WMA Files)
- Directory Down/Up
AUDIO CONTROL
- Rotary Encoder
- Electronic Volume/Balance/Fader/
Bass/Treble
- Loud/Mute
- 4-Band DSP Settings
- Speaker Impedance 4-8 Ohm
- Tele Mute
INCLUDED
- ISO Wiring Harness
- Installation Hardware
- 1 DIN Cradle
OPTIONAL
- Mounting U-Bracket
- External Handsfree Microphone
- DAB+ Module & Antenna

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXIS AT1900BT and is the answer not in the manual?

Questions and answers

Related Manuals for Audioxtra AXIS AT1900BT

Summary of Contents for Audioxtra AXIS AT1900BT

  • Page 1 AT1900BT 12/24V WATER/DUST PROOF AM/FM MULTIMEDIA PLAYER SPECIFICATIONS GENERAL BLUETOOTH - Fixed Face Panel - Bluetooth in Phone Mode - Mechless (without CD deck) - Pick-Up/End Call - IP54 Dust/Water Resistant Face & Body - Internal/External Microphone - Selectable - Conformal Coated PCB - A2DP Audio Streaming - “Ultra Memory”...

  • Page 2: Wiring Connection

    WIRING CONNECTION CONSIDERATIONS 1. Please read these instructions carefully before installation. 2. Ensure all speaker cables are connected before powering the unit. 3. Insulate all exposed wires to avoid short circuit. 4. Please secure all wires after installation. 5. This player suits 12/24V DC vehicles. 6.
  • Page 3 WIRING CONNECTION WIRING CONNECTION BROWN STEERING WHEEL CONTROL 1 BLACK BLACK GROUND GROUND BROWN/BLACK STEERING WHEEL CONTROL 2 ORANGE TELEPHONE MUTE BLACK REAR RCA LINE OUT (GREY) RADIO ANTENNA BLACK AUX IN - RCA (BLACK) MIC IN 8 PIN MALE CONNECTOR (For Optional DAB+) USB CONNECT WIRE COLOUR...

  • Page 4: Location Of Controls

    LOCATION OF CONTROLS 1 2 3 4 9. 5/DIR- (Preset 5/Directory Down) (Seek Down) 10. 4/RDM (Preset 4/Random) 2. DISP (Display) 11. 3/RPT (Preset 3/Repeat) (Seek Up) 12. 2/INT (Preset 2/Introduction) /MUTE (Power / Mute) 13. 1/ (Preset 1/Play/Pause) SRC (End Call/Source Select) 14.

  • Page 5: Key Functions

    KEY FUNCTIONS KEYS ACTION RADIO POWER Short Power On/Mute Power On/Mute Power On/Mute Power On/Mute /MUTE Long Power Off Power Off Power Off Power Off Change Source/ Change Source/ Change Source/ Change Source/ Short SRC/ Hang Up Hang Up Hang Up Hang Up /Delete Long BT Off/Link...

  • Page 6: Basic Operation

    OPERATION BASIC OPERATION Turn On/Off and Mute Function Press /MUTE button to turn on the unit. When system is on, press this button to turn mute on/off. Press and hold /MUTE to power the unit off. Audio and Setting Menu Adjustment •...

  • Page 7: Usb Play Operation

    OPERATION RADIO OPERATION: Receive a Radio Station Press SRC button to select radio mode, then press BAND button to select a band. Press button to receive the desired radio station. Press and hold button for manual tuning the frequency. Auto Store Press AS/PS button for 2 seconds to auto store stations to numeric buttons 1-6 of band 1~3.

  • Page 8: Rds (Radio Data System) Operation

    OPERATION Song Search Press AS/PS button to select song search mode as below: 1) DIR Search Press AS/PS button once. “DIR SCH” is displayed. Rotate VOL knob to select the folder, then press SEL knob to enter that folder. Rotate the VOL knob again to select the song.

  • Page 9: Memory Backup

    OPERATION Traffic Announcement (TA) In TA mode of the menu, press and hold VOL knob to set the TA to on/off. TA On: When a TA station is received, the unit will temporarily switch to radio mode to listen to the TA station in RADIO/USB/AUX/BT mode. If the volume level was under the TA volume it will automatically be raised to the TA volume.

  • Page 10: Specification

    SPECIFICATION SPECIFICATIONS GENERAL Power Supply Requirements: DC 12/24 Volts, Negative Ground Chassis Dimensions: 178 (W) x 96 (D) x 50 (H) Tone Controls Bass (at 100 Hz): ±10 dB Treble (at 10 kHz) ±10 dB Maximum Output Power: Current Drain: 10 Amp (max.) RADIO Frequency Coverage...

  • Page 11: Troubleshooting

    TROUBLE SHOOTING Before going through the checklist below, please check all wiring connections. If any of the problems persist after checking, consult your nearest AXIS Car Audio service centre. Symptom Cause Solution The car ignition switch is not on. If the power supply is connected to the No power accessory circuit, but the engine is not on, switch the ignition key to “ACC”.
