Manual
78157pr-0820qrk
6/13/01 2:26 PM
e Instructions

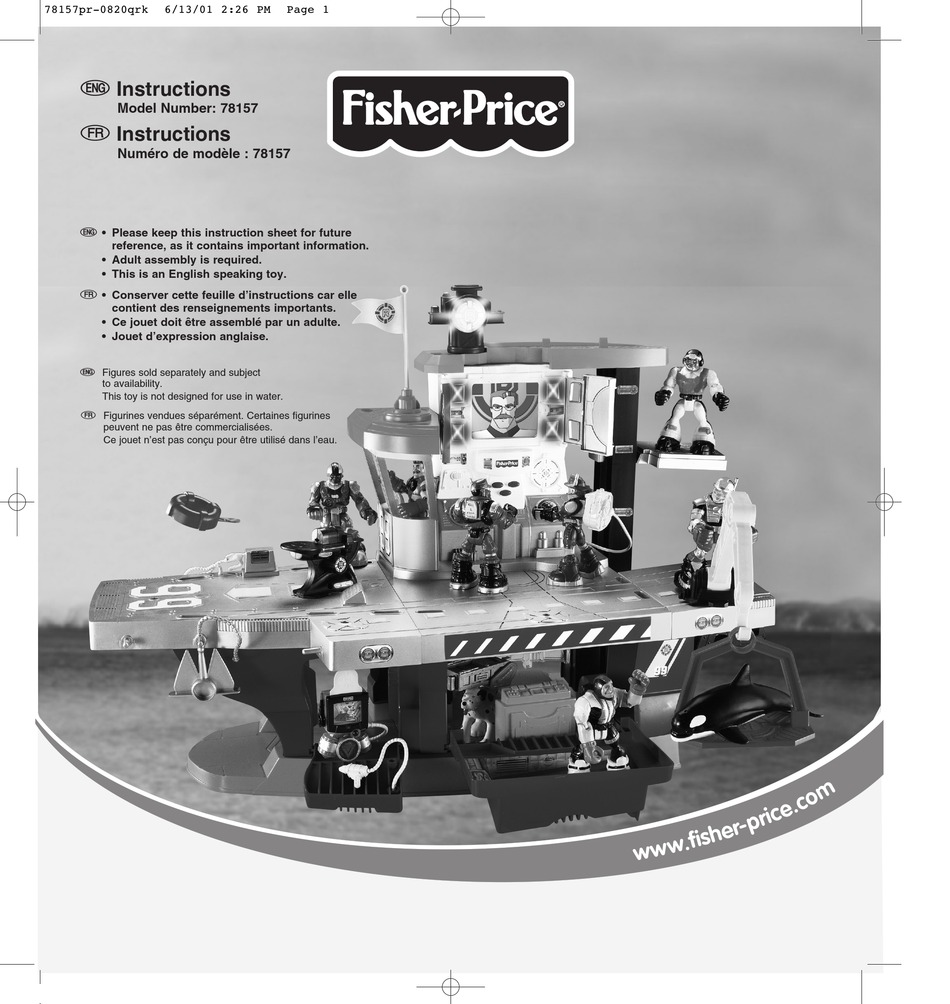

Model Number: 78157
f Instructions
Numéro de modèle : 78157
e • Please keep this instruction sheet for future
reference, as it contains important information.
• Adult assembly is required.
• This is an English speaking toy.
f • Conserver cette feuille d'instructions car elle
contient des renseignements importants.
• Ce jouet doit être assemblé par un adulte.
• Jouet d'expression anglaise.
e Figures sold separately and subject
to availability.
This toy is not designed for use in water.
f Figurines vendues séparément. Certaines figurines
peuvent ne pas être commercialisées.
Ce jouet n'est pas conçu pour être utilisé dans l'eau.
Page 1
