Summary of Contents for Serato Allen & Heath Xone:43C
Page 1
QUICK - START GUIDE ALLEN & HEATH XONE:43C...
Page 2
Installation and Setup To activate Serato DJ with the Allen & Heath XONE:43C it requires a Serato DJ license to be purchased and activated on your user account. The Xone:43C also requires the DVS Expansion Pack to be purchased and activated before unit can be used with NoiseMap™...
Page 3

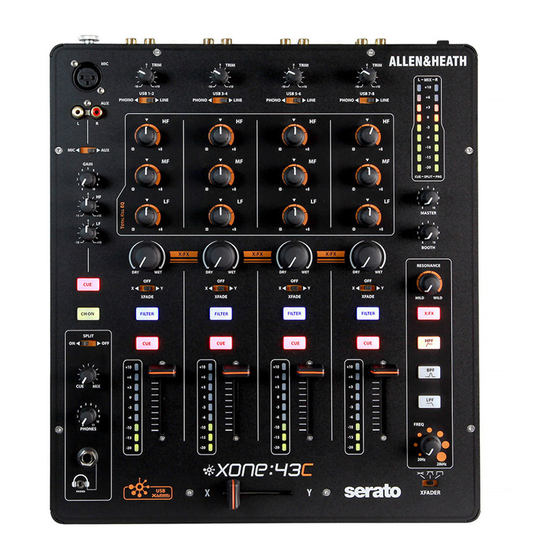

Mixer PHONO PHONO PHONO PHONO LINE LINE LINE LINE X:FX X:FX RTNS RECORD BOOTH MASTER XONE:43C Control Function ON/OFF Power ON/OFF switch KENISNGTON LOCK Connect a Kensington lock to secure mixer PHONO/LINE Connect RCA phono or line level inputs CHANNEL INPUT SOURCE Select channel input source (Phono/Line) GROUNDING POST Connect grounding wire from turntables...
Page 4
XONE:43C Control Function MIC SECTION Input and controls for a microphone TRIM Adjust channel trim volume CHANNEL INPUT SOURCE Select channel input source TOTAL KILL EQ Channel EQ controls LED OUTPUT METER Displays output levels MASTER Master output volume BOOTH Booth output volume FILTER SECTION XONE:43C filter controls...
Page 5
To use the Allen & Heath XONE:43C mixer with DVS control and Serato DJ, you will first need to own a Serato DJ licence and a DVS Expansion Pack Open the SETUP screen and click the AUDIO tab, here you will need to licence (these two products have been bundled together as the Club Kit).
Recording The MIDI feature in Serato DJ provides the ability to remap Serato DJ To record your mixes with Serato DJ and the XONE:43C you will need to software functions to your primary Serato DJ controller, interface or mixer. designate a mixer channel to use for recording. You will not be able to use You can also assign controls to a secondary MIDI controller to further this channel in Serato DJ while it is used for recording.
