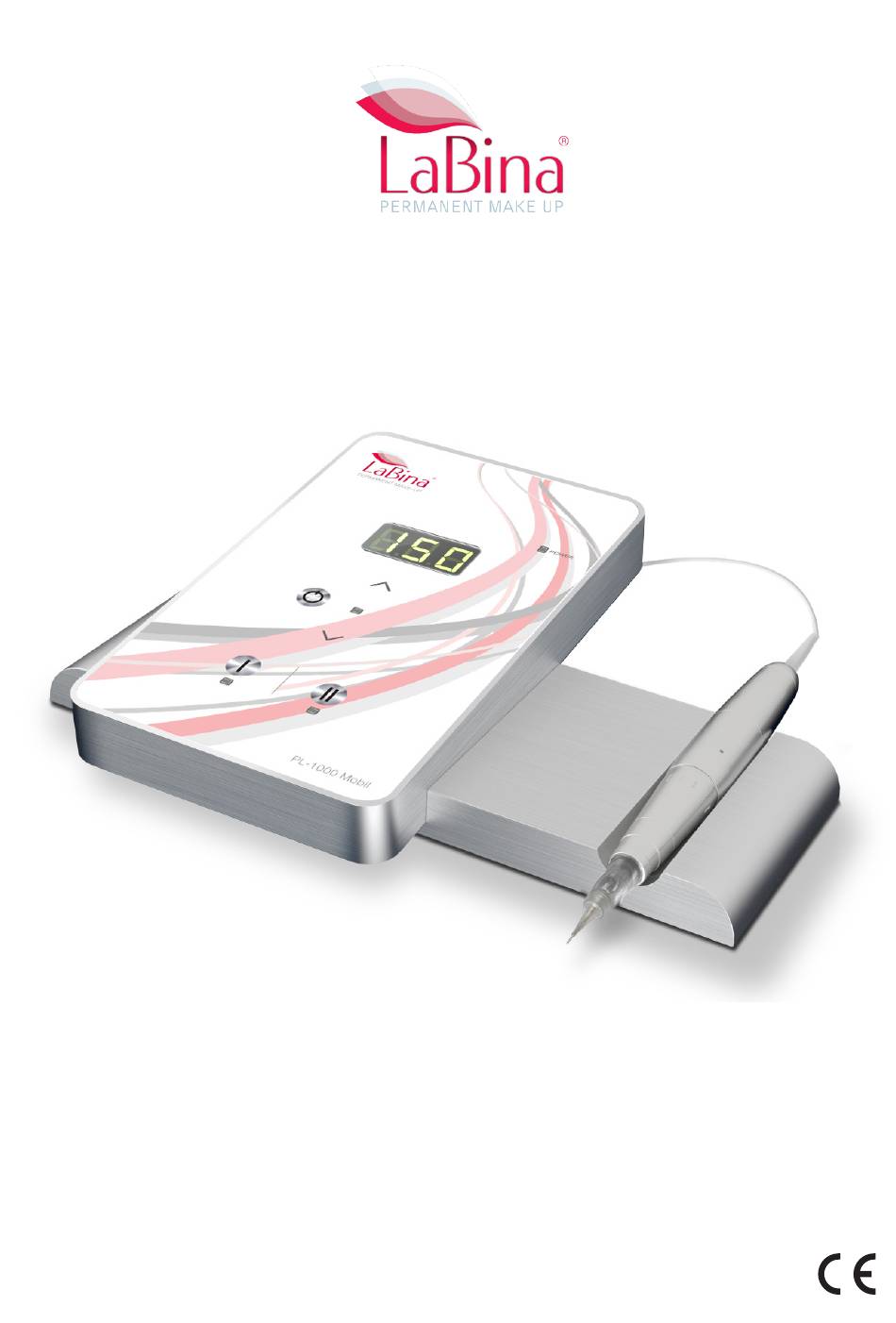

- Page 1 PL-1000 Mobil OPERATING MANUAL...
- Page 2 Needle cartridges See “4.3 Accessories and spare parts” on page 18. Handpiece with connecting cable CN-1.3 Handpiece tray FG-AD1.0-1 Handpiece cover E-0610 Foot switch E-1010 Power supply unit E1165 Country-specific adapter EU: E-1154 * Not included with the delivery PL-1000 Mobil...
- Page 3 Select Handpiece I/II buttons ( ) (white LED) Power LED indicator (white LED) Increase frequency button ( )/ decrease frequency button ( Connection for foot switch Connection for handpiece I and II Connection for power supply Device ON/OFF button PL-1000 Mobil...
-
Page 4: Table Of Contents
Setting the penetration frequency Switching the handpiece on and off 7 Cleaning and maintenance Inspection Material compatibilities Disinfecting surfaces English Version 1.0 – 07/2018 Translation of the original operating manual. The original operating manual was generated in German. PL-1000 Mobil... - Page 5 Cleaning surfaces 8 Transport and storage conditions Controller, handpiece with handpiece cable, power supply and foot switch 32 Needle cartridge 9 Disposal 10 Questions and problems 11 Guarantee 12 Declaration of conformity PL-1000 Mobil...
-
Page 6: About This Manual
A B O U T T H I S M A N U A L This operating manual applies to the PL-1000 Mobil (AD-1.4) and its accessories. It con- tains important information about setting up, operating and looking after the device safely and as intended for use. -
Page 7: Important Safety Instructions
Product-specific safety instructions Never modify the device, the needle cartridges or other accessories. Children must be supervised and prevented from playing with the device. Prevent fluids from getting inside the device, the handpiece, the foot switch or the power supply. PL-1000 Mobil... -
Page 8: Important Health And Safety Precautions
(consumables) and are only ever per- mitted to be used once! Dispose of used or faulty needle cartridges as well as needle cartridges whose packag- ing is damaged in a non-penetrable container (sharps container) in accordance with the regulations applicable in your country. PL-1000 Mobil... - Page 9 Please be sure to inform your customer to avoid contact with recently treated skin. Recently treated areas of skin should also be protected from Contamination and UV and solar radiation. Additional irritants such as Visits to swimming pools or saunas Abrasive or chemical peelings Hair removal at the treated areas or PL-1000 Mobil...
-
Page 10: Contraindications And Side Effects
Allergy to topical anaesthetics (local anaesthetic) Under the influence of alcohol and/or drugs Pregnancy and lactation The treatment of mucous membrane and eyeballs is strictly forbidden. The treatment must be immediately aborted in the event of: Excessive perception of pain Fainting/dizziness PL-1000 Mobil... -
Page 11: Required Qualification (User Requirements)
The device and its accessories may not be used by per- sons with no experience or knowledge unless they are being supervised or instructed (train- ing). The device may only be used by persons trained in the following: Qualification for micropigmentation/PMU PL-1000 Mobil... -
Page 12: Intended Purpose, Scope Of Application And Proper Use
Intended use also includes the assumption that this operating manual and in particular chapter "2 Important safety instructions" on page 7, have been read in full and understood. Intended use also assumes the following consumer groups exclusively: Adult men and women who are in good health PL-1000 Mobil... -
Page 13: Symbols On The Product
Housing offers protection from jets of water Housing offers protection from foreign objects thicker than 1 mm Applied part, type B: Applied part provides safety from electrical shock and leakage currents Handpiece Foot switch DC connection, inner pin positive Observe operating manual! PL-1000 Mobil... - Page 14 Date of manufacture Catalogue number, order number Serial number Batch code Sterilised with ethylene oxide Can be used until Temperature limit Humidity limit Air pressure limit Protect from moisture Only use indoors Fragile Do not use if packaging damaged PL-1000 Mobil...
- Page 15 UL certification for components recognised in Canada and the USA Double insulation / device protection class II GHOST-R mark for Russia Device complies with the requirements of RoHS 2 SIQ mark license EN60601-1 Ukraine UKRSepro See operating manual for further information PL-1000 Mobil...
-
Page 16: Scope Of Delivery
1 English operating manual The handpiece covers (E-0610) required for operation are not included in the delivery. Suit- able accessory parts for the handpiece can be obtained via authorised retailers, see "4.3 Accessories and spare parts" on page 18. PL-1000 Mobil... -
Page 17: Product Information
Dimensions (W x H x D) 230 mm x 45 mm x 185 mm Handpiece weight approx. 100 g Total weight approx. 1100 g Operating conditions Ambient temperature +15°C to +35°C Relative humidity 30% to 75% Air pressure 700 hPa to 1070 hPa PL-1000 Mobil... -
Page 18: Accessories And Spare Parts
– E-0023N4 - 3-Nano Slope – E-0023N4-A - 3-Nano Slope – E-0025N4-A - 5-Nano Slope – Handpiece cover E-0610 – SCOPE OF SPARE PART ARTICLE DESCRIPTION PIECE/VPE DELIVERY Controller MAD-1.4 Handpiece CN-1.3 Foot switch E-1010 Handpiece tray FG-AD1.0-1 PL-1000 Mobil... -
Page 19: Getting Started
There is a risk of damage to electronics if there is visible damage to cables or cable con- nections. Check the device and the cables by visually checking for damage such as a defective cable connection for example. Never kink the product's cable. PL-1000 Mobil... -
Page 20: Positioning The Device
Place the device on a clean, firm and level surface. Ensure that the buttons and the display of the device remain freely accessible during use. Never place the device on or underneath other devices. Place the device on a clean, firm and level surface. PL-1000 Mobil... -
Page 21: Connecting The Power Supply
To insert the desired country-specific adapter: Place the country-specific adapter in the recess of the power supply as shown below. Press the adapter into the plug-in power unit until the catch can be heard to engage. Fig. 2: Insert country-specific adapter PL-1000 Mobil... -
Page 22: Connecting The Foot Switch (Optional)
Insert the RCA plug of the foot switch into the socket for the foot switch ( ) on the rear of the controller. Fig. 4: Socket for the foot switch Connecting the handpiece Connect the FireWire jack plug of the handpiece cable to the socket on the controller. Fig. 5: Output socket PL-1000 Mobil... -
Page 23: Cleaning And Disinfecting The Equipment
Wipe the controller, the handpiece cable, the handpiece and the handpiece tray with a soft cloth moistened with cleaning product. Wipe the handpiece, the controller, the handpiece cable and the handpiece tray with a soft cloth moistened with disinfectant. PL-1000 Mobil... -
Page 24: Inserting Or Replacing The Needle Cartridge
Switch the handpiece off. Insert the bayonet connector of the needle cartridge into the opening of the handpiece as shown below. You can insert the needle cartridge with all possible orientations. Fig. 6: Inserting the needle cartridge PL-1000 Mobil... -
Page 25: Pulling The Handpiece Cover On
Stick the end of the handpiece cover firmly to the moving part of the handpiece. Fig. 8: Handpiece cover in place Dispose of the used handpiece covers in containers for proper disposal of contaminated parts, after the conclusion of each treatment. PL-1000 Mobil... -
Page 26: Filling Needle Cartridges
Insert the desired accompanying preparation into the needle cartridge through the filling opening (1) in the needle cartridge using a suitable applicator that guarantees sterility. In doing so, note the ca. 1 ml capacity of the needle cartridge. Fig. 9: Filling the needle cartridge PL-1000 Mobil... -
Page 27: Checking Equipment
The respective LED on the Select Handpiece I/II ( ) button illuminates white. The preset penetration frequency (100 Hz) appears on the display. To switch the controller to standby mode: Press the Device ON/OFF button on the rear of the controller. PL-1000 Mobil... -
Page 28: Setting The Needle Protrusion Depth
If the puncture frequency is too high, the skin can be cut open. Always start with a low puncture frequency, eg. 100 punctures per second. Select the penetration frequency on the basis of the skin characteristics and suitable for the working speed. PL-1000 Mobil... -
Page 29: Switching The Handpiece On And Off
The LED indicator next to the button illuminates white and shows the current operation of the handpiece. If the handpiece does not start: Refer to the chapter "10 Questions and problems" on page 33. To switch off the handpiece: Press the GO ( ) button again. PL-1000 Mobil... -
Page 30: Cleaning And Maintenance
To clean the device, use a mild soap detergent authorised in your country, or 50% dilut- ed 1-propanol solution. Use the following disinfectants to disinfect the device: MANUFACTURER PRODUCT WORKING-IN TIME Antiseptica Big Spray “new” 1 to 5 min Bode Chemie Bacillol 30 s to 1 min PL-1000 Mobil... -
Page 31: Disinfecting Surfaces
Disinfect the handpiece cable, the handpiece and the handpiece tray as described in chapter "5.5 Cleaning and disinfecting the equipment" on page 23. Cleaning surfaces External soiling: Wipe the device and its accessories with a soft cloth moistened in the cleaning product or disinfectant. PL-1000 Mobil... -
Page 32: Transport And Storage Conditions
Ambient temperature -10°C to +40°C Relative humidity 30% to 75% Air pressure 700 hPa to 1070 hPa Needle cartridge Always store the needle cartridges in the following conditions: Ambient temperature +15°C to +35°C Relative humidity 30% to 65% PL-1000 Mobil... -
Page 33: Disposal
If the power supply is connect- Switch the controller to standby mode and wait for 30 seconds (see chapter Switching the control unit to operating mode or standby mode). Switch the controller back to operating mode. PL-1000 Mobil... -
Page 34: Guarantee
Damage and consequential damage caused by improper use or failure to comply with the operating manual. Damage caused by the ingress of fluids or dirt into the inside of the handpiece, the con- troller or the power supply. PL-1000 Mobil... -
Page 35: Declaration Of Conformity
The manufacturer MT.DERM GmbH Gustav-Krone-Str. 3 D-14167 Hereby declares under their own responsibility that the following product: Product: Micropigmentation system Prodct name: PL-1000 Mobil Item number: AD-1.4 Complies with the following directives: EMC directive: 2014/30/EU Machinery directive: 2006/42/EU RoHS directive:... - Page 36 Manufactured by: MT.DERM GmbH | Gustav-Krone-Str. 3 | 14167 Berlin fon +49 (0)30 845 88 54 | fax +49 (0)30 84 58 85 55 | info@mtderm.de | mtderm.de...
