LaBina PL-500 Control User Manual

Micropigmentation device
Hide thumbs Also See for PL-500 Control:
Table of Contents

Advertisement

Quick Links

www.LaBina24.de
User's manual
LaBina PL-500 Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-500 Control and is the answer not in the manual?

Questions and answers

Related Manuals for LaBina PL-500 Control

Summary of Contents for LaBina PL-500 Control

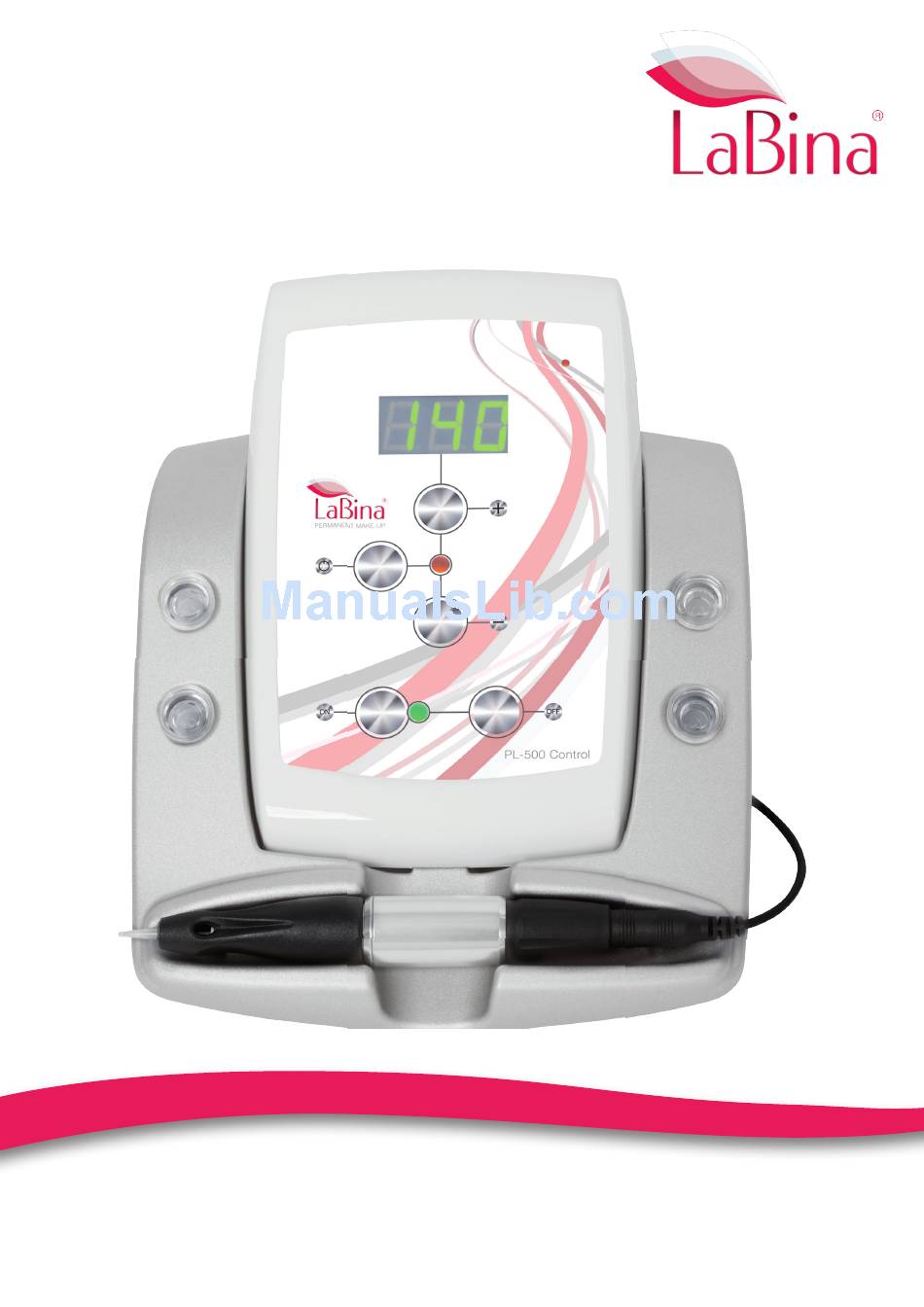

  • Page 1 User‘s manual LaBina PL-500 Control...

  • Page 2: General Information

    General information User’s manual ® This manual provides extensive operating instructions of the micropigmentation device LaBina PL-500 Con- trol and therefore helps to prevent risks. This manual must be read and respected by all persons using, maintaining, caring and controlling the device. The manual is part of the device and must be available to the respective user at all times.
  • Page 3 Important hygiene instructions Prior to the treatment the patient’s skin must be pretreated with a mild detergent and disinfectant. Respec- tive national guidelines regarding the selection of suitable disinfectants must be considered. The operator has to protect himself from possible infections by using disposable gloves.

  • Page 4: Control Unit

    • after a long period of storage beyond the mandatory temperature range • in case of damages caused by improper transport. ® The device should be transferred to an authorised LaBina supplier for inspections. Operating the hygiene module handpiece 1.) The power supply is plugged into the socket and then linked with [N].
  • Page 5 Rear of the control unit Front of the control unit...
  • Page 6 User’s manual Handpiece Application fields / intended purpose The most common application fields for the micropigmentation instrument in the cosmetical sector are: • Tiny hair drawing of eyebrows • Drawing of eyeliners • Full drawing of lips or optimisation of lip contours •...
  • Page 7 Hygiene module For the use of the hygiene module the chapters “important hygiene and safety instructions” have to be con- sidered. A label attached to each module states the batch number, as well as the production and expiration dates. The batch number enables the identifica- tion of the precise batch and has to be communi- cated to the manufacturer in case of issues.
  • Page 8 www.Labina24.de...
  • Page 9 Needle Art-No: With its diameter of 0.4 mm the needle of the 1er module optically resembles a pin. PL-500 Control: E-0401 Practical tip: Especially suitable for very exact, neat and distincted lines with a high colour density. The needle slightly penetrates the skin. Caution! If...
  • Page 10 3rd-Liner hygiene module (0,3 mm) Needle Art-No: The bundle with classical 3rd hygiene module round needles is 0.65 mm wide (with a diameter of each PL-500 Control: E-0403 0.3 mm). Practical tip: The needles cause a slightly wider Application: line. In order to create a soft start and a tapered pha- •...
  • Page 11 5th-Shader hygiene module (0,3 mm) Needle Art-No: 5th-Shader hygiene modules are bundled (5 x 0.3 mm). PL-500 Control: E-0405 Practical tip: Depending on how often the skin is processed, soft to compact lines are feasible. We Application: recommend the 5er-Shader modules for shading •...
  • Page 12 5er-Magnum-Hygienemodul (0,3 mm) Needle Art-No: The 5th-Magnum hygiene module contains 2 + 3 needles with a diameter of each 0.3-mm that are PL-500 Control: E-0405M aligned in a double row. Practical tip: To achieve a more intense lip Application: contour pigment lengthwise, for shading and colour •...
  • Page 13 A make-up that accompanies you regardless which weather.

  • Page 14: Important Safety Instructions

    User’s manual Important safety instructions Caution: risk of injuries The supplies include needles that can cause injuries if not used properly. That is why the needle or the tip of the needle should never by touched - no matter if the handpiece is turned on or off. Injuries with a conta- minated needle can cause the transmission of dangerous diseases.
  • Page 15 Contraindications It is not permitted to perform pigmentations on people under the following circumstances: • Haemophilia • Feverish infects / infectious diseases • Hepatitis A, B, C, D, E, F • Skin disorders in the respective treatment area • HIV-positive •...

  • Page 16: Maintenance And Care

    In case of a malfunction all components such as the power supply and the handpiece should be removed from the device. The device should run smoothly after you checked or newly adjusted the connections. If the malfunction should not be resolved, the device must be presented to an authorised LaBina supplier. The ®...

  • Page 17: Transport And Storage Conditions

    Please note: The device may be transported in the original or an equivalent packaging only. Technical parameters LaBina PL-500 Control pigmentation instrument Symphony hygiene module handpiece ® Rated voltage: 12 V – (DC) Art-No: LaBina-PL500-Control Power input: 1.5 W max...

  • Page 18: Warranty

    Warranty LaBina ® PL-500 Control pigmentation instruments are manufactured in Germany. The manufacturer grants a warranty of two years starting from the purchase date on the product. In case of a malfunction after the expiration of the warranty period we will pro- vide a substitutional device that is free of charge for the duration of the repair.
