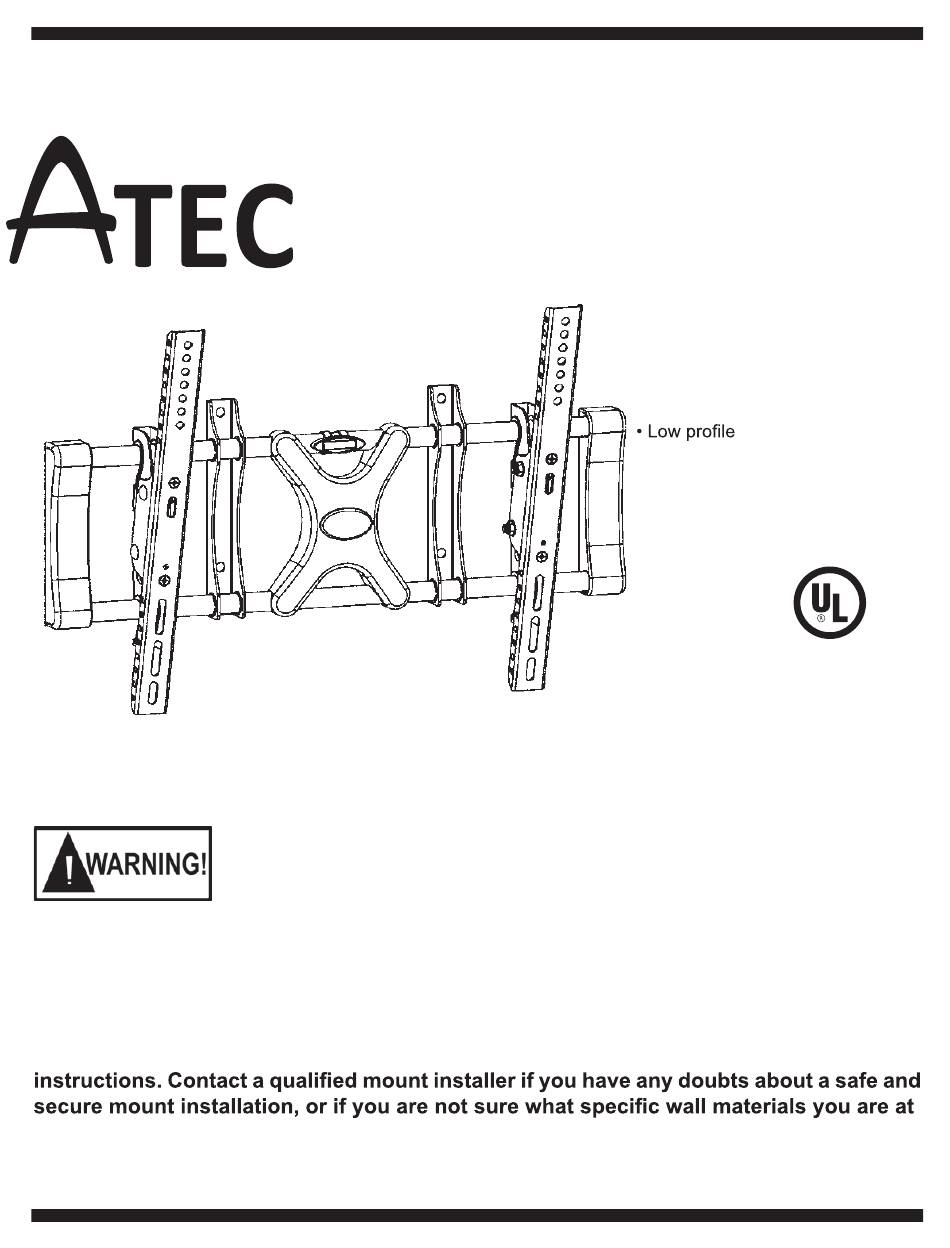

Tilting Flat Panel Wall Mount
• Supports most 37"-80" Flat Panel TVs
• Maximum weight capacity: 176 lbs.
• Supports VESA Sizes up to 700X500
This product Wall Mount frame is intended for use only with an apparatus which has a
maximum weight of 176 lbs. See apparatus instructions. Using with an apparatus heavier
than the maximum weight indicated may result in instability and cause possible injury.
READ THIS FIRST
Read this entire manual! Do not attempt to install this product if you do not understand the
taching this mount to. Check all the parts carefully to make sure there are no missing
or damaged parts. Improper installation may result in damage to your TV, property, and
personal injury.
Installation Guide
Model: A580TM
• Easy installation
• Built-in level for easy positioning
• Safety bolts lock the TV on the mount
• Easy to adjust tilt angles:
+5 to -15 degrees
E331265
-
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atec A580TM
Summary of Contents for Atec A580TM
- Page 1 Tilting Flat Panel Wall Mount Installation Guide Model: A580TM • Easy installation • Built-in level for easy positioning • Safety bolts lock the TV on the mount • Easy to adjust tilt angles: +5 to -15 degrees E331265 • Supports most 37”-80” Flat Panel TVs •...
-
Page 2: Child Safety
Schoenfeld International Inc. and ATEC are not responsible for personal injury or product damage due to mishandling, incorrect mounting, incorrect assembly, or incorrect use of this product. - Page 3 M4/M5 washers M6/M8 washers The actual appearance and quantity of parts may be different than shown in the illustration. Consult the table for actual quantities.
- Page 4 Step 1: Attach the left and right brackets to your TV Do not force the bolts into the mounting holes on your TV. Do not use an electric drill to tight- en these bolts on your TV. This could damage the equipment or cause personal injury. CAUTION: Do not place the TV face down on a hard surface when installing the mounting plate on the TV.
- Page 5 If your television has a curved back and mounting holes are recessed (Fig 1a) spacers are required. Install the spacers (M) between the display and the bracket as shown in Fig 1b. Then, use the appropriately selected bolts (A-H) applicable to your TV and the square washers (I) to install the brack- ets with spacers to the back of the television.
- Page 6 Step 3: Attach the wall mount to the wall Find and mark the best position for the wall mount on the wall. The best viewing height is parallel to the eye level of a person sitting on a couch. Normally, this is about 4 feet above floor level.
- Page 7 Wood stud walls (Fig 3b) 1. Use a pencil, awl, or a nail to mark the location of the wall stud centers (Fig 3b) after locating the stud with an electronic stud locator. The distance between marks should not be less than 16 inches (Studs must not be less than 16 inches (40.6 cm).
- Page 8 Step 4: Hang the television display A large television requires two people to lift. Schoenfeld International Inc. and ATEC are not responsible for equipment damage or personal injury due to mishandling. ensuring that it is securely installed can result in equipment damage or personal injury.
-
Page 9: Step 5: Adjusting The Tilt Angle
Step 5: Adjusting the tilt angle This patented design features an unique tilt angle mechanism that can easily be adjusted by just one person. No tools are required for this step. As shown in Fig. 5, grasp the top and bottom of the mounted flat panel and gently pull the top of the flat panel toward you or back to adjust the viewing angle. - Page 10 We warrant this product to you, the original purchaser at the time of purchase printed on a dated store receipt from an authorized ATEC retailer and for a period of six-years thereafter that our wall mount product and all it’s parts and components are free of defects in material and workmanship under normal use.
- Page 12 Schoenfeld International Inc. and ATEC 5001 American Boulevard West Suite 275 Bloomington, MN 55437 ©Schoenfeld International Inc, 2014 PN: A580TM Rev 1.2 January, 2014...
