Cinevate Atlas 200 Quick Start Manual

Download this manual

QUICKST RT

Atlas 200

Need help?

Do you have a question about the Atlas 200 and is the answer not in the manual?

Page 1 QUICKST RT Atlas 200...
Page 2 Contents Atlas 200 Body 150mm Bowl 100mm Bowl 1” Solid Steel Chrome Plated Rails Rails Blocks Pairs of Height Adjustable Legs w/ Kip Handles and Rubber Feet...

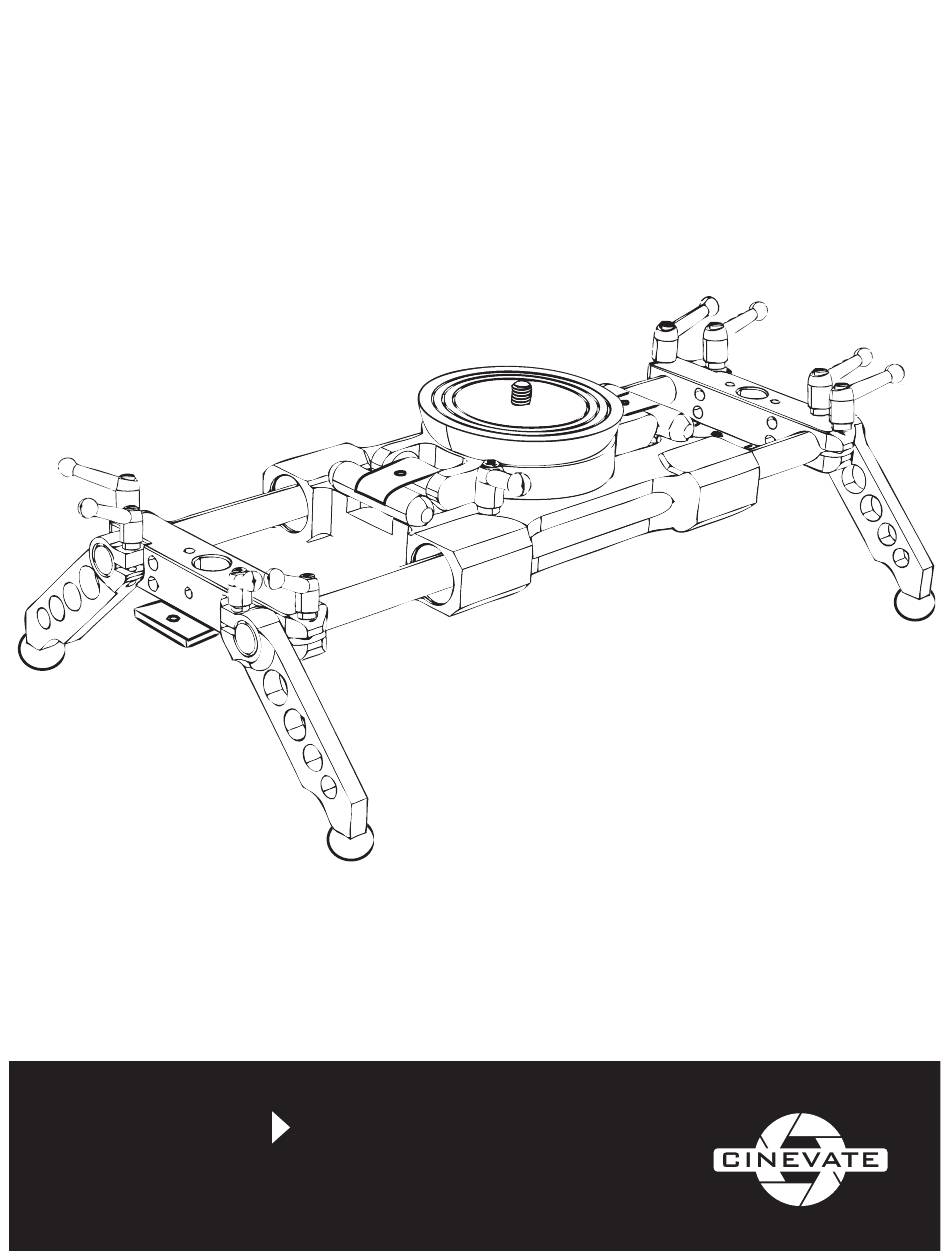

Page 3 Height Adjustable Legs with Rubber Feet Kip Handles Rails Block Tripod with 5/8” Adapter Receiver Plate Linear 100mm or Bearings 150mm Bowl (shown with Ball installed) Brake 1” Steel Rods...
Page 4 Basic Assembly...
Page 5 Tighten Kips Lift kip handle Release to disengage. to re-engage.
Page 6 Ensure br...
Page 7 rake is unlocked when sliding the body onto the rails. Basic assembly complete.
Page 8 Standard Locked Leg Position Flush Locked Position Micro-adjustment of Rubber Feet for levelling...
Page 9 Height Adjustable Leg Position Adjustable Position...
Page 10: Mounting Options
Mounting Options tripod adapter plate flip blocks over to use 5/8” receiver (i.e. lighting / c-stand or 5/8” grip rod) flipped block for 5/8” receiver use...
Page 11 Troubleshooting: If ATLAS is binding loosen kips on one side slide ATLAS re-tighten kips Repeat on other end if necessary.
Page 12 For setup and operation tutorials of other Cinevate products visit: cinevate.com/support Call: 1-807-344-7153 Follow us on: twitter.com/cinevateinc facebook.com/showtheworld CINEVATE.COM...
