Summary of Contents for Cinevate Duzi 4

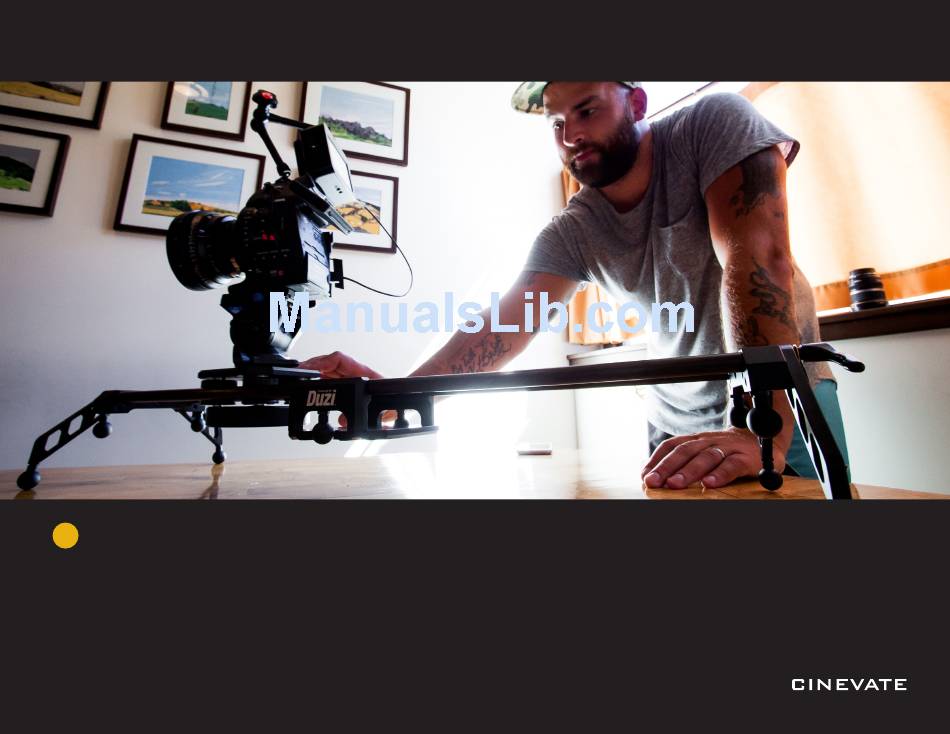

- Page 1 Quick car movements can Anatomy cause the Flywheel to slip. Mounting to a Tripod Camera Mounting Options This is a design feature that protects the Flywheel assembly. Endblock Mounting Options cinevate.com/duzi Flywheel Remove the Flywheel for Brake whip style movements.

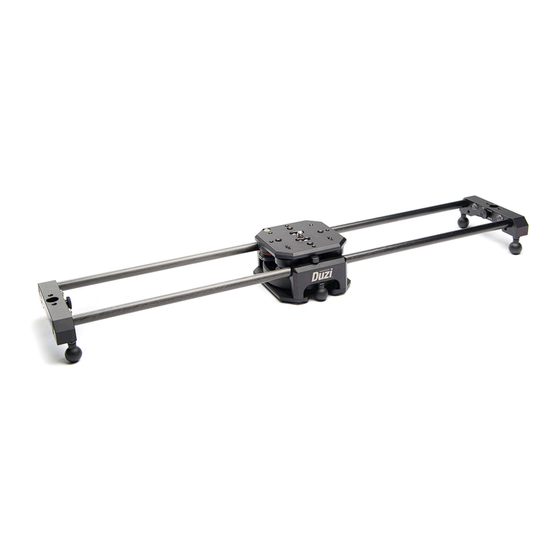

- Page 2 D U Z I A N A T O M Y 2x 15mm Solid Carbon Fibre Rod C-Stand Thumbscrew 2x 15mm Endblocks Carriage Plate 6x Ballfeet Bubble Level 3/8” Screw 4x Wheels Brake Mounting Plate...
- Page 3 D U Z I M O U N T I N G T R I P O D Use the variety of Alternativly, you can mount a 3/8 - 16 and 1/4-20 100mm or 75mm Ball threaded holes to mount your directly to Duzi and mount on tripod plate.
- Page 4 D U Z I C A M E R A M O U N T I N G O P T I O N S Ball Head Mount your head to Duzi using Dromos can be attached using the 3/8” Screw. a crosshandle.
- Page 5 D U Z I E N D B L O C K M O U N T I N G O P T I O N S A Tripod Adapter Plate 5/8” Thru Hole for mounting to a stand. (or just your tripod plate itself) Tighten Thumb Screw to secure.
- Page 6 D U Z I F L Y W H E E L The Flywheel is held on with a Unscrew the thumbscrew to thumbscrew, underneath the car. remove the flywheel.
- Page 7 D U Z I B R A K E Engage the brake anywhere along the rails to secure the Duzi carriage. Extra Runner Nubs are included for the brake.
