Summary of Contents for Hydrofarm Active Air ACAN1402

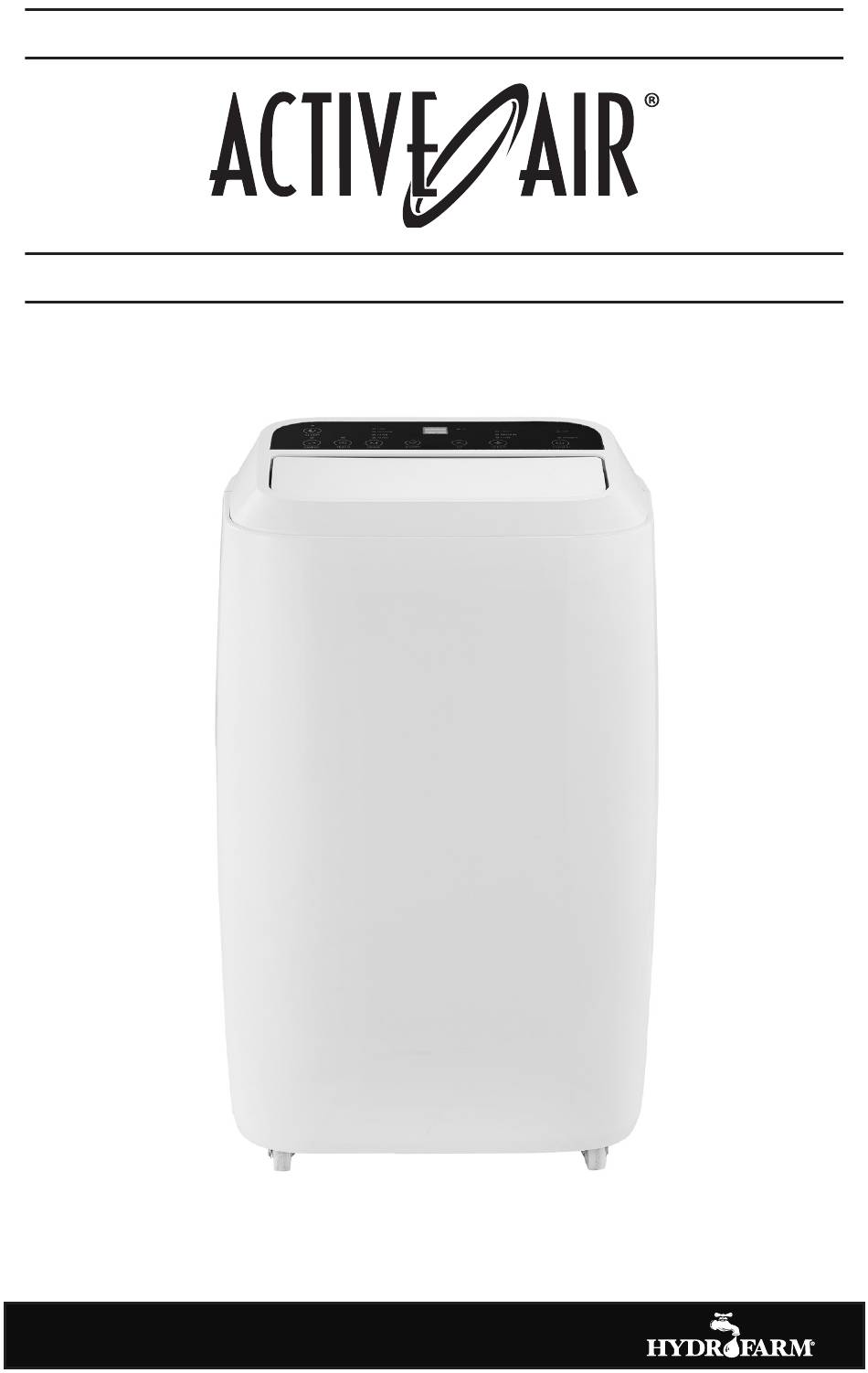

- Page 1 INSTRUCTION MANUAL PORTABLE AIR CONDITIONER ACAN1402...
-
Page 2: Name Of Parts
• The MODE button toggles the air conditioner between fan, dehumidify, cooling, and auto modes. • The SLEEP button controls night time operation. • The TIMER button operates the air conditioner’s timer. • The SWING button toggles louver movements between ON and OFF. www.Hydrofarm.com... - Page 3 INSTRUCTION MANUAL 11. Do not pull, deform, or modify the power SAFETY supply cord, or immerse it in water. Pulling or Before installing and using the portable air misuse of the power supply cord can cause conditioner, please review this manual, including electrical shock and/or damage the unit.
- Page 4 8. Close the window so it that it firmly closes on the window unit kit. 9. Insert the power cord into a grounded AC 120V/60 Hz receptacle. oduction to Exhaust Hose Installation 10. Press the ON/OFF button to turn on the air conditioner. www.Hydrofarm.com Fig.8...
-
Page 5: Using The Air Conditioner
INSTRUCTION MANUAL USING THE AIR CONDITIONER *CAUTION: Always wait at least three minutes before switching from cooling to dehumidifying. Important: Operation temperature range MAXIMUM COOLING MINIMUM COOLING DB/WB 95o/75oF 64o/5oF MAXIMUM HEATING MINIMUM HEATING DB/WB 81oF/––– 45oF/––– AUTO Mode In Auto mode, the air conditioner automatically selects the mode (cooling, dehumidifying, or fan) in response to room temperature. -
Page 6: Setting The Timer
1. With the unit turned ON: press the SWING button and the louver will begin to swing continuously left and right. 2. To stop the louver from swinging, press the SWING button again when the louver is in the desired position. The louver will remain in that position. www.Hydrofarm.com... -
Page 7: Continuous Drainage
INSTRUCTION MANUAL SLEEP Control Function While in cooling mode, press the SLEEP button to set the temperature. Temperature increases 1oC/OoF after one hour (to a maximum increase of 2oC/OoF after 2 hours). 3) Insert the power cord into an grounded AC115V/6 While in heating mode, press the SLEEP button to set the temperature. -
Page 8: Troubleshooting
Replace pipe temperature sensor (the (evaporator). unit can also work without replacement). E1 Code Pipe temperature sensor failed Replace pipe temperature sensor (the (condenser). unit can also work without replacement). E2 Code Water tank is full. Empty the water tank. www.Hydrofarm.com... - Page 9 INSTRUCTION MANUAL FAQs Is the unit sealed? Will it draw CO out of my tent? It is not completely sealed; a small amount of CO and room air will be drawn out through the exhaust. Will it work with a controller/thermostat? Yes.
-
Page 10: Limited Warranty
Misuse, abuse, or failure to follow instructions is not covered under this warranty. Hydrofarm will, at our discretion, repair or replace the ACAN1402 covered under this warranty if it is returned to the original place of purchase. To request warranty service, please return the ACAN1402, with original sales receipt and original packaging, to your place of purchase.
Need help?
Do you have a question about the Active Air ACAN1402 and is the answer not in the manual?
Questions and answers

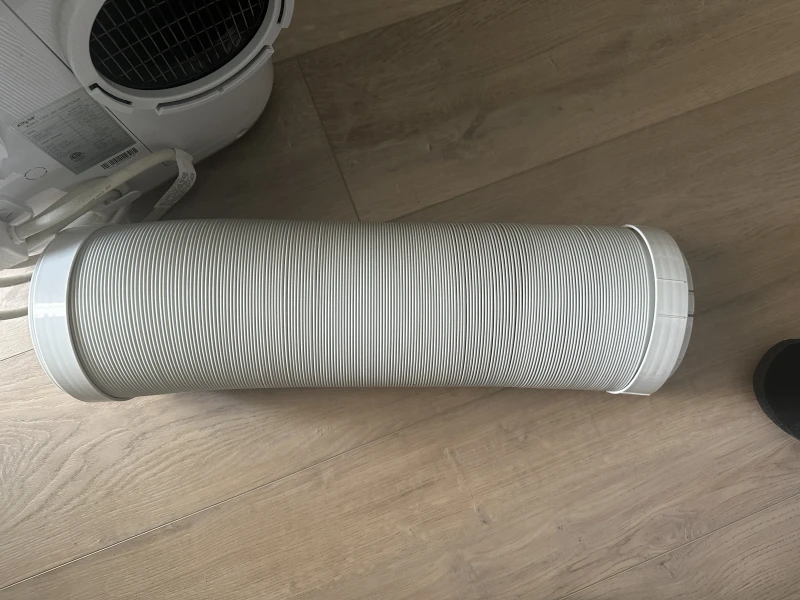

where do I find the inlet and exhaust hose connectors
The inlet and exhaust hose connectors for the Hydrofarm ACAN1402 can be found as part of the included accessories. These include the exhaust hose, intake hose, and hose adaptors for the air conditioner ends.
This answer is automatically generated
inlet and exhaust adapters
The inlet and exhaust adapters for the Hydrofarm ACAN1402 are:
- Square fixing clip (used to connect one end of the exhaust hose to the air conditioner)
- Flat fixing clip (used to connect the other end of the exhaust hose to the window unit kit)
These adapters secure the exhaust hoses to both the air conditioner and the window unit kit.
This answer is automatically generated
I have an floor model acan1402 the only way it works is if I set the timer
My mom has the Active Air Acana1402/A010A-14C/DD floor model air conditioning unit but when I went to connect it she seems to be missing the second entire hose with the end pieces. How/where can she purchase these replacement parts in Canada?
