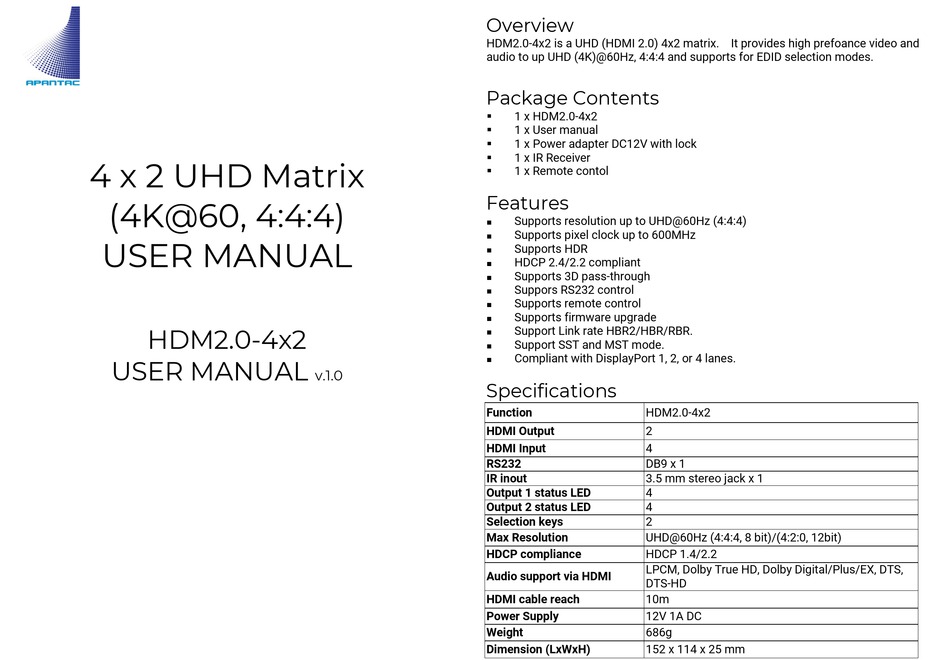

Apantac HDM2.0-4x2 User Manual

4 x 2 UHD Matrix
(4K@60, 4:4:4)
USER MANUAL
HDM2.0-4x2
USER MANUAL
Overview
HDM2.0-4x2 is a UHD (HDMI 2.0) 4x2 matrix. It provides high prefoance video and
audio to up UHD (4K)@60Hz, 4:4:4 and supports for EDID selection modes.

Package Contents

§
§
§
§
§
Features
n
n
n
n
n
n
n
n
n
n
n
v.1.0

Specifications

Function
HDMI Output
HDMI Input
RS232
IR inout
Output 1 status LED
Output 2 status LED
Selection keys
Max Resolution
HDCP compliance
Audio support via HDMI
HDMI cable reach
Power Supply
Weight
Dimension (LxWxH)
1 x HDM2.0-4x2
1 x User manual
1 x Power adapter DC12V with lock
1 x IR Receiver
1 x Remote contol
Supports resolution up to UHD@60Hz (4:4:4)
Supports pixel clock up to 600MHz
Supports HDR
HDCP 2.4/2.2 compliant
Supports 3D pass-through
Suppors RS232 control
Supports remote control
Supports firmware upgrade
Support Link rate HBR2/HBR/RBR.
Support SST and MST mode.
Compliant with DisplayPort 1, 2, or 4 lanes.
HDM2.0-4x2
2
4
DB9 x 1
3.5 mm stereo jack x 1
4
4
2
UHD@60Hz (4:4:4, 8 bit)/(4:2:0, 12bit)
HDCP 1.4/2.2
LPCM, Dolby True HD, Dolby Digital/Plus/EX, DTS,
DTS-HD
10m
12V 1A DC
686g
152 x 114 x 25 mm
