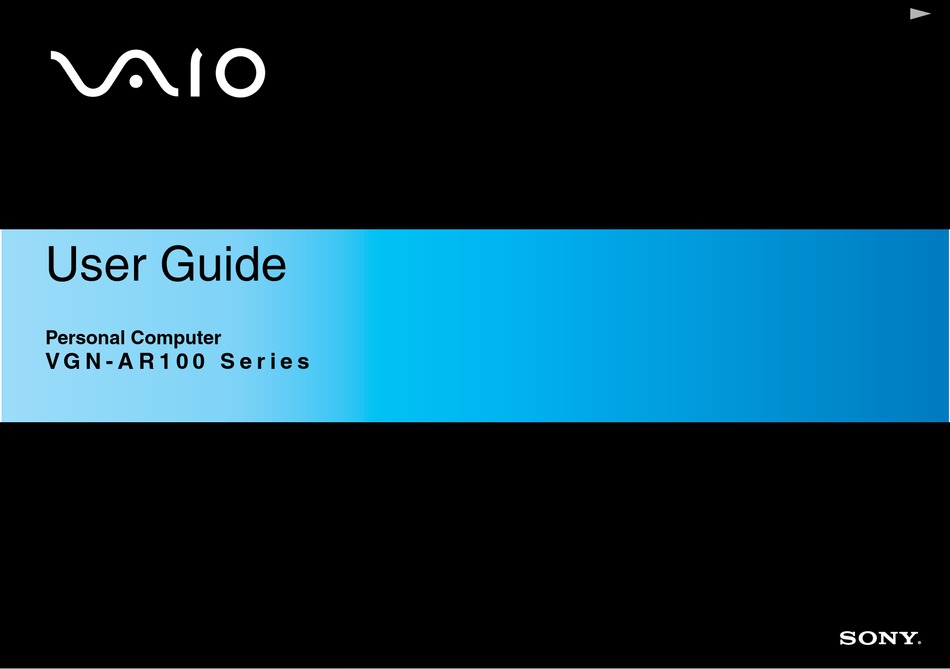

Page 1: User Guide
User Guide Personal Computer V G N - A R 1 0 0 S e r i e s...
Page 2: Table Of Contents
Contents Before Use ...6 Documentation ...6 Ergonomic Considerations ...9 Getting Started ...11 Locating Controls and Ports...12 About the Indicator Lights ...19 Connecting a Power Source ...21 Using the Battery Pack ...23 Shutting Down Your Computer Safely ...27 Using Your VAIO Computer ...28 Using the Keyboard ...29 Using the Touch Pad ...31 Using Special-function Buttons ...32...
Page 3 Using Wireless LAN (WLAN) ...75 Using the Bluetooth Functionality ...84 Using Peripheral Devices...89 Connecting a Multi Function Bay Docking Station ...90 Connecting External Speakers ...99 Connecting an External Display ...100 Selecting Display Modes...109 Using the Multiple Monitors Function ...110 Connecting an External Microphone ...112 Connecting a Universal Serial Bus (USB) Device...113 Connecting a Printer ...116 Connecting an i.LINK Device ...117...
Page 4 Precautions ...138 On Handling the LCD Screen ...139 On Using the Power Source ...140 On Handling Your Computer...141 On Using the Built-in MOTION EYE Camera...143 On Handling Floppy Disks ...143 On Handling Discs ...144 On Using the Battery Pack...145 On Using Headphones...146 On Handling Memory Stick Media...146 On Handling the Hard Disk ...147 Troubleshooting ...148...
Page 5 Speakers ...186 Touch Pad...187 Keyboard...188 Floppy Disks ...189 PC Cards ...190 Audio/Video...191 Memory Stick Media ...192 Peripherals ...193 Multi Function Bay Docking Station ...194 Support Options ...195 Sony Support Information ...195 Program Support Information...198...
Page 6: Before Use
Your documentation includes printed information and user guides to read on your VAIO computer. Printed Documentation Welcome mat — Contains an overview of connections, setting up information, etc. Safety information — Contains safety guidelines and owner information. ® computer, and welcome to the on-screen User Guide. Sony has Before Use...
Page 7 Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer. To view the online Specifications: Connect to the Internet. Go to the Sony online support Web site at http://www.sony.ca/support American countries or areas. VAIO Recovery Guide — Provides information about restoring individual software programs, software drivers, and drive partition(s) or your entire hard disk drive to the original factory installed settings.
Page 8 MCE guide (Selected models only) — Provides information about using the Windows XP Media Center Edition operating system. To access this on-screen guide: Click Start, point to All Programs, and click VAIO Support Central. Click VAIO Documentation. Click MCE guide. Before Use...
Page 9: Ergonomic Considerations
Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse.
Page 10 Before Use Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.
Page 11: Getting Started
Getting Started This section describes how to get started with using your VAIO computer. Before the first computer startup, do not connect any new hardware that did not normally come with your computer. Make sure to start up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, external hard disk drive, scanner, and so on) at a time, following the manufacturer's instructions.
Page 12: Locating Controls And Ports
Getting Started Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages.
Page 13 Front Built-in MOTION EYE camera (page 34) Built-in MOTION EYE camera indicator LCD screen (page 139) Keyboard (page 29) Built-in speakers VAIO logo lamp (page 32) Power button / Power indicator (page 19) Touch pad (page 31) Power indicator (page 19) Battery indicator (page 19) Hard disk drive indicator...
Page 14 Num lock indicator (page 19) Caps lock indicator (page 19) Scroll lock indicator (page 19) S1/S2 buttons (page 32) VOLUME buttons (page 32) Disc drive eject button (page 35) Muting button (page 32) / Muting indicator CHANNEL buttons (page 32) TV REC button (page 32) Play/Pause button...
Page 15 Back VHF/UHF port (page 46) Air vent Battery connector (page 23) Hi-Speed USB (USB 2.0) port (page 113) DC IN port (page 21) On selected models only. Supports high-/full-/low- speeds. Getting Started...
Page 16 Right Hi-Speed USB (USB 2.0) ports (page 113) PC Card release button (page 63) PC Card slot (page 61) ExpressCard media release button (page 67) Universal ExpressCard slot (page 65) ® i.LINK (IEEE 1394) S400 port (page 117) *3 *4 AV In jack (page 54) *3 *4 *5...
Page 17 Left OPTICAL OUT port (Output frequency 96 kHz/48 kHz/44 kHz/ Variable) Connect digital equipment such as an AV amplifier. Microphone jack (page 112) Headphones jack (page 99) Optical disc drive (page 35) Substitute drive eject button (page 35)/ Optical disc drive indicator (page 19) Manual eject hole (page 174)
Page 18 Bottom Multi function bay docking station connector Air vents Getting Started (page 92)
Page 19: About The Indicator Lights
About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates when the power of the computer is on, blinks in Standby mode, and turns off when the computer is in Hibernate mode or off. Battery e Illuminates when the computer is using battery power, blinks when the battery is running out of power, and double-blinks when the battery is charging.
Page 20 Indicator Functions Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock Scroll lock indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.
Page 21: Connecting A Power Source
Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack as a power source for your computer. Using the AC Adapter Use the computer only with the supplied AC adapter. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3).
Page 22 Getting Started To disconnect the computer completely from AC power, unplug the AC adapter. Make sure that the AC outlet is easily accessible. If you do not use the computer for a long period of time, put the computer into Hibernate mode. See Using Hibernate Mode (page 128).
Page 23: Using The Battery Pack
Slide the battery lock switch (1) to the LOCK position to secure the battery on the computer. When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet. This computer is designed to operate only with genuine Sony batteries. Getting Started...
Page 24: Charging The Battery Pack
Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. To charge the battery pack Install the battery pack. Connect the AC adapter to the computer. The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges).
Page 25 Getting Started When the battery is running out of power, both the battery and power indicator lights blink. Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer. If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged battery.
Page 26: Removing The Battery Pack
Removing the Battery Pack You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in Standby mode. To remove the battery pack Turn off the computer and close the LCD screen lid.
Page 27: Shutting Down Your Computer Safely
Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start and then Turn Off Computer. The Turn off computer window appears.
Page 28: Using Your Vaio Computer
Using Your VAIO Computer This section describes how to get the most out of using your computer. Using the Keyboard (page 29) Using the Touch Pad (page 31) Using Special-function Buttons Using the Built-in MOTION EYE Camera Using the Optical Disc Drive (page 35) Using the TV Function (page 46)
Page 29: Using The Keyboard
Using the Keyboard Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks. Combinations and Functions with the Fn Key Some functions are not available until Windows is launched. Combinations/Feature Fn + 8 (F5/F6): brightness control Fn + /T (F7): display output Fn +...
Page 30 Combinations/Feature Fn + (F12): Hibernate Functions Provides for the lowest level of power consumption. When you execute this command, the states of the system and the peripheral devices are written to the hard disk and the system power is turned off. To return the system to its original state, use the power button to turn on the power.
Page 31: Using The Touch Pad
Using the Touch Pad The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the screen using the touch pad. Action Description Point Slide one finger on the touch pad to place the pointer (2) on an item or object. Click Press the left button (3) once.
Page 32: Using Special-Function Buttons
Using Special-function Buttons Your computer is equipped with special buttons to help you use specific functions of the computer. Special-function button CHANNEL buttons TV REC button Play/Pause button Stop button Previous track button Next track button AV MODE button S1/S2 buttons Functions Changes TV channels up and down.
Page 33 Special-function button Functions Decrease (-) and increase (+) the volume. VOLUME buttons Ejects the optical disc drive tray. Disc drive eject button If this button does not work, try the substitute drive eject button on the optical disc drive. Turns the volume on and off. Muting button On selected models only.
Page 34: Using The Built-In Motion Eye Camera
Using the Built-in MOTION EYE Camera Your computer is equipped with a built-in MOTION EYE camera. The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software, for example Windows Messenger and Windows MovieMaker. Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using such software.
Page 35: Using The Optical Disc Drive
Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Turn on the computer. Press the disc drive eject button (1) to open the drive. The tray slides out. If the disc drive eject button does not work, try the substitute drive eject button on the optical disc drive. If power supply to the optical disc drive is disabled by VAIO Power Management, it will take a while to eject the drive tray.
Page 36 Using Your VAIO Computer Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction. If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.
Page 37 Reading and Writing CDs and DVDs Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.
Page 38 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that are not compliant with the official "CD"...
Page 39 Using Your VAIO Computer Supports writing data to DVD-RW discs compliant with DVD-RW version 1.1/1.2. Supports writing data to DVD-R discs compliant with DVD-R for General version 2.0/2.1. Supports 8cm disc reading, but does not support 8cm disc writing. Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording. Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.
Page 40 Using Your VAIO Computer Notes on writing data to a disc To make the data on a disc readable on an optical disc drive, you need to close the session before you eject it. To complete this process, follow the instructions included with your software. Only use circular discs.
Page 41 Notes on playing DVDs To achieve optimum performance when playing DVDs, you should follow these recommendations. You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the help file on such software for details. Close all open applications before playing a DVD movie.
Page 42 Using Your VAIO Computer If your computer has the Wireless LAN functionality and Wireless LAN is activated, playing DVDs may cause some interruptions in audio and video. When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers, make sure you stop the DVD first.
Page 43: Playing Cds
Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to open a CD program, such as the SonicStage software. If the Audio CD window appears, click to select an option.
Page 44: Copying Files To Cds
Copying Files to CDs See the online Specifications to find the type of your optical disc drive, and then Reading and Writing CDs and DVDs (page 37) to find about the supported disc media. To copy files to a disc Do not strike or shake the computer while writing data to a disc.
Page 45: Playing Dvds
Playing DVDs To play a DVD Close all open programs. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, point to All Programs, and click to open a DVD program to play the DVD.
Page 46: Using The Tv Function
Using the TV Function Your computer may have a TV tuner board installed along with the Microsoft Windows XP Media Center Edition operating system to enhance your computing experience. See the online Specifications to find whether your model is equipped with the TV tuner board.
Page 47 Using Your VAIO Computer Setting Up TV Connections The following connections may not be available depending on the country or area of your residency. The best method of connecting your computer system, TV monitor or display, and cable service access, depends on the type of cable connection available in your home.
Page 48 Connecting to standard cable access (CATV) To connect in CATV mode (Option 1) Connect one end of a TV coaxial cable (1) to your cable service access (wall outlet) (2). Connect the other end to the VHF/UHF port (3) on the computer. Using Your VAIO Computer...
Page 49 To connect in CATV mode (Option 2) Connect the two metal hooks on a 75-ohm/300-ohm RCA transformer cable (1) (not supplied) to the screw-type grips at your cable service access (wall outlet) (2). Connect one end of a TV coaxial cable (3) to the transformer end of the RCA transformer cable (1). Connect the other end to the VHF/UHF port (4) on the computer.
Page 50 Connecting to a standard antenna You can connect your computer to an indoor/outdoor antenna system, using Option 1 or Option 2 from the previous section, Connecting to standard cable access (CATV) connection may require a VHF/UHF RF combiner/transformer (not supplied) to connect the computer and the indoor/outdoor antenna system.
Page 51 To connect in terrestrial mode (Option 2) Connect one end of a 300-ohm twin lead cable (1) (not supplied) to the screw-type grips at your antenna outlet (2). Connect the other end to the grips on a VHF/UHF RF combiner/transformer (3) (not supplied). Connect a coaxial cable feed connector (4) (not supplied) to the VHF/UHF RF combiner/transformer (3).
Page 52 Connecting with a cable or satellite set-top box (STB) You can connect your computer to cable service access that uses a set-top box (cable or satellite). When using the set-top box (STB) setup, you can only change channels through the STB, using its controls or the supplied remote commander. When using the STB setup: A standard TV remote control cannot be used to change TV channels.
Page 53 Using Your VAIO Computer...
Page 54 To connect in STB mode (Option 2) Connect one end of a TV coaxial cable (1) to your cable service access (wall outlet) (2). Connect the other end to the VHF/UHF IN port on the back panel of your set-top box (STB) (3). Connect a second TV coaxial cable (4) (not supplied) to the VHF/UHF OUT port on the set-top box (STB) (3).
Page 55 Using Your VAIO Computer...
Page 56: Using The Remote Commander
Using the Remote Commander Using Your VAIO Computer MY MUSIC button Press to view and listen to your music playlists. MY TV button Press to view the My TV menu. STOP button Press to stop media playback or TV recording session. PAUSE button Press to pause media playback.
Page 57 BACK button Press to return to the previous window. VOL buttons Press to increase (+) or decrease (-) the volume. RECORDED TV button Press to view previously recorded TV programs (In My TV window). GUIDE button Press to view the TV program guide for your area. Alphanumeric buttons Press to select specific channels or enter text.
Page 58 Before you use the remote commander Before using the remote commander, you need to insert the supplied AA manganese batteries and connect the remote sensor to enable communication between the computer and the remote commander. To insert batteries Turn the remote commander over. Press in the tab (1) and lift the battery cover up.
Page 59 To connect the remote sensor Choose the USB port (1) you prefer to use. Plug the remote sensor cable (2) into the USB port. Position the remote sensor (3) to enable unobstructed communication with the remote commander. If you are using a cable or satellite set-top box, you can attach the remote sensor control to the remote sensor, which enables you to control the set-top box with the remote commander.
Page 60 Remove the adhesive tape cover from the bottom of the remote sensor control (1). Attach the remote sensor control (1) onto the set-top box (3) near the infrared port (4). Do not cover the infrared port when attaching the remote sensor control. The remote sensor must be visible in a line-of-sight with the remote commander in order to function properly.
Page 61: Using Pc Cards
Using PC Cards PC Cards allow you to connect portable external devices to your computer. Inserting a PC Card Some PC Cards or their functions may not be compatible with the computer. You do not need to shut down the computer before inserting or removing a PC Card. To insert a PC Card Push the PC Card release button so that the release button pops out.
Page 62 Using Your VAIO Computer Insert the PC Card slot protector to protect against debris entering the slot when not using a PC Card. Before moving the computer, make sure to insert the PC Card slot protector into the slot. Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not recognized.
Page 63: Removing A Pc Card
Removing a PC Card Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly. To remove a PC Card To remove a PC Card when the computer is off, skip steps 1 to 6. Double-click the Safely Remove Hardware icon on the taskbar.
Page 64: Using The Expresscard Media
Using Your VAIO Computer Using the ExpressCard Media ™ Your computer is equipped with a Universal ExpressCard slot to accommodate both ExpressCard /34 (34 mm wide) and ™ ExpressCard /54 (54 mm wide) media as shown below. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.
Page 65 Inserting an ExpressCard Media Your computer is delivered with a slot protector in the ExpressCard slot. Remove the slot protector before you use the ExpressCard slot for the first time. Use care when inserting or removing the ExpressCard media from the slot. Do not force it in or out of the slot. You do not need to shut down the computer before inserting or removing an ExpressCard media.
Page 66 Using Your VAIO Computer Insert the ExpressCard slot protector to protect against debris entering the slot when not using an ExpressCard media. Before moving the computer, make sure to insert the ExpressCard slot protector into the slot. If the media or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction. Make sure you use the most recent software driver provided by the ExpressCard media manufacturer.
Page 67 Removing an ExpressCard Media Follow the steps below to remove the ExpressCard media while your computer is on. If it is not removed properly, your system may not work properly. To remove an ExpressCard media To remove an ExpressCard media when the computer is off, skip steps 1 to 6. Double-click the Safely Remove Hardware icon on the taskbar.
Page 68: Using The Memory Stick Media
Latin American countries or areas. Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB that are available as of January 2006. However, not all Memory Stick media that meet the same conditions as the compatible media are guaranteed of compatibility.
Page 69: Inserting A Memory Stick Media
Inserting a Memory Stick Media To insert a Memory Stick media Hold the Memory Stick media with the arrow facing up and toward the Memory Stick PRO/Duo media slot. Carefully slide the Memory Stick media into the slot until it clicks into place. The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local drive, under the appropriate letter (depending on the configuration of the computer).
Page 70: Removing A Memory Stick Media
To view the contents of the Memory Stick media Click Start and then My Computer to open the My Computer window. Double-click the Memory Stick media icon To format a Memory Stick media Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details. Removing a Memory Stick Media To remove a Memory Stick media Check that the Memory Stick PRO/Duo media indicator is off.
Page 71: Using Other Memory Cards
MultiMediaCard (MMC) Secure Digital (SD) For the latest information on compatible memory cards, visit the Sony online support Web site regularly. Always insert the correct memory card into the SD memory card slot. Do not attempt to insert a memory card or memory card adapter of a different type into the slot. An incompatible memory card or memory card adapter may be difficult to remove from the slot and can cause damage to your computer.
Page 72: Inserting A Memory Card
Inserting a Memory Card To insert a memory card Locate the SD memory card slot on the front of the computer. Hold the memory card with the arrow facing up and pointing toward the memory card slot. Carefully slide the memory card into the slot until it clicks into place. Do not force the card into the slot.
Page 73: Removing A Memory Card
Removing a Memory Card Do not remove a memory card while the To remove a memory card Check that the SD memory card indicator is off. Press the extended part of the memory card, causing it to extend out from the slot. When the card extends, carefully pull it out of the slot.
Page 74: Using The Internet
Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (may not supplied). Once you have set up your telephone cable connection, you're ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).
Page 75: Using Wireless Lan (Wlan)
(radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
Page 76 Using Your VAIO Computer Wireless LAN devices using the IEEE 802.11a standard and the ones using the IEEE 802.11b or g standard cannot communicate because the frequencies are different. IEEE 802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up. IEEE 802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE 802.11b standard.
Page 77: Communicating Without An Access Point (Ad-Hoc)
Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
Page 78 To communicate without an access point (ad-hoc) Turn on the WIRELESS or WIRELESS LAN switch. The WIRELESS LAN indicator lights up. Except in Peru and Venezuela, you cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks.
Page 79 12 Enter the network key The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal whichever you want. 13 Enter exactly the same network key again, for confirmation. 14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the bottom of the window.
Page 80 To disconnect from a computer-to-computer (ad-hoc) network Click Start and then Control Panel. Click Network and Internet Connections. Click Network Connections. The Network Connections window appears. In the right panel under LAN or High-Speed Internet, right-click Wireless Network Connection. Click Properties. The Wireless Network Connection Properties window appears.
Page 81: Communicating With An Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point, for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN.
Page 82 To connect to a wireless network Make sure an access point is set up. See the manual that came with your access point for more information. Turn on the WIRELESS or WIRELESS LAN switch. The WIRELESS LAN indicator lights up. On models that support the Bluetooth functionality the taskbar to display the Wireless Device Switch window.
Page 83 To connect to a wireless network (Models with the Wireless Setup Utility software only) Use the Wireless Setup Utility software to guide you through the set up process and provide you with more detailed information about wireless connections. Make sure an access point is set up. See the manual that came with your access point for more information.
Page 84: Using The Bluetooth Functionality
Using the Bluetooth Functionality The Bluetooth functionality is available on selected models only. See the online Specifications to see whether your model supports the Bluetooth functionality. You can establish wireless communication between your computer and other Bluetooth devices such as another computer or a mobile phone.
Page 85 Notes on using the Bluetooth functionality The data transfer rate varies, depending on the following conditions: Obstacles, such as walls, located between devices Distance between devices Material used in walls Proximity to microwaves and cordless telephones Radio frequency interference and other environmental conditions Device configuration Type of software application Type of operating system...
Page 86 The Bluetooth functionality may not work depending on the third party devices or the software version used by third party companies. As general characteristics of Bluetooth technology, connecting multiple Bluetooth devices to your computer may cause bandwidth congestion, resulting in poor performance of the devices. Bluetooth Security The Bluetooth wireless technology has an authentication function, which allows you to determine whom you choose to communicate.
Page 87: Communicating With Another Bluetooth Device
Using Your VAIO Computer Communicating with Another Bluetooth Device You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.
Page 88: Stopping The Bluetooth Connection
Using Your VAIO Computer To communicate with another Bluetooth device To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using the Bluetooth functionality, see the help file on the Bluetooth utility software. To see the help file Right-click the Bluetooth icon on the taskbar, and select Help from the menu.
Page 89: Using Peripheral Devices
Using Peripheral Devices You can add functionality to your computer by using the various ports on the computer. Connecting a Multi Function Bay Docking Station Connecting External Speakers Connecting an External Display Selecting Display Modes (page 109) Using the Multiple Monitors Function Connecting an External Microphone Connecting a Universal Serial Bus (USB) Device Connecting a Printer...
Page 90: Connecting A Multi Function Bay Docking Station
Connecting a Multi Function Bay Docking Station Attaching a multi function bay docking station enables you to connect additional peripherals to your computer, such as a printer and an external display. A multi function bay docking station is not supplied with your computer and is available as an optional accessory. Locating Ports on the Multi Function Bay Docking Station Back DC IN port...
Page 91 Front/Left The multi function bay docking station can be powered only through the AC adapter supplied with the multi function bay docking station. Do not unplug the AC adapter from the multi function bay docking station and the AC outlet while using the multi function bay docking station; this may cause data damage or hardware malfunctions.
Page 92 Attaching Your Computer to the Multi Function Bay Docking Station When the computer has no battery inserted, do not attach the computer to the multi function bay docking station. To attach your computer to the multi function bay docking station To prevent loss of unsaved data, be sure to turn off your computer before attaching it to the multi function bay docking station.
Page 93 Adjust the position of the size adjuster (4) to match the size of your computer. Tighten the screw on the bottom of the multi function bay docking station. Plug the power cord (5) into the AC adapter (6) and an AC outlet. Plug the cable attached to the AC adapter (6) into the DC IN port (7) on the multi function bay docking station.
Page 94 Slide open the multi function bay docking station connector cover on the bottom of the computer. Place the computer on the multi function bay docking station. Bring the arrows on the back of the computer and on the multi function bay docking station together so that the connector on the bottom of the computer comes in contact with that on the docking station.
Page 95 Gently push down the computer until it clicks into place. 10 Turn on the computer. Use the AC adapter supplied with the multi function bay docking station. Do not move the computer while attached to the multi function bay docking station; this may detach the multi function bay docking station and cause damage to the multi function bay docking station and the computer.
Page 96 Disconnecting Your Computer from the Multi Function Bay Docking Station To prevent loss of unsaved data, be sure to turn off the computer before disconnecting it from the multi function bay docking station. Be sure that no devices connected to the multi function bay docking station are in use before disconnecting the computer. Do not disconnect the computer from the multi function bay docking station when the IN USE indicator is lit.
Page 97 Wait until the IN USE indicator (2) turns off and then press the PUSH RELEASE button (3). Lift the computer away from the multi function bay docking station. Close the multi function bay docking station connector cover on the bottom of the computer. Using Peripheral Devices...
Page 98 Alternatively, you can disconnect the computer from the multi function bay docking station as follows: Click Start and then Undock Computer. Make sure that a message balloon appears and the IN USE indicator turns off, and then press the PUSH RELEASE button.
Page 99: Connecting External Speakers
Connecting External Speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers Plug the speaker cable (1) into the headphones jack (2) on the computer or on the multi function bay docking station. Plug the other end of the speaker cable to the external speaker (3).
Page 100: Connecting An External Display
Connecting an External Display You can connect an external display to your computer. For example, you can use the computer with a computer display or a projector. Connecting a Computer Display Connecting a Multimedia Computer Display Connecting a TV (page 105) Connecting a Projector (page 107) Connect the power cord after connecting all other cables.
Page 101: Connecting A Computer Display
Connecting a Computer Display You can connect a computer display (monitor) either directly to your computer or via the optional multi function bay docking station. To connect a computer display The monitor (VGA) port on the computer is disabled when the computer is attached to the multi function bay docking station. If necessary, plug one end of the display's power cord (1) into the display, and the other end into an AC outlet.
Page 102 Using Peripheral Devices DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI connector that supports only digital video signals (no analog video signals). It has 24 pins. A DVI-I connector (Digital Visual Interface - Integrated) supports digital video and analog video signals. It has 29 pins.
Page 103: Connecting A Multimedia Computer Display
Connecting a Multimedia Computer Display You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer or via the optional multi function bay docking station. To connect a multimedia computer display The monitor (VGA) port on the computer is disabled when the computer is attached to the multi function bay docking station. Plug the power cord of the multimedia computer display (1) into an AC outlet.
Page 104 Using Peripheral Devices...
Page 105: Connecting A Tv
Connecting a TV To connect a TV to your computer Plug the power cord of the TV into an AC outlet. Plug one end of the S Video cable (not supplied) into the S VIDEO OUT port on the computer or on the multi function bay docking station and the other end to the TV.
Page 106 The HDMI cable carries both video and audio signals. If device drivers other than the ones provided by Sony are used, the image may not be displayed and the audio may not be heard. Always use the device driver provided by Sony for updates.
Page 107: Connecting A Projector
Connecting a Projector You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the optional multi function bay docking station. To connect a projector The monitor (VGA) port on the computer is disabled when the computer is attached to the multi function bay docking station.
Page 108 Using Peripheral Devices...
Page 109: Selecting Display Modes
Selecting Display Modes You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer. If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 110) for more information.
Page 110: Using The Multiple Monitors Function
Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as a single desktop.
Page 111 To select the Multiple Monitors mode Right-click on the desktop and select NVIDIA Control Panel from the menu. Click the Display icon. Click Change Display Configuration. Follow the on-screen instructions to change the settings. You can also change one of the S button assignments to activate the Multiple Monitors mode with the respective S button. To change the S button assignments, press and hold any S button to display the window for changing the assignment.
Page 112: Connecting An External Microphone
Using Peripheral Devices Connecting an External Microphone If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone. To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. Make sure your microphone is designed for computer use.
Page 113: Connecting A Universal Serial Bus (Usb) Device
Connecting a Universal Serial Bus (USB) Device To prevent your computer and/or USB devices from damage, observe the following: When moving the computer with USB devices connected, avoid any shock or force to the USB ports. Do not put the computer into a bag or carrying case when it has USB devices connected. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1)
Page 114: Connecting A Usb Floppy Disk Drive
Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port (1) you prefer to use. Plug the USB floppy disk drive cable (2) into the USB port. Your USB floppy disk drive (3) is now ready for use.
Page 115: Disconnecting A Usb Floppy Disk Drive
Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction. If the computer is off, you can unplug the USB cable directly from the computer.
Page 116: Connecting A Printer
Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the printer power cord into an AC outlet (1).
Page 117: Connecting An I.link Device
Connecting an i.LINK Device Notes on connecting i.LINK devices The computer includes an i.LINK (IEEE 1394) port, which you can use to connect to an i.LINK device such as a digital video camcorder or to connect two VAIO computers in order to copy, delete or edit files. The i.LINK port on the computer does not supply power to external devices generally powered by i.LINK ports.
Page 118: Connecting A Digital Video Camcorder
On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Page 119: Connecting To A Network (Lan)
Connecting to a Network (LAN) You can connect your computer to 1000BASE-T*/100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end of an optional network cable to the network (Ethernet) port on the computer or the optional multi function bay docking station and the other end to your network. For detailed settings and devices needed to connect to the network, see your network administrator.
Page 120 Telephone lines cannot be connected to the network (LAN) connector on your computer. If the network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage, overheating or fire. - Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone) - Public telephone subscriber line - PBX (private branch exchange) Do not plug a telephone cable into the network port.
Page 121: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. Setting the Password...
Page 122: Setting The Password
Setting the Password Use one of the BIOS functions to set the password. Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer. The power-on password will allow you to protect your computer from unauthorized access. Adding the Power-on Password Once you have set the power-on password, you cannot start the computer without entering the password.
Page 123: Changing/Removing The Power-On Password
Select Password when Power ON under Security. Press the space bar to change the setting from Disabled to Enabled. Press the < or , key to select Exit, select Exit (Save Changes) or Exit Setup, and then press the Enter key. On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.
Page 124: Setting Up Your Computer With Vaio Central
Setting Up Your Computer with VAIO Central The VAIO Central utility allows you to consult system information and specify preferences for system behavior. To use VAIO Central Click Start, point to All Programs, and click VAIO Central. The VAIO Central window appears. Select the desired control item and change the settings.
Page 125: Using The Power Saving Modes
Using the Power Saving Modes When you use a battery as the power source for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate.
Page 126: To Activate Standby Mode
Using Standby Mode Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber power light flashes in this mode. To activate Standby mode Click Start and then Turn Off Computer. Click Stand By.
Page 127 To change the Standby mode settings Click Start and then Control Panel. Click Performance and Maintenance. Click Power Options. The Power Options Properties window appears. Select the Power Schemes tab. Change the System Standby settings. Customizing Your VAIO Computer...
Page 128: Using Hibernate Mode
Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is off in this mode. To activate Hibernate mode Press the Fn+F12 keys.
Page 129 Customizing Your VAIO Computer If you do not use the computer for a long period of time, put the computer into Hibernate mode. This power saving mode saves you the time of shutting down or resuming. When the computer is in Hibernate mode, you cannot insert a disc. Hibernate mode requires more time than Standby mode to be activated.
Page 130: Managing Power With Vaio Power Management
Managing Power with VAIO Power Management Power management helps you set up power schemes for running on AC power or batteries to suit your requirements for power consumption. VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operations of your computer and longer battery life.
Page 131 Activating VAIO Power Management Power Schemes VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power management settings that are designed to meet specific power management goals, ranging from maximum power management to no power management. To activate a VAIO Power Management power scheme Click Start and then Control Panel.
Page 132: Upgrading Your Vaio Computer
For the type of module and amount of memory installed on your model, refer to the online Specifications. For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.
Page 133: Adding And Removing Memory
Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available slots depends on the configuration of your model.
Page 134 Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic discharge. Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the computer, will result in damage to the computer and any repair costs will not be covered by the warranty.
Page 135: Removing And Installing A Memory Module
Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module compartment cover.
Page 136 Remove the new memory module from its packaging. Slide the memory module into the memory module slot and push it in until it clicks into place. If you use only one memory module, make sure to insert it to the slot that is closer to the back of your computer. Do not touch any other components on the motherboard.
Page 137: Viewing The Amount Of Memory
Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, point to All Programs, and click VAIO Central. Click the System Information tab in the VAIO Central window. Double-click the System Information folder. Double-click the System Information icon.
Page 138: Precautions
Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. On Handling the LCD Screen On Using the Power Source (page 140) On Handling Your Computer (page 141) On Using the Built-in MOTION EYE Camera On Handling Floppy Disks (page 143) On Handling Discs...
Page 139: On Handling The Lcd Screen
Precautions On Handling the LCD Screen Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using the computer near a window. Do not scratch the LCD screen or exert pressure on it. This could cause a malfunction. Using the computer in low temperature conditions may produce a residual image on the LCD screen.
Page 140: On Using The Power Source
Make sure that the AC outlet is easily accessible. When the AC adapter is not used, unplug it from the AC outlet. Use the AC adapter supplied with the computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 141: On Handling Your Computer
On Handling Your Computer Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of the computer. If you drop a solid object or any liquid onto the computer, shut down the computer and then unplug it.
Page 142 If any problems occur, unplug the computer and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site. Make sure you disconnect the power cord before cleaning the computer.
Page 143: On Using The Built-In Motion Eye Camera
On Using the Built-in MOTION EYE Camera Do not touch the front mirror plate over the lens of the built-in MOTION EYE camera, as it may make scratches on the plate and such scratches will appear on the captured images. Do not let the direct sunlight get into the scope of the built-in MOTION EYE camera regardless of the computer's power state, as it may cause a malfunction of the camera.
Page 144: On Handling Discs
Precautions On Handling Discs Do not touch the surface of the disc. Do not drop or bend the disc. Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: Proper care of the disc is essential to its continuous reliability.
Page 145: On Using The Battery Pack
Charge the batteries at temperatures between 50°F to 86°F (10°C to 30°C). Lower temperatures require a longer charging time. This computer is designed to operate only with genuine Sony batteries. While the battery is in use or being charged, the battery pack heats up. This is normal and is not cause for concern.
Page 146: On Using Headphones
On Using Headphones Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 147: On Handling The Hard Disk
On Handling the Hard Disk The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock or dust. Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling the computer.
Page 148: Troubleshooting
Troubleshooting This section describes how to solve common problems you might encounter when using your computer. Many problems have simple solutions. Try these suggestions before visiting the Sony online support Web site at for customers in USA, at http://www.sony.ca/support customers in Latin American countries or areas.
Page 149 Troubleshooting PC Cards (page 190) Audio/Video (page 191) Memory Stick Media (page 192) Peripherals (page 193) Multi Function Bay Docking Station (page 194)
Page 150: Computer
Remove any extra memory modules you may have inserted since purchase. Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony rechargeable battery packs and AC adapters, which are supplied by Sony for your VAIO computer.
Page 151: What Should I Do If A Bios Error Appears When I Turn On My Computer
Select Yes, and press the Enter key. Your computer restarts. If this occurs frequently, contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site. What should I do if the power indicator (Green) lights but my computer screen stays...
Page 152: What Should I Do If My Computer Or Software Stops Responding
Troubleshooting What should I do if my computer or software stops responding? It is best to turn off your computer using the Turn Off Computer option on the Microsoft Windows Start menu, located on the taskbar. Using other methods, including those listed below, may result in loss of unsaved data. Click Start, point to Turn Off Computer, and then click Turn Off.
Page 153: What Should I Do If The Battery Indicator Is Flashing And My Computer Does Not Start
If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.
Page 154 If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, visit the Sony online support Web site.
Page 155: What Should I Do If I Cannot Remember The Bios Password
What should I do if I cannot remember the BIOS password? If you have forgotten the BIOS password, contact an authorized Sony Service Center to reset it. A reset fee will be charged. To find the nearest center or agent, visit the Sony online support Web site.
Page 156: To The Computer
Troubleshooting Why does it take time before my computer starts? If Norton Internet Security's Personal Firewall is active, it may take some time before the desktop screen appears due to network security checkups. Why doesn't my computer screen turn off when the time selected for the automatic turn- off action has passed? The originally selected VAIO's screen saver disables the timer setting, which you can select using the Windows power options, for your computer screen to turn off.
Page 157: How Can I Change The Volume Of The Startup Sound
How can I change the volume of the startup sound? To change the startup sound volume Press the F2 key. The BIOS setup screen appears. Press the < or , key to select Advanced. Press the M or m key to select Speaker Volume and press the Enter key. Press the M or m key to select the speaker volume at startup and press the Enter key.
Page 158: System Security
System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to the computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly.
Page 159: How Do I Keep My Antivirus Software Updated
To visit the Windows Updates web site Connect to the Internet. Type http://windowsupdate.microsoft.com/ in the address bar of your browser. The Microsoft Windows Update and Security Warning windows appear. In the Security Warning window, start installation and run Windows Update. In the Microsoft Windows Update window, select an installation type, and follow the on-screen instructions.
Page 160: Battery
Battery How do I find the battery charging status? See Charging the Battery Pack (page When is my computer using AC power? When your computer is directly connected to the AC adapter, it uses AC power, even if a battery is installed. When should I recharge the battery? When the battery level falls below 10 percent.
Page 161: Can My Computer Enter Hibernate Mode While Using Battery Power
Can my computer enter Hibernate mode while using battery power? Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode. If you are using a program that prevents the system from entering Hibernate mode, save your data frequently to avoid losing data.
Page 162: Built-In Motion Eye Camera
Built-in MOTION EYE Camera Why does the viewer window show no images or poor-quality images? The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the application before using the built-in MOTION EYE camera. The video memory of your computer may have become insufficient for displaying images from the built-in MOTION EYE camera.
Page 163 Why does movie playback show dropped frames when my computer is running on the battery? The battery is running out of power. Connect your computer to an AC power source. Why do the images captured by the built-in MOTION EYE camera flicker? This problem occurs when you use the camera under fluorescent lights due to the mismatch between lighting output frequency and shutter speed.
Page 164: Why Can't I Use The Built-In Motion Eye Camera
Click Device Manager on the Hardware tab. Double-click Imaging devices. Right-click Sony Visual Communication Camera VGP-VCC1 and click Update Driver. What should I do if my computer becomes unstable when it enters Standby or Hibernate mode while the built-in MOTION EYE camera is in use? Do not place your computer into Standby or Hibernate mode while you are using the built-in MOTION EYE camera.
Page 165: Internet
Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. Make sure the telephone number the program is dialing is correct. Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are compatible.) Make sure the modem is the only device connected to your phone line.
Page 166: Why Is My Modem Connection Slow
Why is my modem connection slow? Your computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), do any of the following: Ask your telephone company to verify your telephone line is free of any line noise.
Page 167: Networking
Networking What should I do if my computer cannot connect to a wireless LAN access point? Connection availability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. Make sure the WIRELESS or WIRELESS LAN switch is on and the WIRELESS LAN indicator is lit on your computer.
Page 168: How Do I Avoid Data Transfer Interruptions
Why is the data transfer speed slow? The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move your computer away from obstructions or closer to any access point you may be using.
Page 169 Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.
Page 170: Bluetooth Technology
Bluetooth Technology What should I do if other Bluetooth devices cannot discover my computer? Make sure both devices have the Bluetooth feature enabled. If the Bluetooth indicator is off, turn on the WIRELESS switch. You cannot use the Bluetooth functionality when your computer is in a power saving mode. Return to normal mode, then turn on the WIRELESS switch.
Page 171 What should I do if other Bluetooth devices cannot connect to my computer? Make sure the other device is authenticated. Your computer may not allow connections from other devices. To enable Bluetooth device connections, follow these steps: Right-click the Bluetooth icon Select Options from the menu.
Page 172: Why Is My Bluetooth Connection Slow
Why is my Bluetooth connection slow? The data transfer speed depends on the obstacles and/or the distance between the two devices, on the radio wave quality, and on the operating system or the software in use. Try to move your computer or try to place the two devices closer. The 2.4 GHz radio frequency used by Bluetooth and wireless LAN devices is also used by other devices.
Page 173: Can I Use A Device With Bluetooth Technology On Airplanes
Troubleshooting Can I use a device with Bluetooth technology on airplanes? With Bluetooth technology, your computer transmits a radio frequency of 2.4 GHz. Sensitive locations, such as hospitals and airplanes, may have restrictions on the use of Bluetooth devices, due to radio interference. Check with facility staff to see if use of the Bluetooth feature on the computer is permitted.
Page 174: Cds And Dvds
CDs and DVDs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Restart the computer by clicking Start, Turn Off Computer, and Restart. Eject the disc from the optical disc drive.
Page 175 What should I do if I cannot play a CD or DVD properly on my computer? Make sure the disc was inserted into the optical disc drive with the label facing up. Make sure the necessary program(s) is installed according to the manufacturer's instructions. If the CD or DVD is dirty or damaged, your computer will stop responding.
Page 176 Double-click the optical disc drive device to open the submenu. Double-click the listed drive, and select the Properties tab. Click to select the Enable digital CD audio for this CD-ROM device check box, if it is not selected. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window.
Page 177 What should I do if I cannot write data to CD media? Do not launch any software application or allow any to launch automatically, not even a screen saver. Do not use the keyboard. Do not use a CD-R/RW disc that has an adhesive label affixed to it. This could cause a write error or other damage. What should I do if I cannot write data to DVD media? This Q &...
Page 178 What should I do if I cannot write data to DVD-RAM media using Windows functions? This Q & A entry applies to selected models only. See the online Specifications to see whether your model is equipped with the DVD±RW/RAM drive. Follow these steps to change the settings: Click Start and then My Computer.
Page 179: Display
Display Why did my computer screen go blank? Your computer screen may go blank if the computer has lost power or has entered a power saving mode (Standby or Hibernate). If the computer is in LCD (Video) Standby mode, press any key to activate the computer screen. See Using the Power Saving Modes (page 125) Make sure your computer is securely plugged into a power source and turned on.
Page 180 How do I change the screen resolution on my TV screen? Your TV screen may not show the whole screen image of a video if the screen resolution is set larger than 1024 x 768. Adjust the screen resolution to 1024 x 768 or smaller. If you are using the AV Out jack, plug the audio-video (AV) cable into your computer before you start it.
Page 181 What should I do if the LCD brightness of my computer screen changes? The LCD brightness setting, adjusted with the Fn+F5/F6 keys, is temporary and this adjustment is overridden by the setting on the VAIO Power Management tab when another power scheme is selected. To save this preference for the brightness To do the following procedure, you must have administrator rights on your computer.
Page 182 Troubleshooting Why does my external display (or TV) stay blank when I change the display output? If you change the log-on user with the Fast User Switching function after Windows startup, you will not be able to select a display by pressing the Fn+F7 keys. What should I do if the Fn+F7 keys do not switch the display output to the external display connected to the monitor (VGA) port on my computer? When your computer is attached to the optional multi function bay docking station, the monitor (VGA) port on your computer...
Page 183: Printing
Printing What should I do if I cannot print a document? Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer. Make sure your printer is compatible with the Windows operating system installed on your computer. You may need to install the printer driver software before you use your printer.
Page 184: Microphone
Microphone What should I do if my microphone does not work? If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone jack on your computer. The muting button may have been pressed. Check to see if the muting % indicator light is on. If it is, press the muting button to turn on the volume.
Page 185: Mouse
Mouse What should I do if my computer does not recognize my mouse? Make sure your mouse is securely plugged into the port. Restart your computer with your mouse connected. What should I do if the pointer does not move when I use my mouse? Make sure another mouse is not installed.
Page 186: Speakers
Speakers What should I do if my speakers do not work? Make sure your speakers are properly connected and the volume is turned up loud enough to hear sound. Make sure your speakers are designed for computer use. If your speakers have a muting button, set the button to off. The speaker volume may have been turned off.
Page 187: Touch Pad
Touch Pad What should I do if the touch pad does not work? Try restarting your computer. Press the Ctrl+Alt+Delete keys simultaneously. In the Windows Task Manager window, select Restart from the Shut Down menu to restart the computer. If the pointer does not move while playing a disc, press the Ctrl+Alt+Delete keys simultaneously to stop playback and restart your computer.
Page 188: Keyboard
Keyboard What should I do if the keyboard configuration is wrong? The language layout of your computer's keyboard is specified on the sticker on the box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and then Control Panel Click Date, Time, Language and Regional Options, and click Regional and Language Options.
Page 189: Floppy Disks
Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that are accessing the floppy disk drive.
Page 190: Pc Cards
Make sure the PC Card is compatible with the Microsoft Windows operating system installed on your computer. See the manual that came with your PC Card for more information. You may need to install driver software if you are not using a Sony PC Card. Why doesn't my computer recognize attached devices? For some PC Cards, if you alternate between normal power operation and the Standby or Hibernate modes while the card is inserted into the PC Card slot, your computer may not recognize the PC Card or the connected device.
Page 191: Audio/Video
Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other.
Page 192: Memory Stick Media
Using recorded music requires permission of the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.
Page 193: Peripherals
Peripherals What should I do if I cannot connect a USB device? If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check the battery is charged. If you are using a printer, check the power cable is connected properly to the AC outlet.
Page 194: Multi Function Bay Docking Station
Troubleshooting Multi Function Bay Docking Station What should I do if I cannot use the devices connected to the multi function bay docking station? Make sure to use the AC adapter supplied with the multi function bay docking station to connect the docking station to a power source.
Page 195: Support Options
Sony Computing Support This service provides instant access to information on commonly encountered problems. Type a description of the problem and the Knowledge Database searches for the corresponding solutions online. You can visit the Sony online support Web site at http://esupport.sony.com/EN/VAIO/...
Page 196 For users in Latin American countries or areas Customer Information Center If you do not find the information you are looking for at our site, you may call Sony directly. In order to receive the fastest and most efficient services, please have the following information readily available:...
Page 197 In order to contact a Sony technical support representative, please call the following numbers: In Argentina: (011) 6770-SONY (7669) In Mexico: In Mexico City: 5002-9819 In the Mexican Republic: 01-800-759-7669 In Colombia: 01-800-550-7000 In Peru: 0-801-1-7000 or 511-6100 In Chile:...
Page 198: Program Support Information
Program Support Information Depending on the computer model and particular configuration you purchased, your computer may not include all of the software programs listed below. Contacts for Sony software products are listed below: For users in USA Web Site http://esupport.sony.com/EN/VAIO/...
Page 199 ® America Online (Dial-Up) America Online, Inc. For users in USA and Canada Web Site http://www.aol.com ® Music Now America Online, Inc. For users in USA and Canada Web Site http://www.premiumservices.aol.com ® Explorer America Online, Inc. For users in USA and Canada Web Site http://www.aol.com ®...
Page 200 Click to DVD software Sony Electronics Inc. At the touch of a button, Click to DVD software allows you to automatically burn DVDs from a digital video (DV) device. Create DVDs by capturing video content straight from a DV device or by importing video from stored files — and you can also edit the video.
Page 201 ™ DVgate Plus software Sony Electronics Inc. Connect a compatible digital video camera to your computer's i.LINK clips from your video, add new clips, and combine clips into new movie segments. Save your movies back to your digital video camera or in a variety of popular file formats.
Page 202 ® Microsoft Office Basic Edition, Office Professional Edition, Office Small Business Edition Microsoft Corp. For users in USA and Canada Web Site http://support.microsoft.com ® 60-Day Trial Version of Microsoft The Microsoft Office 2003 60-Day Trial software included with this computer system is intended for evaluation purposes only. The software has been installed and you must activate the software before you can use it.
Page 203 Web Site http://www.symantec.com/techsupp Protector Suite QL Sony Electronics Inc. Protector Suite QL Edition allows you to easily setup your fingerprint sensor that comes with your computer. Protector Suite QL supports fingerprint logon, fast user switching, file encryption, registering forms and more.
Page 204 ™ SmartWi Connection Utility Sony Electronics Inc. SmartWi Connection Utility allows you to easily switch between the various wireless components (Wireless LAN, Wireless WAN, and Bluetooth technology connectivity) that came with your computer. For contacts about the software, see Program Support Information ®...
Page 205 ™ SonicStage Mastering Studio software Sony Electronics Inc. Use SonicStage Mastering Studio software to record songs from analog records or cassette tapes into your computer and output them to CDs, DVDs, or audio files in WAV format. For contacts about the software, see Program Support Information ®...
Page 206 ® VAIO Action Setup Sony Electronics Inc. VAIO Action Setup manages the settings for your computer's shortcut keys. For contacts about the software, see Program Support Information ® VAIO Camera Utility Sony Electronics Inc. VAIO Camera Utility provides you with various video quality settings when using the internal camera.
Page 207 For contacts about the software, see Program Support Information ® VAIO Security Center Sony Electronics Inc. Sony cares about your VAIO personal computer. The VAIO Security Center highlights some of the security features your machine includes. For contacts about the software, see Program Support Information ® VAIO Support Central Sony Electronics Inc.
Page 208 ® ® WinDVD software for VAIO computers InterVideo, Inc. For users in USA and Canada Web site http://www.intervideo.com/jsp/Support.jsp Telephone 510-651-0888 ® computer up to date by regularly checking the Sony Online Support (page 198). (page 198). Support Options ® computers...
Page 209 Wireless Setup Utility Sony Electronics Inc. The Wireless Setup Utility walks you through setting up your wireless network connection and offers useful diagnostic tests to help keep your wireless network running smoothly. For contacts about the software, see Program Support Information ™...

This manual is also suitable for:

Vgn-ar130g Vgn-ar150g Vgn-ar170 Vgn-ar170gu1 Vgn-ar170g Vgn-ar170gx1 ... Show all

Sony VAIO VGN-AR100 User Manual

Quick Links

User Guide

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sony VAIO VGN-AR100

Summary of Contents for Sony VAIO VGN-AR100

This manual is also suitable for:

Table of Contents
