UG351: WGM160P Wi-Fi Module
Wireless Starter Kit User's Guide
A Wireless Starter Kit with the BRD4321A Radio Board is an ex-
cellent starting point to get familiar with the WGM160P Wi-Fi®
Module. It also provides the necessary tools for developing a Sili-
con Labs wireless application.

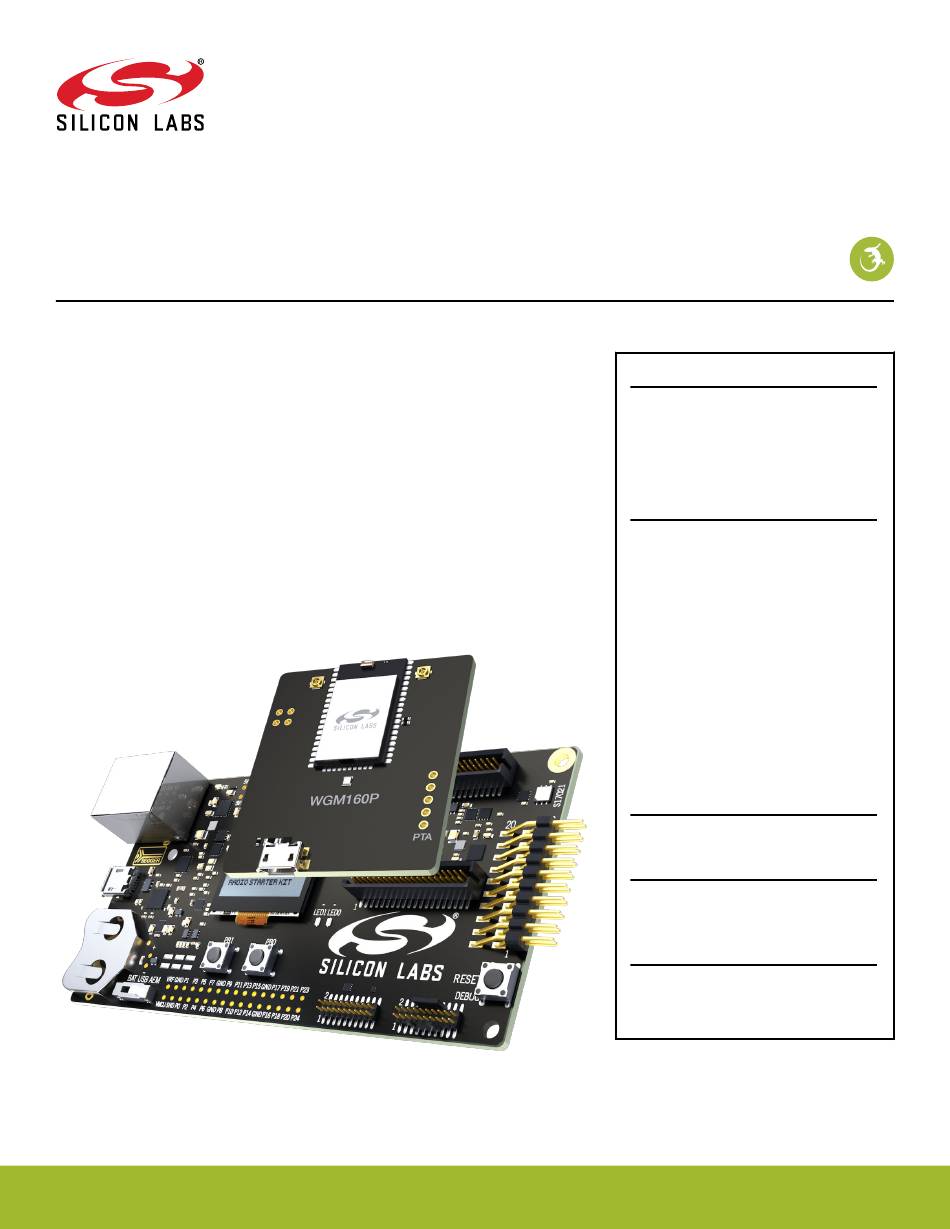

BRD4321A is a plug-in board for the Wireless Starter Kit Mainboard. It contains the
WGM160P Wi-Fi Module, a USB Micro-B connector and a MicroSD card slot.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a virtual COM port, enabling application development and debugging
the attached radio board as well as external hardware. The mainboard also contains
sensors and peripherals for easy demonstration of some of the WGM160P's many capa-
bilities.
This document describes how to use the BRD4321A Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
BRD4321A RADIO BOARD FEATURES
• WGM160P Wi-Fi Module with 2 MB Flash
and 512 kB RAM, with integrated antenna
• USB Micro-B connector offers device
mode support
• MicroSD card slot
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Packet Trace Interface
• Virtual COM Port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Silicon Labs Si7021 Relative Humidity and
Temperature sensor
• Low Power 128x128 pixel Memory LCD
• User LEDs / Pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for Wi-Fi Module I/O
• CR2032 coin cell battery support
EXP BOARD FEATURES
• Ethernet PHY and connector
SOFTWARE SUPPORT
• Simplicity Studio
• Gecko OS Studio
ORDERING INFORMATION
• SLWSTK6121A
• SLWRB4321A
Rev. 1.0
