Braillo 650 SF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

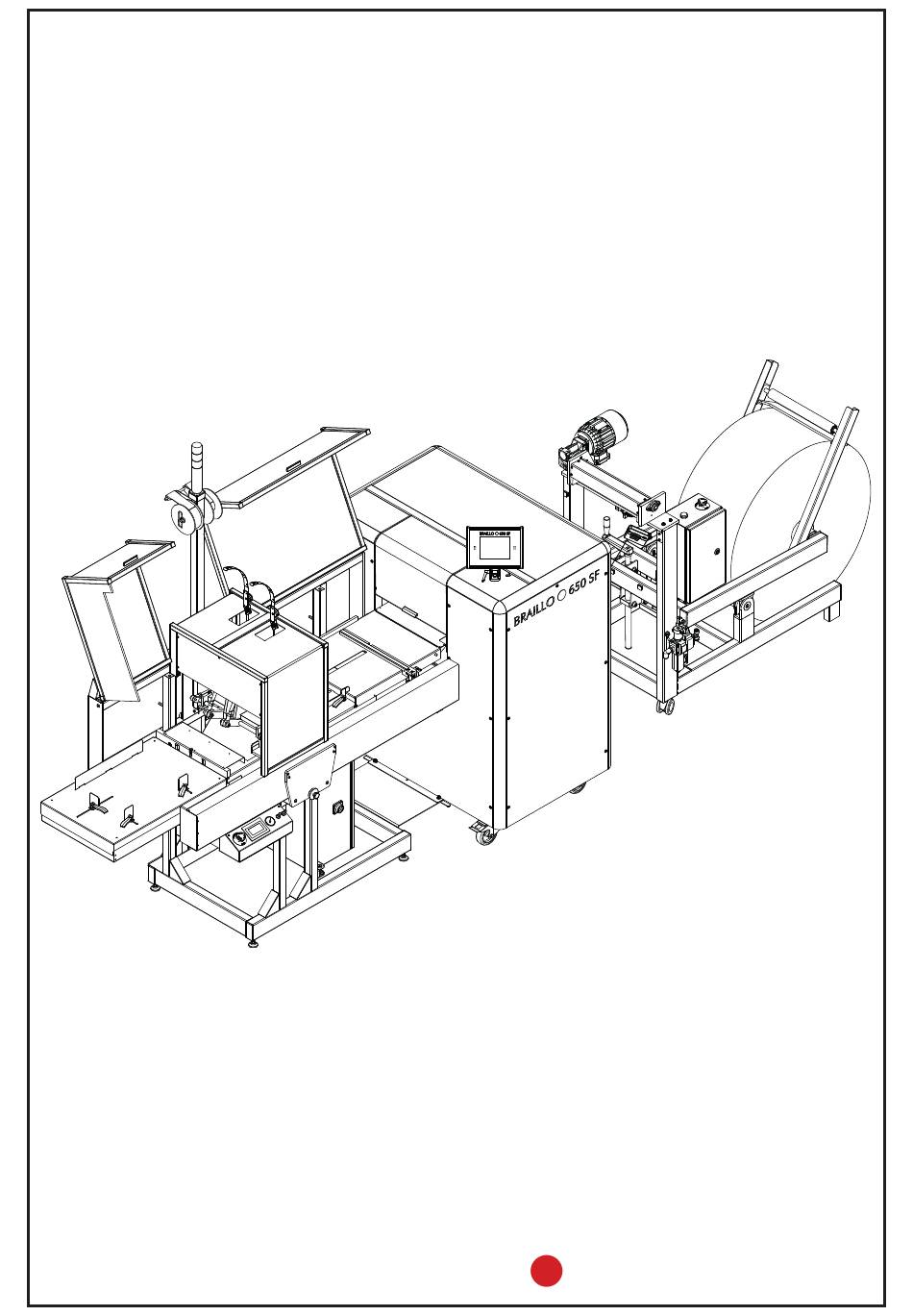

BRAILLO 650 SF
User's Guide
BRAILLO
NORWAY
Rev. April 2018
FOR BETTER BRAILLE - AND MORE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 650 SF and is the answer not in the manual?

Questions and answers

Related Manuals for Braillo 650 SF

Summary of Contents for Braillo 650 SF

  • Page 1 BRAILLO 650 SF User’s Guide BRAILLO NORWAY Rev. April 2018 FOR BETTER BRAILLE - AND MORE...
  • Page 2 © - 2018 Braillo Norway AS...
  • Page 3 BRAILLO Dear Valued Customer, Thank you for purchasing a Braillo Braille embosser and placing your trust in our company and products. I know that the purchase of a production Braille embosser is a big one, and we are proud that you have chosen us.
  • Page 4 BRAILLO B 650 SF...

  • Page 5: Table Of Contents

    BRAILLO B 650 SF TABLE OF CONTENTS PRINTER BASICS ............8 INSTALLATION .
  • Page 6 BRAILLO B 650 SF PARTS - EXPLODED VIEWS ..........97 Magnet rack.
  • Page 7 BRAILLO B 650 SF GENERAL INFORMATION ..........151 Declaration of conformity .

  • Page 8: Printer Basics

    BRAILLO B 650 SF PRINTER BASICS Thank you for your purchase of a Braillo 650 SF. Please read this manual carefully before installing and operating this Printer. Features Prints interpoint, both sides of the page are printed simultaneously. Specially designed to print 4 pages/sheet (like e.g. newspapers and magazines).
  • Page 9 BRAILLO B 650 SF Printer overview Please see figure below: Note that the “right-hand” and “left-hand” side are referred to as if you were standing behind the Printer facing the opening where the paper is inserted into the Printer. Right-hand...
  • Page 10 BRAILLO B 650 SF Printer overview, continued Steel wire for Signal tower Operator panel stapling Printer Emergency switch Cover magazine Emergency Operator panel Power switch Staple and Fold switch S&F How the paper travels through the machine. Cutting Printing Stack of...

  • Page 11: Installation

    Space: The minimum space required for the Braillo 650 SF is approximately 6 x 3 m (19.5 x 10 feet) as at least 1.5 m free space is required behind the paper roll feeder (so the paper roll can be replaced) as well as 1 m free space on both sides so that it can be properly operated, cleaned and maintained.

  • Page 12: Unpacking

    Printer, or from the steel frame, and should be done with extreme care. Make sure that your Braillo Printer has not been damaged in transport. Check if the outer packing is damaged; If so, it is possible that the Printer has also been damaged or scratched. If any damages are found, please contact your distributor or Braillo Norway AS immediately.

  • Page 13: Removing The Printer Cover

    BRAILLO B 650 SF Removing the Printer cover See figures below and on the next pages. The cover is constructed of an aluminium frame which is fastened with four screws (G) under the base- board of the Printer, there is one screw in each corner. On this frame the sides, front and back panels are fastened.
  • Page 14 BRAILLO B 650 SF See the figure below for details. - Disconnect the cable to the fans. - Disconnect the two cables to the operating panel. Cut the cable ties (replace when reconnnecting). - Disconnect the cable to the safety switches in the cover.

  • Page 15: Removing The Transport Locks

    BRAILLO B 650 SF Removing the transport locks. This Printer has eight transport locks. All eight must be removed before starting the Printer! There are four between the base plate and the steel frame, and four between the steel frame and the printing mechanism.

  • Page 16: Paper Roll Feeder - Assembly

    BRAILLO B 650 SF Paper roll feeder - assembly Motor Friction bar Correction roll assembly Friction bar guides Crank to lift/lower paper roll Sensor for empty paper roll Laser beam Frame Paper sensor Placing the paper roll Shaft and Insert shaft...
  • Page 17 BRAILLO B 650 SF Put the shaft in the centre of the roll, and ensure that the shaft is approximately in the centre sideways. Fasten the shaft. The roll must be placed so that the paper is rolled off at the top. (See figure).

  • Page 18: Compressed Air

    This means that the tank must be drained for oil and water on a regular basis. If the air is supplied from the smaller types of compressors delivered from Braillo Norway AS, it is required to keep the compressor in a similar environment as described for the Printer itself. (Tempera- ture 15 - 30°C (60 - 86°F) and rel.

  • Page 19: Connecting The Compressed Air

    BRAILLO B 650 SF Connecting the compressed air See figures below. The compressed air from the compressor goes to the filter, regulator and release valve unit on the Paper Roll Feeder. From there it goes to the Printer and to the Staple and Fold unit.

  • Page 20: Connecting The Units Together

    BRAILLO B 650 SF Connecting the units together NOTE! Mains voltage must be 230 V 50/60 Hz! Always connect the units to ground! Emerg. switch Main switch Emerg. switch Switch S&F From Emerg. Emerg. S&F Printer Printer switch switch Relay Relay S&F...
  • Page 21 BRAILLO B 650 SF Paper Roll Feeder connector Staple and Fold connectors To Printer Mains for all units...

  • Page 22: Connecting The Printer To The Mains And Computer

    BRAILLO B 650 SF Valves on paper cutter Sensor on paper roll Power Inside printer Sync. From/to the Inside printer S&F unit Ø10 pipe for compressed air (connect under printer) Connecting the Printer to the mains and computer. The mains is connected trough the Paper Roll Feeder for all the units.
  • Page 23 BRAILLO B 650 SF Connecting to the computer This can be done in two ways, Ethernet or USB. The ethernet is a RJ45 connector, and the USB is a regular USB connector. When connecting the USB or the ethernet cable, make sure the end with the ferrite bead is connected to the printer.

  • Page 24: Placing The Units

    BRAILLO B 650 SF Placing the units. The units should be placed as seen on the figure below: Approx. 50 cm All units should be aligned so the paper will travel in a straight line...

  • Page 25: Aligning The Staple And Fold With The Printer

    BRAILLO B 650 SF 2.10 Aligning the Staple and Fold unit with the Printer Use these handles to align the S&F unit with the Printer...

  • Page 26: Adjusting The Staple And Fold Unit Sideways

    BRAILLO B 650 SF 2.11 Adjusting the Staple and Fold unit sideways Fine adjusting the position horizontally. It is possible to adjust the S&F unit a little back and forth to align the paper edge with the paper guides. First,...

  • Page 27: Adjust To Paper Width, Inserting Paper

    BRAILLO B 650 SF 2.12 Adjust to paper width, inserting paper All these adjustments depend on the width on the paper (paper roll). Cut off a sample sheet to use as a guide for adjustments. Put the paper roll onto the paper roll feeder and let the paper hang loose towards the Printer.
  • Page 28 BRAILLO B 650 SF Paper feeder, adjust width. Loosen the bolts (A) without taking the bolts out. The two units can now be moved sideways. Note that the unit on the side nearest to the main belt will also determine the top margin. Use a paper sample to find the correct position for the two units.
  • Page 29 BRAILLO B 650 SF Guides on the paper input side. Before you adjust these two guides, you should do the following: Place the paper into the already adjusted feeder, making sure the paper is aligned correctly. Now adjust the guides against the edges of the paper, this will keep the paper correctly positioned and aligned during printing.

  • Page 30: Printing With The B650 Sf

    Please see the figures below to find the description of the terms Braillo is using. The Printer will use “4-page” mode, meaning the Printer will print four pages on one sheet of paper.
  • Page 31 BRAILLO B 650 SF The sheet in 4-page mode: Please see the figures below. The “Sheet length” is not a length you set directly, but will be a result of the margins and line length settings. Sheet length = (Margin 1 + Line length + Margin 2) + (Margin 2 + Line length + Margin 1)
  • Page 32 BRAILLO B 650 SF Printing in 4-page mode: The number of pages sent to the Printer in 4-page mode, has to be a number that is possible to divide by four. E.g. a document that contains 7 pages of text, must have one empty page added to get a total of eight pages.

  • Page 33: Operating The Printer

    BRAILLO B 650 SF OPERATING THE PRINTER Operating panels Staple and Fold panel Printer panel...

  • Page 34: Functions Printer Operating Panel

    BRAILLO B 650 SF Functions Printer operating panel When the Printer is powered up, you have to press the “Accept” button to make the Printer ready. Accept button After pressing “Accept” the window below appears. Please see the explanation on the figure below:...
  • Page 35 BRAILLO B 650 SF Navigating in the menus. Move the cursor to the desired sub menu, and then press the accept button. Move the Move the Accept or Jump back to cursor up cursor down “select” the previous in the menu...
  • Page 36 BRAILLO B 650 SF To change a setting with just two alternatives. If a setting can have just two variables, the display will look like this. Active button Inactive button, press to activate, and then press “Accept” Accept or Jump back to “select”...
  • Page 37 BRAILLO B 650 SF Operator panel during printing. Please see the figure below: Embossing Sheet 1 / 5 means that the Printer are now printing Sheet 1 of a book with 5 sheets in total. Copy 1 / 1 means there will be just one copy.

  • Page 38: Overview Of Menu Structure

    BRAILLO B 650 SF Overview of menu structure Overview menu structure for B650 Set printer Warning! Welcome model Set printer Ready to Screen Emboss locked Main Menu Warning! Sleep Paper Service Date Sound Printer Counters Layout diagn Time Setup Line...

  • Page 39: Explanation Of The Different Menu Choices

    BRAILLO B 650 SF Explanation of the different menu choices The Paper Layout menu Main Menu - Paper Layout Line length: Main Menu - Paper Layout - Line Length The line length is the maximum number of characters that you can have on a single Braille line.
  • Page 40 BRAILLO B 650 SF Cell spec: Main Menu - Paper Layout - Cell spec Here you can choose between the Marburg medium standard or the US NLS standard Braille cell spacing. The Service/Diagnostic menu Main Menu - Warning - Service/Diagnostic When entering this menu choice, a warning window will appear.
  • Page 41 BRAILLO B 650 SF Manual Running: Main Menu - Warning - Service/Diagnostic - Warning - Manual Running When entering this menu choice, a warning window will appear. This is to make the user aware that print jobs from the computer will not be printed as long as you are in this sub-menu.
  • Page 42 BRAILLO B 650 SF Test Sensors: Main Menu - Warning - Service/Diagnostic - Test Sensors This is a function made for troubleshooting the sensors on the Printer. The “On” or “Off” is indicating the current status of the sensor. To find out if a sensor is OK, the sensor can be switched on and off physically, and the text in the display will change between “On”...
  • Page 43 BRAILLO B 650 SF The Date and Time menu Date and Time: Main Menu - Date and Time Used to change the date and time setting. - Date Main Menu - Date and Time - Date Used to change the date.
  • Page 44 Main Menu - Printer Setup - Warning - Printer model When entering this menu choice, a warning window will appear. Braillo Norway has a number of different Printer models that can use the same electronics. But the different Printer models have different settings and different functions.
  • Page 45 BRAILLO B 650 SF ASCII tables: Main Menu - Printer Setup - ASCII tables An ASCII table is the same as a character set. When the Printer receives a character from the computer, it goes to an ASCII table to find out which dot pattern is corresponding to this character.
  • Page 46 BRAILLO B 650 SF Lock screen delay: Main Menu - Printer setup - Lock screen delay Selecting the delay before screen get locked, 0 is screen lock off. To unlock the locked screen, press first button 1, then button 2.

  • Page 47: Messages/Error Messages On The Printer Operator Panel

    BRAILLO B 650 SF Messages/Error Messages on the Printer operator panel Messages/Error Messages on this Printer can be divided into three groups; Messages, Error Messages and unrecoverable Error messages. Messages: - Magnet failure A defect magnets has been detected during printing. The display will say “General failure, Magnet rack failure”...
  • Page 48 BRAILLO B 650 SF Recoverable errors: When there is a recoverable error, the display will show what has hap- pened e. g. “Printer halted, Printer cover open”. And it will stay like that until the error is fixed. Then the display will change to “Printer halted, Press continue to resume”.
  • Page 49 BRAILLO B 650 SF - Paused The S&F unit has sent a Pause command, or one of the hatch has been opened during printing. When the Pause command is repealed, the display will change to “Press continue to resume”. - Lost sheet The vacuum arm on the S&F unit has lost a sheet of paper.
  • Page 50 BRAILLO B 650 SF Unrecoverable errors: When there is a unrecoverable error, the display will show what has happened e. g. “General failure, Beam wheel failure”. When this kind of errors occurs, the Printer must be Reset or switched off and then switched back on again.

  • Page 51: Test Print

    BRAILLO B 650 SF Test print The test print program is designed to ensure that the 180 printing mechanisms functions properly. This Printer will do an electronic test on all of it’s printing mechanisms continuously during printing. However, this electrical test will not tell if something is wrong mechanically, and therefore it is recom- mended to print a few pages of test print before beginning the day’s production.

  • Page 52: Functions Staple And Fold Operating Panel

    BRAILLO B 650 SF Functions Staple and Fold operating panel Please see also chapter 7, “Paper cutter/Staple and fold unit”. Main menu. - Reset This resets the SF program. - Pause Depending on the previous pause setting, pressing Pause will toggle Pause on and off. If you are turn- ing pause on, it will send a pause signal to the Printer, and the Printer will stop.
  • Page 53 BRAILLO B 650 SF Setup Menu - Cover over length When the cover sheet is physically longer than the book, you need to compensate for this to be able to get the cover positioned in the centre on top of the book. This value can be set from 0 to 50 mm. The best way to find the correct value is to learn by experience.
  • Page 54 BRAILLO B 650 SF Manual operation - Man Stitch (Manual stapling) Used to manually activate the staplers. Useful when adjusting the staplers. - Man cut (Manual cutting) Used to manually activate the paper cutter. - Home Return to the main menu.
  • Page 55 BRAILLO B 650 SF Note! For advanced users only! - Sheet mover Shows the current position for the vacuum arm. - Homing Used together with ‘Activate setup’ and will set the servo reference position to zero on the vacuum arm’s current position.

  • Page 56: Messages In The Staple And Fold Display

    BRAILLO B 650 SF 3.8 Messages in the Staple and Fold display - Ready The Staple and Fold unit is ready. The signal tower will have a green light. - Paused The Staple and Fold unit is paused. This can happen for two reasons. The first is when you select pause on the main menu.

  • Page 57: Signal Tower

    BRAILLO B 650 SF Signal tower In addition to the messages in the display, there is also a signal tower. - Green light: Normal condition, everything is OK. - Green flashing light: The machine has received a print job and is adjusting for the sheet size in use.

  • Page 58: Service And Maintenance

    BRAILLO B 650 SF SERVICE AND MAINTENANCE When doing service or maintenance, the cover must be taken off. Some procedures covered in this chapter might be done simply by removing for example a side panel. But we recommend for “bigger operations”...
  • Page 59 BRAILLO B 650 SF The cross section below is a “theoretical” figure showing the parts inside the printing mechanism. The Printer has been “sliced” to show more detailed of how it is constructed. PAPER...
  • Page 60 BRAILLO B 650 SF Please see the figure on the previous page. The two shafts, one at the top and one at the bottom, are rotating synchronized. On each shaft there are eccentrics moving the beams and papershoes up and down. This movement is used both to hold the paper and to make the dots.
  • Page 61 BRAILLO B 650 SF The drawing on this page illustrates the basic principle of how the dots are printed. Please also see the drawings on the next page. The parts in the upper left of this drawing is one of the magnet racks. The parts in the lower right, are the beam and paper shoes.
  • Page 62 BRAILLO B 650 SF Figure A Figure B Figure C Shows the position of the pivot Now the magnet is engaged, The long pivot arm’s hook arm when the Printer is not and the long pivot arm has been catches the short pivot arm.
  • Page 63 BRAILLO B 650 SF General overview Printer Main Belt Magnet rack B Magnet rack A Paper Paper feed cutter stepping motor Main motor Electric unit Serial no. Printer Main board...

  • Page 64: Troubleshooting, Incorrect Braille

    If the text-file is OK, the problem is caused by the Printer. On earlier models of Braillo Printers, this could be caused by either an electrical problem or a mechan- ical problem. But on this model of Printer, there is an integrated self-diagnostic system that is checking the magnets continuously during printing, and will trig an alarm if it detects some electrical problems with the magnets.
  • Page 65 BRAILLO B 650 SF Which magnet makes what dot? Please take some time to examine the figures below and on the next page. It is very important that you know how the magnets are arranged to be able to understand how the Printer works.
  • Page 66 BRAILLO B 650 SF The letter “P” means page. The figure shows a sheet of paper printed in “4-page mode”. The two circles is showing which magnet that has made the different dots. Line no. one will be in the upper left corner when facing the page.
  • Page 67 BRAILLO B 650 SF Possible reasons for errors: See figures on the next page. If a dot from a certain printing pin is missing regularly, the reason might be one of the following: Defective magnet (The self-diagnostic system will find this one first).
  • Page 68 BRAILLO B 650 SF Magnet rack Magnet Sponge list Long pivot arm board Magnet rack Support list Magnet poles Short pivot arm Pin guide Gap between pivot arms Sponge list short pivot arm Printing pin...

  • Page 69: Magnet Rack - Removal

    BRAILLO B 650 SF Magnet rack - Removal Note! Before removing the cutter, make sure that Please see figures below: the position on the cutter can be re-established by use of the position plates at the back of the cutter.

  • Page 70: Magnet Rack - Disassembly, Step By Step

    BRAILLO B 650 SF Magnet rack - Disassembly, step by step. There are two main reasons for disassembling the magnet rack. To replace some parts, i.e. a defect magnet, a worn pivot arm, or for regular maintenance. The magnet racks can be considered as the parts of the Printer that will have the greatest influence on the dot quality, so it is very important to know how to deal with them.
  • Page 71 BRAILLO B 650 SF Step 2. Remove the two nuts holding the support list, and then remove the support list. Support list Step 3. Remove the two bolts holding the pivot arm rack, and then care- fully remove the pivot arm rack. The magnet rack is now disas- sembled.

  • Page 72: Magnet - Replacement

    BRAILLO B 650 SF Magnet - Replacement Please observe that the numbering on the magnets in a magnet rack, always starts at “one” at the end where the connections are. (It does not refer to dot number, character number or column number!).
  • Page 73 BRAILLO B 650 SF Step 2. Pull out the defect magnet with, e.g. a narrow pair of “needle nose” pliers. Magnet Step 3. Check the magnets internal resistance if you have an ohm-meter available. The resist- ance should be between 185 ohm and 240 ohm. Any value outside this range indicates a defective...
  • Page 74 BRAILLO B 650 SF Step 4. Replace the defective magnet with a new magnet in its place. Note: Direction of the spikes on the magnet. These spikes must be oriented the same direction as the rest of the magnet spikes in the magnet rack.

  • Page 75: Magnet Rack - Cleaning

    BRAILLO B 650 SF Magnet rack - Cleaning Remove the magnet rack as described in chapter 4.3 “Magnet rack, removal”. Then disassemble the magnet rack as described in chapter 4.4 “Magnet rack disassembly, step by step”. Now damp an cloth with denatured alcohol to wipe off the surfaces as described in the figure below:...

  • Page 76: Magnet Rack - Adjustment

    BRAILLO B 650 SF Magnet rack - Adjustment Before replacing the magnet rack in the Printer, two adjustments must be checked. The first one is the distance between the support list and the pivot arms. This is the travelling distance of the pivot arm, and it should be adjusted to about 0.8 mm using a feeler gauge.
  • Page 77 BRAILLO B 650 SF The second adjustment is the pressure the sponge list exerts against the pivot arms. The sponge list works as a return spring for the pivot arms. The correct adjustment is when the sponge list is slightly pressing against the pivot arms, but pivot arms still can move freely.

  • Page 78: Magnet Rack - Refitting And Adjusting

    BRAILLO B 650 SF Magnet rack - Refitting and adjusting Please see figure below: Before putting the magnet rack back in the Printer, make sure that the magnet rack itself is adjusted as described in the previous chapter. When replacing the magnet rack in the Printer: Put in the four fastening screws, but do not tighten them.
  • Page 79 BRAILLO B 650 SF The magnet rack must be adjusted in two directions, horizontal and vertical. The horizontal adjustment is done first. This adjustment positions the magnet rack correctly in relation to the short pivot arms. If the Printer prints too many or too few dots, the horizontal adjustment could be the reason.
  • Page 80 BRAILLO B 650 SF When the arrows at the end of the shafts are pointing in the opposite direction of each other, the short pivot arms will be positioned approximately like in the figure below: Screw for horizontal adjustment Approx. 0.2 mm...
  • Page 81 BRAILLO B 650 SF Next is vertical adjustment. Note! The Printer must be in the “printing position” when checking this distance. Vertical adjustment approx. 1 mm (Will be affected by i. e. paper quality). The vertical adjustment of the magnet rack sets the pressure of the printing pins when making dots.
  • Page 82 BRAILLO B 650 SF Adjust upwards by loosening the upper nut and then tighten the lower. Loosen these screws Note! Adjust in small steps, only 1/4 of a revolution at a time. Then check the Braille quality.
  • Page 83 BRAILLO B 650 SF Note! When adjusting the magnet racks vertically, observe that magnet rack A and B must be moved upwards to increase the pressure, and magnet rack C and D must be moved downwards to increase the pressure.

  • Page 84: Beam And Paper Shoes - Overview

    BRAILLO B 650 SF Beam and Paper shoes - Overview Please see the figures below: Upper Beam Upper Paper shoe Adiprene springs Lower Paper shoe Plastic shims Return springs Paper goes (red) in this direction Lower Beam Return springs (green)

  • Page 85: Beam And Paper Shoes - Removal And Refitting

    BRAILLO B 650 SF 4.10 Beam and Paper shoes - Removal and refitting Position plate To remove the beam and paper shoes, other parts must first be removed. It should be done in this order: Before removing the paper cutter:...
  • Page 86 BRAILLO B 650 SF Beam and paper shoes - Removal and refitting (continued) 5. Remove the belt. Loosen these This is done by loosening the belt tensioner two screws to screws. When this is done, the belt can be lifted remove the belt off the upper cogwheel.

  • Page 87: Beam - Replacement Of Short Pivot Arm

    BRAILLO B 650 SF 4.11 Beam - Replacement of short pivot arm Please see figures below: 1. Remove the six screws as indicated on the figure. Pull out the short pivot arms, there are 45 pcs. on each side. 2. Pull out the shaft, and replace the short pivot arm(s).

  • Page 88: Beam - Replacement Of Printing Pins

    BRAILLO B 650 SF 4.12 Beam - Replacement of printing pins Please see the figures below: Remove the six screws as indicated on the figure. Note! Before the parts are separated, make sure that the beam is held with the printing pins hanging...

  • Page 89: Return Spring Adjustment

    BRAILLO B 650 SF 4.13 Return spring adjustment Before performing this adjustment, make sure that the shafts are turned to the correct position. See the marks at the end of the shafts, the arrows must point directly towards each other, like in the figure below.

  • Page 90: Eccentrics Adjustment - Belt Tension

    BRAILLO B 650 SF 4.14 Eccentrics adjustment - Belt tension After removing the belt, it is necessary to align the eccentrics. Put the belt back on, tighten it with the belt tensioner (2), and check that the arrows at the end of the shafts (1) are pointing towards each other.

  • Page 91: Beam Wheel Sensor - Adjustment

    BRAILLO B 650 SF 4.15 Beam wheel sensor - Adjustment The Beam wheel sensor is placed on the lower shaft, on the opposite end from the belt. Note that this adjustment has to be done with the shafts positioned like on the figure with the arrows pointing towards each other.

  • Page 92: Paper Shoes - Adjustment

    BRAILLO B 650 SF 4.16 Paper shoes - Adjustment Place a sheet of paper between the paper shoes (P). Turn the belt so the two points (6) at the end of the shafts (2) are pointing towards each other as shown in the figure below.

  • Page 93: Inductive Sensors - Adjustment

    BRAILLO B 650 SF 4.17 Inductive sensors - Adjustment This Printer uses inductive sensors in three places. One for the Beam wheel on the lower shaft, and two are controlling the movement of the paper feed mechanism. It is possible to check if the inductive sensors are functioning, by looking at the rear end where the cable enters the sensor.

  • Page 94: Paper Sensor - Replacing

    BRAILLO B 650 SF 4.18 Paper sensor - Replacing This Printer has a sensor to detect if paper is present in the Printer. This sensor is situated on the paper guide where the paper enters the Printer. The sensor is an infrared, reflective type, and it functions like this: A little infrared lamp is sending light downward.

  • Page 95: Maintenance

    BRAILLO B 650 SF 4.19 Maintenance Weekly (without taking the cover off). Does the Printer print correct Braille? How is the Braille dot quality? Check for any damages on the outside of the cover. Are the operator panel and display functioning and are power lamps illuminated? Do the fans work? Are the fans clean? If there is a lot of dust from the paper on the paper guides, use a vacuum cleaner.
  • Page 96 BRAILLO B 650 SF Lubrication This should be done every 500 running hours, or approximately once a year. Lubricate all items marked “grease” on the figure below. (These are the only locations on the Printer grease may be applied!). The Printer needs to be disassembled to do this lubrication, so it is recom- mend to do this at the same time as the regular 500 hour service.

  • Page 97: Parts - Exploded Views

    BRAILLO B 650 SF PARTS - EXPLODED VIEWS Magnet rack Parts magnet rack Pos. Name Quantity per. rack Sponge list, magnet rack ..........1 Magnet rack ...............1 Support list, magnet rack ...........1 Shaft, long pivot arm ..........1 Pivot arm, long ............45 Electronic board, magnet rack ........1...

  • Page 98: Beam

    BRAILLO B 650 SF Beam Parts beam (upper or lower) Pos. Name Quantity per. beam Stroke ball bearing Ø20 ..........2 Beam, (upper or lower) ..........1 Fastener for shaft short pivot arm ......4 Sponge list for short pivot arm ........2 Pin guide ..............1 Short pivot arm ............90...

  • Page 99: Paper Shoe

    BRAILLO B 650 SF Paper shoe Parts paper shoe (upper or lower) Name Quantity pr. shoe Retaining ring ............4 Adjustment screw (push rod) ........2 Stroke ball bearing Ø20 ..........2 Spacer ................2 Paper shoe (upper or lower) ........1 Plastic shims ..............4...

  • Page 100: Paper Feeder

    BRAILLO B 650 SF Paper feeder Parts paper feeder Pos. Name Quantity Pulling wheel .............2 Bearing 6003 2Z ............2 Timing wheel ............1 Stepping motor ............1 Paper feed sensor no. 1 ..........1 Paper feed sensor no. 2 ..........1...

  • Page 101: Shafts, Belt

    BRAILLO B 650 SF Shafts, belt Direction of rotation How to get the timing belt pulley off the shaft. Unscrew the two screws. Parts shaft, belt Place one of Pos. Name Quantity the screws in Shaft ................2 the third hole, Belt 640 L ..............1...
  • Page 102 BRAILLO B 650 SF Shaft Parts shaft, exploded Pos. Name Quantity per. shaft Main bearing with housing ........2 Nut KM5 ..............2 Bearing outer eccentric 6205 2Z ........2 Nut KM6 ..............2 Bearing inner eccentric 6006 2Z .......2 Shaft ................1...

  • Page 103: Top And Bottom Frame

    BRAILLO B 650 SF Top and bottom frame Parts top and bottom frame, exploded Pos. Name Quantity per. frame Retaining ring Ø22 ............4 Stroke ball bearing Ø12 ..........2 Spacer Ø22 ..............2 Push rod Ø12X56 ceramic .........2 Retaining ring Ø16 ............4 Stroke ball bearing Ø8 ..........2...
  • Page 104 BRAILLO B 650 SF Frame, complete...

  • Page 105: Paper Cutter

    BRAILLO B 650 SF Paper cutter, part 1 of 3 Name Quantity Cylinder ..............1 Roller blade assembly ..........1 Paper holder ..............1...
  • Page 106 BRAILLO B 650 SF Paper cutter, part 2 of 3, roller blade assembly Name Quantity Roller blade ...............1 Bearing 688 2Z ............2...
  • Page 107 BRAILLO B 650 SF Paper cutter, part 3 of 3, paper holder Name Quantity Paper holder ..............1 Blade fixed ..............1 Paper holder cylinders ..........2...

  • Page 108: Technical Specifications

    BRAILLO B 650 SF TECHNICAL SPECIFICATIONS Technical specifications Format: Paper roll: Max. diameter 1100 mm (43 inches) Inner core diameter min. 70 mm, max. 84 mm Paper (roll) width: Min. 260 mm , max. 330 mm (13 inches) Sheet width: Min.

  • Page 109: Electric Unit Printer - Overview

    BRAILLO B 650 SF Electric unit Printer - Overview The electric unit is placed on the base plate of the Printer, and contains connections, fuses and power supply. Note that you must disconnect the mains when working on this unit.

  • Page 110: How To Replace Fuses

    BRAILLO B 650 SF How to replace fuses The fuses are placed on a PCB inside the Electric Unit. See figures below for how to open the box. Remember to disconnect the mains cable first! Remove Remove screws screws Lift the lid...
  • Page 111 BRAILLO B 650 SF The fuses. Note that the two mains fuses is placed under transparent lids. All the fuses are 5 x 20 mm and can be of glass or ceramic type. Mains - 10 AT Board - 3,15 AT Spare 1 - 1 AT Spare 2 .

  • Page 112: Main Board - Connections

    BRAILLO B 650 SF Main board - Connections Power Signal Data operator operator Magnet racks panel panel A B C D Audio pre out Not in use Not in use Ethernet in use Not in use Step Not in use...

  • Page 113: Escape-Sequences

    BRAILLO B 650 SF Escape-sequences What is an escape-sequence? An escape-sequence is just a name for a code that is sent to the Printer from the computer to change the parameters that control the way the Printer works. Many parameters that can be set via the opera- tor panel, can also be changed with escape-sequences.
  • Page 114 BRAILLO B 650 SF Note! The escape-sequences will be executed immediately if the Printer is not running. How- ever, if the Printer is running, the escape-sequences will keep their place in the document, and will be executed when this particular page is printed. Also keep in mind that any page format- ting command must be kept on the front page of a sheet.
  • Page 115 BRAILLO B 650 SF Margin 2: Print format: ESC E nn - Margin 2. ESC H n - Print format nn can be from 0.5” to 2.0” n can be 0 (single sided) or 1 (inter point). Margin 2 ASCII...
  • Page 116 BRAILLO B 650 SF Software Reset: Printer ID: ESC 0 - Soft Reset ESC 4 - Adding the Printer ID This command is used to reset the Printer. It is When you have several Braille Printers producing used from the computer and has the same effect the same Braille material, it is not always easy to as pushing the key RESET PRINTER.

  • Page 117: Paper Cutter / Staple And Fold

    BRAILLO B 650 SF PAPER CUTTER / STAPLE AND FOLD NOTE! The paper cutter is driven by compressed air and is controlled from the control unit on the Staple and Fold unit. It is considered to be a part of the Staple and Fold unit, and not a part of the Printer.

  • Page 118: Description Of Functions

    BRAILLO B 650 SF Description of functions. The print job starts when a file is sent from the computer to the Printer. This file will contain both text and codes for the different settings on the Printer. The codes can be the number of sheets in the book, the line length, margins and so on.

  • Page 119: Paper Cutter - Adjustment

    BRAILLO B 650 SF Paper cutter - Adjustment The paper cutter must be adjusted in the in/out direction to ensure that the top and bottom margins has the correct size. It is done like this: Loosen the four fastening bolts. (There is a position plate on both sides that can be used as a reference if the cutter is to be adjusted outwards.
  • Page 120 BRAILLO B 650 SF When the paper cutter is correctly adjusted, the right margin on page 11 has approximately the same size as the left margin on page 4. The edge on the sheet is also aligned with the text.

  • Page 121: Paper Cutter

    BRAILLO B 650 SF Paper cutter Cuts the sheets by running a roller blade across the paper. Is driven by compressed air and is very strong. Take care when doing service and maintenance! Rodless cylinder Valves Pneumatics schematic Paper Cutter...

  • Page 122: Scrap Paper Hatch

    BRAILLO B 650 SF Scrap paper hatch Is a hatch that will open and get rid of the scrap paper that is cut of at the beginning of a print job. Pneumatics schematic Scrap paper hatch Adjusts the speed upwards...

  • Page 123: Picking Paper

    BRAILLO B 650 SF Picking paper Is the up and down movement of the vacuum arm. Cylinder and sensor Pneumatics schematic Picking To adjust the speed the arm is moving upwards. To adjust the force the arm is pressing downwards.

  • Page 124: Vacuum

    BRAILLO B 650 SF Vacuum Is used to lift and move the sheets. The vacuum is made in an ejector placed just beside the vacuum arm. A sensor will discover if the sheet falls off the vacuum arm during the movement.

  • Page 125: Sheet Splitter

    BRAILLO B 650 SF Sheet splitter When the vacuum arm is lifting a cover from the stock, it is also blowing some air into the pile to help separate the sheets. The amount of air in the two nozzles at the sides is controlled by the regulator just behind the cover magazine.

  • Page 126: Stack Holders

    BRAILLO B 650 SF Stack holders Is two cylinders that will move down an keep the stack of sheets aligned until the stapling is done. Stack Sensor holders Pneumatics schematic Stack holder Adjustment for the force pressing downwards Electrical information:...

  • Page 127: Staple Anvil

    BRAILLO B 650 SF Staple anvil Will move up under the stack of sheets and lift the stack up to the staplers. The staple anvil is also forming the staples in the middle of the book. Pneumatics schematic Staple Anvil...

  • Page 128: Folding

    BRAILLO B 650 SF 7.10 Folding After the stack of sheets is lifted up to the staplers and stapled, the folding starts. The stack is folded over the staple anvil. Then the anvil is moved down and the folding is done once more.

  • Page 129: Stapling

    BRAILLO B 650 SF 7.11 Stapling Please see chapter 7.25 “Staplers” for more infor- mation on the staplers. The stapling cylinder will move down and up again to engage the staplers. Stapling cylinder Pneumatics schematic Stapling Electrical information: Name Connection...

  • Page 130: Trap Door

    BRAILLO B 650 SF 7.12 Trap door Opens when a book is stapled and folded. The book will be ejected and slide down trough the opening. Trap door Pneumatics schematic Trap door Adjust the speed downwards Adjust the speed upwards...

  • Page 131: Eject

    BRAILLO B 650 SF 7.13 Eject When the book is stapled and folded, this guide will eject the book trough the trap door. An photocell is placed in front of the cylinder to stop the movement. Pneumatics schematic Eject An electric sensor is...

  • Page 132: Valve Ramp

    BRAILLO B 650 SF 7.14 Valve ramp V3 V4 V5 V6 V9 V10 V4 V5...

  • Page 133: Complete Schematic Pneumatic

    BRAILLO B 650 SF 7.15 Complete schematic pneumatic...

  • Page 134: Components In The Control Unit

    BRAILLO B 650 SF 7.16 Components in the control unit Ext. 24V Power supply Ext. servo outputs controller distr. 5V Power sup. Ethernet Opto Sensor Staple Main 230V couplers distr. switch terminals position relays relay P Alm Sync Servo connection...

  • Page 135: Schematic, Electrical 230V

    BRAILLO B 650 SF 7.17 Schematic, electrical 230V...

  • Page 136: Connection To Printer, Schematic

    BRAILLO B 650 SF 7.18 Connection to Printer, schematic The line “Cutting signal” serves three different signal purposes: 1. What size is the sheet. 2. When to cut the paper. 3. What is the last sheet in a book. 1. The size of the sheet is sent as a coded message before the Printer starts. When the Printer receives a file from the computer, the Printer calculates the size depending on the margins and the line length selected.

  • Page 137: Schematic Plc

    BRAILLO B 650 SF 7.19 Schematic PLC...

  • Page 138: Schematic Signal Tower

    BRAILLO B 650 SF 7.20 Schematic signal tower Yellow Green...

  • Page 139: Schematic Sensors

    BRAILLO B 650 SF 7.21 Schematic sensors Picker pos., Vacuum sensor...
  • Page 140 BRAILLO B 650 SF Folding ready, Stackholder neg. Output sensor...
  • Page 141 BRAILLO B 650 SF Stapel anvil, pos Paper roll below minimum diameter. Stop Eject, Stapling anvil neg.
  • Page 142 BRAILLO B 650 SF Door 1 switch. Door 2 switch. Stapling position, analog sensor.

  • Page 143: Schematic Staplers Position

    BRAILLO B 650 SF 7.22 Schematic staplers position 7.23 Schematic pneumatic valves...

  • Page 144: Reference Position On The Vacuum Arm

    BRAILLO B 650 SF 7.24 Reference position on the vacuum arm. The arm that moves the paper or cover on the S&F unit must have a reference position to be able to position itself correctly when picking up or laying down paper.

  • Page 145: Staplers

    BRAILLO B 650 SF 7.25 Staplers The stapling function is being taken care of by two Hohner 43-6 machines. These are quite complex machines, and comes with their own manual. The stapling is done with 0,5 mm steel wire. Please read the Hohner 43-6 manual carefully.

  • Page 146: Paper Roll Feeder

    BRAILLO B 650 SF PAPER ROLL FEEDER Setting up - Connections The different units should be placed as seen on the figure below. Approx. 50 cm All units should be aligned so the paper will travel in a straight line The Paper Roll Feeder may be considered as an independent unit, even though it is switched on and off on the Printer.

  • Page 147: Operating

    BRAILLO B 650 SF Operating To operate the Paper Roll Feeder, the Printer must be “awake” and the emergency switches must be in released (upper) position. When turned on, the green power lamp will light up and depending on the paper position, the feeder motor may start.

  • Page 148: Replacement Of The Paper Roll

    BRAILLO B 650 SF Replacement of the paper roll Shaft and Insert shaft Ready for paper roll into paper roll printing Put the shaft in the centre of the roll, and ensure that the shaft is approximately in the centre sideways.

  • Page 149: Service And Maintenance

    BRAILLO B 650 SF Service and maintenance Troubleshooting Paper Roll Feeder The Paper Roll Feeder may be considered as an independent unit, but the Paper Roll Feeder will also supply the Printer and the S&F unit with compressed air and power.

  • Page 150: Measurements

    BRAILLO B 650 SF Measurements All measurements in centimetres. 112 cm 115 cm 77 cm...

  • Page 151: General Information

    BRAILLO B 650 SF GENERAL INFORMATION Declaration of conformity...

  • Page 152: Warranty

    Warranty This product left the factory in a good working condition in accordance with the technical specifica- tions and carries a warranty of 3 years on parts valid from the date of delivery from Braillo Norway A/S. The warranty includes:...

  • Page 153: Warranty Request Form

    BRAILLO B 650 SF Warranty request form (Only one printer/part per document) Customer name: Date: Contact person: Phone number: E-mail address: Hours: Printer number: Printer type: Part name: Part number: Reason for return: Comments: Return to: Phone number: +47 74 84 04 40...

  • Page 154: Addresses And Phone Numbers

    BRAILLO B 650 SF Addresses and phone numbers Web: www.braillo.com Administration/Sales department Braillo Norway AS: Office: Storgt. 20, Tønsberg Mail: P.O.Box 447 3101 Tønsberg Norway Phone: +47 33 00 28 70 Telefax: +47 33 00 28 71 e-mail: braillo@braillo.com Service Braillo Norway AS: Office: Wesselsveg 100, Stjørdal...
