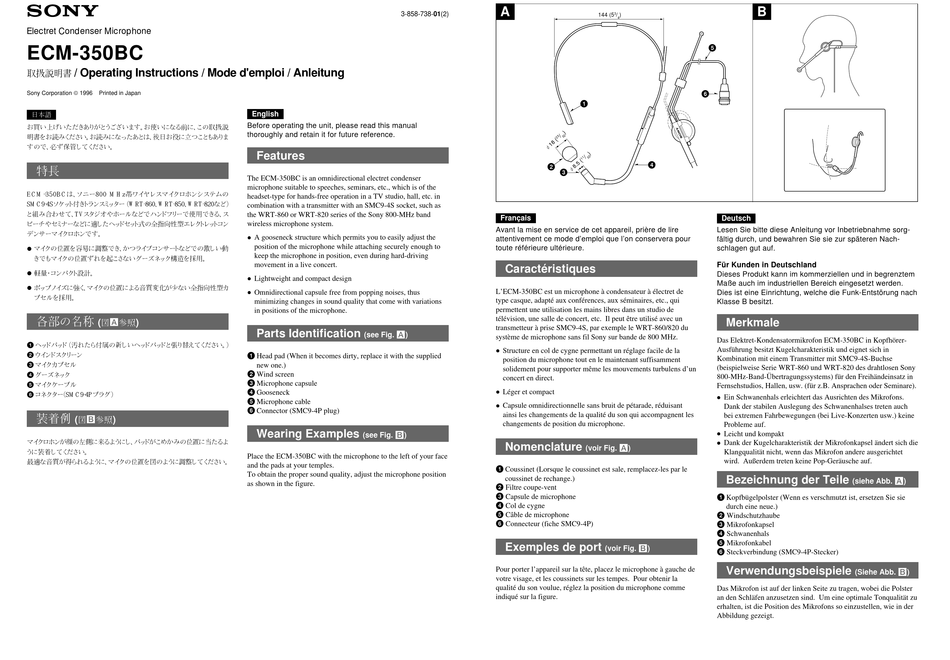

Electret Condenser Microphone
ECM-350BC
/ Operating Instructions / Mode d'emploi / Anleitung
取扱説明書
Sony Corporation 1996
Printed in Japan
日本語
お買い上げいただきあ りがと う ございます。 お使いになる前に、 この取扱説
明書をお読みく ださい。 お読みになったあとは、 後日お役に立つこ と もあ り ま
すので、 必ず保管してく ださい。
特長
ECM-350BCは、 ソニー800 MHz帯ワイヤレスマイ クロホンシステムの
SMC9-4Sソケッ ト付き ト ラ ンス ミ ッ ター (WRT-860、 WRT-850、 WRT-820など)
と組み合わせて、 TVス タジオやホールなどでハン ドフ リ ーで使用でき る、 ス
ピーチやセ ミ ナーなどに適したヘッ ドセ ッ ト 式の全指向性型エレク ト レ ッ ト コ ン
デンサーマイ クロホンです。
マイ クの位置を容易に調整でき、 かつライ ブコンサー ト などでの激しい動
●
きでもマイ クの位置ずれを起こ さないグーズネ ッ ク構造を採用。
軽量 ・ コンパク ト設計。
●
ポップノ イ ズに強く 、 マイ クの位置による音質変化が少ない全指向性型カ
●
プセルを採用。
各部の名称
A
(
図
参照
)
1 ヘッ ドパッ ド (汚れたら付属の新しいヘッ ドパッ ドと張り替えてく ださい。 )
2ウイ ン ドスク リ ーン
3 マイ クカプセル
4 グーズネ ック
5 マイ クケーブル
6 コネクター(SMC9-4Pプラグ)
装着例
B
(
)
図
参照
マイ ク ロホンが顔の左側に来る よ う にし、 パッ ドがこめかみの位置に当たるよ
う に装着してく ださい。
最適な音質が得られるよ う に、 マイ クの位置を図のよ う に調整してく ださい。
3-858-738-01(2)
English
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
Features
The ECM-350BC is an omnidirectional electret condenser
microphone suitable to speeches, seminars, etc., which is of the
headset-type for hands-free operation in a TV studio, hall, etc. in
combination with a transmitter with an SMC9-4S socket, such as
the WRT-860 or WRT-820 series of the Sony 800-MHz band
wireless microphone system.
•
A gooseneck structure which permits you to easily adjust the
position of the microphone while attaching securely enough to
keep the microphone in position, even during hard-driving
movement in a live concert.
•
Lightweight and compact design
•
Omnidirectional capsule free from popping noises, thus
minimizing changes in sound quality that come with variations
in positions of the microphone.
Parts Identification
(see Fig. A)
1 Head pad (When it becomes dirty, replace it with the supplied
new one.)
2 Wind screen
3 Microphone capsule
4 Gooseneck
5 Microphone cable
6 Connector (SMC9-4P plug)
Wearing Examples
(see Fig. B)
Place the ECM-350BC with the microphone to the left of your face
and the pads at your temples.
To obtain the proper sound quality, adjust the microphone position
as shown in the figure.
A
144 (5
3
/
)
4
1
4
2
3
Français
Avant la mise en service de cet appareil, prière de lire
attentivement ce mode d'emploi que l'on conservera pour
toute référieure ultérieure.
Caractéristiques
L'ECM-350BC est un microphone à condensateur à électret de
type casque, adapté aux conférences, aux séminaires, etc., qui
permettent une utilisation les mains libres dans un studio de
télévision, une salle de concert, etc. Il peut être utilisé avec un
transmetteur à prise SMC9-4S, par exemple le WRT-860/820 du
système de microphone sans fil Sony sur bande de 800 MHz.
•
Structure en col de cygne permettant un réglage facile de la
position du microphone tout en le maintenant suffisamment
solidement pour supporter même les mouvements turbulens d'un
concert en direct.
•
Léger et compact
•
Capsule omnidirectionnelle sans bruit de pétarade, réduisant
ainsi les changements de la qualité du son qui accompagnent les
changements de position du microphone.
Nomenclature
(voir Fig. A)
1 Coussinet (Lorsque le coussinet est sale, remplacez-les par le
coussinet de rechange.)
2 Filtre coupe-vent
3 Capsule de microphone
4 Col de cygne
5 Câble de microphone
6 Connecteur (fiche SMC9-4P)
Exemples de port
(voir Fig. B)
Pour porter l'appareil sur la tête, placez le microphone à gauche de
votre visage, et les coussinets sur les tempes. Pour obtenir la
qualité du son voulue, réglez la position du microphone comme
indiqué sur la figure.
B
5
6
Deutsch
Lesen Sie bitte diese Anleitung vor Inbetriebnahme sorg-
fältig durch, und bewahren Sie sie zur späteren Nach-
schlagen gut auf.
Für Kunden in Deutschland
Dieses Produkt kann im kommerziellen und in begrenztem
Maße auch im industriellen Bereich eingesetzt werden.
Dies ist eine Einrichtung, welche die Funk-Entstörung nach
Klasse B besitzt.
Merkmale
Das Elektret-Kondensatormikrofon ECM-350BC in Kopfhörer-
Ausführung besitzt Kugelcharakteristik und eignet sich in
Kombination mit einem Transmitter mit SMC9-4S-Buchse
(beispielweise Serie WRT-860 und WRT-820 des drahtlosen Sony
800-MHz-Band-Übertragungssystems) für den Freihändeinsatz in
Fernsehstudios, Hallen, usw. (für z.B. Ansprachen oder Seminare).
•
Ein Schwanenhals erleichtert das Ausrichten des Mikrofons.
Dank der stabilen Auslegung des Schwanenhalses treten auch
bei extremen Fahrbewegungen (bei Live-Konzerten usw.) keine
Probleme auf.
•
Leicht und kompakt
•
Dank der Kugelcharakteristik der Mikrofonkapsel ändert sich die
Klangqualität nicht, wenn das Mikrofon andere ausgerichtet
wird. Außerdem treten keine Pop-Geräusche auf.
Bezeichnung der Teile
(siehe Abb. A)
1 Kopfbügelpolster (Wenn es verschmutzt ist, ersetzen Sie sie
durch eine neue.)
2 Windschutzhaube
3 Mikrofonkapsel
4 Schwanenhals
5 Mikrofonkabel
6 Steckverbindung (SMC9-4P-Stecker)
Verwendungsbeispiele
(Siehe Abb. B)
Das Mikrofon ist auf der linken Seite zu tragen, wobei die Polster
an den Schläfen anzusetzen sind. Um eine optimale Tonqualität zu
erhalten, ist die Position des Mikrofons so einzustellen, wie in der
Abbildung gezeigt.
