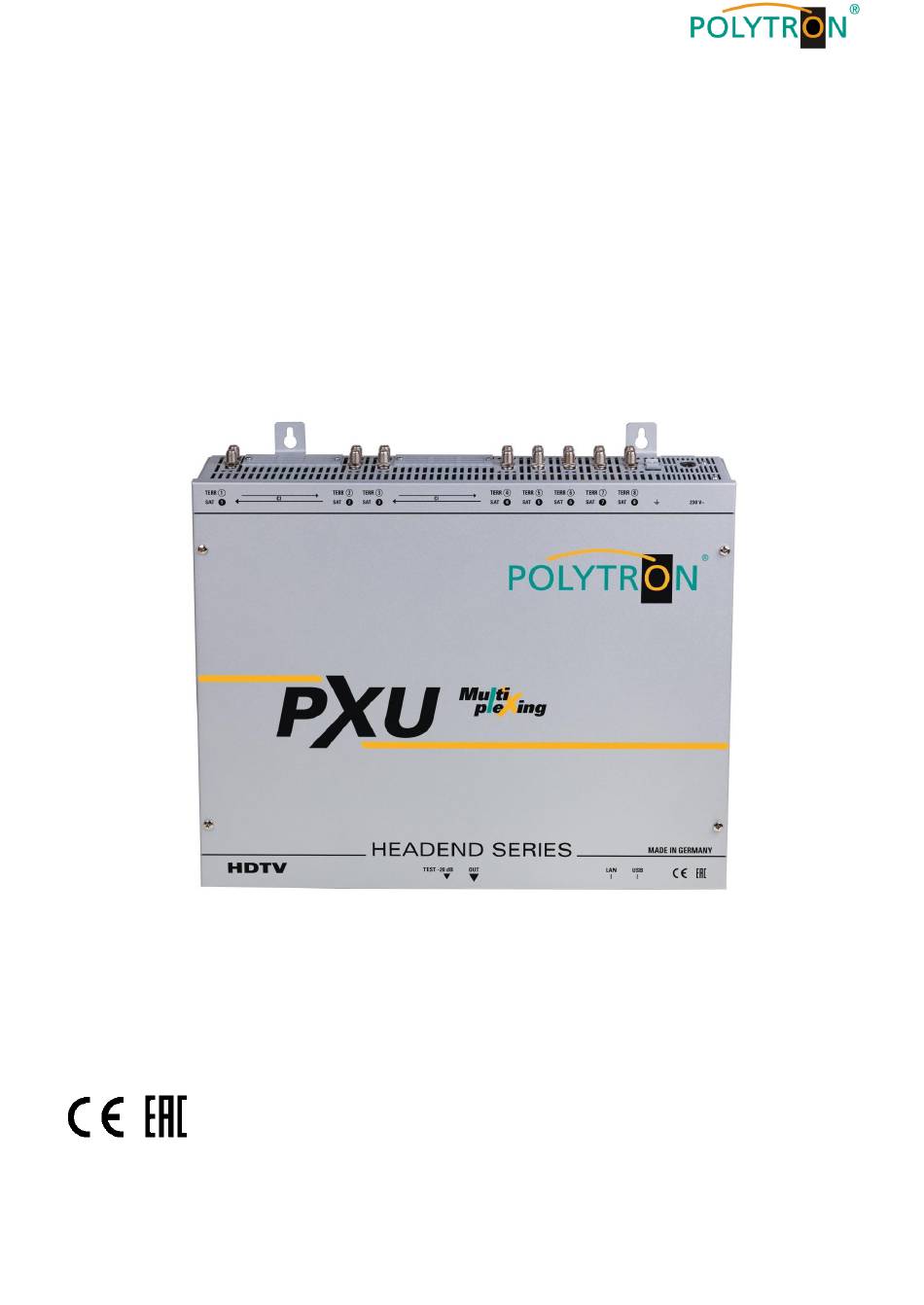

  • Page 1 PXU 848 C/T Compact Headend with multiplexing User manual MADE IN GERMANY 0902008...

  • Page 2: Table Of Contents

    Contents Mounting and safety instructions General information Description Scope of delivery Input circuit Mounting Grounding 7. Installation Pre-programming Input level Output level General programming Software installation  at PC/Laptop 8.1.1 Installation of the driver 8.1.2 Installation of the programming software Programming of the device parameters 8.2.1 Input parameters SAT reception 8.2.2 Input parameters for terrestrial range...

  • Page 3: Mounting And Safety Instructions

    1. Mounting and safety instructions...
  • Page 4 ATTENTION This module contains ESD components! (ESD = Electrostatic Sensitive Device). An electrostatic discharge is an electrical current pulse, which can flow also through an electrically insulated material, when triggered by large voltage difference. To ensure the reliability of ESD components, it is necessary to consider their most important handling rules: Electrostatic sensitive components can be processed only on electrostatic protected area (EPA)! ...

  • Page 5: General Information

    2. General information The new models PXU 848 C and PXU 848 T of the compact headend series enable the combined processing of encrypted and open channels. This allows an easy and cost-effective extension with centrally decoded services for the community antenna system. Also possible is the use as a free-to-air basic supply in a small boarding house or hotel, because 40 programmes of 8 transponders are available.

  • Page 6: Input Circuit

    5. Input circuit In the PXU 848 C/T, signals are directly fed to the input tuners. Due to the triple tuners, there are eight inputs each for SAT and eight for terrestrial signals (DVB-T/T2 or DVB-C). In the ‘factory settings’ condition, there is a 12 VDC voltage for LNB supply on SAT input tuners 1, 2, 5 and 6.

  • Page 7: Grounding

    6.1 Grounding The device must be grounded according to EN 60728-11. - Strip approximately 15 mm of the cable insulation of the grounding cable (4mm - Slide the stripped end under the earth screw and tighten the screw. 7. Installation Connection of the input signals Connect the SAT signals directly or via splitter(s) to the SAT tuner inputs.

  • Page 8: Pre-Programming

    Insertion of the CI modules To insert the CI modules, the covers must be removed. The picture shows the assignment of the CI slots to the inputs. For wall mounting as shown in the picture, the double ridge guide of the CAMs must always be on the left side.

  • Page 9: General Programming

    848 X and the PC/laptop is only possible after the Status LED lights up permanently green or orange. 8.1 Software installation at PC (SATC12_Vxxx.zip) Download the software package from the homepage www.polytron.de and unzip in the (e.g. C:\ PXU 848) directory of your choice The software can also be loaded from the enclosed USB stick.

  • Page 10: Installation Of The Programming Software

    If this notice is displayed: Continue the installation The software was installed for the following hardware Then click the button Fertig stellen to finish the installation of the software. The installation of the driver software is now finished. 8.1.2 Installation of the programming software „Setup.exe“...

  • Page 11: Programming Of The Device Parameters

    8.2 Programming of the device parameters Start the program – – SATC12 Menu Click on at the top left The following menus are available:  Program Menu  Diagnostic  Firmware Update  Exit Select Program Menu: All adjustments of the input and output parameters are carried out here. After calling up the menu, the current parameters of all 8 channels will be displayed.

  • Page 12: Input Parameters Sat Reception

    8.2.1 Input parameters SAT reception DVB > Input signal TP > Transponder frequency Choose the kind of signal Enter transponder frequency eingebe If DVB-T/T2 or DVB-C is selected, please skip to section 8.2.2. Auto > LO frequency SR > Symbol rate The required frequency will be set automatically.
  • Page 13 Receiving conditions (DVB-S/S2) The quality of the input signal can be evaluated by using the bit error rate and the signal-to-noise ratio These depend on the quality of the reception conditions and the SAT signals. should be ≤ 1e-6. Recommendation: Bit error rate The table below shows required signal-to-noise ratio levels for varying FEC (forward error correction).

  • Page 14: Input Parameters For Terrestrial Range

    8.2.2 Input parameters for terrestrial range TP > Frequency BW > Channel bandwidth The kind of input signal will be identified automatically. Enter input frequency Select 7 or 8 MHz PLP > Select service DVB-T2 Search > Searching After pressing button Search the data is accepted and the desired channel is set.

  • Page 15: Output Parameters Dvb-C

    8.2.3 Output parameters DVB-C OFF > Switching off output channels OP > Operating mode If not all of the output channels are Normal > normal mode to be assigned, each channel can be switched off individually with OFF. Single > single carrier for level measurement with an After the setting of all parameters...

  • Page 16: Output Parameters Dvb-T

    8.2.4 Output parameters DVB-T OFF > Switching off output channels OP > Operating mode If not all output channels are to be Normal > normal mode assigned, each channel can be switched off individually with OFF. Single > single carrier for level measurement with an analogue antenna After the setting off all parameters...
  • Page 17 SP > Spectrum ATT > Output attenuation Normal > Normal mode The output level at the output is 90 dBµV and can be attenuated Invers > Primary signal can be for each channel up to 12 dB in inverted in its spectral position. 1 dB steps.

  • Page 18: Function "Multiplexing

    8.3 Function “Multiplexing“ To optimally utilise the capacities of the smart cards or/and to provide new program selections at the output of the compact headend, the PXU 848 X offers a multiplexing function. Also certain services within a transponder can be deleted at the output if they are not desired.
  • Page 19 The lower section of the menu shows the data rate of the respective output. If the data rate at the output is too high, in the field Rem. Bitrate OUTX, Overflow will be displayed. This means that the data rate for the set parameters is too high and services have to be removed. The fields Rem. Bitrate OUTX are marked in colors after checking: ...

  • Page 20: Selection Of The Channels To Be Encoded

    8.3.2 Selection of the channels to be encoded A precondition of this operation is that the CAM module with corresponding smart card has been inserted into the CI slot while the headend is in a switched off state. The headend is then switched on and the CAM is recognized and initialized.

  • Page 21: Lcn Function

    8.3.3 LCN function In the column LCN (Logical channel number), the desired program number can be entered. These programs will then be sorted in the table in numerical order. Programs which have no LCN assigned, are placed below those programs that are assigned LCNs. Precondition is that the TVs/receivers support LCN.

  • Page 22: Sid Remapping - Manual Assignment Of Service Ids

    8.3.4. SID remapping - manual assignment of Service IDs Based on the feature SID (service ID), remapping of new programs can be performedwithout retuning the connected receivers. Selected services are assigned with a new SID. Important: Please ensure that a unique SID is assigned within each transponder to the programs which are changed.
  • Page 23 Example 2 - Allocation of SIDs within a transponder enabling reuse in other transponders SIDs are entered manually. We recommend using hexadecimal values within the range of F001 and FFFE. Important: The SID can be reused in other transponders (example 1). A service is referenced inside of a transponder by the unique pairing of ONID/TSID/SID.

  • Page 24: Creation Of Nit (Network Information Table)

    8.4 Creation of NIT (Network Information Table) The NIT is a transponder table, which includes informationn for direct reception of digital programs. The NIT processing requires advanced knowledge of DVB standards! The combined NIT includes all relevant data of all connected headend devicesand contains information about all receivable programs in the network.

  • Page 25: Nit-Mode

    8.4.1 NIT mode In the menu item NIT, select the submenu NIT-Mode to specify which NIT is to be used. After selecting NIT-Mode the following window will be opened. No NIT: No NIT will be sent (for special applications, not according to DVB-standard). Device NIT: A valid NIT will be sent automatically for the actual device (factory setting).

  • Page 26: Combined Nit

    Note: Please check the data for plausibility and/or overlaps before entry! DVB-C at the output  factory setting FF01 (changes possible) Network ID: DVB-T at the output  factory setting 3002 (changes possible) Network Name: Can be defined by the user. DVB-C at the output ...
  • Page 27 After selection of Combined-NIT the following window will be opened. In this window, the NIT of the single devices will be displayed together. Search the folder containing the setting files of the individual devices and select it. Double-click on the required *.hdb-files. The selected files will be listed under Files to Combine and can be deselected by double-click, if desired.
  • Page 28 Via the tab TS-Data, the common transport stream data of the combined NIT will be displayed. Error message This user interface allows to check the programming data and to add an external output channel (DVB-C = QAM or DVB-T = COFDM). The plausibility check of the pre-programmed data runs automatically. Existing plausibility problems and overlaps will be highlighted with a coloured background (see example above).
  • Page 29 Now, the following menu appears in which the service and channel data may be entered. Note: Check the plausibility and/or for overlaps of the data before entry! Headend ID: Can be defined by the user. Should be documented for later reference. Channel: Set the individual playback channel.
  • Page 30 Via the tab LCN-Data, the LCN data of the combined NIT will be displayed and the manually added output channels can be completed. To add the manually added channels to the LCN function, click the button Add Service. The following window opens. Note: Check the plausibility and/or for overlaps of the data before entry! Headend ID:...
  • Page 31 Service Type: Choice between the options and Radio. LCN: Determination of the program number in the LCN system. Click Save to apply the changes. Note: Manually added output channels will be displayed with a white background. The functions Edit and Delete are only available for manually added output channels.
  • Page 32 Finally, via the tab NIT, the common, cross-device NIT may be uploaded. The button Upload NIT to Headend will be activated. After clicking „Create Combined NIT“, the created common NIT will be loaded on the device and transmitted to the output channels.

  • Page 33: Combined Nit

    8.5 Storage of the programming It is possible to save the existing programming on a PC and/or to load it from a PC. Thus program combinations can be archived. 8.5.1 Storage of settings In the menu item Settings, select the submenu Save Settings to save the programming to a PC. After selection of Save Settings, the folder window for saving the file will be opened.

  • Page 34: Restart Of The Device

    -> Text message -> Exit Note: Only menu items which are offered and supported by the CAM are displayed or can be changed,. POLYTRON has no influence on the CAM menu! After pressing the button Exit, the CAM menu will be closed.

  • Page 35: Lan Function

    8.7 LAN function In Menu, select the submenu Program Menu to open the programming interface of the device. The basic configurations will be loaded and the adjustment interface will be started. The standard IP address of PXU 848 X is: 192.168.001.227. If the system is used in a network with a different network address format, the IP address of the PXU 848 X must be accordingly altered.

  • Page 36: Creating Headends

    8.7.1 Creating headends Start the program – – SATC12 LAN-Control In the menu item Control, activate the submenu to enable the control via LAN. To create the connection settings of the PXU 848 X in the Control menu, select the submenu Edit Headends. The input window in which to enter the headend access data will be opened.
  • Page 37 After that the Program Menu of the selected headend will be opened. Test Bad Wildbad 192.168.1.221 10004 POLYTRON PXU Langwiesenweg 192.168.1.227 10001...

  • Page 38: Diagnostics

    8.8 Diagnostics The “Diagnostic“ menu is for service purposes and can be helpful during error analysis by telephone on the ine +49(0)7081-1702-0 Hotl In the menu item Menu, select the submenu Diagnostic to open the display for the controlled parameters. The following submenu will be opened.

  • Page 39: Led Analysis

    In the middle part of the menu, the input and CI parameters of each slot will be monitored. A shows the error free function and a a possible error. Tuner Lock: Tuner locked to the adjusted input frequency ASI-Sync / ASI-188 / Clipping: Monitoring of the internal transport streams CAM-Plugged: Confirmation that the CAM module is plugged in CAM-Initialized:...

  • Page 40: Firmware Update

    Firmware Update or directly in the Program Menu in the software version overview. A prerequisite is that the latest programming software is installed on the PC/Laptop. This is available for download at the following web address: https://polytron.de/index.php/de/service/download. All set parameters are retained after the update.
  • Page 41 If the software is up to date, the following menu window will be displayed.

  • Page 42: Changing The Output Window

    8.10 Changing the output window The PXU 848 X provides the possibility to change the standard of the output signal from DVB-C in DVB-T and vice versa. To do this, in the menu item DVB-Output, select the submenu Change Output Standard. Automatic forwarding to the Download menu occurs.

  • Page 43: Extras/Additional Adjustments

    The serial number can also be found on the label on the outside of the device housing. The general password reset can only be done by POLYTRON. For this process we generate a new password with which the device can be unlocked again.

  • Page 44: Teletext On / Off

     Please note: In this pop up window no change of the password is possible. 8.11.2 Teletext ON / OFF The submenu Teletext Mode allows the activation and deactivation of teletext data. It is found in the menu item Extras. After pressing the button Teletext Mode, the following input window will be opened.

  • Page 45: Eit Pid Remapping

    8.11.3 EIT PID remapping The submenu EIT PID Remap Settings allows remapping of an EIT PID (Event Information Table, Packet Identifier). It is found in the menu item Extras. Note: These settings are only for the special case of a non-standard EIT PID. Please select OFF for all other applications.

  • Page 46: Application Example

    9. Application example The PXU 848 series is the ideal choice when PAY TV and free-to-air channels are to be combined, offering via multiplexing an optimal configuration of the headend. Application for Germany Encrypted programs to complement the free-to-air channels. By using the multiplexing function, the capacities of the smart cards can be optimally utilized.

  • Page 47: Technical Data

    10. Technical data Type PXU 848 C PXU 848 T Article no. 5552300 5552305 Inputs CI slots Multiplexing 8 x 8 (service based) Input connector A Connector F female Input frequency 950 - 2150 MHz (1 MHz steps) Input level 50 - 80 dBµV Input connector B Connector...
