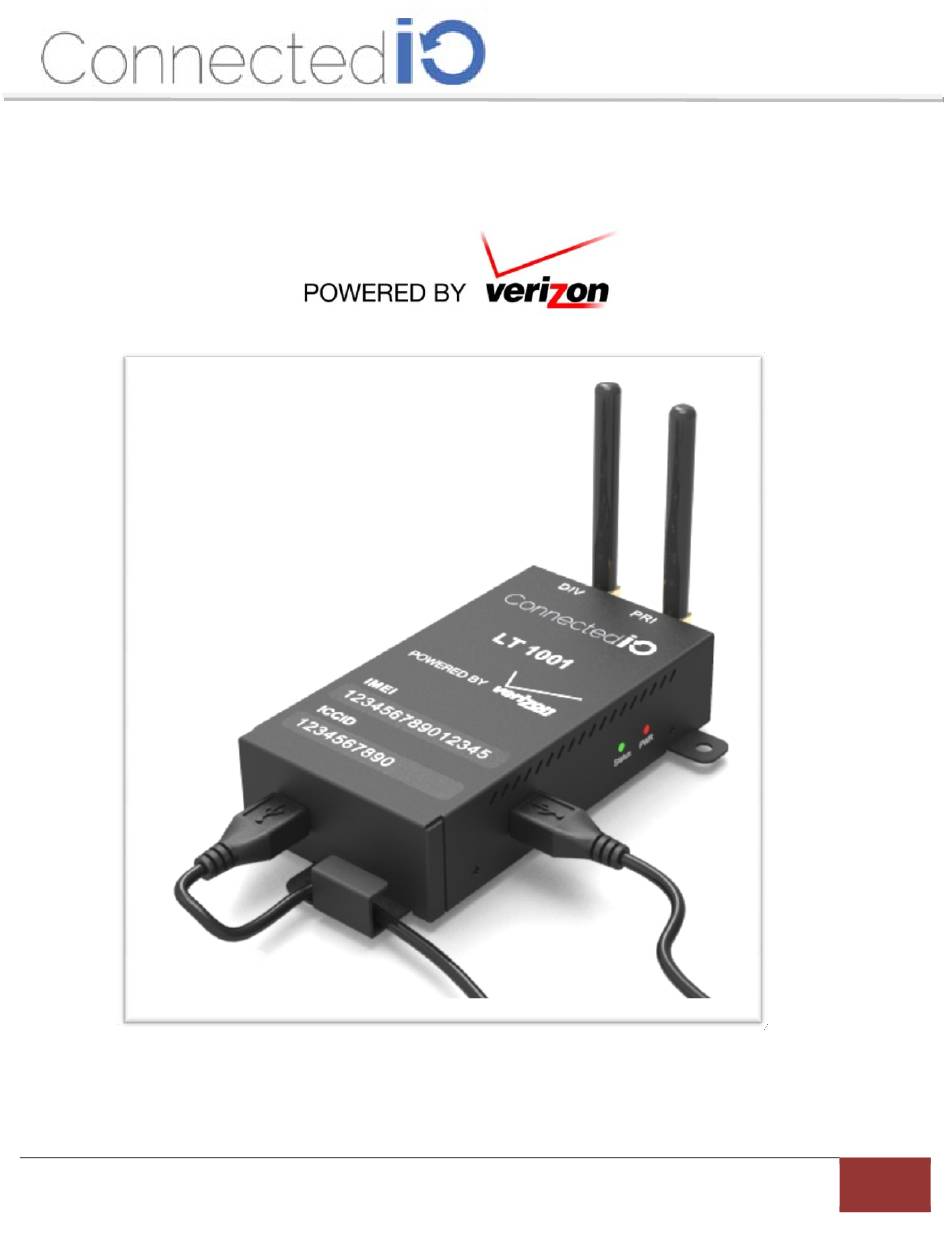

- Page 1 Machine Connect – LT1001 4G only & LT1000 2G/3G/4G 1 ...
- Page 2 Welcome Thank you for choosing Machine Connect for your M2M needs. This Quick Start Guide will show you the following: 1. What’s included 2. Antenna information 3. How to enable and connect your device to the Verizon 4G Network 4. Who to contact if you have any challenges 1.0 What’s Included Here’s what’s included with your Machine Connect: 1. Certified LT1001 (4G LTE Only) or LT1000 (2G/3G/4G multimode) device depending on which module you ordered 2. DC Power Supply ...
- Page 3 2.0 Antenna Information There are antennas that are certified to work with Machine Connect. Two examples appear below 1) 4G LTE Dipole Multi‐band antenna ‐ Performance configuration, can be used for development or connected to host device. Cannot be embedded inside a large metallic form factor. 2) 4G LTE Multi‐band MIMO antenna ‐ Externally mounted antenna, targeted for large form factor (Kiosk, Vending machine, Digital Signage) Note: Machine Connect requires an antenna to work properly. If you have not purchased an antenna certified to work with Machine Connect, you can do so at http://www.connectedio.com/products/. Use of antenna types other than those certified to work with the LT1001 may cause performance to vary from the stated values. Additional compliance testing for your device may also be required as a result. ...
- Page 4 3.0 How to enable and connect your device to the Verizon 4G Network 3.1 Use the included micro USB data cable to connect Machine Connect to your Windows PC or Host device 3.2 Use the included DC Power Supply to connect to the mini USB port on the device and plug into a standard 110VAC outlet. 4 ...
- Page 5 3.3 Contact your Verizon business representative to activate your device on the Verizon Wireless Network by providing IMEI # and ICCID # listed on the front cover of the device. 3.4 Drivers and Connecting to the Internet (https://www.connectedio.com/pages/software) To make a connection to the internet using Machine Connect, the Quanta CM and Windows Drivers must both be installed on your Windows PC or host machine. After launching the Quant CM application, it appears as displayed below. ...
- Page 6 Monitoring the Status LED’s The device has (2) LED’s labeled: Status and PWR. The PWR LED should stay on constantly once the DC Power Supply is plugged into an AC outlet and connected to the device. The Status LED will change states as according to the table below: 4.0 Customer Care 1) Should you require assistance with your Machine Connect device, please call 669 221‐6100 2) If you need help activating your device on the Verizon 4G Network, please contact your Verizon Business representative. 6 ...
