  • Page 2: User Guide

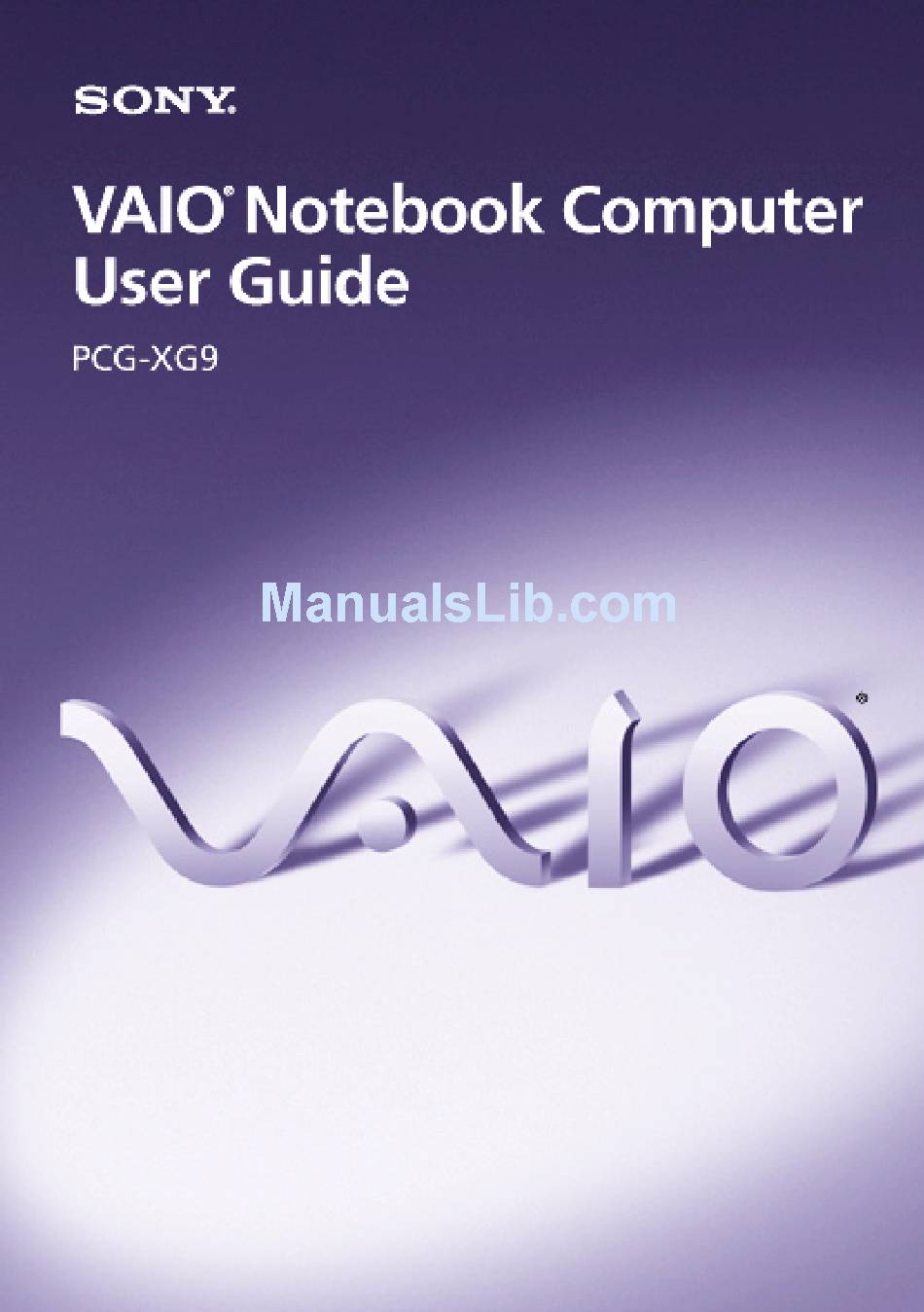

    VAIO Notebook Computer ® User Guide PCG-XG9 ®...

  • Page 3: Notice To Users

    This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product.

  • Page 4: Regulatory Information

    Safety Information Owner’s Record The model number and serial number are located on the bottom of your Sony VAIO Notebook Computer. Record the serial number in the space provided here. Refer to the model and serial number when you call your Sony Service Center.
  • Page 5 Repair of this equipment should be made only by a Sony Service Center or Sony authorized agent. For the Sony Service Center nearest you, call 1-888-4SONYPC (1-888-476-6972).

  • Page 6: Telephone Consumer Protection Act Of 1991

    In some areas the disposal of lithium ion batteries in household or business trash may be prohibited. For the Sony Service Center nearest you call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada Do not handle damaged or leaking lithium ion batteries.

  • Page 7: Industry Canada Notice

    The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 212 F (100 C) or incinerate. Dispose of used battery promptly. Keep away from children. La manutention incorrecte du module de batterie de cet appareil présente un risque d'incendie ou de brûlures chimiques.
  • Page 8 Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement. L’abonné ne doit pas oublier qu’il est possible que la conformité...

  • Page 9: Table Of Contents

    Using the Jog Dial ... 18 To Use the Jog Dial ...20 Information on Using the Jog Dial ...21 Using the Preinstalled Sony Software...22 Allocating Other Functions to the Jog Dial ...23 Deleting Software from the Allocation List ...24 ®...
  • Page 10 ® VAIO Notebook Computer User Guide Using the Keyboard ...25 Combinations and Functions with the Windows 98 Key ...27 Indicators...28 Combinations and Functions with the Fn Key ...29 Using the Touchpad...31 Using the Floppy Disk Drive ...32 To Use as an External Drive ...32 To use as an internal drive...33 Using the DVD-ROM Drive...35 To remove the DVD-ROM drive...37...
  • Page 11 Using the System and Application Recovery CDs... 81 Using the System Recovery CD(s)...81 Using the Application Recovery CD(s)...83 Changing the Window design of Sony Software ... 84 Placing a Keycap ... 85 To place a keycap ...85 Adding Memory ... 86 About the Software on Your Computer ...

  • Page 13: Welcome

    Exceptional performance - Your computer includes a fast Intel processor. Portability - The rechargeable battery pack provides hours of use without AC power. Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software. ®...

  • Page 14: Unpacking Your Vaio ® Notebook Computer

    ® VAIO Notebook Computer User Guide Unpacking Your VAIO Remove the following hardware items from the box: Main unit Power cord FDD drive cable AC adapter cables FDD drive battery pack and weight saver INSIDE ACCESSORY CASE (1) ® Notebook Computer Floppy disk drive DVD-ROM drive Accessory case...

  • Page 15: Manuals

    Manuals ® The V AIO Notebook Computer User Guide (this manual) contains information on how to get the most from your computer, find help, and solve common problems. It also includes product specifications. Read Me First contains Frequently Asked Questions, the most up-to- date information on using your computer, and software information.

  • Page 16: Using Your Notebook Computer

    ® VAIO Notebook Computer User Guide Using Your Notebook Computer This section describes how to start using your computer and how to use your computer’s internal and external devices, such as the touchpad, floppy disk drive, and DVD-ROM drive. Locating the Controls and Connectors Front Power indicator (pages 13, 28) Battery 1 and 2 indicators (pages 10, 28)

  • Page 17: Left

    Left PC card slots (page 38) ® S400 i.LINK connector (page 70) Locating the Controls and Connectors Battery bay (page 9) Phone line jack (page 49)

  • Page 18: Right

    ® VAIO Notebook Computer User Guide Right Power button (page 24) Multipurpose bay (pages 32, 47) Jog Dial (page 18) Back Infrared port connector (page 42) Docking /Floppy disk drive connector Monitor connector (page 66) Microphone connector (page 71) Headphone connector (page 70) Intercooler flap USB connector (page 73) DC In connector (page 8)

  • Page 19: Bottom

    Bottom Intercooler flap lever Multipurpose bay RELEASE lever Locating the Controls and Connectors...

  • Page 20: Connecting A Power Source

    ® VAIO Notebook Computer User Guide Connecting a Power Source You can use either AC power or a rechargeable battery pack as a power source. Using the AC Adapter Slide the LCD lock lever in the direction of the arrow as indicated below, and lift the cover.

  • Page 21: Using Battery Power

    Using Battery Power You can use one or two battery packs as a source of power. The second battery pack inserts into the drive bay on the right side of the computer. (See “Using Power Saving Modes” on page 44.) Additional battery packs are available as a separate option.
  • Page 22 ® VAIO Notebook Computer User Guide To charge the battery pack Connect the AC adapter to the computer. Insert the battery pack. The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges). When the battery is 85 percent full, the battery indicator light turns off.
  • Page 23 Connecting a Power Source To determine the amount of time the battery lasts, see “Displaying Battery Information” in the online manual Customizing Your Notebook Computer. When the battery is running out of power, both the battery indicator light and power indicator light blink.
  • Page 24 ® VAIO Notebook Computer User Guide To remove the battery pack Open the cover of the battery bay. Pull out the battery pack. Close the cover of the battery bay. You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in System Suspend mode.

  • Page 25: Starting Your Computer

    Starting Your Computer Slide the LCD lock lever in the direction of the arrow, and lift the cover. LCD lock lever Press the power button of the computer until the green power indicator light turns on. If you press the power button for more than four seconds, the computer turns off. If necessary, adjust the brightness controls for the LCD display.

  • Page 26: Shutting Down Your Computer

    ® VAIO Notebook Computer User Guide Shutting Down Your Computer To avoid potential loss of data, follow these steps to shut down your computer. Click the Start button on the Windows 98 taskbar. Click Shut Down at the bottom of the Start menu to display the Shut Down Windows dialog box.

  • Page 27: Closing The Front Panel

    Closing the Front Panel Closing the Front Panel Close the front panel by holding the clip on the left top of the front panel. If you touch the LCD screen, you will leave fingerprints on the LCD screen. Use the supplied filter cleaner to wipe the LCD screen. See “Notes on Use”...

  • Page 28: Registering Windows ® 98 Second Edition

    ® VAIO Notebook Computer User Guide Registering Windows The first time you turn on your computer, you need to complete a few steps to register and configure the Windows 98 Second Edition software that is already installed. You must register Windows 98 before you can use the computer. The on-screen instructions guide you through the registration and configuration process.

  • Page 29: Registering Your Computer

    Registering Your Computer You can take advantage of Sony’s commitment to quality customer support and receive the following benefits by registering your computer with Sony. Sony Customer Support – Talk to a Support Representative to troubleshoot problems you may be having with your computer.

  • Page 30: Using The Jog Dial

    ® VAIO Notebook Computer User Guide Using the Jog Dial Your computer is equipped with a Jog Dial on the right side of the unit. You can turn and/or press the Jog Dial to scroll the window, select a software application, adjust the internal speaker volume, etc. turn press Jog Dial...
  • Page 31 List View mode using the Jog Dial. There are two List View modes in select Sony software, Simple Menu and Full Menu. You can switch modes by pressing the Shift key.

  • Page 32: To Use The Jog Dial

    The Jog Dial window displays the desired function. Software that supports the Jog Dial If Sony software that supports the Jog Dial is active, you can use the Jog Dial’s functions that are allocated to that software. For more information on functions allocated to software, see “Using the...

  • Page 33: Information On Using The Jog Dial

    Software that does not support the Jog Dial If the software in use does not support the Jog Dial, you can scroll the window or adjust the window size as described below. Action Description Turn the Jog Scrolls the window vertically. When several windows are Dial displayed in the on-screen display, the last selected window will be scrolled.

  • Page 34: Using The Preinstalled Sony Software

    See “Using the Jog Dial” on page 18 for more information. When using the Sony software, be sure to activate the window that supports the Jog Dial. For software that does not support the Jog Dial, see “Software that does not support the Jog Dial”...

  • Page 35: Allocating Other Functions To The Jog Dial

    Allocating Other Functions to the Jog Dial You can allocate other functions to the Jog Dial or delete them with the Jog Dial setup software. Click Setup in the Jog Dial window to display the Jog Dial Setup window. If the Jog Dial Setup window is not displayed, double-click in the task tray.

  • Page 36: Deleting Software From The Allocation List

    Setup window, then select the function you want to allocate, and click Next. *The preinstalled Sony software and your computer’s configuration systems are already allocated. Verify the name to be displayed in the Jog Dial window and details of the function, then click Next.

  • Page 37: Using The Keyboard

    Using the Keyboard Your keyboard is very similar to a typewriter’s, but the keyboard has additional keys that perform specific computer-related tasks. Escape Key Shift key Ctrl key Fn key Windows 98 key If the keycap comes off, put it back in its place and push down gently until it clicks into place.
  • Page 38 ® VAIO Notebook Computer User Guide Description Numeric keypad Contains the keys found on a typical calculator. Use the area numeric keypad area to type numbers or to perform mathematical calculations such as addition and subtraction. Note that you must press the Num Lock key to activate the numeric keypad.

  • Page 39: Combinations And Functions With The Windows 98 Key

    Combinations and Functions with the Windows 98 Key Combination + F1 + Tab + Ctrl + F Shift + Fn + + Insert Function Displays Windows Help. Switches the selected button on the taskbar. Displays Windows Explorer. Displays the Windows Find: All Files window to find a file or folder.

  • Page 40: Indicators

    ® VAIO Notebook Computer User Guide Indicators Indicator Function Power Light is green when the power to the computer is turned on. Light is red in System Idle mode, and flashes red in System Suspend mode. Turns off when the computer is in System Hibernation mode or powered off.

  • Page 41: Combinations And Functions With The Fn Key

    Combinations and Functions with the Fn Key Combinations/ Feature (ESC) System Suspend (F3) Mute On/Off (F4) Speaker volume (F5) Brightness control (F7) Switch to the external display/LCD (F8) (F12) System Hibernation Using the Keyboard Function Puts the system into System Suspend mode, a power management state.
  • Page 42 ® VAIO Notebook Computer User Guide Combinations/ Feature Fn+D Video standby Fn+F Change the display size Fn+S System Idle You can carry out these functions (except for Fn+D and Fn+F) using the Jog Dial. See “Using the Jog Dial” on page 18 for more information. Some functions are not available until Windows launches.

  • Page 43: Using The Touchpad

    Using the Touchpad The keyboard contains a cursor-pointing device called a touchpad. You can point to, select, drag, and scroll objects on the screen using the built-in touchpad. Touchpad Left button Action Description Point Slide one finger on the touchpad to place the pointer on an item or object.

  • Page 44: Using The Floppy Disk Drive

    ® VAIO Notebook Computer User Guide Using the Floppy Disk Drive You can use the supplied floppy disk drive either as an external drive or as an internal drive in the drive bay. You do not need to shut down the computer before connecting the floppy disk drive.

  • Page 45: To Use As An Internal Drive

    To use as an internal drive If another device is in the multipurpose bay, remove the device. See “To remove the floppy disk drive” on page 34 or “To remove the second battery pack” on page 47. Insert the floppy disk drive into the multipurpose bay with the VAIO logo facing up.
  • Page 46 ® VAIO Notebook Computer User Guide Do not press the Eject button when the LED indicator is turned on, as data may be lost. To remove the floppy disk drive When the computer is off, skip steps 1 and 3. Right-click the PowerPanel icon in the task tray and choose “Remove multipurpose bay device”...

  • Page 47: Using The Dvd-Rom Drive

    Using the DVD-ROM Drive Your computer comes with a DVD-ROM drive. You can play both DVDs and CDs. To insert a disc Turn on the computer. When the computer is in insert a disc. See “Controlling Power Management” in the online document Customizing Your VAIO and System Hibernation modes.
  • Page 48 ® VAIO Notebook Computer User Guide Close the tray by pushing it gently. Be sure to seat the disc firmly over the DVD-ROM drive hub fingers. If you do not seat the disc firmly, you could damage your DVD-ROM drive and you may not be able to open the tray.

  • Page 49: To Remove The Dvd-Rom Drive

    To remove the DVD-ROM drive When the computer is off, skip steps 1 and 3. Right-click the PowerPanel icon in the task tray and choose “Remove Multipurpose bay device.” The message screen appears. Slide the RELEASE lever on the bottom of the computer in the direction of the arrow and slide the DVD-ROM drive out of the multipurpose bay.

  • Page 50: Using Pc Cards

    Some PC cards may require that you disable idle devices when using the PC card. You can use Sony Notebook Setup to disable devices. See “Displaying the Sony Notebook Setup Screen” in the Customizing Your Notebook Computer manual for details.
  • Page 51 Remove the PC card slot protector. When you use a Type III PC card, you need to remove both the top and bottom PC card slot protectors. Insert the PC card into the PC card slot, front label facing up. Gently push the card into the slot until the card is fixed into the connector.
  • Page 52 ® VAIO Notebook Computer User Guide To remove a PC card Do not force a card into the slot as this may damage the connector pins. If you have difficulty inserting a card, check that you are inserting the card with the correct orientation. See the manual that came with your PC card for more information on use.

  • Page 53: Using Smart Connect

    Using Smart Connect The preinstalled Smart Connect software allows you to use an i.LINK cable (not supplied) to connect your VAIO Notebook Computer to another VAIO computer that also has Smart Connect. You can then use one computer to copy, and edit files on the other computer. You can also print from a printer attached to either computer.

  • Page 54: Using Infrared Communication Devices

    ® VAIO Notebook Computer User Guide Using Infrared Communication Devices Your computer includes an infrared port, located on the left side. You can use this port to communicate with other infrared-equipped devices with compatible protocols, such as a digital still camera or other computers. To use infrared communication with another computer Align the infrared ports on the two computers so that they are in a direct line.
  • Page 55 Using Infrared Communication Devices Infrared communication capability can be turned on and off. By default, it is disabled when your system is shipped. To enable infrared use, click the infrared icon in the Windows Control Panel and select the Enable infrared communication checkbox on the Options tab. You can disable infrared communication when you are not using it to conserve battery life.

  • Page 56: Using Power Saving Modes

    ® VAIO Notebook Computer User Guide Using Power Saving Modes When you use a battery as the source of power for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has three distinct power saving modes: System Idle, System Suspend, and System Hibernation.

  • Page 57: System Suspend Mode

    System Suspend Mode The computer saves the current state of the system in RAM and switches off power to the CPU. The red power indicator light flashes in this mode. To activate System Suspend mode Press Fn+Esc, or press the power button and release it immediately. You can also use the PowerPanel utility or the Jog Dial to enter System Suspend mode.

  • Page 58: Using A Second Battery Pack

    ® VAIO Notebook Computer User Guide Using a Second Battery Pack You can purchase a second rechargeable battery pack. With two battery packs, you can extend the time that you use your computer with battery power. When using two battery packs, the battery pack you insert first charges first.
  • Page 59 To charge the second battery pack Keep the battery pack in the computer while it is connected to AC power. The battery indicator flashes while the battery is charging. See also “To charge the battery pack” on page 21 for more information. Battery pack (supplied) To remove the second battery pack There is a RELEASE lever on the bottom of the weight saver.

  • Page 60: Connecting Peripheral Devices

    ® VAIO Notebook Computer User Guide Connecting Peripheral Devices You can add functionality to your computer by connecting any of these peripherals: Phone line (page 49) Mini Docking Station (page 50) Printer (page 55) External mouse or keyboard (page 56) Floppy disk drive (page 57) AV devices (page 59) Printer (page 62)

  • Page 61: Connecting A Phone Line

    Internet. In order to register your Sony VAIO Notebook computer, register your software online, and use Sony Customer Support, you must connect to a phone line. You must register your computer to receive the extended warranty. Plug one end of the phone cable into the phone line jack on the computer.

  • Page 62: Connecting The Mini Docking Station

    ® VAIO Notebook Computer User Guide Connecting the Mini Docking Station You can use the PCGA-PSX1 Mini Docking Station (optional) to connect peripheral devices such as a printer or external display. Docking connector Tabs Back S400 S VIDEO VIDEO Monitor LINE OUT LINE IN UN DOCK button...
  • Page 63 Connecting the Mini Docking Station Left Right Floppy disk drive connector PC card slot Before connecting the Mini Docking Station You need to plug the cable attached to the AC adapter into the DC IN connector on the Mini Docking Station. Plug the power cord into the AC adapter and an electrical outlet.
  • Page 64 ® VAIO Notebook Computer User Guide To connect the Mini Docking Station to your computer Connect the Mini Docking Station to the docking/FDD connector on the back of your computer. When a charged battery is inserted in your computer, you can attach and detach the Mini Docking Station without turning off the computer.
  • Page 65 Attach the right side tab of the Mini Docking Station to the right side hollow of your computer. Push the tab into the hollow firmly until it clicks. Do not lift or move the computer by holding only the Mini Docking Station as the Mini Docking Station may be removed from the computer.
  • Page 66 ® VAIO Notebook Computer User Guide After the IN USE indicator has turned off, pull the RELEASE lever on the right side of your computer and release the right tab. RELEASE lever Release the left tab. When the Mini Docking Station is attached to your computer, do not insert or remove the battery.

  • Page 67: Connecting A Printer

    See the manual that came with your printer for more information on installation and use. Before using the printer, you may need to change the Printer setting in the Sony Notebook Setup software. See “Displaying the Sony Notebook Setup Screen” in the Customizing Your Notebook Computer manual.

  • Page 68: Connecting An External Mouse Or Keyboard

    Do not connect or disconnect the PS/2 device (keyboard or mouse) when the computer is on as this may cause malfunction. The Sony USB mouse PCGA-UMS1 (not supplied) is a USB device. So you must connect it to the USB connector.

  • Page 69: Connecting A Floppy Disk Drive

    Connecting a Floppy Disk Drive You can use the floppy disk drive as an external drive by connecting it to the floppy disk drive connector on the left side of the Mini Docking Station. You can connect it without turning off your computer. To connect a floppy disk drive Plug the cable firmly into the connector with the VAIO logo facing up and both of the alignment posts in the guide holes.

  • Page 70: To Use The Floppy Disk Drive Stand

    ® VAIO Notebook Computer User Guide To use the floppy disk drive stand You can put the floppy disk drive on the Mini Docking Station by using the floppy disk stand supplied with the Mini Docking Station. Insert the projections on the floppy disk drive into the Mini Docking Station holes as illustrated below.

  • Page 71: Connecting Av Devices

    Connecting AV Devices You can use audio/video devices by connecting the AV devices to the Mini Docking Station. See also the manuals and online help that came with your AV devices. To connect an MD deck or a CD player If you connect the Mini Docking Station and an MD deck or a CD player which has a CONTROL A1 or CONTROL A1 CD disc, create your own CD database, or edit an MD disc.

  • Page 72: To Connect A Cd Player, An Active Speaker, Or An Amplifier

    ® VAIO Notebook Computer User Guide To record music to a mini disc from a CD playing on the computer via the OPTICAL OUT, (available by connecting to the Mini Docking Station) follow these steps: Click the Start button, point to Settings, and then click Control Panel. Double-click YAMAHA DS-XG Audio Config.

  • Page 73: To Connect A Dolby Digital Decoder® Integrated Device

    To connect a Dolby Digital Decoder Connect the OPTICAL OUT connector to a Dolby Digital Decoder integrated device to experience Dolby Digital recorded videos and dynamic sound. To connect a TV or a Video Deck Connect the computer to a TV or a video deck using audio/video cables. Switch the input channel of the TV to external input.

  • Page 74: Connecting A Printer

    ® VAIO Notebook Computer User Guide Connecting a Printer You can connect the printer to your computer using the printer cable and the supplied floppy disk drive cable to print documents. Before using the printer You need to install the software supplied with the printer. See the manual that came with your printer for more information.
  • Page 75 Connecting a Printer Before you connect the printer, turn off your computer, and disconnect the AC adapter and power cord from the AC outlet. Plug the power cord after finishing all the connections. Turn on the peripheral devices before turning on your computer. If you are using a printer that does not support Windows 98, it may not function properly.

  • Page 76: Connecting An External Display

    ® VAIO Notebook Computer User Guide Connecting an External Display You can connect an external display to your notebook computer. For example, you can use the computer with any of the following: Computer display (monitor) (page 64) Projector (page 65) Turn off your computer and all peripherals, and disconnect the AC adapter and power cord from the AC outlet before making connections.
  • Page 77 To connect a projector Using a projector connected to your computer can be convenient for presentations and slide shows. Audio cable (not supplied) See the manual that came with your projector for more information on installation and use. To select a display When you connect an external display to the monitor connector, you can toggle the output among the Liquid Crystal Display (LCD), the external monitor, or both devices.

  • Page 78: Connecting A Desktop Computer Or Serial Device

    Connecting a Desktop Computer or Serial Device You can use the Mini Docking Station to connect your notebook computer to another computer, or to connect other peripherals, such as the Sony Digital Still Camera. To use the Mini Docking Station SERIAL connector, switch the SERIAL/ CONTROL A1 switch to SERIAL.
  • Page 79 Connecting a Desktop Computer or Serial Device If your digital video camera recorder includes a Memory Stick™ media slot, you can copy images from it to your computer via a Memory Stick card. Copy images to the Memory Stick card and insert the card into the optional Memory Stick/PC Card Adapter.

  • Page 80: Connecting External Speakers

    ® VAIO Notebook Computer User Guide Connecting External Speakers You can enhance the sound quality of your computer by connecting external speakers. Shut down the computer and all peripheral devices before connecting the cables. Connect all the cables before plugging in the power cord. Turn on the peripheral devices’...

  • Page 81: Connecting An External Microphone

    Connecting an External Microphone You can enhance the quality of sound input by using an external microphone. Shut down the computer and all peripheral devices before connecting the cables. Connect all the cables before plugging in the power cord. Turn on the peripheral devices' power, then turn on your computer. Make sure your microphone is designed for computer use.

  • Page 82: Connecting An I.link-Compatible Device

    Digital video camera recorder The Sony digital video camera recorder (DCR-PC7) is pictured; you may need to connect your camera differently. On Sony digital video cameras, connectors labeled “DV In/Out” or “i.LINK” are i.LINK- compatible.

  • Page 83: Connecting A Universal Serial Bus (Usb) Device

    Connecting a Universal Serial Bus (USB) Device You can connect a USB device to your computer. You can use the optional Sony USB mouse PCGA-UMS1 with this computer. The USB mouse software driver is preinstalled in the computer. Therefore you only need to plug the USB mouse into the USB connector.

  • Page 84: Getting Help

    ® VAIO Notebook Computer User Guide Getting Help Sony provides several support options for your Sony computer. When you have questions about your computer and the preinstalled software, check these sources for answers, in the following sequence: ® V AIO...

  • Page 85: Troubleshooting

    This section describes how to solve common problems you may encounter when using your computer. Many problems have simple solutions, so try these suggestions before you call Sony Customer Support. When you reconnect devices be sure to turn off the computer as described in “Shutting Down Your Computer”...
  • Page 86 Remove any peripheral devices connected to the computer. Turn off the computer and then turn it on again. Turn on the computer and press the F2 key when the Sony logo appears. The BIOS setup menu screen appears. Press the arrow keys to select the Exit menu.
  • Page 87 My LCD does not display anything Check that the computer is plugged into a power source and that it is turned on. Check that the power indicator on the front panel of the computer is on. Check that the battery packs are inserted properly and that they are charged.
  • Page 88 ® VAIO Notebook Computer User Guide There is no sound from my external speakers attached to the Mini Docking Station while a music CD is playing in the CD-ROM drive. Click the Start button and choose Control Panel. Double-click YAMAHA DS-XG Audio Config/Digital Output.
  • Page 89 Check that the phone number the program is dialing is correct. Check that the software you are using is compatible with the notebook computer modem. (All preinstalled Sony programs are compatible.) Troubleshooting...
  • Page 90 If you connected an external mouse while your computer is on, you must restart your computer. If you are using an optional Sony USB mouse PCGA-UMS1, check that the mouse is plugged into the USB connector. My touchpad does not work You may have disabled the touchpad while no mouse was connected to the computer.
  • Page 91 Use the Sony Notebook Setup utility to disable devices you are not currently using. If you are using two PC cards, use the Sony Notebook Setup utility to disable devices you are not currently using. The sound of my computer’s fan is too loud Use the PowerPanel utility to change the Thermal Control Strategy setting to Quiet.

  • Page 92: Power Management

    I cannot print The default setting for the printer port mode is correct for most printers. If you cannot print, try changing the printer port mode. In Sony Notebook Setup, select the Printer tab. If the printer port mode is set to ECP, change it to bi-directional.

  • Page 93: Using The System And Application Recovery Cds

    If you choose the Full Restore without Format option, you may need to reinstall applications that were not included with the computer when you purchased it. If you have any questions on using the System Recovery CD, contact Sony Customer Support. ® 98 Second Edition...
  • Page 94 Press the power button and hold it for more than four seconds to turn off the computer. Turn on the computer. When the Sony logo is displayed, press the F2 key. The BIOS setup menu screen appears. Press the arrow keys to select the Exit menu.

  • Page 95: Using The Application Recovery Cd(S)

    Workstation 4.0 drivers on your computer. You must be in Windows to run the Application Recovery CD. The application will not run from DOS. If you have any questions on using the Application Recovery CD, contact Sony Customer Support. To use the Application Recovery CD(s) Turn on your computer.

  • Page 96: Changing The Window Design Of Sony Software

    VAIO Notebook Computer User Guide Changing the Window design of Sony Software To change the window design of Sony software: Click the Start button, point to Settings, and then click Control Panel. Double-click UI Design Selector. Click <<or>> and select the desired design.

  • Page 97: Placing A Keycap

    Placing a Keycap Place the Enter keycap, Shift keycap and Space keycap as described below. For other keys, place the keycaps in their original place and gently push down until they click. To place a keycap Enter Key projections Push down spring projections Shift key and Space key...

  • Page 98: Adding Memory

    ® VAIO Notebook Computer User Guide Adding Memory In the future you may want to install memory modules to expand the functionality of your computer. You can increase memory to 256 MB by installing an optional memory module. If you are upgrading to 192 MB or 256 MB, you will need to remove both of the memory modules that come with your computer.
  • Page 99 To install a memory module Shut down your computer and disconnect all peripheral devices, such as your printer. Unplug the computer and remove the battery packs. Wait until the computer cools down. Then unscrew the screw at the bottom of your computer. Unscrew the screw with a screwdriver of a proper size.
  • Page 100 ® VAIO Notebook Computer User Guide Lift the keyboard from the LCD display side by releasing the four tabs, then gently lean it over the display. Be careful not to detach the cable when lifting the keyboard. Remove the new memory module from its packaging. Install the memory module as described in the following graphic.
  • Page 101 To view the system memory Turn on the computer. Click the Start button, point to VAIO, and click “Sony Notebook Setup.” The Sony Notebook Setup screen appears. Click the “About This Computer” tab to view the system memory. If the additional memory is not shown, repeat steps 1-9 of “To install a...

  • Page 102: About The Software On Your Computer

    ® VAIO Notebook Computer User Guide About the Software on Your Computer Your VAIO notebook is ready to help you work, play, learn, and communicate as soon as you turn it on. This section gives you an overview of the activities you can perform with your software titles. For support information, see “For Answers to Your Software Questions”...
  • Page 103 DVgate™ Motion Sony Electronics Connect a digital video camera recorder to the i.LINK connector and capture your own video clips. You can edit the clips from your video, add others, and combine clips into new movie segments.
  • Page 104 Media Bar software is your all-in-one solution for audio/video playback. Media Bar software handles all common computer multimedia formats and controls selected Sony devices. In addition to audio/video library cataloging and playlist management, Media Bar software includes digital video quality control and effects features. Media Bar software seamlessly integrates a variety of new media formats with an easy-to-use software interface.
  • Page 105 Sony Electronics This image management software displays images from your hard drive, a Sony Digital Still Camera, or a Sony Mavica® Camera. The images appear in a convenient light-table format, so that you can easily view the contents of an entire folder.
  • Page 106 Smart Capture is a fun new way to send multimedia messages via e-mail. Smart Capture manages the i.LINK connection between your computer and a Sony Digital Handycam® camcorder that supports the i.LINK interface. It allows you to capture compressed video or still images that you can save or share via e-mail.

  • Page 107: About Your Recovery Cds

    Sony Electronics This program allows you to restore the software titles that shipped with your computer if they become corrupted or are erased accidentally. It can be used only to restore the hard disk of the Sony computer you purchased.

  • Page 108: For Answers To Your Software Questions

    ® VAIO Notebook Computer User Guide For Answers to Your Software Questions ® Acrobat Reader, Adobe PhotoDeluxe (Adobe Systems Incorporated) website phone e-mail hours ® America Online (America Online) website phone hours ® AT&T WorldNet Service (AT&T) website phone e-mail hours ®...
  • Page 109 eMail inChorus™ (Softlink, Inc.) website phone e-mail hours McAfee VirusScan (Network Associates, Inc.) website phone e-mail hours ® Mindspring Internet Desktop (MindSpring) website phone Netscape Communicator™ (Netscape Communications Corporation) website phone hours * Support from 1-888-4SONY PC is free of charge for 90 days after the original date of purchase. Prodigy Internet™...

  • Page 110: Sony Service Center

    * Support from 1-888-4SONY PC is free of charge for 90 days after the original date of purchase. ® WinFax Basic Edition (Symantec Corporation) website http://www.symantec.com/techsupp/ phone 800-798-0850 800-554-4403 in North America 541-984-2490 outside North America Sony Service Center For the Sony Service Center nearest you, call 1-888-4SONYPC (1-888-476-6972).

  • Page 111: Specifications

    Specifications Model Processor Hard Disk Drive Standard RAM LCD Screen L2 Cache Memory MPEG Graphics Sound Capabilities Diskette Drive DVD-ROM Drive Laser Diode Properties Modem Infrared Multipurpose Bay Expansion Capabilities Built-in Capabilities Telecommunication Capabilities PCG-XG9 500 MHz* Mobile Pentium † 18.1 GB 128 MB PC 100 SDRAM (Two 64 MB modules), expandable to 256 MB...
  • Page 112 ® VAIO Notebook Computer User Guide Model Connection Capabilities Additional Connection Capabilities With Mini-Docking Station (not supplied) Supplied Accessories Service Limited Warranty Power Requirements Power Management Battery PCG-XG9 USB Port S400 i.LINK Microphone Headphone Mini-docking station Infrared Microphone Type II & III PC Cards Optical digital audio output VGA monitor S400 i.LINK...
  • Page 113 Model Dimensions Weight Operating Temperature Operating Humidity Storage Temperature Storage Humidity * MHz denotes microprocessor internal clock speed; other factors may affect application performance. † GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary. ‡...

  • Page 115: Index

    Index AC adapter AC power accessing online support adding hardware peripherals adjusting brightness Alt key Application Recovery CD Applications key battery packs charging indicator light status indicator lights inserting inserting into battery bay loading power status rechargeable removing brightness adjusting built-in speakers See also speakers buttons...
  • Page 116 ® VAIO Notebook Computer User Guide phone line power source USB device connectors DC In headphone i.LINK infrared keyboard Line In microphone monitor Printer correction keys Ctrl key cursor-movement keys customer assistance support options DC In digital still camera diskettes ejecting inserting into drive troubleshooting...
  • Page 117 infrared transmission active distance troubleshooting input devices Insert key inserting battery pack CD-ROM/DVD-ROM discs diskettes into drive installing hard drives hardware peripherals interference internal speakers See speakers Jog Dial keyboard connector lock lever selecting to display output troubleshooting left button lever weight saver release Limited Warranty card...
  • Page 118 Windows 98 setting up your PC support Shift key Shut Down Windows dialog box Sony Fax-on-Demand service speakers built-in external switching troubleshooting volume Start button starting computer startup problems switching...
  • Page 119 warranty weight saver attaching Windows 98 Certificate of Authenticity Control Panel Explorer Find window Finish button help key combinations License Agreement registering setup Setup Wizard screen Start button taskbar...

Table of Contents
