ADDITIONAL DOCUMENTATIONS FOR PUMP, MODEL 17 A
SPARE PARTS :
KREMLIN REXSON – Site de Stains : 150, avenue de Stalingrad
93 245 - STAINS CEDEX - FRANCE
Téléphone : 33 (0)1 49 40 25 25
Wall mounted unit
Fluid section
Air motor
Reversing block
Air supply
Fax : 33 (0)1 48 26 07 16
SPECIFICATIONS

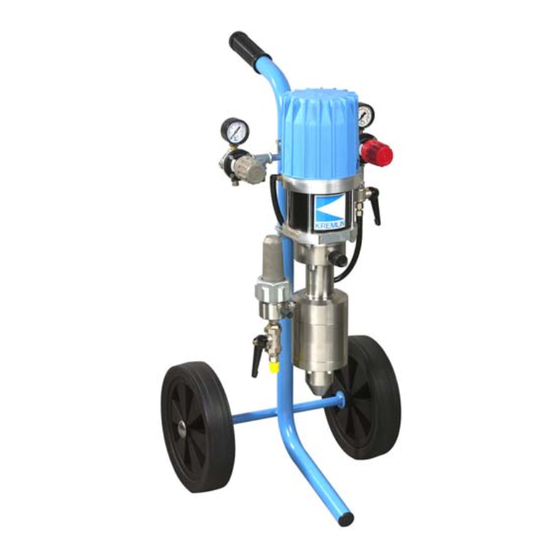

AIRMIX PUMP
model 17 A
Manual : 0302 573.024.212
Date : 10/02/03
(Doc. 573.259.050)
(Doc. 573.663.040)
(Doc. 573.005.050)
(Doc. 573.087.040)
(Doc. 573.256.050)
Advertisement
Related Manuals for Kremlin AIRMIX 17 A
Summary of Contents for Kremlin AIRMIX 17 A
-
Page 1: Specifications
(Doc. 573.087.040) Air supply (Doc. 573.256.050) KREMLIN REXSON – Site de Stains : 150, avenue de Stalingrad 93 245 - STAINS CEDEX - FRANCE Téléphone : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16... -
Page 2: Technical Features
Hard chrome stainless steel, treated stainless steel, nickel plated aluminium alloy, carbide. Stainless steel pump : Hard chrome stainless steel, stainless steel, treated stainless steel, carbide Weight : Wall mounted pump with rod........… 20 kg / 48 lbs KREMLIN Page 1 Manual : 573.024.212... - Page 3 Pa : Air supply pressure (bar) Pp : Fluid pressure (pump outlet) (bar) Qa : Air flow rate (m3/h) Qp : Fluid flow rate (l/mn) C : number of cycles / mn B xx : tip number KREMLIN Page 2 Manual : 573.024.212...
- Page 4 Ind. " Ind. " Ind. " 24.5 36.8 8.31 8.78 7.16 18.9 1.38 7x15 0.28 x 0.6 1.38 36,5 1.44 ∅ 9 ∅ 17 2.36 211,5 Ø 0.35 Ø 0.67 ∅ 9 Ø 0.35 KREMLIN Page 3 Manual : 573.024.212...
-
Page 5: Maintenance
When reassembling, carefully insert the piston (1) into the seal (42) which is in reverse direction. Screw the nut (19) by holding rod (5) as explained above. PUMP PISTON (1) Refer to chapter "Upper seal". KREMLIN Page 4 Manual : 573.024.212... - Page 6 Under normal operating and servicing conditions, with standard filled material not including foreign matters of chemically agressive, the average working life can be estimated as : 1 million strokes for the tightness seals. 10 millions strokes for the bellows . KREMLIN Page 5 Manual : 573.024.212...
- Page 7 Part number PTFE grease "TECHNILUB" grease 560.440.101 (10 ml) Graphite grease Graphite grease 560.420.005 (100 g) Low strength - Aneorobic Adhesive - (Simular as Loctite 222) Screwing torque 40 Nm / 29.5 ft/ lbf KREMLIN Page 6 Manual : 573.024.212...
