Easylife Battery Wizard EL6749 Instruction Manual

PANTONE 072 C
PANTONE 123 C

TECHNICAL SPECIFICATION AND FEATURES

(Test condition: ambient temperature: 20±5 , ambient humidity: 65±20%)
1. Adaptor: Input: AC 240V 50/60Hz 0.35A Output: 7V 1000mA

2. Charging positions:

Total six positions; include four 1.2V positions, one 9V position and one 12V position. The four 1.2V
positions operate on one charging system; the 9V position and 12V position operate on another. The
two systems work independently. However, when charging, each position works independently.

3. Charging current:

• 1.2V positions: charging initiates with an impulse current. When the voltage of the battery is 1.1V,
current for this position is not less than 300mA. When the indicator lamp changes to green, the charger
will automatically switch to a trickle charge current <100mA.
• 9V position: charging initiates with normal current and current for the position <30mA. When the
indicator lamp changes to green, the charger will automatically switch to a trickle charge current <5mA.
• 12V position: charging initiates with normal current and current for the position <20mA. When the
indicator lamp changes to green, the charger will automatically switch to a trickle charge current <5mA.
4. Fully Charged time for this charger:
Note: times for different capacity, type and brand of batteries will vary. User should check the
indicator lamp status to determine battery-charging status.
Note: 1.2V are standard rechargeable batteries, the item can be used to refresh standard 1.5V non-
rechargeable batteries.
The following can be used as a guide for charging times:
Battery Type (example: Ni-MH battery)
1.2V positions
9V positions
12V positions
DISPOSAL
• Dispose of the packaging at your local recycling centre.
• Dispose of paper and carton separately from plastic bags at your local recycling centre.
• Dispose of the item at the end of its lifespan at your local authorised household waste recycling centre.

TECHNICAL SPECIFICATION

Model: FNL-F211629
Measurement: L29.5xW18.5xH6cm, 152cm long cable
Product Input: DC 7V 1000mA
Charging Output: 12V and 9V output current approx 30-50mAh
1.2V output current: approx 80-100mAh
Imported and distributed by Easylife Group Ltd, London NW1 0JP
Support Line: 0303 031 0777
For more innovative products from Easylife please visit:
www.easylifegroup.com
IN6749 © 2018 Easylife Group Ltd
Paper weight 60gsm
(mAh) (Hours)
750 7
1300 12
1800 16.5
210 16
60 6.5
™
e v e ry d ay s o l u t i o n s
Est. 1992
™
e v e ry d ay s o l u t i o n s
Est. 1992

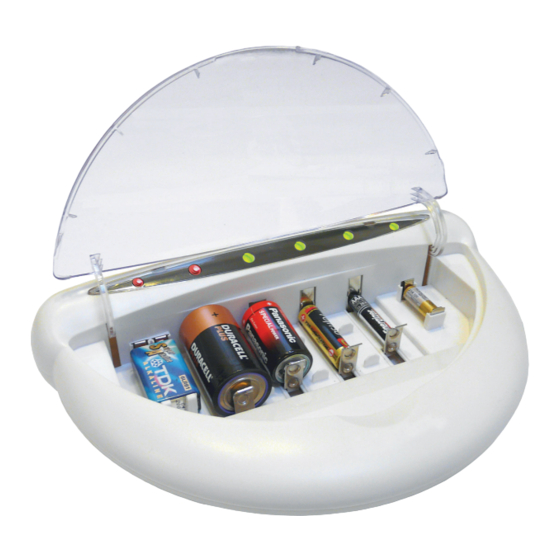

Battery Wizard
INSTRUCTION MANUAL
Recharge
Rechargeable
Batteries &
Save £££s
Model No. EL6749 (FNL-F211629)
Please read carefully before use and keep for future reference
