Summary of Contents for Cayin N5 MK2S

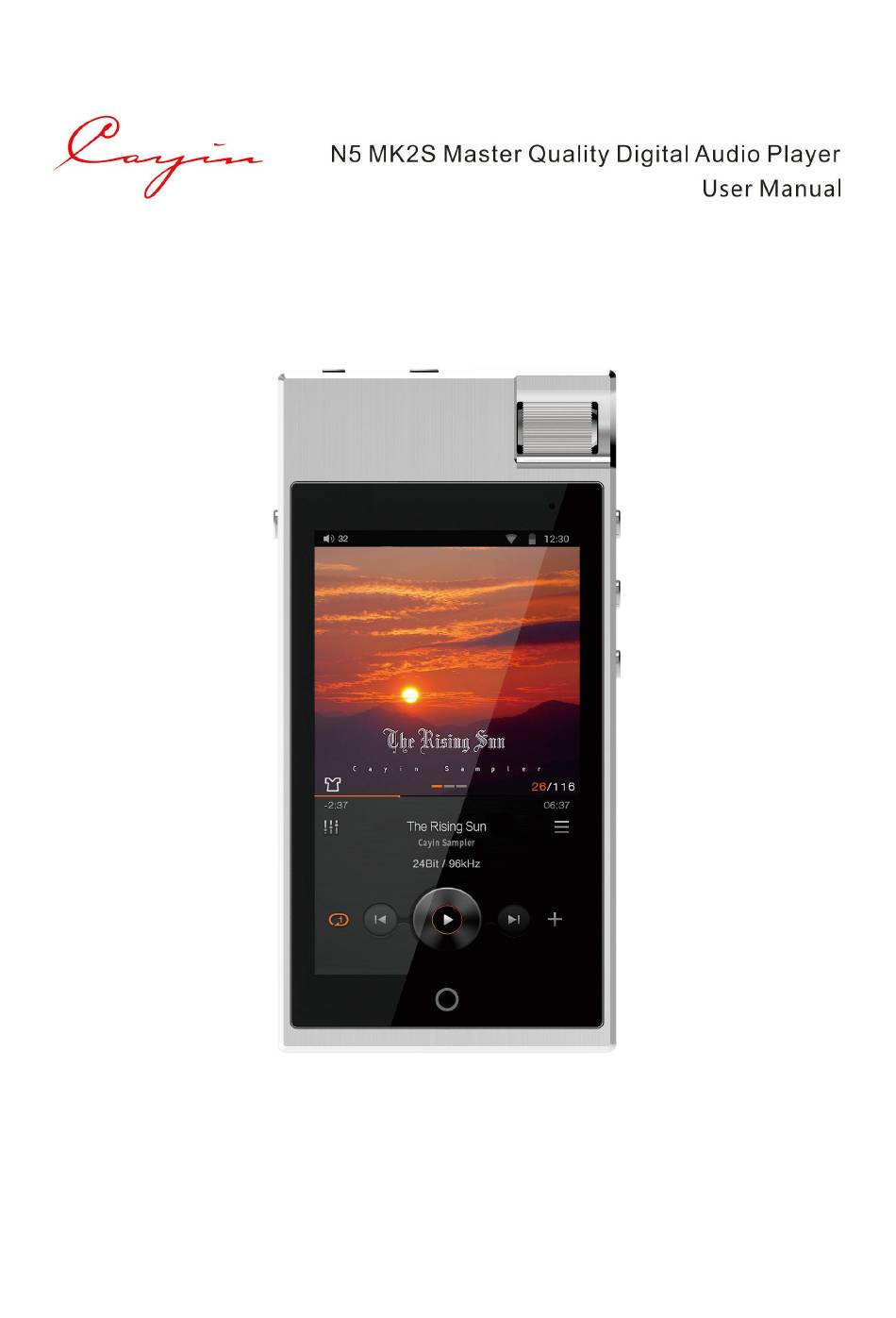

- Page 1 V1.0-20180925 1 / 15...
-
Page 2: Table Of Contents
Table of Content 1. Introduction to N5 MK2S............................... 3 1.1Packaging and Accessories............................ 3 1.2Control and Operation............................3 1.3Connect to other devices............................4 1.4 Power Management.............................5 2. Add Music Files to Player............................... 5 3. Listen to Music................................6 3.1Select Music Files ..............................6 3.2 Playback................................7... -
Page 3: Introduction To N5 Mk2S
Introduction to N5 MK2S 1.1 Packaging and Accessories The Cayin N5 MK2S Digital Audio Player comes with the following accessories in the package. Please check carefully and make sure everything is in place. Please contact our distributors if any accessory is missing. -
Page 4: Connect To Other Devices
Please make sure the process is completed before you disconnect the player from the computer 5) Memory Card: Insert a TF card into the TF card slot 1 or 2 (upto 400GB), N5 MK2S will detect the card automatically. 6) OTG: Connect an external USB storage with Type C interface or cable to the USB port, N5 MK2S... -
Page 5: Power Management
7) USB Audio: N5 MK2S can output USB Audio signal and connect to an USB DAC device for outboard digital audio conversion, or it can accept an USB Audio source (such as a computer) and function as an USB DAC. -
Page 6: Listen To Music
1) Folder: This is the default home screen showing the total and available capacity of all the local storage options. Click to select the storage you want to playback from and N5 MK2S will display the folders and files on the storage in a hierarchal listing. -
Page 7: Playback
3.2 Playback Wipe left and right Play/pause to switch among Album art, lyrics, and VU Meter Select from three different playback themes Equalizer Select playback mode：Play Once, Repeat Current, Playlist Repeat All, Shuffle. Playback progress Add to New playlist bar: click or drag to or Favorite jump to desired playback position. - Page 8 2) Choice of three playback effect: Album Art, Lyrics, VU Meter 3) Equalizer N5 MK2S comes with eight pre-set EQ: Dance, Pop, Jazz, Blues, Rock, Metal, Classic, and Vocals, you can click the appropriate icon to enable any one of these preset EQ.
-
Page 9: Networking Tools
N5 MK2S in advance, please refer to the electronic version User Manual for more details. You can also select the WiFi icon on the status bar to connect N5 MK2S to WiFi for streaming or networked music resources. -
Page 10: Third-Party Applications
Third-Party Applications N5 MK2S support third party applications, user can download and install applications as they need. Please be reminded that this DAP is a fully-customized Android device, it is fundamentally different from generic Android mobile device as a lot of features such as Camera and Contact List are not available, hence might cause malfunction in a lot of applications. -
Page 11: Google Play
5.2 Google play 1) Make sure the player has connected to Internet through WiFi. Sweep from the left side of Main screen to bring out the Application Menu, select Third Party Applications 2) Select Google Play, you can search and install application at the main screen, , the application icon will display in Third Party Applications at end of installation. -
Page 12: System Settings
Click to open System Settings USB DAC The concept behind USB DAC of N5 MK2S is to setup the player as an external sound card of a computer. Using N5 MK2S to playback the music file in your computer should provide improved audio performance, and you can control the volume at N5 MK2S. -
Page 13: Firmware Update
Firmware Update Cayin will release new firmware as needed to improve and optimize the function of N5 MK2S. Please follow the instructions of the firmware released by www.cayin.cn to complete the firmware upgrade procedure. Safety Information 9.1 Product safety... -
Page 14: Specifications
The driver has not been Install appropriate USB Audio driver and installed or setup properly USB DAC cannot be select N5 MK2S as system output device at PC music playback software has recognized your music playback software on your not designated this device as... - Page 15 117dB (20Hz-20kHz,A-Weighted) Chanel Separation 92dB Output Impedance ≤0.6Ω 2.0V (@47kΩ) Output Level 20Hz-20kHz (±0.2dB, Fs=192kHz), Frequency Response 5Hz-50kHz (±1dB, Fs=192kHz) THD+N 0.003% (1kHz, Fs=44.1kHz; 20Hz-20kHz, A-Weighted) Line Out Dynamic Range 116dB (20Hz-20kHz, A-Weighted) 116dB (20Hz-20kHz, A-Weighted) Imp. Matching ≥10kΩ (suggested) USB Mode Asynchronized USB Audio 2.0 Class DSD64/DSD128 (DoP or D2P)
