EMG MMTW Dual Mode Installation Information

Installation Information

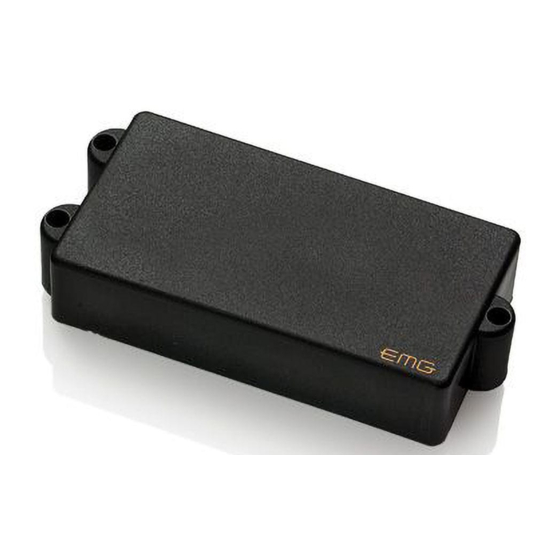

EMG Model MMTW (Dual Mode)
The MMTW is a DUAL Mode pickup. It can be switched from single coil to dual coil outputs.

Specifications:

Logo Color . . . . . . . . . . . . . . . . . . . Copper
Output Impedance (K ohms) . . . . . . . . . 10
Current @ 9VDC (Microamps) . . . . . . . . 152
Battery Life (Hours) . . . . . . . . . . . . . . . 3290
Resonant Frequency (Khz) . . . . . . . . . . . 4.8 . . . . . . . . . . . . . 2.65
RMS Output Voltage . . . . . . . . . . . . . . . 0.8 . . . . . . . . . . . . . 1.25
Peak Output Voltage . . . . . . . . . . . . . . . 1.1 . . . . . . . . . . . . . 3.0
Output Noise (dbV) . . . . . . . . . . . . . . . -91 . . . . . . . . . . . . . -90

Important Installation Notes:

1) When replacing a passive pickup with the MMTW, it may be necessary to modify the instrument.
2) You can use a DPDT mini-toggle switch in place of the push/pull pot provided with the MMTW. The
mini-toggle switch should be wired in the same manner as the push/pull pot provided.
3) The MMTW uses the Quik-Connect pickup cable. When installed, the arrow on the connector should
be facing up as you look at the back of the pickup (see diagram 1 ).

General Installation Information:

1) Only one 9 volt battery is required per instrument. Use an Akaline battery (Duracell or Mallory). Additional
active EQ accessories such as the BTC, VMC, BQS, EXG, B-30, etc. do not require an additional battery.
2) The controls provided with EMG active pickups are 25K Ohm, active taper. This control value is necessary
for proper operation.
3) When installing EMG active pickups, DO NOT reconnect the bridge ground. EMG active pickups are
internally shielded, and do not require string grounding.
4) EMG active pickups have very little magnetism compared to high-impedance (Passive) pickups.
We recommend that you adjust the pickups as close to the strings as possible, without interfering
with your playing style.

Warranty:

All EMG Pickups and accessories are warranted for a period of two years. This warranty
does not cover failure due to improper installation, abuse or damage. If at any time a pickup
fails to work, return it postage prepaid with proof of purchase. If upon examination the pickup
is determined to be defective, a replacement will be made at no charge. Warranty replace-
ment products are covered by this same warranty. This warranty covers only those pickups
and accessories sold by authorized EMG Dealers. This warranty is not transferable.
Single Coil
© Copyright EMG Inc. 2003

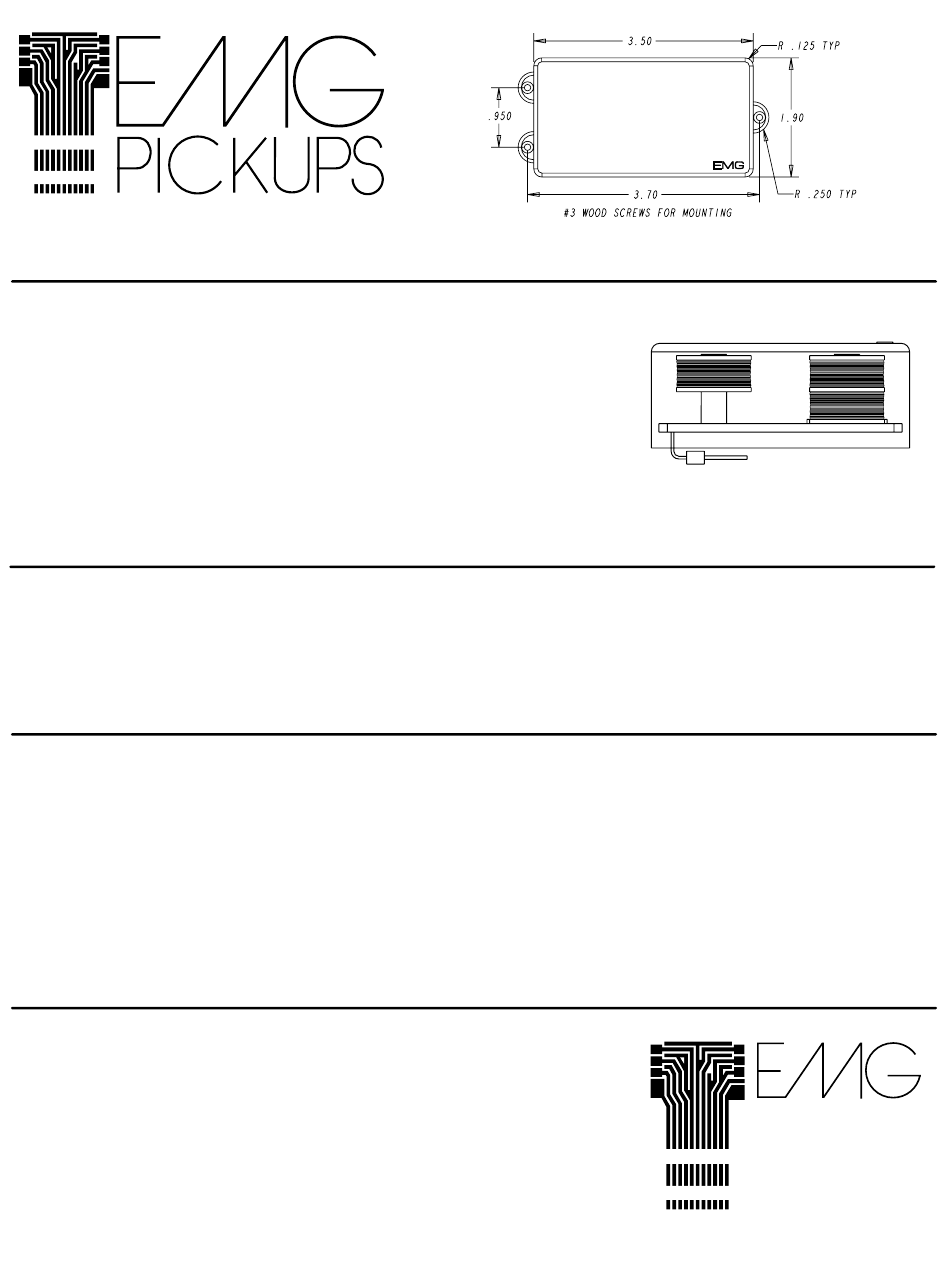

MMTW (as seen from the side)
Dual Coil
(in the Dual Coil Mode, coils C1
and C2 are used. Coils C2 and C3
are used in Single Coil Mode)
REV 9/04
RLH
C1 C2
C3
P.O. BOX 4394
SANTA ROSA,CA
95402 U.S.A.
PH (707) 525-9941
FX (707) 575-7046
www.emgpickups.com
