11. Attach your straight sections of chimney stovepipe onto the cleanout tee. Your top section of pipe should include a
chimney cap.
12.
The wall band is a metal strap that fastens around the the chimney stovepipe and bolts to the 4x4 posts to secure
the upper portion of the chimney. The wall band should be fastened high enough onto the 4x4 posts so that it is
fastened onto the uppermost section of piping.

Direct Vent Gas Stove Installation

The installation procedure for a gas stove will be the same as with a woodstove, except the exterior chimney will
not be necessary. Instead of a cleanout tee a gas stove will have a termination cap that mounts directly onto the
exterior stove flashing. See Diagram XXVIII.
IMPORTANT NOTE: These recommendations should only be used as guidelines. To obtain more details about a safe and
sensible installation in your area, and to comply with all local fire regulations, we recommend that you contact your local
Fire Marshal. Safety is the best fire insurance.

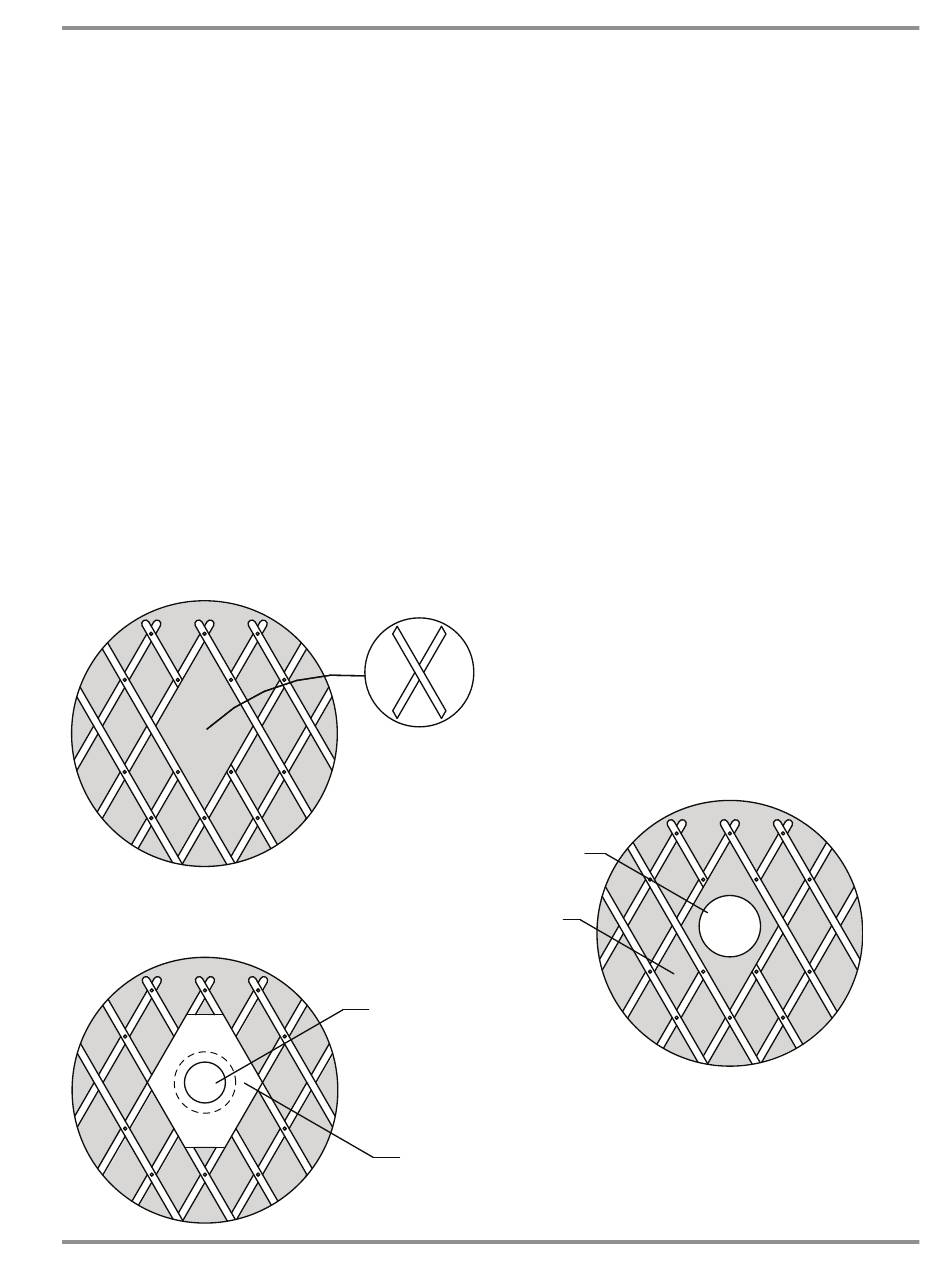

Diagram XXVI: Stovepipe Hole
3. INSTALLING FLASHING (inside view)
©2016 Pacific Yurts Inc.
1. CUTTING THE LATTICE WALL
Cut out x shaped section of wood.
Be careful to cut lath only where
indicated on drawing.
Cut and remove fabric here
Side cover fabric
Stove pipe hole
Flashing
Diagram XXVI
2. CUTTING THE SIDE COVER
Cut Out
