Pacific Yurts 20' Yurt Setup Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

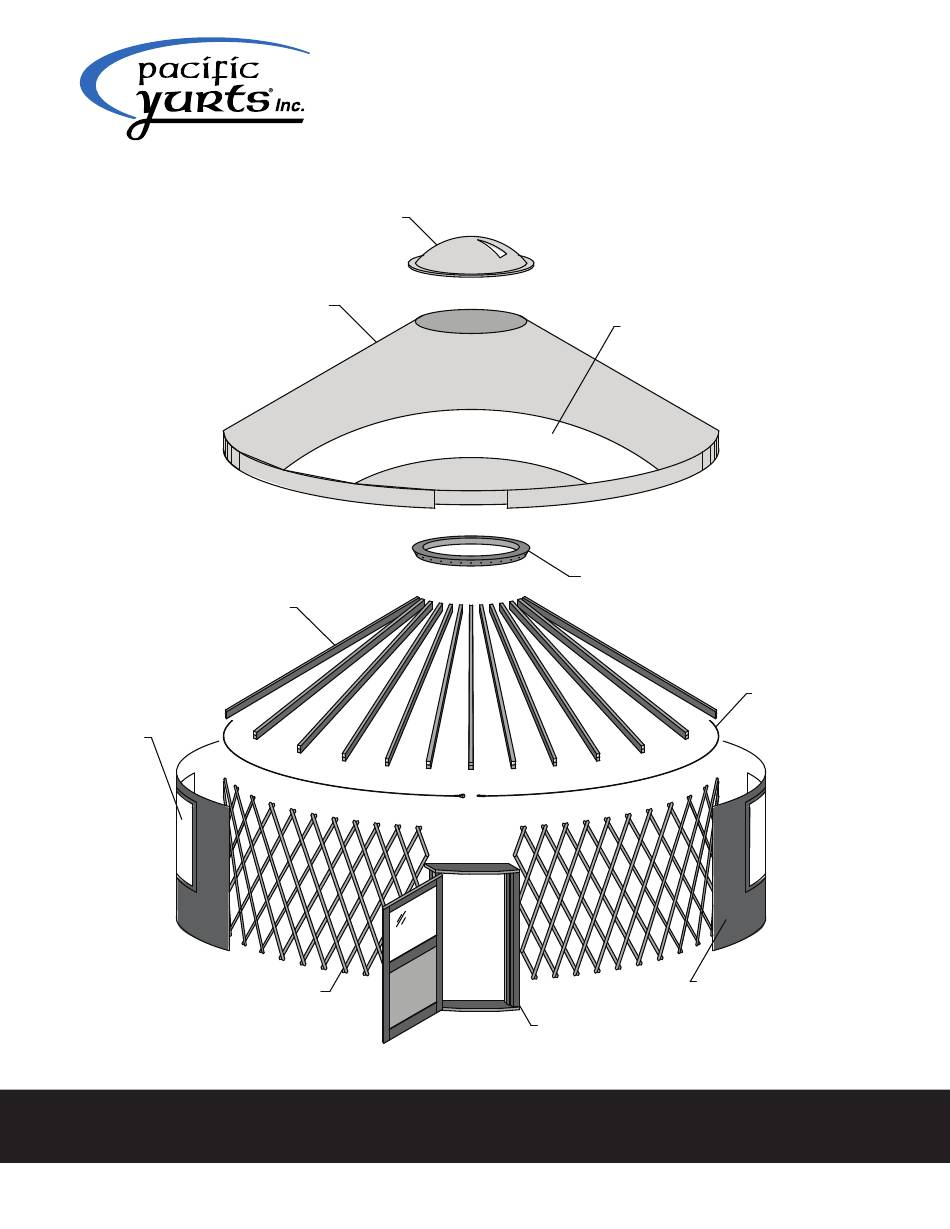

20', 24', & 30' Yurts
The Original Modern Yurt
TM
Dome Skylight
Top Cover
Optional Solar
Skylight Arc
Center Ring
Rafters
Tension Cable
Window
Side Cover
Lattice Wall
Door & Frame
Artist's Conception
© Pacific Yurts Inc.
SET UP MANUAL
The original manufacturer of the modern lattice wall yurt, the highest quality for over 35 years.
Manufactured by Pacific Yurts Inc. • 77456 Hwy 99 S. • Cottage Grove, OR 97424 • (541) 942-9435 • www.yurts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20' Yurt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pacific Yurts 20' Yurt

Summary of Contents for Pacific Yurts 20' Yurt

  • Page 1 © Pacific Yurts Inc. SET UP MANUAL The original manufacturer of the modern lattice wall yurt, the highest quality for over 35 years. Manufactured by Pacific Yurts Inc. • 77456 Hwy 99 S. • Cottage Grove, OR 97424 • (541) 942-9435 • www.yurts.com...
  • Page 2 Have you done these important things? Please be sure you have done the following: The platform must be round and the same diameter as your yurt. ‰ The screw in the tip of each rafter should be installed to keep the rafter from lifting off the ‰...
  • Page 3 The Yurt Set Up Manual Including Care & Maintenance 20′, 24′ & 30′ Yurts Pacific Yurts Inc. Recreational Living Structures Warning: Safety is very important in the assembly and use of yurts. Therefore, purchaser should read the manual thoroughly before starting assembly in order to avoid accidental injury.
  • Page 4 We would like to take this opportunity to thank you for purchasing a Pacific Yurt and to welcome you to the growing Pacific Yurts’ family. Pacific Yurts was established in 1978 and is the original designer and manufacturer of the modern lattice wall yurt. Today Pacific Yurts Inc. enjoys an international reputation for successfully adapting this ancient shelter into a modern recreational living structure.

  • Page 5: Table Of Contents

    Diagram I: Door Cut-Out In Drip Edge ..............3 Diagram II: Connecting The Lattice Wall To Door Frame ........5 Diagram III: Securing The Lattice Wall.............5 Diagram IV: Sequence for the 20' Yurt .............7 Diagram V: Ring-to-Rafter Brackets ..............9 Diagram VI: Securing Tension Cable ..............9 Diagram VII: Typical Section Through Yurt ............
  • Page 6 ‰ Tape measure ‰ 1/4” hex driver (for Snow & Wind Kit only) ‰ Note: Remember the tools required may vary according to your platform height, options chosen and yurt size. Read entire manual before installation. ©2016 Pacific Yurts Inc.
  • Page 7 Dome Skylight (Without Opener) ........ 32 Dome Skylight (With Opener) ........32 Stovepipe Installation ........ 36 Direct Vent Gas Stove Installation ......37 Additional Insulation Information ....40 Insulating The Roof With Insulation Board ....40 Floor Insulation ............41 ©2016 Pacific Yurts Inc.

  • Page 8: Site Location

    Unless you are skilled, enlist the help of an experienced carpenter for building the platform. Contact Pacific Yurts to obtain recommended platform construction plans for the size of your yurt or download them from our web site www.yurts.com. Keep in mind that every site will be different, so the platform construction and footings should reflect the conditions of each individual site and may need to be modified from our recommended plan.

  • Page 9: Typical Platform Elevation

    Set Up Manual for 20′, 24′, & 30′ Yurts Typical Platform Elevation Entry deck Grade Concrete piers Typical bracing 4x4 Posts Note: Platform and footings should be designed according to the conditions of each individual site and local building requirements. ©2016 Pacific Yurts Inc.

  • Page 10: Ready To Start

    (just inside the drip edge), making sure to keep it stable as you proceed. (Safety note: Be careful of pinch points while extending lattice wall.) 3. Leave about 4 ft. for the door opening. The lattice wall will be secured to the platform after the door is in place. ©2016 Pacific Yurts Inc.

  • Page 11: Diagram I: Door Cut-Out In Drip Edge

    Set Up Manual for 20′, 24′, & 30′ Yurts Diagram I Diagram I: Door Cut-Out In Drip Edge " for standard door " for French door Notch for door frame Plywood drip edge ©2016 Pacific Yurts Inc.

  • Page 12: Door Frame

    Simply pull out the slack a little at a time, working it towards the cable ends. Before setting the rafters make sure to distribute any slack in the cable evenly around the perimeter. ©2016 Pacific Yurts Inc.

  • Page 13: Diagram Ii: Connecting The Lattice Wall To Door Frame

    Notch behind door frame upright should be outside of drip edge Diagram III: Securing The Lattice Wall Cap nut Bottom of lattice wall Lock Washer Washer 1-1/4" bolt Lattice wall Plywood drip edge anchoring strap Interior floor Screw ©2016 Pacific Yurts Inc.

  • Page 14: Raising The Center Ring & Rafters

    6. Lift the ring up so it is on edge and insert the pin of the rafter into the ring. Staying on the marked holes and cable spaces only, do the same with the second rafter. (See Diagram IV) ©2016 Pacific Yurts Inc.

  • Page 15: Diagram Iv: Sequence For The 20' Yurt

    Set Up Manual for 20′, 24′, & 30′ Yurts SEQUENCE FOR 20' YURT Diagram IV: Sequence for the 20' Yurt Diagram IV Insert first two rafters while ring is at floor level. Lift ring upward while keeping pressure against first two rafters...
  • Page 16 (refer to the Rafter Spacing Diagram). If your yurt includes ring-to-rafter brackets (24’ & 30’ yurts only) you can now install the final screws securing the brackets to the center ring. ©2016 Pacific Yurts Inc.

  • Page 17: Diagram V: Ring-To-Rafter Brackets

    If installed too deeply it is possible to drive the screw through the rafter and damage the top cover. Note: The rafters over the door(s) will not need these screws because they will be fastened to the door frame. Diagram VI: Securing Tension Cable ©2016 Pacific Yurts Inc.

  • Page 18: Securing Rafters To Door Frame

    Measure and cut one rafter support and check it under several rafters to make sure it is the proper length. Once you are convinced that you have the right length, cut all of the rafter supports to the same length. ©2016 Pacific Yurts Inc.

  • Page 19: Diagram Vii: Typical Section Through Yurt

    2 x4 rafter support to supports under each rafter Lattice wall screws to supports Angle brackets on both sides at each rafter support to platform 1/4" bolt Metal strap " Flooring Screw through drip edge into platform ©2016 Pacific Yurts Inc.
  • Page 20 13). If one is tighter than the other some rafters will start pulling away from the center ring and could weaken the structure and result in failure at lesser snow or winds loads. Tighten cable clamps securely and cut off any excess cable using a cable cutter. ©2016 Pacific Yurts Inc.

  • Page 21: Diagram Viii: Snow & Wind Kit Cables

    Door frame better aesthetics by angling the cut slightly. The angle settings for a miter saw listed below are approximate, but may be helpful: 20' Yurt - 5° 12' Yurt - 9° 24' Yurt - 4° 14' Yurt - 8°...

  • Page 22: Perimeter Blocking

    (see page 44) and perimeter blocking (see above). Purchase and install Pacific Yurts’ cable tie-down system Be sure your door is closed, windows are attached and the dome is closed during heavy wind.

  • Page 23: Diagram X: Installation Of Interior Bracing

    Diagram X: Installation Of Interior Bracing Center Ring Lag Bolts or Post Cap Rafter 4x4 Posts (4 Total) 2x4 Rafter Support Angle Brackets or Post Base Secured With Screws Diagram XI Diagram XI: Additional Valance Lacing ©2016 Pacific Yurts Inc.

  • Page 24: Installing Insulation & Outer Covers

    Check the insulation for fit. Trim the insulation at the door frame so it will not interfere with the operation of the door. Do not trim the insulation that overlaps the side wall. It will overlap the wall insulation for a draft-free seal. Go to page 20 for installation of top cover. ©2016 Pacific Yurts Inc.

  • Page 25: Diagram Xii: Unfolding Roof Insulation Liner

    Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XII: Unfolding Roof Insulation Liner Door Slide liner down rafters Door Unfold liner Pull top layer over center ring and down to perimeter Door ©2016 Pacific Yurts Inc.

  • Page 26: Custom 2/3 Roof Insulation

    Fold the excess fabric facing neatly back over the insulation and use thumb tacks every few feet along the top of the rafter for a neat finished appearance. ©2016 Pacific Yurts Inc.

  • Page 27: Diagram Xiii: Unfolding Custom 2/3 Roof Insulation Liner

    Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XIII: Unfolding Custom 2/3 Roof Insulation Liner Door Slide liner down rafters Note: Example reflects Door Unfold liner Solar Arc at 12:00 position. ©2016 Pacific Yurts Inc.

  • Page 28: Top Cover

    Check the final fit around the door frame and mark the oval grommet locations. Drill 7/64” pilot holes with bit provided and screw in the twist-lock connectors (from hardware box). (See Diagram XV) Failure to drill pilot holes may result in breaking the twist-lock shank. Overtightening can also result in a broken shank. ©2016 Pacific Yurts Inc.

  • Page 29: Diagram Xiv: Unfolding Top Cover

    Unfolding Top Cover Door Door Door Slide top cover down rafters Unfold top cover Pull top layer over center ring and down to perimeter Diagram XV Diagram XV: Top Cover Door Detail Top cover valance Twist Locks Door ©2016 Pacific Yurts Inc.

  • Page 30: Wall Insulation With Liner Facing

    After installing side cover (see next section) align the insulation window sections with the windows if necessary. Make sure the insulation panels end at the edge of the door frame. The insulation does not get clamped into the door frame. ©2016 Pacific Yurts Inc.

  • Page 31: Diagram Xvi: Wall Insulation Example

    Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XVI: Wall Insulation Example Diagram XVI Window Section Wall Section Wall Section Window Section Window Section Wall Section Wall Section Layout is an example only ©2016 Pacific Yurts Inc.

  • Page 32: Side Cover

    Excess cord may be cut and removed. Melting the end of the cord after cutting will keep it from unraveling. ©2016 Pacific Yurts Inc.

  • Page 33: Diagram Xvii: Roof To Wall Connection

    Nylon Clips Side Cover Diagram XVIII: Attaching Side Cover Clips Twist to left Slide onto cord Twist to right Diagram XIX Door Sticker Diagram XIX: Side Cover Attachment At Door Door Sticker Slides into Pouch Side Cover ©2016 Pacific Yurts Inc.

  • Page 34: Custom Curve Glass Window

    Note: When clear vinyl windows have been removed, do not stack them and leave them in the sun. See care recommendations in the back of this manual. UV web frames are available from Pacific Yurts if you are in a high UV area and wish to protect the Velcro (on your side cover) while the vinyl windows are off.

  • Page 35: Diagram Xx: Securing The Side Cover

    Diagram XX Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XX: Securing The Side Cover Side cover #12 x 1" Screw Plywood drip edge ©2016 Pacific Yurts Inc.

  • Page 36: Top Cover Valance

    If you purchased a door awning a local carpenter will need to build a frame to support the awning. Pacific Yurts can provide some ideas for this. If your yurt has a rain diverter over the door now is a good time to install the PVC pipe inserts.

  • Page 37: Diagram Xxi: Rain Diverter Inserts

    Diagram XXI Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XXI: Rain Diverter Inserts Fabric strip with velcro tab holds PVC in place. ©2016 Pacific Yurts Inc.

  • Page 38: Central Column

    Secure the base of the central column to the platform using these bolts. Drill 1/8” pilot holes in the center ring and secure the arms of the steel collar to the center ring using the 1/4” x 2” lag screws provided (see Diagram XXII). ©2016 Pacific Yurts Inc.

  • Page 39: Diagram Xxii: Central Column

    Central Column System Includes: Wall Steel Column Heavier center ring (Post) Heavier rafters Hardware upgrade Upper Bracket Steel column support Rafter Support 2"x2" Angle Bracket Bolts T&G Decking Floor Beam Post Under Column Concrete Footing Under Column ©2016 Pacific Yurts Inc.

  • Page 40: Dome Skylight

    EXTREMELY IMPORTANT: When closing the dome skylight the opener should not continue to turn once the dome is closed. It should bottom out, which prevents overtightening that can result in a cracked or broken dome. If opener does not bottom out, it is installed improperly and should be removed and reinstalled per instructions above. ©2016 Pacific Yurts Inc.

  • Page 41: Diagram Xxiii: Non-Opening Skylight

    Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XXIII: Non-Opening Skylight ©2016 Pacific Yurts Inc.

  • Page 42: Diagram Xxiv: Dome Opener Spindle

    This will minimize or eliminate condensation in the yurt. Brass Core Diagram XXIV: Dome Opener Spindle Aluminum Bracket Thumbscrew Connected to Dome Skylight Plastic Spacers Aluminum Bracket Connected to Center Chrome Hub Ring Bracket Bolts Crank Eye ©2016 Pacific Yurts Inc.

  • Page 43: Diagram Xxv: Opening Skylight

    Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XXV: Opening Skylight ©2016 Pacific Yurts Inc.

  • Page 44: Stovepipe Installation

    The cleanout tee is a 90 degree section of pipe that includes cleanout access. This will be supperted by a chimney wall support kit, which is essentially a shelf made from sheet metal that will bolt directly to the 4x4 posts. Anchor the support kit to the 4x4 posts. ©2016 Pacific Yurts Inc.

  • Page 45: Diagram Xxvi: Stovepipe Hole

    Cut out x shaped section of wood. Be careful to cut lath only where 2. CUTTING THE SIDE COVER indicated on drawing. Cut and remove fabric here Side cover fabric Cut Out 3. INSTALLING FLASHING (inside view) Stove pipe hole Flashing ©2016 Pacific Yurts Inc.

  • Page 46: Diagram Xxvii: Woodstove & Chimney Installation

    Chimney wall Stoveboard support kit Standard 6" stove pipe 1" Minimum air space Airtight wood stove Follow stove manufacturer's recommendations for clearance to nearest combustible surface. 14"-16" 2 - 4x4 posts 8" apart 4x4 into concrete ©2016 Pacific Yurts Inc.

  • Page 47: Diagram Xxviii: Gas Stove Installation

    Follow stove manufacturer’s recommendations for clearances from combustible surfaces. Diagram XXVIII: Gas Stove Installation Diagram XXVIII Stove Flashing Termination Use appropriate size pipe for stove. Follow stove manufacturer's recommendations for clearance to unprotected combustible wall. Direct Vent Gas Stove ©2016 Pacific Yurts Inc.

  • Page 48: Additional Insulation Information

    The rafters can be spread apart to allow easy installation of the panels. The last panel can be installed by loosening the top cover and inserting from the outside. YURT TOP PANELS # OF 4 x 8 SHEETS DIAMETER REQUIRED REQUIRED 20’ 24’ 30’ ©2016 Pacific Yurts Inc.

  • Page 49: Diagram Xxix: Insulation Board Pattern

    For optimum comfort it is desirable to install insulation under the floor. Reflective insulation is easily installed and available from Pacific Yurts in 4’ wide rolls. It can be stapled between the 4” x 6” joists or to the bottom edge. Rigid foam insulation board is also recommended and can be cut to fit between the joists and supported with protruding nails or wood strips used as stops.

  • Page 50: Additional Options

    Insulated Window Cover Pacific Yurts’ insulated window covers are designed to attach to the buckles under the window flap (on the outside of the yurt) and block off the window, providing better heat retention during cold conditions. Notice that one side of the insulated window cover has an ivory colored liner fabric on it.

  • Page 51: Diagram Xxx: Water Catchment System

    Note: Installing 1/2” diameter PVC pipe into the rim hem to create a continuous rigid rim on the water catchment will make the catchment system function better and look nicer. This may be purchased at a local hardware store. ©2016 Pacific Yurts Inc.

  • Page 52: Removable Cable Tie-Down System

    Use the turnbuckle to tension the Cable Tie-Down by twisting the center hub until the cables start to pull the center ring downward. Do not cinch it down tight, just snug! To remove the cable tie-down, loosen the turnbuckle, unclip the carabiners from the center ring and remove the cable clamps. ©2016 Pacific Yurts Inc.

  • Page 53: Diagram Xxxi: Cable Tie-Down System

    Set Up Manual for 20′, 24′, & 30′ Yurts Diagram XXXI Diagram XXXI: Cable Tie-Down System Center Ring Carabiners attach to four eyebolts in center ring. Welded Ring Turnbuckle Caution: Countersink eyebolt to avoid trip hazard. Cable Clamps 4x6 Beam Decking Eyebolt 4x6 Block ©2016 Pacific Yurts Inc.

  • Page 54: Perimeter Gutter System

    After allowing the cement to fully set up, fold the top cover valance down into the gutter and re-attach the twist locks and valance cord at the door frame. Attach the pipe holder to your platform’s drip edge below the side cover and secure the down pipe into the pipe holder and center drop. ©2016 Pacific Yurts Inc.

  • Page 55: Diagram Xxxii: Gutter Parts

    Diagram XXXIII: Gutter Hanger Bracket Hanger Bracket Diagram XXXIV Rafter Diagram XXXIV: Gutter Assembly Cut gutter so there is a 1" - 2" gap centered in the center drop. Gutter 2" Joint Hanger Bracket Center Drop ©2016 Pacific Yurts Inc.

  • Page 56: Care & Maintenance

    Invest in a small fire extinguisher. Fire is always a danger when woodstoves are used. give us a call. Seek advice from your woodstove dealer if you have any questions or ©2016 Pacific Yurts Inc.

  • Page 57: Lattice Wall

    Sand lightly or use deck cleaner before applying the stain. Note: Adding a covered porch or awning will protect the door and make the finish last much longer. Lubricate door knob on a regular basis with graphite or Teflon based lubricant. ©2016 Pacific Yurts Inc.

  • Page 58: Dome Skylight And Door Window

    When vinyl windows have been removed, do not stack them and leave them in the sun. Note: UV web frames are available from Pacific Yurts if you are in a high UV area and wish to protect the Velcro (on your side cover) while the vinyl windows are off.

  • Page 59: Glossary

    Twist lock – Metal “common sense” fastener that attaches the top cover to the door frame. It has a screw shank on one end and a turn-button on the other end. Valance – Portion of the top cover that overhangs the exterior wall. ©2016 Pacific Yurts Inc.

  • Page 60: Limited Warranty

    Pacific Yurts Inc. warrants all of their products for a period of one (1) year from the date of purchase. We will repair or replace, at our option, any product covered under this warranty which proves to be defective in materials or workmanship during the warranty period.

  • Page 61: Epilogue

    If you have any questions about the installation of the yurt please call us at 1-800-944-0240. Best wishes from Pacific Yurts. ©2016 Pacific Yurts Inc.
