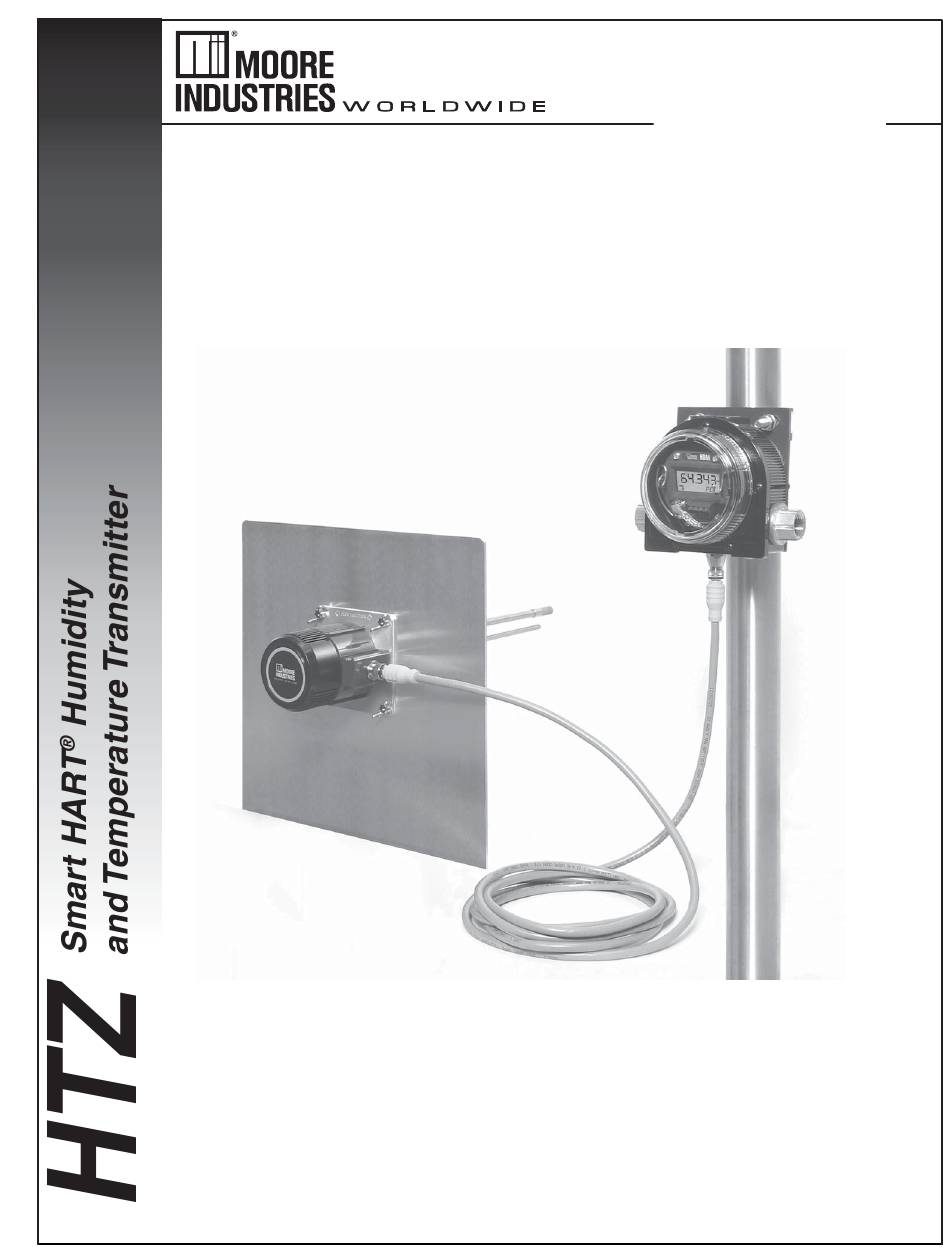

- Page 1 May 2016 Smart HART ® Humidity 238-722-00F and Temperature Transmitter All product names are registered trademarks of their respective companies.
-
Page 2: Table Of Contents
Table of Contents Introduction ............................. About This Manual ......................4 Model and Serial Numbers....................4 Inputs ..........................4 Outputs ..........................4 Specifi cations ....................5 HDM Dimensions ......................6 HSM Dimensions ......................7 Confi guring the HTZ ..................8 Installing the Confi guration Software ................8 Connecting the HTZ to the PC .................. - Page 3 Using the HART Communicator ..............17 Programming when a Device Description is Available ........... 17 The HART Communicator Menu With a Device Description .......... 19 The HART Communicator Menu Without a Device Description ........22 HART Status Information ................24 Installation .....................
-
Page 4: Introduction
® Smart HART Humidity and Temperature Transmitter Model and Serial Numbers Introduction Moore Industries uses a system of model and serial This is the user’s manual for Moore Industries’ HTZ numbers to keep track of all of the information on Smart HART Humidity and Temperature Transmitter. -
Page 5: Specifi Cations
Smart HART ® Humidity and Temperature Transmitter Specifi cations Performance Humidity Input Performance Ambient Temperature Performance Isolation: 500Vac between each output and between Measurement Range: (continued) Effect: 0.005°C/°C (continued) outputs and case 0-100% RH Long Term Stability: Overall Accuracy: Sum of Calibrated Accuracy*: ±... -
Page 6: Hdm Dimensions
® Smart HART Humidity and Temperature Transmitter Figure 1. HDM Dimensions 6.20 in (157.5mm) 2.70 in (68.6mm) 5.08 in (128.9mm) 5.59 in (141.9mm) 1.17 in (29.7mm) 0.51 in 4.66 in (12.8mm) (118.5mm) 1.34 in (34.0mm) 3.42 in (86.9mm) The Interface Solution Experts... -
Page 7: Hsm Dimensions
Smart HART ® Humidity and Temperature Transmitter Figure 2. HSM Dimensions Z Plate Option P Bracket Option 149.1mm (5.87 in) << FLOW DIRECTION >> 187.4mm (7.38 in) Back Plate 87.1mm (3.43 in) 87.1mm (3.43 in) 82.3mm (3.24 in) 6 ” Probe (5.78 in) 6 ”... -
Page 8: Confi Guring The Htz
® Smart HART Humidity and Temperature Transmitter Once the Confi guration Program is installed onto Confi guring the HTZ your PC, the HTZ can be connected to equipment One of the benefi ts of the HTZ is that there are no to simulate input and monitor output. - Page 9 Smart HART ® Humidity and Temperature Transmitter Figure 3. HTZ Hook-Up Diagram with AO1 Confi gured for HART Communications and AO2 Utilized Voltmeter THE HART Communicator or the PC can be connected Current Meter at any point on the output side of the loop.
- Page 10 ® Smart HART Humidity and Temperature Transmitter Figure 4. HTZ Hook-Up Diagram with AO1 and AO2 Powered To USB (COM) Port of PC HSM Connection 12-24Vdc 12-24Vdc Power Power 250 ohms Supply Supply 250 ohms Voltmeter Voltmeter The Interface Solution Experts...
-
Page 11: Pc Confi Guration Software Summary
Smart HART ® Humidity and Temperature Transmitter PC Confi guration Software Summary Figure 5. HTZ PC Confi guration Software Screen Once the default confi guration has been saved, it is maximum). Use the Address box to change the unit’s safe to program other parameters. The PC Software address (0-15). -
Page 12: Menu And Tool Bar Legend
® Smart HART Humidity and Temperature Transmitter Menu and Tool Bar Legend Confi guration Screens Note: Unless otherwise noted, ensure that the PC Allows such functions as New, Program is idle before making any selections Open, Save and Print functions or confi... -
Page 13: Trimming
Smart HART ® Humidity and Temperature Transmitter Enter your desired values in the Lower and Upper Figure 8. Trimming Enable/Disable Menu Range text boxes. Dew Point Range– Permits you to set the lower and upper limits of your allowed dew point range. Enter your desired values in the Lower and Upper Range text boxes. -
Page 14: Display
® Smart HART Humidity and Temperature Transmitter Apply the targeted signal to the input, wait Display until it settles, and click Trim to capture the Figure 9. Display Tab measured value. If you chose 2 Points, repeat the steps above for the second point. -
Page 15: Analog Outputs (-Ao1 And -Ao2)
Smart HART ® Humidity and Temperature Transmitter Analog Output Fail Mode– In the case of an input failure, you have the ability to set a mode you choose to alert of the Steps discussed in this section apply to both the failure. - Page 16 ® Smart HART Humidity and Temperature Transmitter Output Test– This test may be performed in order to check output performance and accuracy and to trim other instruments in your setup. Your output will be a current value, in mA, equal to the value you enter into the text box.
-
Page 17: Using The Hart Communicator
Smart HART ® Humidity and Temperature Transmitter Include Moore Industries’ confi guration sheet Using the HART indicating the Device Descriptions that you require. Communicator We will load the Device Descriptions of your choice for a nominal charge. The HTZ can be programmed using a HART Communicator. - Page 18 ® Smart HART Humidity and Temperature Transmitter Figure 11. HTZ HART Communicator Confi guration Menu Summary Online Menu 1 Model 2 Device Setup Configure Inputs 3 PV 4 PV LRV 1 Filter 4 PV URV 2 EGU Selection Sensor Information 6 AO1 3 PV LRV 7 AO2...
-
Page 19: The Hart Communicator Menu With A Device Description
Smart HART ® Humidity and Temperature Transmitter The HART Communicator Menu With a 9 PV Snsr S/N– Enter your Temperature sensor’s serial number. Device Description To program your HTZ, if your communicator is 10 Sensor Information– Displays the Lower Sensor equipped with the Device Description for your Limit (LSL), Upper Sensor Limit (USL) and the instrument, follow the steps below. - Page 20 ® Smart HART Humidity and Temperature Transmitter Low– Choosing this option will send the output to Note: a Low fail mode (user-selectable between 3.6mA to If the polling address is set to 0, the transmitter is 4.0mA). If selecting Low fail mode, enter your value automatically set to analog mode.
- Page 21 Smart HART ® Humidity and Temperature Transmitter 9 HSM HW Rev.– Displays the hardware revision of 2 PV Trimming– Allows you to view Temperature the connected Humidity/Temperature Sensor Module Trimming functions. (HSM). Trim Mode–Displays that Trim Mode is Off (due to 10 HSM FW Rev.–...
-
Page 22: The Hart Communicator Menu Without A Device Description
® Smart HART Humidity and Temperature Transmitter 5 Loop Test– (Instructions apply to -AO1 and -AO2) The HART Communicator A loop test may be performed in order to check Menu Without a Device output performance and accuracy and to trim other instruments in the loop. - Page 23 Smart HART ® Humidity and Temperature Transmitter Figure 12. Generic HART Communicator Menu Overview Process Variable Online Generic Device Setup 1 Snsr 1 Device Setup 1 Process Variables 2 AI % 2 PV 3 A01 Display 3 PV AO Diag/Service 4 PV LRV 2 Diag/Service 1 Test Device...
-
Page 24: Hart Status Information
® Smart HART Humidity and Temperature Transmitter second status byte indicates the operational state of HART Status Information the slave device. A properly operating slave device Each time the HTZ generates a response, frame will have both status bytes set to logic zero. status information is included in the reply message. - Page 25 Smart HART ® Humidity and Temperature Transmitter Table 5. Process Variable Error Displayed Messages Error Condition Displayed Message Confi guration Information Bad ERROR CONFG Calibration Information Bad ERROR CALIB HDM EEPROM Blank ERROR BLANK HDM EEPROM Error ERROR EEROM Maths division by zero error ERROR DZERO Humidity Sensor Error ERROR HUMDT...
- Page 26 ® Smart HART Humidity and Temperature Transmitter HART Commands Command 108 When enabled, Burst Mode confi guration which is Table 6 indicate the HART commands which the HTZ accessible through the Burst Mode dropdown menu supports. Tables 7 and 8 provide specifi c information when using Moore Industries’...
- Page 27 Smart HART ® Humidity and Temperature Transmitter Table 7. HART Read Additional HART Status Information (Command 48) Data Bytes Status Status Byte Type Description Word Bit Error Confi guration data error Calibration data error Error EEPROM blank Error Error EEPROM failure Error Division by zero error Error...
-
Page 28: Installation
® Smart HART Humidity and Temperature Transmitter Note: Installation Some of Moore Industries’ instruments can Installation consists of physically mounting the unit be classifi ed as receivers (IPT, IPX, etc.) and and completing the electrical connections. some can be classifi ed as transmitters (TRX, TRY, etc.) while some are both a receiver and a transmitter (SPA, HIM, etc). -
Page 29: Calibration
Smart HART ® Humidity and Temperature Transmitter Calibration Customer Support The following are Moore Industries’ calibration Moore Industries is recognized as the industry leader recommendations. in delivering top quality to its customers in products and services. We perform a battery of stringent quality assurance checks on every unit we ship. - Page 30 RETURN PROCEDURES To return equipment to Moore Industries for repair, follow these four steps: 1. Call Moore Industries and request a Returned Material Authorization (RMA) number. Warranty Repair – If you are unsure if your unit is still under warranty, we can use the unit’s serial number to verify the warranty status for you over the phone.
