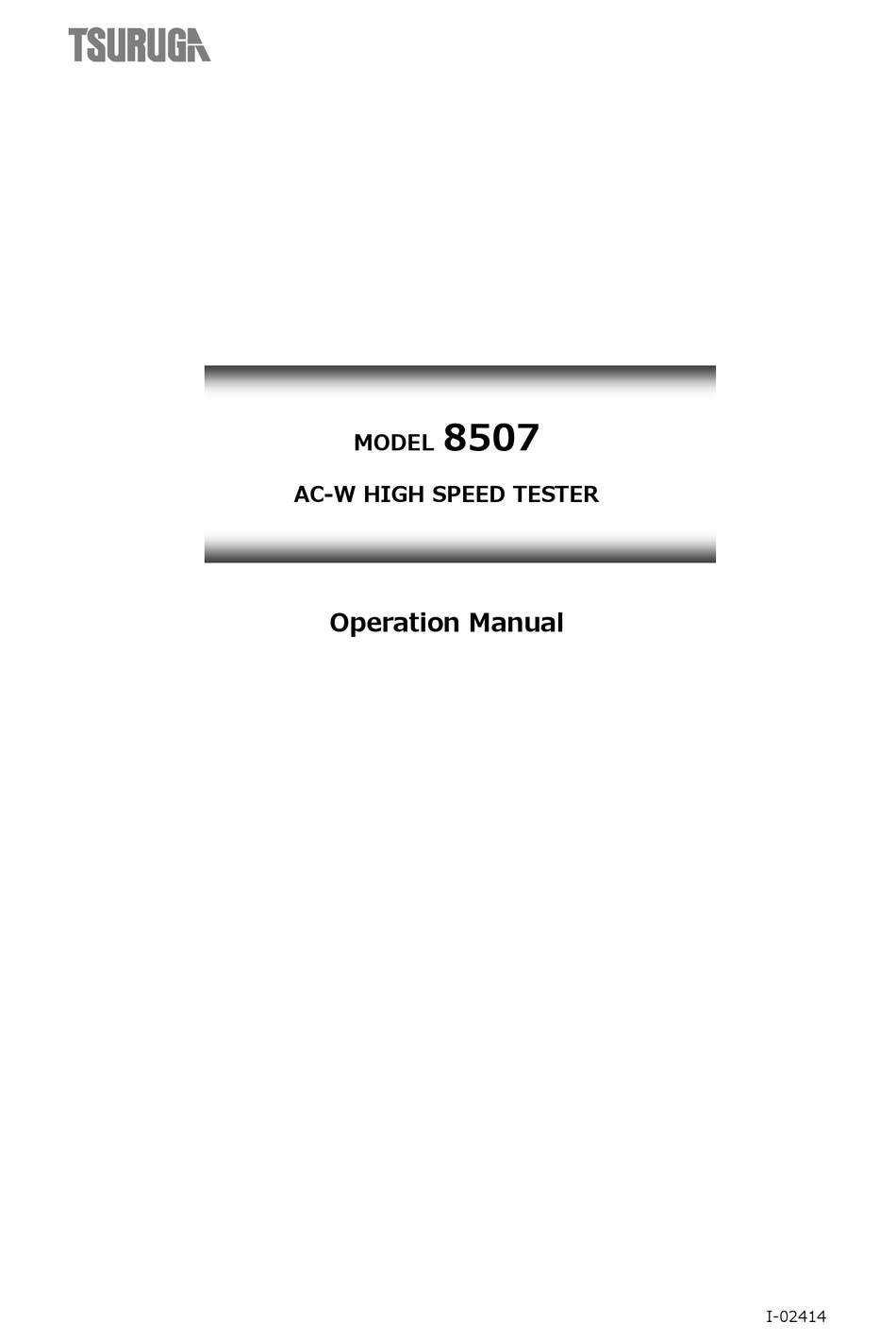

- Page 1 8507 MODEL AC-W HIGH SPEED TESTER Operation Manual I-02414...
-
Page 2: Table Of Contents
４.６ Equipment setting ······························································································· 19 ４.６.1 Start input setting ··················································································· 20 ４.６.2 Selection of memory setting by REMOTE I/O ··············································· 20 ４.６.3 Buzzer setting ························································································ 21 ４.６.4 Communication setting ············································································ 22 ４.７ System setting ···································································································· 23 ４.７.１ Contrast setting ····················································································· 23 MODEL 8507... - Page 3 ７.2 List of communication command and response ·························································· 33 ８．Error display, etc. ···························································· 39 ９．Maintenance ··································································· 40 10．Troubleshooting ····························································· 40 1１．Specifications ································································ 41 11.１ Test conditions ··································································································· 41 11.２ General specification ···························································································· 43 11.３ Table of factory setting ························································································ 44 11.４ External dimensions ···························································································· 45 MODEL 8507...
- Page 4 This page is blank. MODEL 8507...
-
Page 5: １．Preface
１．Preface We would like to thank you for your purchase of our MODEL 8507. For safety and proper use of this product, please carefully read this operation manual before the use. 【Feature / Characteristics】 8507 is a withstand voltage tester with maximum output 1000V and output capacity 10VA. -
Page 6: Warning And Caution During Measurement
If power supply is done by UPS （Uninterruptible power supply device) or DC-AC inverter, do not use rectangular wave or pseudo rectangular wave output of UPS or DC-AC inverter. If used, this may cause the malfunction of the instrument. MODEL 8507 - 2 -... -
Page 7: ２．Preparation Before Use
If the earthing is imperfect, there is a risk of an electric shock. 2.３ Connection of the external control equipment External control equipment can be connected to the remote I/O connector ⑩ Ref. to “6. External control” for information about connection method. - 3 - MODEL 8507... -
Page 8: Connection Of High Voltage Cable
However, TEST VOLTAGE and CURRENT/RESISTANCE display firm version. After a few seconds, the display would be of test mode when the previous power was turned off. ４ Press “○” side of the POWER switch of the rear panel to turn it off. MODEL 8507 - 4 -... -
Page 9: 3．Name Of Parts
F1 to F4 these keys are used to set various test conditions and comparators. ⑤ START switch Switch to start the test during manual mode. ⑥ STOP switch Switch to stop the test when test is undergoing. It clears all waiting judgment. - 5 - MODEL 8507... -
Page 10: Rear Panel
⑪ RS-232C connector Connector for RS-232C communication. ⑫ Power inlet Connect the supplied power supply cord. Use the power supply voltage and frequency within the specified range. ⑬ Power supply switch Power supply ON/OFF switch. MODEL 8507 - 6 -... -
Page 11: Display Panel
⑮Test voltage Displays the test voltage setting. (10V to 1100V) ⑯Frequency of the tested voltage Displays the set frequency value of the tested voltage. ⑰Status Display the status of 8507. Standby state ︓Ready Under test ︓RUN During Interlock (Open)︓LOCK REMOTE setting REMOTE ︓ R MEM.CTL setting REMOTE︓... -
Page 12: ４．Operation
F1[SET] Setting screen SETTING MODE F4[ENT] MEMORY SET 4.2.1 Refer to MEMORY SET flow F1[SEL] F4[ENT] GENERAL SET 4.2.2 Refer to GENERAL SET flow F1[SEL] F4[ENT] SYSTEM SET 4.2.3 Refer to SYSTEM SET flow F1[SEL] MODEL 8507 - 8 -... -
Page 13: Memory Set Flow
0 1. 0 s standby screen F1[SEL] Select of function (Downward only) F2[▲]、F3[▼] Switching between contents Note：When TIMER is selected, if F1[SEL] key is pressed, the screen is switched to 1/2 of the MEMORY SET. - 9 - MODEL 8507... -
Page 14: General Set Flow
1/3 of the GENERAL SET. ４.２.3 SYSTEM SET flow Standby screen SYSTEM SET Contents Function C O N T R A S T F4[ENT] Memorize and return to standby screen F2[▲]、F3[▼] Switching between contents MODEL 8507 - 10 -... -
Page 15: Key Lock
Display of the back ground of LOCK changes which shows that instrument is in locked condition. ●Cancellation of key lock During the key in locked condition, press F4 [LOCK] key for more than 3 s. Key lock will be released. - 11 - MODEL 8507... -
Page 16: Memory
Memory from no. 1 to no. 8 can be selected. ●External control method Refer to memory operation (6.1.3) for detail information. ［Memory registration］ After selecting the memory No. you want to register, select test mode, test voltage, frequency, comparator and timer with MEMORY SET. MODEL 8507 - 12 -... -
Page 17: Memory Setting
︓Change of setting values F3 [▼] ︓Selection of setting from TEST MODE , FREQ setting value can be increased or decreased by numerical setting. F4 [ENT] ︓Memorize the setting and the display returns to standby state. - 13 - MODEL 8507... -
Page 18: Selection Of Memory
② Press F2 [▲], F3 [▼] key to select MANUAL CLR/AUTO CLR. ③ Press F4 [ENT]key to memorize the setting and the display returns to standby state. To continue the other setting, select the items that you want to change by pressing F1 [SEL]key MODEL 8507 - 14 -... -
Page 19: Setting Of The Test Voltage
If keys are kept pressed, the value is changed continuously. Setting range 0V to 1100V (Resolution 10V) ③ Press F4 [ENT]key to memorize the setting and the display returns to standby state. To set other values, select the item by pressing F1[SEL]key - 15 - MODEL 8507... -
Page 20: Setting Of The Frequency
During 50 cycles at 50Hz (1.0s.), if 60Hz is set, it becomes 60 cycles (1.0s.). Calculation error may occur when frequency setting is changed many times. Make sure that the timer setting is accurate when frequency setting is changed. MODEL 8507 - 16 -... -
Page 21: Setting Of The Comparator
If the key is pressed continuously, speed can be changed in 3 stages. ③ Press F4 [ENT]key to memorize the setting and the display returns to standby state. To continue the other setting, select the items that you want to change by pressing F1 [SEL]key - 17 - MODEL 8507... -
Page 22: Setting Of Timer
During 50 cycles at 50Hz (1.0s.), if 60Hz is set, it becomes 60 cycles (1.0s.). Calculation error may occur when frequency setting is changed many times. Make sure that the timer setting is accurate when frequency setting is changed. MODEL 8507 - 18 -... -
Page 23: Equipment Setting
AC-W HIGH SPEED TESTER Operation key F1 [SEL] ︓Select setting items. Back ground color of selected item is changed. F2 [▲], F3 [▼] ︓Setting can be changed. F4 [ENT] ︓Memorize the setting and display returns to standby state. - 19 - MODEL 8507... -
Page 24: Start Input Setting
REMOTE: MEM1, MEM2, MEM4, MEM8 SEL is selected by signals of REMOTE I/O. ③ Press F4 [ENT] key to memorize the setting and the display returns to standby state. To continue the other setting, select the items that you want to change by pressing F1 [SEL] key MODEL 8507 - 20 -... -
Page 25: Buzzer Setting
Setting range : 1 to 9 ③ Press F4 [ENT] key to memorize the setting and the display returns to standby state. To continue the other setting, select the items that you want to change by pressing F1 [SEL] key. - 21 - MODEL 8507... -
Page 26: Communication Setting
NONE EVEN ③ Press F4 [ENT] key to memorize the setting and display returns to standby state. To continue the other setting, select the items that you want to change by pressing F1 [SEL] key. MODEL 8507 - 22 -... -
Page 27: System Setting
③ Press F4 [ENT] key to memorize the setting and the display panel returns to standby state. To continue the other setting, select the items that you want to change by pressing F1 [SEL] key. - 23 - MODEL 8507... -
Page 28: ５．Testing
During test if the Interlock is activated, the test is stopped and test condition returns to standby status. ④ Stop by error During test if an error is detected, the test is stopped. If STOP switch is pressed at standby state, all judgments are cancelled. MODEL 8507 - 24 -... -
Page 29: Remote Operation
― ― ― 〇 ― 〇 〇 ― ― 〇 〇 〇 〇 ― PROTECTION ― ― ― 〇 ― ― INTENAL ERR ― ― ― ― 〇 ― 〇︓Lamp on [ON] ―︓Lamp off [OFF] - 25 - MODEL 8507... -
Page 30: ６．External Control
Output Test signal READY Output Standby signal INTERNAL ERR Output Internal error signal Test output drop, High internal temperature, trouble of 8507 etc. PROTECTION Output Output ON, when Interlock is Open (under operation) GOOD Output Output of GOOD judgment Output HIGH or LOW judgment, and when INTERNAL ERR or PROTECTION is ON, outputs ON. -
Page 31: Input/Output Signal
② Input the memory No. code. MEM No. MEM1 MEM2 MEM4 ― ― ― ○ ― ― ― ○ ― ○ ○ ― ― ― ○ ○ ― ○ ― ○ ○ ○ ○ ○ ○︓ON（Connection with COM） －︓OFF（OPEN） - 27 - MODEL 8507... -
Page 32: Internal Circuit Configuration
６.1.４ Internal circuit configuration 8507 PLC etc. +24V Output START STOP Common PLC etc. Input TEST GOOD Common Internal common (This terminal is insulated from the protective earthing of the main body.) MODEL 8507 - 28 -... -
Page 33: External Control Timing Chart
During HIGH NG digital judgment(the same as Interlock and Internal error) START １ ３ ２ ４ NG measurement. max3ms Stop after 1cycle HV OUT Timer TEST READY HIGH judgment 0 display １ ２ ３ Display HIGH NG - 29 - MODEL 8507... - Page 34 ①Switching by Memory selection (MEM 1, 2, 4). ②Indicate the Memory switching by MEM SEL signal. ③8507 reads memory by MEM SEL signal and output OFF of the 'Ready for Reading'. ④After READY is turned to ON, START signal is acceptable.
-
Page 35: ７．Communication (Rs-232C)
Pin No. Direction Function JIS (RS-232C) １ Not used ２ RD (RXD) Input Received data ３ SD (TXD) Output Transmission data ４ Not used ５ SG (GND) Ground signal ６ ７ Not used ８ ９ - 31 - MODEL 8507... -
Page 36: Operation
When the test is completed or status is changed, output of test data and status information are obtained. Transmission Transmission of test result of status information 8507 End of the test (Standby) Operation Change of status During operation ON signal of STOP MODEL 8507 - 32 -... -
Page 37: List Of Communication Command And Response
Sp Cr STATUS=ERR5 Error 5 Internal error and low voltage Sp Cr STATUS=ERR6 Error 6 Internal Heat up and low voltage Sp Cr STATUS=ERR7 Error 7 Internal error, internal heat up and low voltage Sp Cr MODEL 8507 - 33 -... - Page 38 During HIGH or LOW Judgment operation. Sound volume 08 Sp Sp Sp Sp BUZZ=OFF , 03 BUZZ=OFF , 03 Buzzer OFF (No operation) BUZZ=ERR Setting canʼt be done during OFF Line. Sp Sp Sp Sp Cr MODEL 8507 - 34 -...
- Page 39 Set voltage DC20V（Voltage setting range: 0000V to 1100V, Step 10V） VOLT=0020V VOLT=0100V VOLT=0100V Set voltage DC100V VOLT=0500V Set voltage DC500V VOLT=0500V VOLT=1000V Set voltage DC1000V VOLT=1000V VOLT=ERR Setting canʻt be done during OFF Line. Sp Sp Cr MODEL 8507 - 35 -...
- Page 40 Manual clear mode･･･ Pressing STOP can clear NG judgment, and the test starts. MODE=AUTO MODE=AUTO Automatic clear mode･･･Test can start, when the judgment is NG . MODE=ERR Setting canʻt be done during OFF Line. Sp Cr MODEL 8507 - 36 -...
- Page 41 ･･･Release NG by pressing STOP and START again. START=ERR When ONLINE setting is OFF. (Unable to test start) Sp Sp Sp Cr STOP STOP Undergoing test cancellation During standby state, judgment result becomes clear (Make OFF) MODEL 8507 - 37 -...
- Page 42 Output once to RS-232C, when test ends or condition is changed. When test ends: Reply format of DATA? When condition is changed: Reply format of STATUS? Set OFF of data output operation. Output data, responding to data requesting command. MODEL 8507 - 38 -...
-
Page 43: ８．Error Display, Etc
PCB might have occurred. Send back to manufacturer or authorized dealer for checking. Heat up of the test voltage output part. Power off and wait until the 8507 is cooled down. ERR2 Heat up If 8507 is heated up frequently in spite not high surrounding temperature, it might be malfunctioning. -
Page 44: ９．Maintenance
The regular calibration is needed to obtain correct test result within the range of specified accuracy. The cycle of calibration depends on actual usage condition and environment of customers. We recommend for regular calibration at TSURUGA ELECTRIC CORPORATION depending on the condition of tester used by customers. -
Page 45: 1１．Specifications
Aprrox.3 mm Green OLED panel Operation Display the applied voltage during test. At the end of the test, display is retained. The value after NG judgment doesn’t necessarily reflect the NG value, because of response speed. - 41 - MODEL 8507... - Page 46 Test repeat waiting time ︓Min. 10 ms. The time of output applied voltage is within 50% of repeating cycle. HV OUT TEST START min T×2 HV OUT TEST START T1+T2+T3 <= t1+t2+t3 T1+T2+T3 <= 60sec MODEL 8507 - 42 -...
-
Page 47: General Specification
︓260 (W) 246 (D) × 110 (H) (excl. buttons and legs) Weight ︓4.5 kg Accessories ︓High voltage cable 1piece Low voltage cable 1piece Earth wire 1piece Power code 2.5m 1piece REMOTE I/O plug 1piece Operating manual (This book) 1part - 43 - MODEL 8507... -
Page 48: Table Of Factory Setting
Setting range Contents Initial setting User setting CONTRAST 1 to 5 Brightness of front panel ３ Other setting Item Setting range Contents Initial setting User setting LOCK ON, OFF Key locking, Enable/Disable of front keys MODEL 8507 - 44 -... -
Page 49: External Dimensions
EARTH TERMINAL. Installation condition︓ Keep more than 50 mm open space on the top and side of 8507. Covering on top and bottom ventilation surface leads to damage or shorten the product life. When this tester is mounted in a system rack etc., arrange heat exchange fan so that the temperature do not exceed the usage condition. -
Page 50: Model
8507 MODEL Tsuruga Electric Corporation Osaka Headquarters 1-3-23, Minamisumiyoshi, Sumiyoshi-ku, Osaka, Japan, 558-0041 TEL 81-6-6692-6700, FAX 81-6-6609-8115 E-mail: ft.info@tsuruga.co.jp Yokohama Office 1-29-15, Shinyokohama, Kohoku-ku, Yokohama, Kanagawa, Japan, 222-0033 Tokyo Office 5-25-16, Higashigotanda, Shinagawa-ku, Tokyo, Japan, 141-0022 Nagoya Office Sun Park Higashi Betsuin Bld. 2F...
