50126 & 50126-R: WIRELESS REMOTE CONTROL DUAL OUTLETS
A. Function
1.
Perfect for landscape, holiday and security lighting.
2.
For both outdoor and indoor use
3.
Remote distance: 100ft
4.
One 12V, CR2032 battery included (transmitter).
5.
One transmitter can control two or more receivers, while one receiver can be controlled by Max. 5
transmitters
6.
Receiver can be ON/OFF, photocell, countdown by the manual button(No.7)
7.
Indicate light has been includes both in the transmitter and receiver
B. Structure
1
2
3
4
5
6
7
8
9
Number
Name
1
Photocell
2~5
Countdown 8H/6H/4H/2H Automatically OFF
6
ON
Manual
10
11
12
13
Function
Automatically trigger ON when dusk, trigger OFF when dawn
at night
later
Power ON the outlet device
17
14
15
16
when 8 hours/6 hours/4 hours/2 hours
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Woods 50126-R
Summary of Contents for Woods 50126-R
- Page 1 Manual 50126 & 50126-R: WIRELESS REMOTE CONTROL DUAL OUTLETS A. Function Perfect for landscape, holiday and security lighting. For both outdoor and indoor use Remote distance: 100ft One 12V, CR2032 battery included (transmitter). One transmitter can control two or more receivers, while one receiver can be controlled by Max. 5 transmitters Receiver can be ON/OFF, photocell, countdown by the manual button(No.7)
- Page 2 Button Press to transfer the receiver’s different functions Photocell probe Detect the illumination automatically Outlet indicate light The indicate light ON when the outlet is plugged-in Power ON Press to remote control the receiver’s outlet ON 11,14,13,15 Countdown 2H/4H/6H/8H Press to remote control the receiver at night to be OFF when 2 hours/4 hours/6 hours/8 hours later,...
- Page 3 433.92MHz DC3V Receiver operation temperature：-20 - 45°C Transmitter operation temperature: 0-40°C G. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 corps.
Need help?
Do you have a question about the 50126-R and is the answer not in the manual?
Questions and answers
Remote does not emit a light with new battery
The Woods 50126-R remote may not emit a light with a new battery if pairing with the receiver was unsuccessful. Ensure the receiver indicator light is flashing before pressing any button on the remote. If the light continues flashing for more than 10 seconds, unplug the receiver and repeat the pairing steps. Also, do not plug in multiple receivers at first use to avoid interference.
This answer is automatically generated
I need a replacement remote control for my. Three receptacle timer
The manual does not provide specific instructions for obtaining a replacement remote control for the Woods 50126-R three receptacle timer. However, you may consult the dealer or contact customer support at (800) 561-4321 for assistance.
This answer is automatically generated
I still am unsure about how to engage the 2h, 4h, etc option
Woods 50126R - The remote doesn't appear to be working, even though I've replaced the battery. Is it likely that it's broken? There doesn't seem to be any troubleshooting ideas in the manual, for this issue.

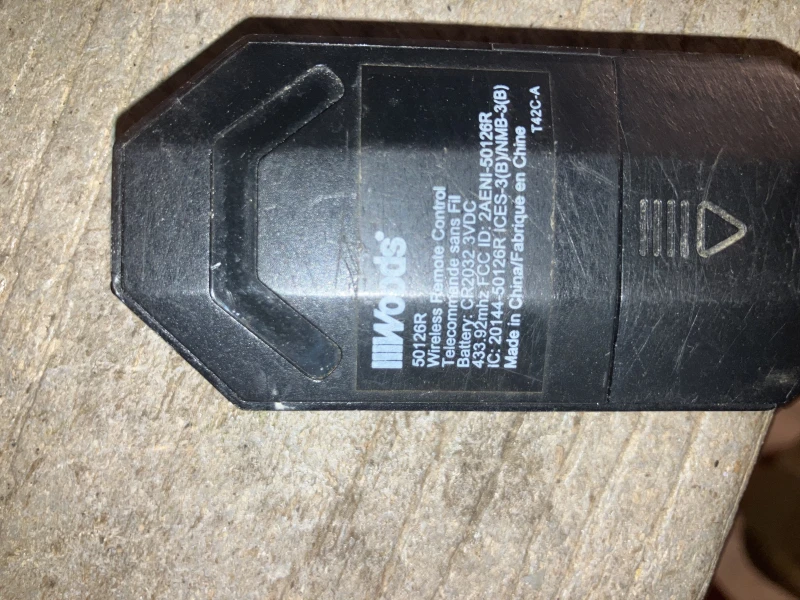

battery replacement
battery replacement.
