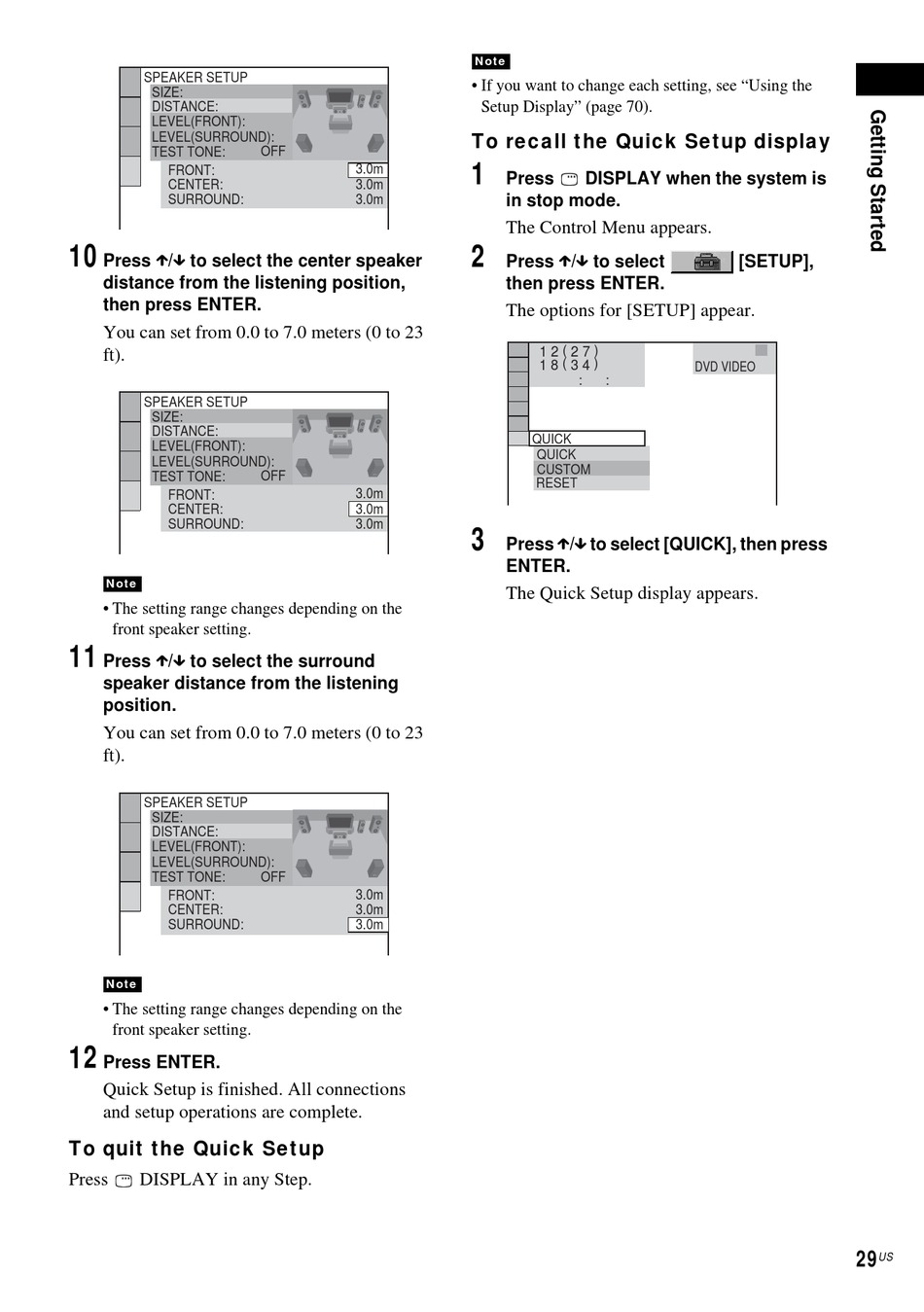

Sony DAV-DX170 Operating Instructions (Main Stereo System) Operating Instructions Manual page 29

SPEAKER SETUP
SIZE:
DISTANCE:
LEVEL(FRONT):
LEVEL(SURROUND):
TEST TONE:
FRONT:
CENTER:
SURROUND:
10
Press X/x to select the center speaker
distance from the listening position,
then press ENTER.
You can set from 0.0 to 7.0 meters (0 to 23
ft).
SPEAKER SETUP
SIZE:
DISTANCE:
LEVEL(FRONT):
LEVEL(SURROUND):
TEST TONE:
FRONT:
CENTER:
SURROUND:
Note
• The setting range changes depending on the
front speaker setting.
11
Press X/x to select the surround
speaker distance from the listening
position.
You can set from 0.0 to 7.0 meters (0 to 23
ft).
SPEAKER SETUP
SIZE:
DISTANCE:
LEVEL(FRONT):
LEVEL(SURROUND):
TEST TONE:
FRONT:
CENTER:
SURROUND:
Note
• The setting range changes depending on the
front speaker setting.
12
Press ENTER.
Quick Setup is finished. All connections
and setup operations are complete.
To quit the Quick Setup
Press DISPLAY in any Step.
OFF
3.0m
3.0m
3.0m
OFF
3.0m
3.0m
3.0m
OFF
3.0m
3.0m
3.0m
Note
• If you want to change each setting, see "Using the
Setup Display" (page 70).
To recall the Quick Setup display
1
Press DISPLAY when the system is
in stop mode.
The Control Menu appears.
2
Press X/x to select
then press ENTER.
The options for [SETUP] appear.
1 2 ( 2 7 )
1 8 ( 3 4 )
: :
QUICK
QUICK
CUSTOM
RESET
BNR
3
Press X/x to select [QUICK], then press
ENTER.
The Quick Setup display appears.
[SETUP],
DVD VIDEO
29
US
