TV
AUDIO
OUT
L
R

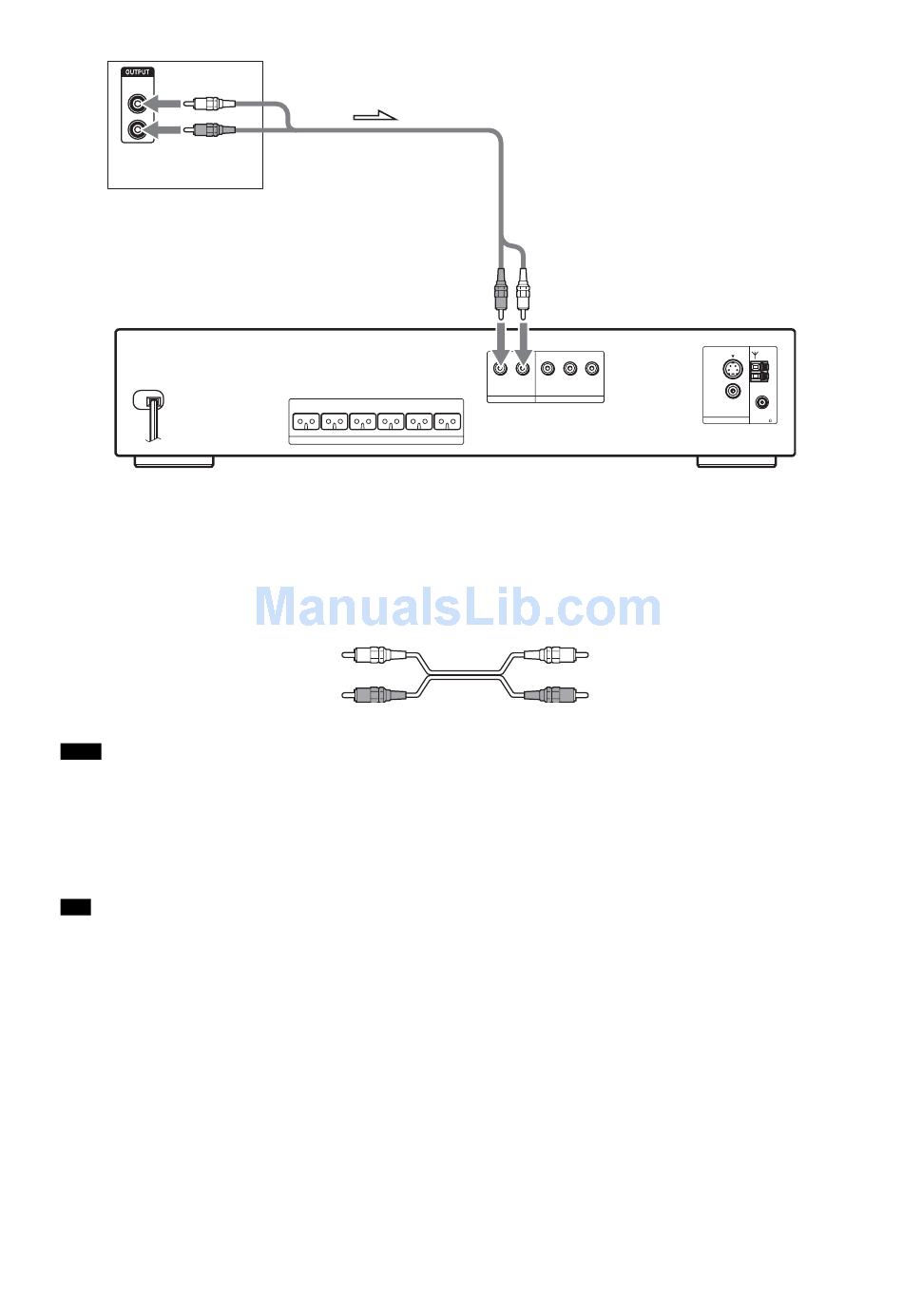

To connect the AUDIO OUT jacks of a TV to the VIDEO/SAT (AUDIO IN)
jacks of this system
Connect a TV to the VIDEO/SAT (AUDIO IN) jacks using an audio cord (not supplied). When
connecting a cord, be sure to match the color-coded sleeves to the appropriate jacks on the components.
Note
• Be sure to make connections securely to avoid hum and noise. If using the VIDEO/SAT jacks distorts the sound,
change the attenuate setting (page 66).
• If your TV does not have AUDIO OUT jacks, you cannot output the TV sound from the speakers of this system.
• If you connect a TV to the VIDEO/SAT (AUDIO IN) jacks, other components, such as a VCR, cannot be
connected.
Tip
• To listen to the TV sound, select the function by pressing FUNCTION. For details, see page 56.
• When you want to output the TV sound or stereo sound of a 2 channel source from the 6 speakers, select the "Dolby
Pro Logic," "Dolby Pro Logic II MOVIE," or "Dolby Pro Logic II MUSIC" sound field (page 54).
• When you select the "NIGHT" sound field (page 54), the sound is output from the front speakers only.
