INSTALLATION, CARE & USE MANUAL
VRC8WS, VRC8WSJO, VRCTL8WS, VRCTLR8WS Factory Prep

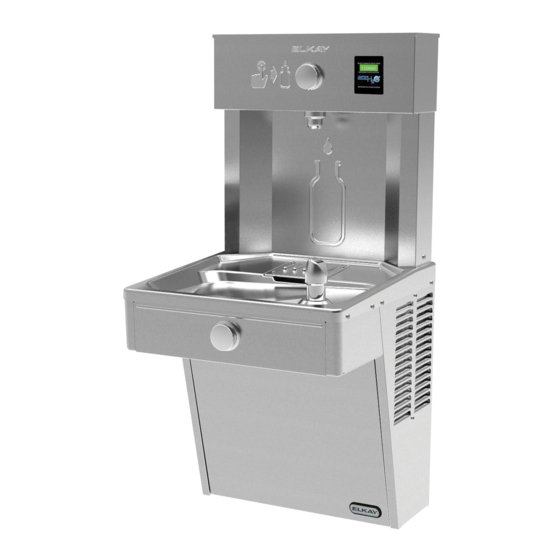

EZH2O Bottle Filling Station and Cooler
IMPORTANT
THIS IS AN INDOOR/OUTDOOR APPLICATION.
ALL SERVICE TO BE PERFORMED BY AN
Model VRC8WS
AUTHORIZED SERVICE PERSON.
Model VRCTL8WS
Model VRCTLR8WS
Page 1
98982C (Rev. K - 06/16)
