AXESB-2C
:
INSTALLATION GUIDE
MAIN BODY INSTALLATION:
STEP 1:
Remove the Left or Right Side
Table from the ALXE cart.
(for the purpose of this guide the
AXESB-2C will be installed on
right side of the cart.)
The side table is supported by 4
Philips screws (10-32) accessible
from the bottom side.
STEP 2:
Install 4 new 10-32 x 1/2" socket
head screws as well as the

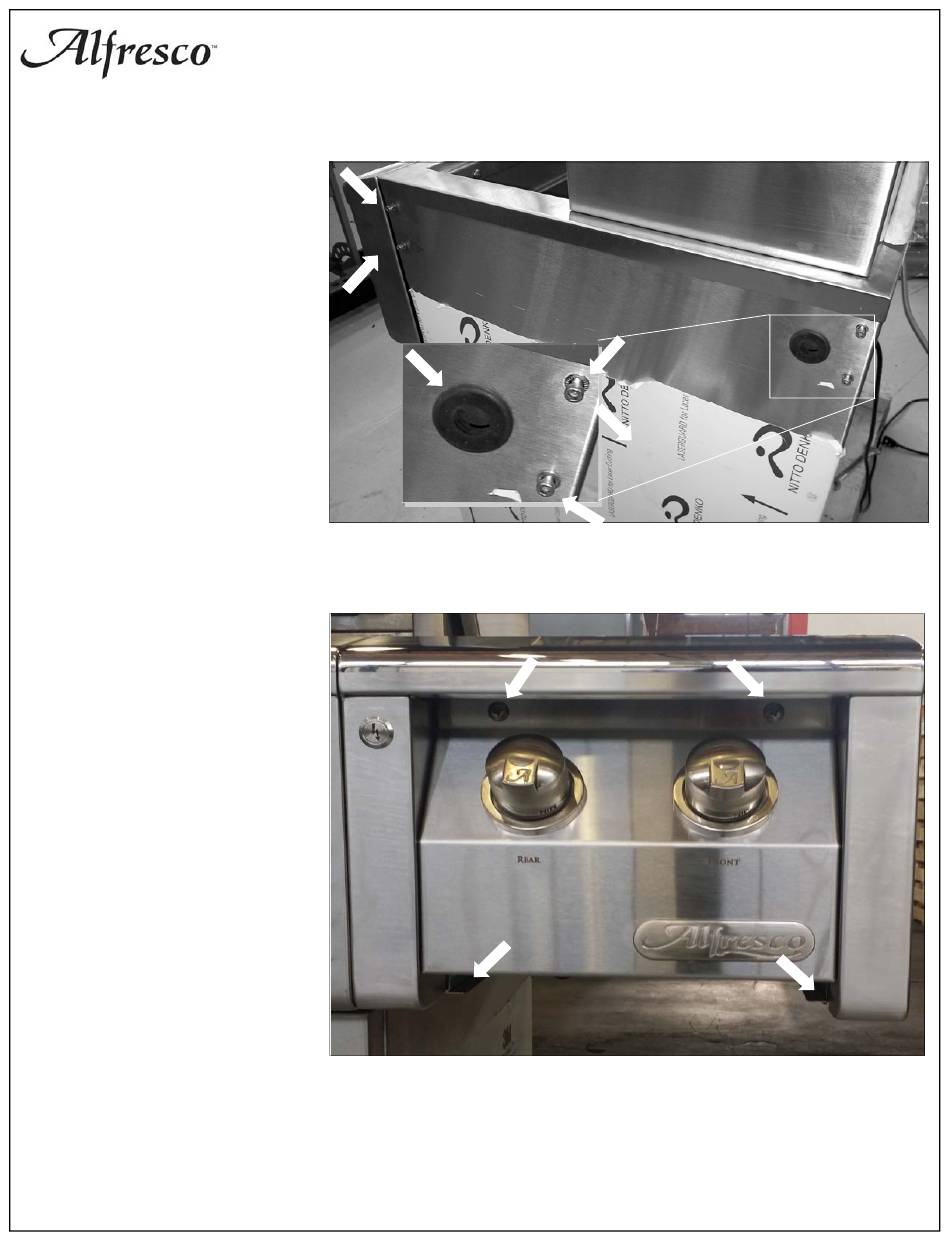

Picture 1
11/16"Ø grommet provided.
(see picture 1)
STEP 3:
Remove the AXESB-2C burner
knobs.
Remove AXESB-2C front panel
by loosening the 2 Philips screws
on the inside top and 2 hex-head
bolts at the bottom.
(see picture 2)
STEP 4:
Install the AXESB-2C side burner
body on the cart by hooking and
latching the body of the burner
onto the cart's screws installed in
STEP 2. (see picture 3)
Picture 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alfresco AXESB-2C
Summary of Contents for Alfresco AXESB-2C
- Page 1 STEP 1: Remove the Left or Right Side Table from the ALXE cart. (for the purpose of this guide the AXESB-2C will be installed on right side of the cart.) The side table is supported by 4 Philips screws (10-32) accessible from the bottom side.
- Page 2 STEP 5: Fasten the screws that the AXESB-2C has been latched on with the 5/32” Allen Wrench provided. Screws are accessible on the back at locations A and B (picture 3) , and locations C and D on the front. (picture 4)
- Page 3 LP or NG gas leaks are present. Finish by closing off and re- installing all panels on the back sides of the AXESB-2C and the ALXE BBQ unit. 1/2”NPT x 3/8”OD Compression Your AXESB-2C is ready for use.
