CAN FD Repeater
CAN-CR100, CAN-CR110/FO, CAN-CR120/HV, CAN-CR300
USER MANUAL
4.01.0210.20000 1.3 en-US ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ixxat CAN-CR100 and is the answer not in the manual?

Questions and answers

Summary of Contents for HMS Ixxat CAN-CR100

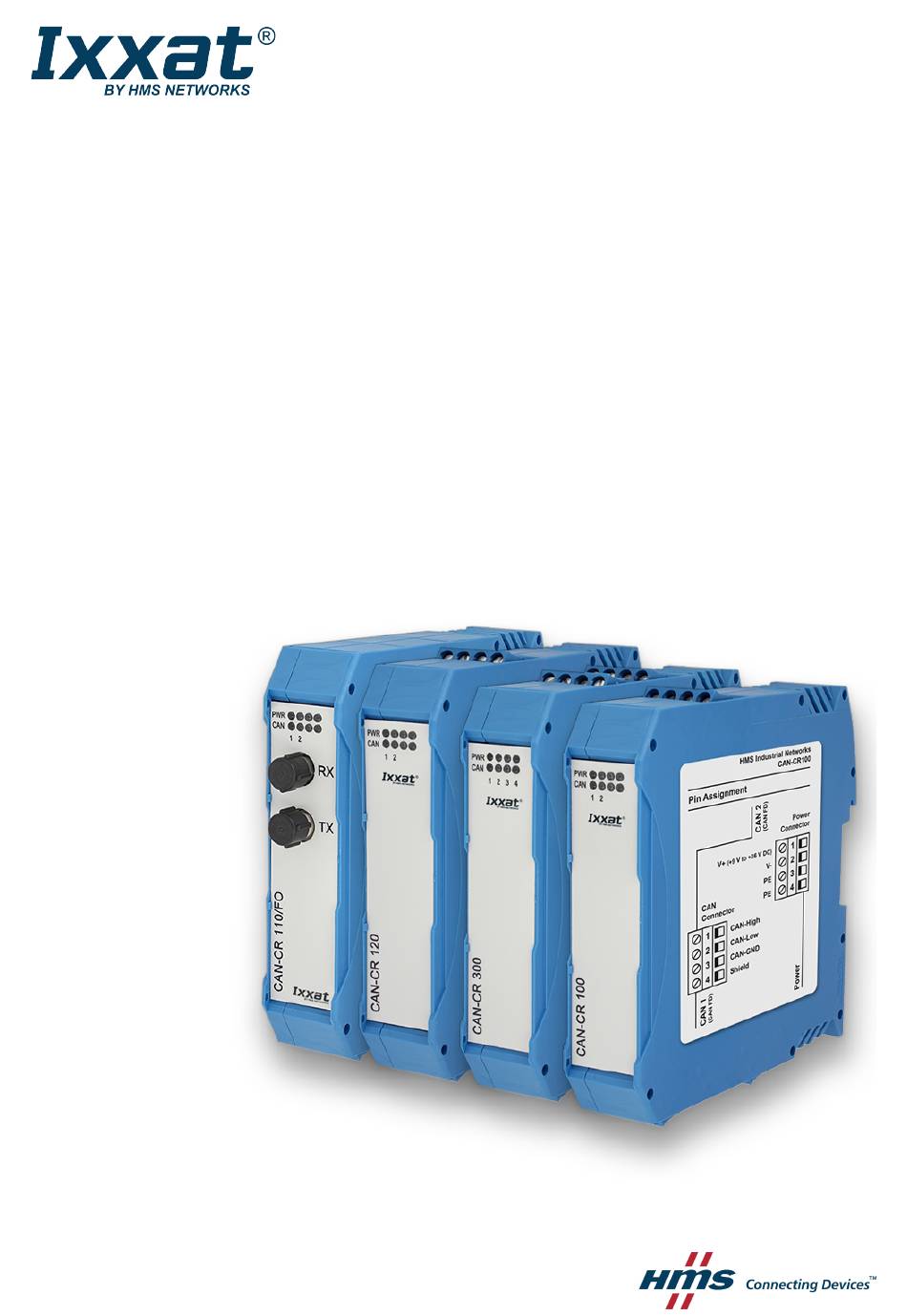

  • Page 1 CAN FD Repeater CAN-CR100, CAN-CR110/FO, CAN-CR120/HV, CAN-CR300 USER MANUAL 4.01.0210.20000 1.3 en-US ENGLISH...
  • Page 2 HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Industrial Networks and is subject to change without notice.
  • Page 3: Table Of Contents

    Table of Contents Page User Guide ........................... 3 Target Audience.......................3 Document History ......................3 Trademark Information .....................3 Conventions........................4 Safety Instructions ......................5 Information on EMC ......................5 General Safety Instructions ....................5 Intended Use........................5 Scope of Delivery ........................ 5 Product Description ......................6 Configuration........................
  • Page 4 This page intentionally left blank...
  • Page 5: User Guide

    Layout changes, added description for lock time and extending the recessive bit May 2019 Corrections bit rate Trademark Information Ixxat ® is a registered trademark of HMS Industrial Networks. All other trademarks mentioned in this document are the property of their respective holders. 4.01.0210.20000 1.3 en-US CAN FD Repeater User Manual...
  • Page 6: Conventions

    This is a cross-reference within this document: Conventions, p. 4 This is an external link (URL): www.hms-networks.com Safety advice is structured as follows: Cause of the hazard! Consequences of not taking remediate action.
  • Page 7: Safety Instructions

    Technical Data, p. 12). ► Protect product from fire. Do not paint the product. ► Do not modify or disassemble the product. Service must be carried out by HMS Industrial ► Networks. Store products in dry and dust-free place. ► Intended Use The devices are used to establish a physical coupling of two or more segments of a CAN or CAN FD bus system.
  • Page 8: Product Description

    • 1 kV isolation voltage HMS Industrial Networks offers cable assemblies (F-SMA) in various lengths to connect two CAN-CR110/ CAN-CR300 • 4 x CAN/CAN FD interfaces according to ISO 11898-2 •...
  • Page 9: Configuration

    Configuration 7 (18) Configuration To operate the CAN repeater no software installation is required. The CAN repeater is configured via DIP switches (1). Fig. 1 DIP switches Configuring the Lock Time The CAN transceiver transmits data and receives these transmitted data again after a certain delay, the so-called loop delay.
  • Page 10: Extending The Recessive Bit

    Configuration 8 (18) Extending the Recessive Bit Due to the internal structure the CAN transceiver shortens recessive bits on the network, and thus dominant bits are extended. At high bit rates this might cause errors. To extend the recessive bits may improve the error rate, as the bits then are closer to their nominal value on the network.
  • Page 11: Installation

    Installation 9 (18) Installation Mounting the Device Fig. 2 Mounting on DIN rail Make sure that the lock time is configured (see Configuration, p. ► ► Make sure, that the device is not connected to power supply. ► Hook the device onto the upper lip of the rail and push downwards (1). ►...
  • Page 12: Power Connector

    Installation 10 (18) 6.2.1 Power Connector Pin Allocation Pin no. Signal +9 V to +36 V DC — — 6.2.2 CAN Connector Pin Allocation Pin no. Signal CAN high CAN low CAN GND Shield If a D-Sub 9 connector is used, observe the following pin allocation of the D-Sub 9 connector. Pin no.
  • Page 13: Operation

    Operation 11 (18) Operation LEDs 1 2 3 Fig. 4 LED array LEDs PWR 2/3/4 do not have any function. The LEDs CAN 3/4 are activated only with CAN-CR300. 7.1.1 Power LED Power LED PWR 1 indicates the status of the power supply. LED state Description Comments...
  • Page 14: Technical Data

    Technical Data 12 (18) Technical Data Weight Approx. 150 g Operating temperature -20 °C to +70 °C Storage temperature -40 °C to + 85 °C +9 V to +36 V DC Power supply Housing material Polyamid CAN/CAN FD transceiver Microchip MCP2562FD CAN bus termination resistor 120 Ohm (only with variants with integrated bus termination resistor) CAN bit rates...
  • Page 15: Support/Return Hardware

    13 (18) Support/Return Hardware Support/Return Hardware Observe the following information in the support area on www.ixxat.com: • information about products • FAQ lists • installation notes • updated product versions • updates Support For problems or support with the product request support at www.ixxat.com/support. ►...
  • Page 16 This page intentionally left blank...
  • Page 17: A Regulatory Compliance

    Phone +1 312 829 0601 Any changes or modifications not expressly approved by HMS Industrial Networks could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 18: Rohs Directive

    When this product reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local HMS office or return it to HMS. For more information, see www.hms-networks.com.
  • Page 19 This page intentionally left blank...
  • Page 20 © 2019 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se 4.01.0210.20000 1.3 en-US / 2019-05-23 / 13396...

This manual is also suitable for:

Ixxat can-cr120/hvIxxat can-cr300Ixxat can-cr110/fo
