Summary of Contents for Wostman EcoFlush

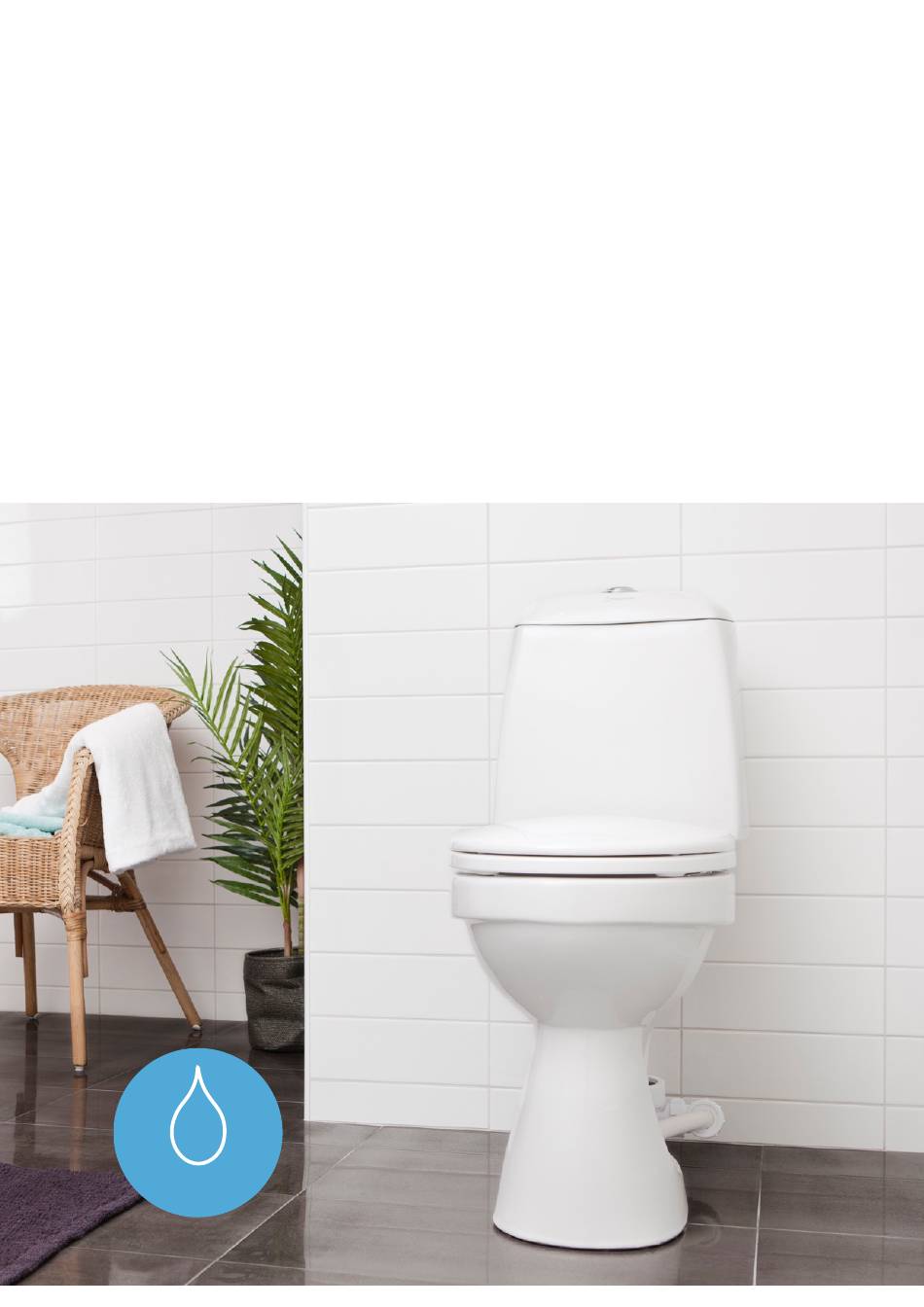

- Page 1 This manual should be saved! EcoFlush Manual Wostman 2018:2...
- Page 2 It’s important to read the whole manual before installation. • • EcoFlush gives the possibility of using extremely low flush volumes and are delivered with factory settings set at 2.5 / 0.35 liters. This needs to be controlled during installation. •...
- Page 3 Drawings WC / Ritning WC 70 mm 605 mm 370 mm Water trap Vattenlås 110 mm* 350 mm * Different alternatives / olika alternativ Wostman EcoFlush manual 2018:2 Page...
- Page 4 Installation alternative 1 / Installeringsalternativ 1 Wc-stos RSK: 308 01 99 50 mm > 115 mm CW ø 110 mm Wostman EcoFlush manual 2018:2 Page...
- Page 5 Installation alternative 2 / Installeringsalternativ 2 110 mm > 115 mm CW > 115 mm CW Ø 110 mm Ø 50 mm Ø 110 mm ~ 330 mm CC Ø 50 mm Wostman EcoFlush manual 2018:2 Page...
- Page 6 Installation alternative 3, 4, 5 / Installeringsalternativ 3, 4, 5 Septic tank Phosphorus reducing tank Greywater sewage Slamavskiljare Fosforbrunn Bdt-avloppet Aquatron / compost unit Greywater sewage Phosphorus reducing tank (Kompostenhet/ biokammare) Bdt-avloppet Fosforbrunn Municipal wastewater sewers Direkt till kommunalt avlopp Wostman EcoFlush manual 2018:2 Page...

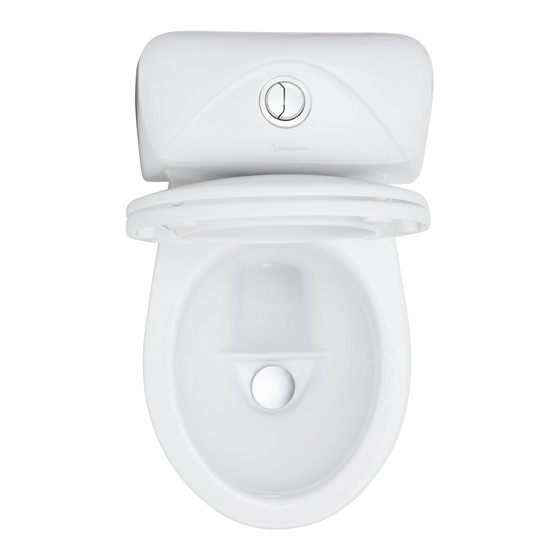

- Page 7 Installing the WC / Installera WCn EcoFlush has a new built-in water trap in the front urine bowl. No other water trap should be installet in the urine outlet. EcoFlush har ett nytt inbyggt vattenlås i den främre urinskålen. Inget annat vattenlås ska installeras i urinavloppet.
- Page 8 Control and/or change flush volumes The flush volumes should be controlled when installing the toilet and changed if need to. EcoFlush gives the possibility of extremely low flush volumes and requires only between 2,5 - 3,5 L for the big flush and 0,35 L for the small flush.
- Page 9 Clean the urine pipe / Rengör urinslangen Clean the urine pipe Clean the urine outlet regularly for best longtime result. Rengör urinslangen Rengör urinavloppet regelbundet för att uppnå bäst långsiktigt resultat. Wostman EcoFlush manual 2018:2 Page...
- Page 10 Wostman Eco-toilets from Sweden! www.wostman.se...
