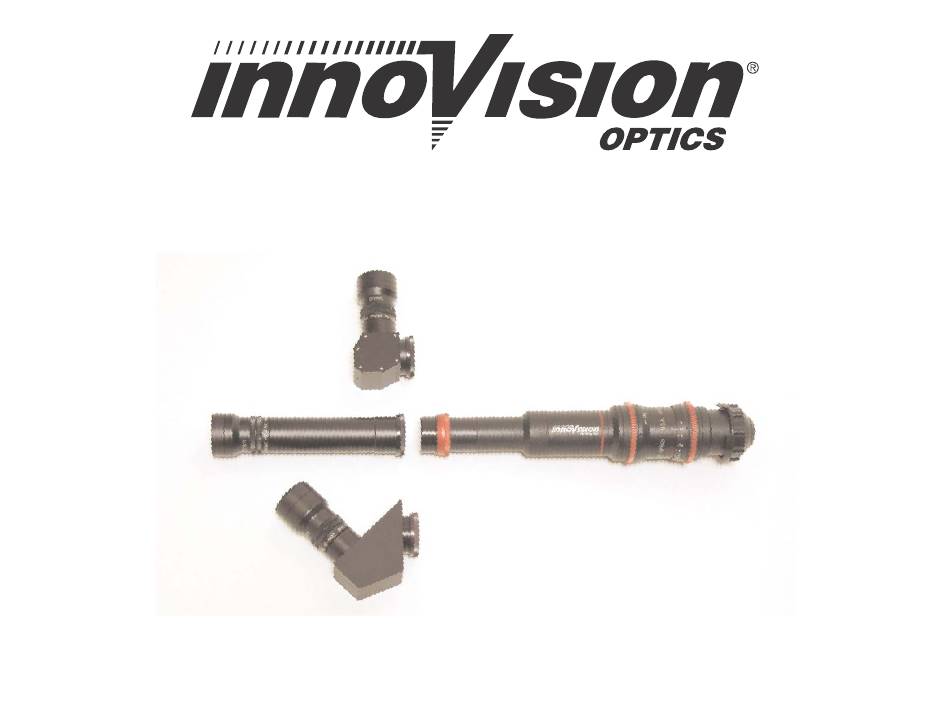

- Page 1 35mm Probe II+ Lens System Manual and Depth of Field Charts For additional technical support, please call 310-453-4866 www.innovision-optics.com This manual is available for download from the website.
- Page 2 35mm Probe II+ Lens System Hints, Tips and Notes Tighten the taking lens fully against the module so that the O-Ring properly seals. Failure to fully tighten the lenses will cause a loss of infinity focus. When used underwater, it is important that all O-Rings are installed and they should be lightly greased to prevent them from “bunching up”...
- Page 3 35mm Probe II+ Lens System Direct View Configuration...
- Page 4 35mm Probe II+ Lens System 45 Degree View Configuration...
- Page 5 35mm Probe II+ Lens System 90 Degree View Configuration...
- Page 6 35mm Probe II Plus Objective Lens Coverage Minimum Focus Lens Format @ Full Aperature T-Stop @ Format Corner (from front glass) TV Safe T 32 1/4" 12mm Academy T 32 1/2" 16mm Full T 32 1 1/4" 20mm Full T 22 2"...
- Page 7 Tips and Techniques for Close Focus shim Use Remove "O" Ring from Probe II focusing Relay Mount Shim between Objective Lens and Relay Lens is NOT WATERPROOF when Using Shims Infinity Focus will be lost Depth of field will become more narrow as a thicker shim is used Only one shim should be used - Do not combine shims Shims->...
- Page 8 35mm Probe II Plus LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.952 1.818 2.607 3.331 3.997 4.612 5.180 5.708 6.200 1.053 2.223 3.532 5.004 6.675 8.585 10.790 13.365 16.412 Near 0.940 1.774 2.519 3.188 3.792 4.341 4.841 5.299 5.720 1.068...
- Page 9 35mm Probe II Plus LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.973 1.893 2.766 3.594 4.382 5.131 5.845 6.526 7.177 1.029 2.120 3.278 4.509 5.822 7.223 8.724 10.333 12.065 Near 0.965 1.866 2.709 3.498 4.240 4.938 5.596 6.217 6.805 1.037...
- Page 10 35mm Probe II Plus LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.984 1.938 2.864 3.761 4.632 5.478 6.300 7.098 7.875 1.016 2.066 3.150 4.271 5.431 6.632 7.875 9.164 10.500 Near 0.980 1.922 2.829 3.701 4.542 5.353 6.134 6.889 7.618 1.021...
- Page 11 35mm Probe II Plus LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.990 1.960 2.911 3.844 4.758 5.655 6.535 7.399 8.246 1.010 2.041 3.094 4.169 5.268 6.390 7.536 8.708 9.906 Near 0.987 1.950 2.888 3.804 4.697 5.569 6.420 7.251 8.064 1.013...
- Page 12 35mm Probe II Plus LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.996 1.984 2.965 3.937 4.903 5.860 6.811 7.754 8.690 1.004 2.016 3.036 4.065 5.101 6.146 7.200 8.262 9.333 Near 0.995 1.980 2.955 3.921 4.877 5.824 6.761 7.690 8.609 1.005...
- Page 13 35mm Probe II Plus LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.997 1.990 2.977 3.960 4.937 5.910 6.878 7.841 8.799 1.003 2.010 3.023 4.041 5.064 6.093 7.127 8.166 9.211 Near 0.997 1.987 2.971 3.949 4.921 5.886 6.845 7.799 8.746 1.003...
